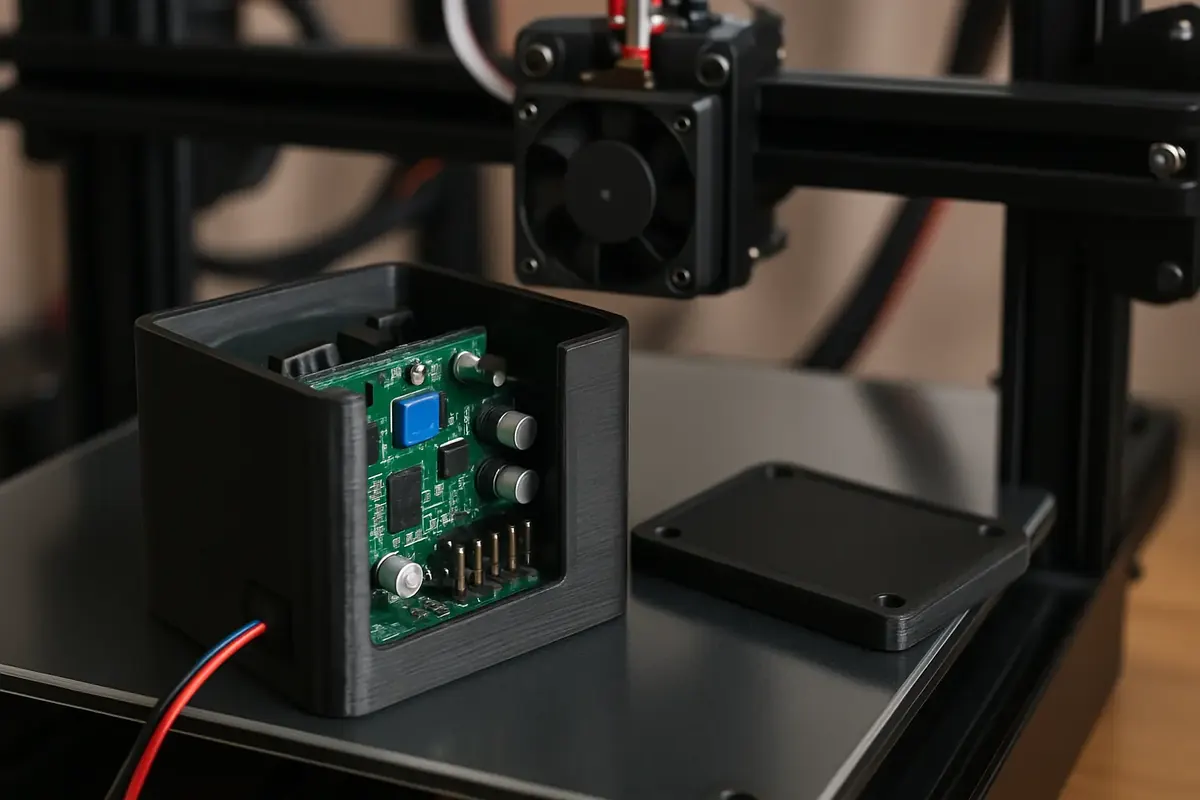

3D Printing Custom Enclosures for Electronics: A Complete Guide

Need a housing for your Raspberry Pi, Arduino project, or IoT sensor setup? Instead of buying off-the-shelf boxes that never quite fit, why not design and 3D print your own custom electronic enclosures?

With 3D printing, you can create perfectly tailored cases for any circuit board, sensor, or display—adding mounting features, cable channels, and ventilation exactly where you need them. In this complete guide, we’ll walk you through the entire process—from planning and design to printing and post-processing—to help you build professional-quality enclosures from your desktop.

Why Use 3D Printing for Electronics Enclosures?

3D printing offers a level of customization and flexibility that off-the-shelf enclosures simply can’t match.

Key Benefits:

• Perfect fit for your components
• Custom port cutouts and buttons
• Internal supports, standoffs, and mounts
• Ventilation holes, snap fits, and branding
• Rapid prototyping for product development
• One-offs or small batch production

Whether you’re a hobbyist or a startup, 3D printed enclosures can significantly accelerate your project timeline.

Step 1: Planning Your Enclosure

Before jumping into CAD, collect all your enclosure requirements:

Measure Everything

• Use digital calipers to measure your PCB dimensions, connectors, and component heights.
• Note port locations (USB, Ethernet, HDMI, etc.) and clearances.

Consider These Key Design Elements:

• Mounting holes or standoffs for the board
• Cable management paths
• Access to buttons, screens, or LEDs
• Cooling and ventilation needs
• Lid or door design (screw-on, snap-fit, hinged)
• Assembly method (screws, friction-fit, magnets)

📌 Sketch your enclosure idea on paper before CAD—this helps clarify the shape and features you need.

Step 2: Designing the Enclosure in CAD

You don’t need to be a CAD expert to design enclosures—just follow some key techniques.

Popular CAD Tools for Enclosure Design:

Pro Tips:

• Use parametric design: You can easily adjust dimensions later.
• Import your PCB as a STEP file if available for accurate modeling.
• Add generous tolerances (typically 0.2–0.4 mm) for FDM printing clearance.
• Include chamfers or fillets to avoid sharp corners.
• Design the case in two parts (base and lid) for easier assembly and wiring access.

Step 3: Choosing the Right Filament

The material you choose impacts strength, heat resistance, and overall function.

📌 Avoid PLA for devices near heat sources or in sunlight—it warps easily.

Step 4: Slicing Your Enclosure for Printing

Before printing, slice your design with settings that optimize strength and quality.

Recommended Print Settings:

• Layer height: 0.2 mm (0.3 mm for faster prints, 0.1 mm for detail)
• Wall/perimeter count: 3–4 for strong outer shells
• Infill: 20–40% (gyroid or grid is ideal)
• Supports: Use only where needed (e.g., port overhangs)
• Bed adhesion: Skirt or brim for PETG/ABS

Printing Orientation Tips:

• Print the enclosure base upside-down for better dimensional accuracy on mating surfaces.
• Avoid large flat surfaces facing the bed with PLA—can cause warping or poor adhesion.

Step 5: Assembly and Post-Processing

Once printed, a few finishing steps can take your enclosure from functional to professional.

Common Post-Processing Steps:

• Deburr and sand mating surfaces or ports
• Drill out holes for screws or switches for perfect fit
• Add threaded inserts with a soldering iron for reusable screw holes
• Apply heat-set inserts or magnets for lids and doors
• Paint or finish with primer and spray paint for aesthetics
• Use silicone feet or rubber pads for stability

Advanced Features You Can Add

• Hinged doors or flip lids
• OLED or LCD screen mounts
• Snap-fit tabs or latches
• Heat vents or fan mounts
• Light pipes for LEDs
• Custom logos or labels via embossed text

You can also export your design for CNC machining or injection molding if you move toward mass production.

Safety Tips for Enclosures with Electronics

• Use non-conductive materials (PLA, PETG, ABS)
• Ensure adequate ventilation for heat-producing components
• Don’t enclose high-voltage components in tight, flammable spaces
• Use nylon standoffs or screws to reduce short risk
• Keep wiring accessible for future troubleshooting

Real-World Applications

FAQs

Q1: What’s the best material for an electronics enclosure?

PETG offers a strong balance between durability, heat resistance, and ease of printing. Use ABS or ASA for high-heat or outdoor environments.

Q2: How do I make sure my board fits perfectly?

Measure accurately, allow for tolerance in CAD (0.2–0.4 mm), and do a test fit with a dummy print if possible.

Q3: Can I use heat-set inserts in PLA?

Yes, but PETG or ABS handles heat-set inserts more reliably without deformation.

Q4: How do I prevent enclosure warping?

Use proper bed leveling, slow cooling (especially for ABS), and orient the print for stability.

Conclusion

3D printing your own electronics enclosures is one of the most rewarding and practical uses of a desktop printer. With careful planning, accurate measurements, and the right materials, you can build enclosures that look professional, fit perfectly, and support your project’s performance.

From Raspberry Pi cases to IoT sensor housings, the possibilities are endless—and fully customizable. Master this skill, and you’ll gain the freedom to build smarter, neater, and more robust electronic projects from start to finish.
