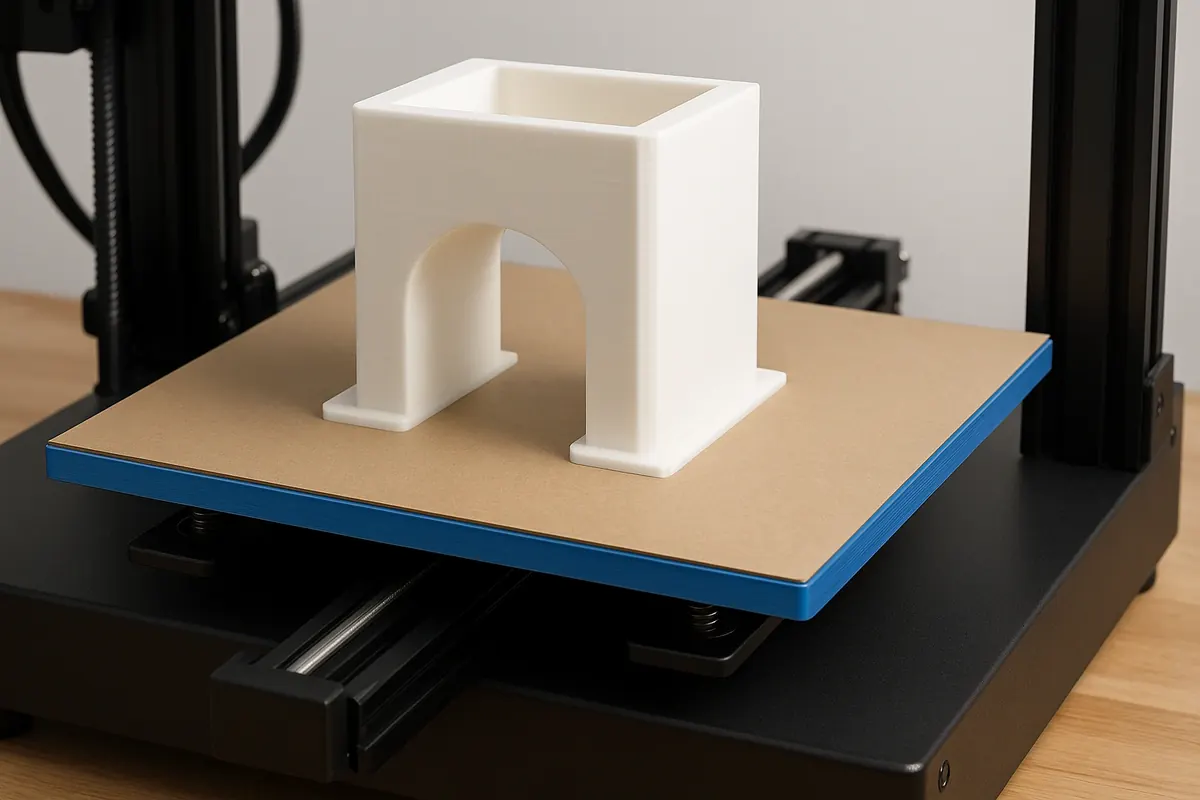

Custom Build Plate Solutions for Large and Complex Prints

As 3D printing technology advances, so does the demand for larger and more complex models—from architectural prototypes and cosplay armor to industrial-grade components and functional assemblies. While most consumer printers come equipped with standard-size beds, users who want to scale up often face challenges related to adhesion, warping, surface flatness, and print reliability.

The solution lies in custom build plate configurations tailored for oversized or intricate models. This article explores the need for custom build plates, the different types of solutions available, and how to choose or build one that meets your specific project requirements. Whether you’re printing large prototypes or high-resolution mechanical parts, this guide will help you create a solid foundation—literally—for success.

Why Standard Build Plates Fall Short for Complex Prints

Default build plates that come with consumer printers typically measure around 220 x 220 mm to 300 x 300 mm. These are sufficient for small- to medium-sized models, but as models grow in scale or complexity, several issues emerge:

• Inadequate surface area: The model doesn’t fit the bed, requiring splitting or scaling down.
• Edge warping: Larger prints cool unevenly, especially near the edges.
• Adhesion failures: The larger the footprint, the more critical perfect bed contact becomes.
• Bed deformation: Standard beds may flex or warp under the stress of heat and weight.
• Material shrinkage: Complex geometries with sharp corners are more prone to pulling away from the bed.

A custom build plate addresses these limitations by providing better surface area, thermal consistency, and material-specific compatibility.

Types of Custom Build Plate Solutions

Custom build plates aren’t just about making the surface bigger—they’re about optimizing the entire print foundation. Below are the most effective options used by advanced users and professionals.

1. Oversized Magnetic Build Plates

Best For: Users printing frequently with PLA, PETG, or TPU in large volumes.

• These are spring steel sheets combined with high-temperature magnets and PEI or textured coatings.
• Ideal for build volumes over 350 x 350 mm.
• Offers strong adhesion and flexible removal for large surface area parts.

Benefits:

• Easy to remove large prints without tools.
• Modular and replaceable surface coatings.
• Available in textured finishes for better grip.

Considerations:

• Needs a high-temp magnetic base that withstands prolonged 100–130°C exposure.
• Bed must be extremely flat to prevent inconsistent first layers.

2. Heated Glass Build Plates (Tempered or Borosilicate)

Best For: High-precision prints requiring ultra-flat surfaces.

• Glass remains flat over large areas and conducts heat well when paired with a quality heating system.
• Excellent for achieving glossy finishes on first layers.

Benefits:

• Rigid and dimensionally stable.
• Easy to clean and maintain.
• Works well with adhesives like glue or Magigoo.

Considerations:

• Fragile under mechanical shock.
• May require edge clamps or mounting brackets.
• Not ideal for high-warp filaments without adhesives or enclosures.

3. Custom Aluminum Beds with High-Wattage Heaters

Best For: Industrial applications and high-temp materials (ABS, Nylon, PC).

• CNC-milled aluminum beds paired with silicone heaters and insulated backing.
• Offers superior heat distribution and mechanical strength.

Benefits:

• Can handle extended print times and high thermal stress.
• Compatible with large-format CoreXY or cartesian builds.
• Allows mounting of various surface sheets (PEI, BuildTak, Garolite).

Considerations:

• Requires external power handling (AC or high-wattage DC).
• Higher cost and electrical safety measures required.
• Longer heat-up times if not properly insulated.

4. Modular Tiled Bed Systems

Best For: Enormous prints or batch printing multiple items simultaneously.

• The build plate consists of multiple smaller heated tiles.
• Each tile is individually controlled or managed in zones.

Benefits:

• Can isolate heat to where printing occurs, conserving energy.
• Easier replacement or repair of damaged sections.
• Allows flexibility in bed use for prints of varying size.

Considerations:

• Complex wiring and firmware configuration.
• More expensive and better suited to custom-built printers.

5. Flexible Garolite or Carbon-Fiber Sheets

Best For: Printing Nylon, carbon-filled filaments, or other engineering-grade materials.

• Garolite (G10/FR4) provides excellent adhesion for Nylon without adhesives.
• Carbon-fiber sheets resist warping and wear over time.

Benefits:

• Consistent grip with warp-prone materials.
• Long-lasting surface with little maintenance.
• Ideal for enclosed printers with large chambers.

Considerations:

• Less versatile across different materials.
• Requires high-temperature beds and often insulation underneath.

Design Considerations for Custom Build Plates

When configuring or building your custom plate system, keep these critical factors in mind:

1. Size and Print Volume

Determine the maximum model size you plan to print. Allow extra space for rafts, skirts, or multi-part assemblies.

• Common large build sizes: 400 x 400 mm, 500 x 500 mm, or custom CoreXY up to 1000 mm.
• Larger beds require more powerful heating and reinforced frames to prevent sagging.

2. Heating Power and Distribution

Uniform heating is crucial for adhesion and warping prevention. Large plates need:

• Silicone heaters rated at 500W to 1200W+
• High-temp magnets or adhesives (if magnetic)
• Insulated backs using cork, silicone foam, or fiberglass mats

A temperature gradient across the plate often leads to edge curling or internal stress cracks.

3. Material Compatibility

Select a surface coating based on the filaments you’ll print most often:

No single surface performs best with every filament. Some users rotate sheets based on material.

4. Flatness and Leveling

A large build plate must maintain precise flatness across its entire area. Deviations in surface height cause poor first-layer adhesion or Z-wobble.

Best practices include:

• CNC-milled or cast aluminum for flatness.
• ABL sensors like BLTouch or inductive probes.
• Mesh leveling to compensate for minor warps.
• Manual bed tramming at regular intervals.

5. Safety and Power Requirements

Large build plates require careful electrical design:

• Use SSR (solid-state relay) if heating via AC power.
• Ensure firmware supports PID tuning and thermal protection.
• Include thermal fuses or watchdog timers for safety.

Always consult a qualified technician when upgrading to high-wattage beds or AC-powered systems.

Common Use Cases for Custom Build Plates

Custom plates are not only for oversized prints—they offer advantages in precision, multi-material usage, and advanced print strategies.

1. Cosplay Armor and Props

• Armor pieces often exceed standard bed sizes.
• One-piece printing avoids seams or bonding errors.
• Larger plates reduce post-processing time.

2. Architectural Models

• Intricate baseplates or structural parts benefit from large, stable surfaces.
• Adhesion and thermal balance are essential for sharp features.

3. Functional Mechanical Assemblies

• Complex geometries printed in one go eliminate tolerance stacking errors.
• Engineering-grade materials need high-temp surfaces and enclosure compatibility.

4. Batch Manufacturing

• Custom plates allow printing of multiple objects simultaneously.
• Modular plates help isolate heat where needed, saving energy and reducing cycle times.

5. Art and Sculpture

• Artists using 3D printing for sculpture or installation pieces benefit from unrestricted build volumes.
• Custom build plates allow creative flexibility without compromise.

Maintenance Tips for Custom Build Plates

Even custom surfaces require consistent care. Follow these best practices:

• Clean regularly with 90%+ isopropyl alcohol or material-specific cleaners.
• Avoid over-scraping, especially on PEI and BuildTak.
• Inspect wiring and heater mats periodically.
• Store extra surfaces flat and away from direct sunlight or humidity.
• Use test prints to calibrate surface behavior before full projects.

FAQs

Can I build my own large build plate?

Yes, but it requires planning. You’ll need:

• A flat aluminum plate or glass sheet
• Properly sized silicone heater
• Thermistor or temperature sensor
• Power supply rated for high wattage
• Mounting system compatible with your printer

Is a larger build plate always better?

Not always. Larger plates increase heat-up time, energy consumption, and leveling complexity. Use one only if your project justifies the scale.

Can I combine multiple sheets for a larger surface?

Yes, modular or tiled bed systems allow for this. However, leveling and consistent heating across seams is challenging and requires precise calibration.

What’s the most versatile surface for a custom plate?

Textured PEI on spring steel is among the most versatile, working well with PLA, PETG, TPU, and ABS when paired with the correct temperature settings.

Does build plate material affect print quality?

Absolutely. Surface material influences first-layer finish, adhesion, and even the dimensional accuracy of printed parts. The build plate is as important as any other component in print quality.

Conclusion

Custom build plate solutions unlock the full potential of your 3D printer when tackling large-scale and complex projects. Whether you’re printing a cosplay suit, a machine housing, or high-resolution functional parts, the right build surface makes all the difference in achieving consistency, adhesion, and structural integrity.

From heated aluminum beds to modular tile systems, selecting a custom plate is about more than size—it’s about stability, heat management, material compatibility, and long-term reliability. With proper planning and configuration, your custom plate can become the foundation of industrial-level 3D printing performance right on your desktop.
