ABS is one of the most versatile and strong 3D printing filaments—but it’s also notorious for warping, cracking, and poor bed adhesion, especially when printed in open environments. The solution? A heated chamber.

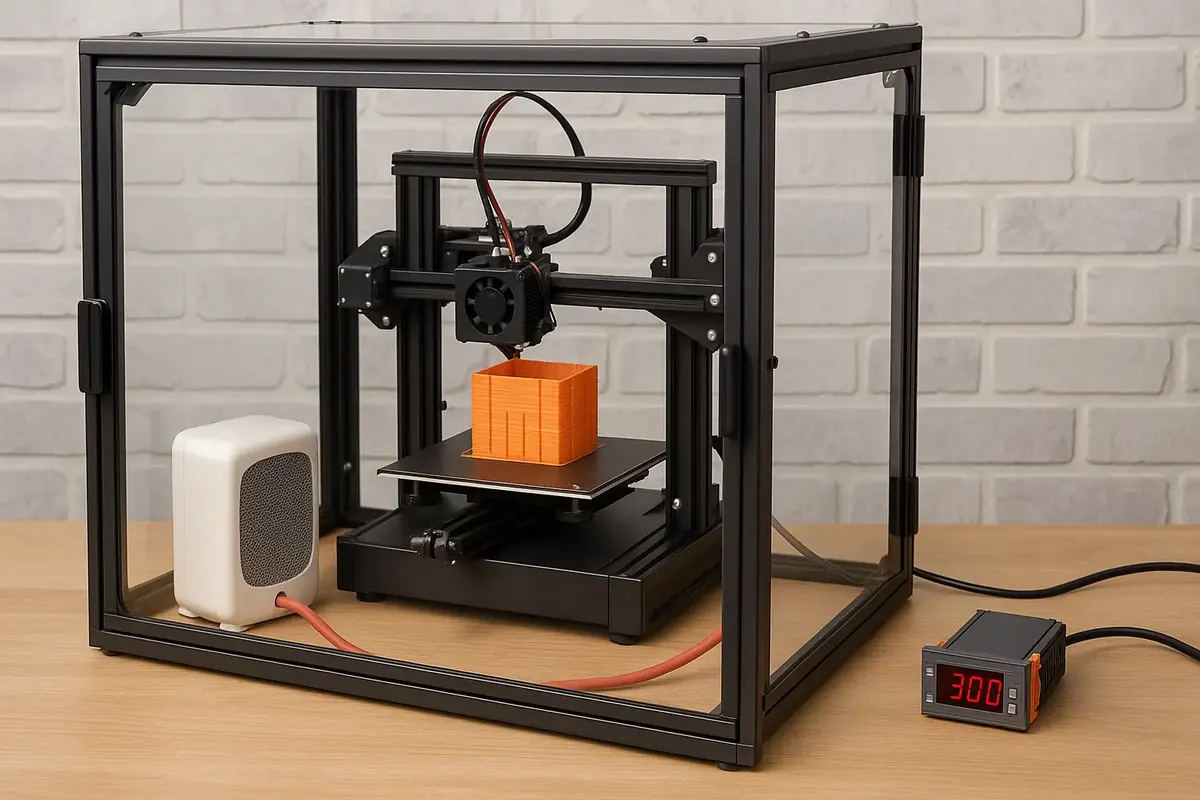

In this guide, you’ll learn how to build a DIY heated chamber for your 3D printer to master ABS printing at home, without needing an expensive industrial machine. Whether you’re printing functional parts or durable prototypes, this setup will drastically improve your success rate.
Why You Need a Heated Chamber for ABS
ABS requires a stable, warm environment to maintain layer adhesion and reduce warping during printing. Without it, sudden temperature drops cause parts to contract unevenly, resulting in:
- Warped bases
- Cracked layers
- De-lamination
- Failed prints
🔥 A heated chamber keeps the entire print environment warm—typically between 40–60°C—to prevent these problems.
Heated Chamber vs Enclosure: What’s the Difference?
| Feature | Enclosure | Heated Chamber |
|---|---|---|
| Purpose | Blocks drafts, keeps heat in | Actively maintains specific temperatures |
| Typical Temp | 25–35°C | 40–60°C or higher |
| Cost | Low | Moderate |
| Use Case | PLA, PETG, basic ABS | ABS, ASA, Nylon, PC |
📌 All heated chambers are enclosures, but not all enclosures are heated.
DIY Heated Chamber: What You’ll Need
| Item | Purpose |
|---|---|
| Fire-safe enclosure (metal, wood with insulation, or enclosure kit) | Base structure |
| Ceramic or PTC heater (50–200W) | Heat source |
| Temperature controller (e.g., Inkbird or custom Arduino) | Maintains target temp |
| Thermistor or digital thermometer | Measures internal temperature |
| Fire-resistant insulation (e.g., Rockwool, foam board with foil) | Keeps heat inside |
| Exhaust fan or vent with filters | Safety & air control |
| Smoke detector (optional but recommended) | Safety monitor |
Step-by-Step: Build a Heated Chamber for ABS
Step 1: Build or Source an Enclosure
- Use a metal cabinet, repurposed server rack, or DIY frame made from aluminum extrusion.
- Size it to fit your printer plus 10–15cm clearance on all sides.
- Line the interior with fire-resistant insulation—avoid flammable materials like cardboard or soft foam.
✅ Reflective foil insulation helps bounce heat evenly.
Step 2: Install a Heating Element
Use a ceramic or PTC heater with built-in thermal protection.
- Mount the heater on the rear or side wall.
- Choose a 50–150W model for small chambers, up to 200W for large enclosures.
- Ensure airflow is not blocked and keep it away from wiring or plastic parts.
📌 NEVER use exposed heating coils—they are fire hazards.
Step 3: Add a Temperature Controller
You need to regulate chamber temperature precisely. Use:
- Inkbird ITC-1000/310T-B: Reliable off-the-shelf option
- PID controller with SSR relay: Precise, advanced
- Arduino with thermistor and relay: DIY-friendly
Set your target to 45–55°C for ABS. Most heaters will maintain this with intermittent on/off cycles.
✅ Place the temperature sensor at the mid-point of the chamber for accurate readings.
Step 4: Provide Ventilation and Safety Features
- Add a small exhaust fan with a carbon or HEPA filter to remove fumes.
- Ensure no flammable materials are near the heater.
- Install a smoke detector for peace of mind.
- Optionally, use a fire blanket nearby for emergencies.
📌 Always supervise the printer while heating and printing ABS.
Step 5: Manage Electronics and Cooling
ABS heat can damage printer electronics (mainboard, PSU, stepper drivers) if exposed.
- Mount electronics outside the chamber, or:
- Use ducted cooling to direct fresh air to the electronics
- Some users extend wires to keep motors and boards in a separate control box
✅ Keep stepper motors below 50°C for safe operation.
Step 6: Test the Chamber
Before printing, test the chamber:
- Preheat it for 15–20 minutes.
- Observe how quickly it reaches and maintains your target temperature.
- Check for even heat distribution (no cold corners).
- Ensure no overheating of components inside.
Use a thermometer or thermal camera (if available) to spot-check.
ABS Printing Settings for Heated Chambers
| Setting | Recommended Value |
|---|---|
| Nozzle Temp | 230–250°C |
| Bed Temp | 100–110°C |
| Chamber Temp | 45–60°C |
| Cooling Fan | Off or < 20% |
| First Layer Speed | 15–25 mm/s |
| Retraction | 0.8–1.2mm @ 30 mm/s |
📌 Turn off part cooling fans—they cause warping with ABS.
Maintenance Tips
- Clean filters monthly
- Check all wiring for heat damage every 20–30 print hours
- Replace insulation if it gets damaged or contaminated
- Monitor heater for dust build-up and airflow blockage
Safety First: What to Avoid
🚫 Don’t use space heaters or DIY nichrome coils—fire risk
🚫 Never leave your printer unattended when chamber is actively heated
🚫 Avoid flammable adhesives (like hair spray) in high-heat zones
🚫 Don’t exceed your printer’s rated part temps (motors, plastic mounts)
FAQs
Q1: Can I use a heated chamber for PLA or PETG?
Not recommended. PLA softens at 60°C and may deform. PETG can benefit from mild enclosure heat (30°C), but not full chambers.
Q2: How long should I preheat the chamber before printing ABS?
10–20 minutes is usually enough. Start preheating while slicing or leveling your bed.
Q3: What’s the best target temperature for ABS chambers?
Between 45–55°C. Higher may cause issues with electronics or plastic parts inside the printer.
Q4: Can I use a 3D printer inside a grow tent or server cabinet?
Yes, with modifications for ventilation and fire safety. Ensure the material is heat-tolerant and well-insulated.
Conclusion
Building a DIY heated chamber for ABS is one of the most impactful upgrades you can make if you’re serious about printing strong, functional parts. With the right setup, you’ll experience:
✅ Fewer warps and cracks
✅ Stronger layer bonding
✅ Cleaner surface finishes
✅ Consistent, reliable prints
Follow the steps above carefully, always prioritize safety, and you’ll unlock the full potential of ABS and other high-performance materials—right from your home workshop.
