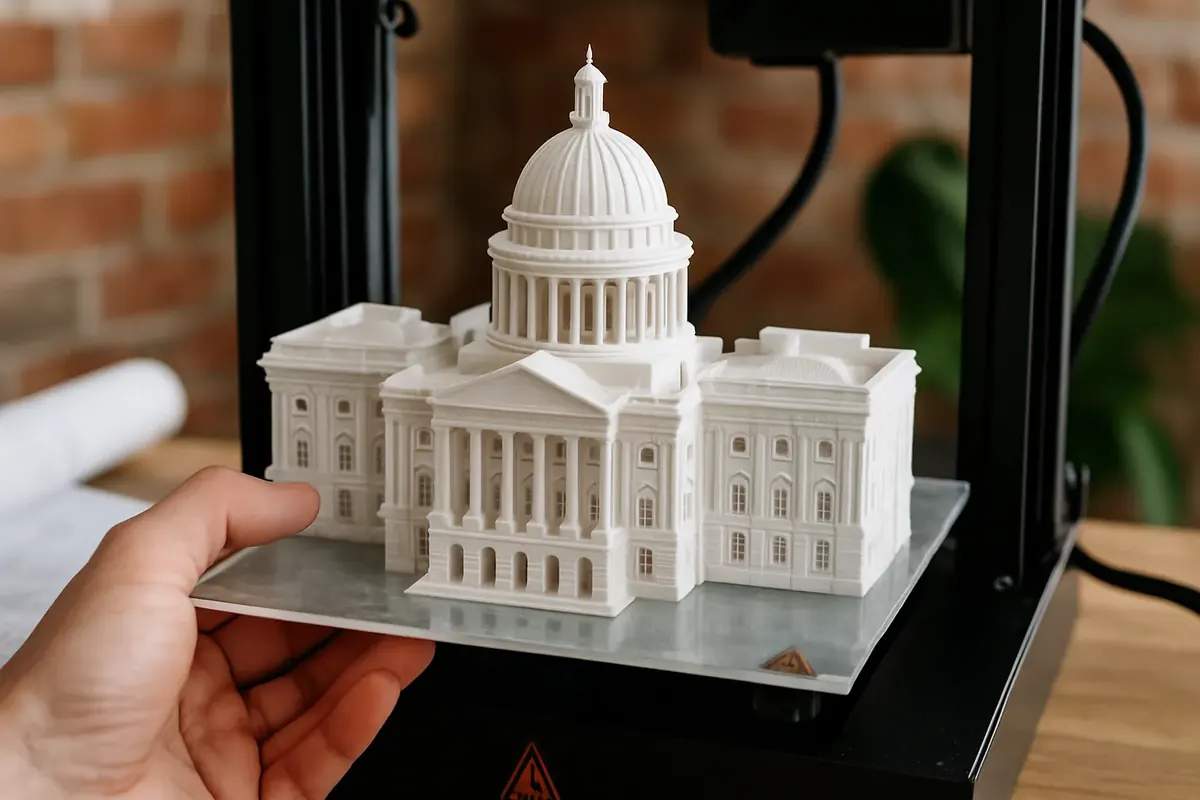

Architectural models serve as physical representations of design vision, structure, and spatial flow. From concept presentations to scaled urban landscapes, 3D printing has become one of the most powerful tools for creating detailed, accurate architectural models. However, producing fine detail at scale demands more than just hitting “print.” This guide will walk you through everything you need to know to create crisp, accurate, and professional-quality architectural models using 3D printing.
Why Use 3D Printing for Architectural Models?
3D printing offers unique advantages for architects, designers, and urban planners:
- Speed: Rapidly prototype complex geometries in hours instead of days.
- Detail: Showcase intricate features such as windows, facades, railings, and site contours.
- Customization: Tailor every model to scale, project, or presentation.
- Complex Geometry: Create shapes impossible to achieve with manual cutting or laser machining.
- Iteration: Make revisions quickly without rebuilding from scratch.
When tuned properly, 3D printing can create models that look clean, sharp, and visually compelling—perfect for client presentations or development approvals.
Step 1: Choose the Right Printing Technology
Different 3D printing technologies offer varying levels of precision, speed, and surface finish. Choose one based on the scale and complexity of your model.
FDM (Fused Deposition Modeling)
- Pros: Affordable, widely available, good for simple massing models or base plates.
- Cons: Limited in surface detail; small features may be rough or incomplete.
- Best Use: Site layouts, base platforms, or quick form studies.
SLA (Stereolithography)
- Pros: High-resolution printing with excellent fine detail.
- Cons: Slower, more expensive, and requires post-curing.
- Best Use: Intricate facades, fine columns, and detailed presentation models.
DLP and MSLA (Digital Light Processing)
- Pros: Faster than traditional SLA with excellent detail.
- Cons: Smaller build volumes.
- Best Use: Interior layouts, decorative detailing, or repeating structural elements.
For most fine-detail architectural models, resin-based printers (SLA/DLP/MSLA) offer the best results.
Step 2: Prepare the Digital Model for Printing
Designing with 3D printing in mind from the start prevents failed prints and preserves fine architectural details.
Maintain Proper Scale
- Choose a consistent scale (e.g., 1:100 or 1:500) that balances model size and resolution.
- Double-check model dimensions to ensure features like windows and railings are printable at that scale.
Simplify Overly Thin Features
- Avoid elements under 0.4 mm wide for FDM or 0.2 mm wide for resin printers.
- Thicken fragile walls or rails while preserving visual proportion at scale.
Use Boolean Operations
- Clean up intersecting geometries with Boolean unions.
- Merge overlapping elements to ensure watertight models with no printing errors.
Ensure Proper Wall Thickness
- Maintain a minimum wall thickness of 0.8 mm for FDM and 0.4 mm for SLA printers to prevent brittle parts.
Minimize Unsupported Overhangs
- For FDM: Avoid overhangs beyond 45 degrees.
- For resin: Orient parts to reduce support contact on visible faces.
Correct digital prep ensures fidelity from CAD to printed model.
Step 3: Slice for High Detail and Accuracy
Proper slicer settings are critical for bringing architectural detail to life.
Recommended Settings for FDM
- Layer Height: 0.1 mm for sharp layers; 0.2 mm for base structures.
- Wall Count: 2–3 walls for durability without bulk.
- Infill: 10–15% grid or lines for large flat areas; higher for small features.
- Speed: 30–40 mm/s for detailed surfaces.
- Nozzle Size: 0.2–0.3 mm for fine features; 0.4 mm for general components.
Recommended Settings for SLA/DLP
- Layer Height: 0.025–0.05 mm for ultra-fine detail.
- Exposure Time: Based on resin specs; avoid over-curing to retain detail.
- Support Placement: Manually place supports under non-visible surfaces only.
- Orientation: Tilt at 30–45 degrees to reduce suction and layer marks.
Always preview slices to ensure small architectural features appear in the print path.
Step 4: Choose the Right Material
Material choice affects model durability, print quality, and post-processing.
For FDM Printing:
- PLA: Easy to print, minimal warping, good for conceptual models.
- PETG: Slightly better durability for transportable models.
- Specialty PLA: Silk or matte finishes improve aesthetic presentation.
For SLA Printing:
- Standard Resin: Excellent for details but can be brittle.
- Tough Resin: Offers better flexibility and impact resistance.
- White or Grey Resin: Ideal for models with sharp contrast and shadows.
Select materials based on whether the model is for display, client interaction, or iterative use.
Step 5: Post-Processing for Professional Results
Post-processing transforms a raw print into a finished, presentation-ready model.
Clean and Sand
- Use light sanding (for FDM) or IPA washing (for resin) to remove layer lines and debris.
- Use sanding sponges or fine files for sharp architectural corners.
Prime and Paint
- Apply a thin primer coat to reveal print flaws and unify surface color.
- Use neutral tones like matte white or gray to highlight geometry.
- Apply color coding or landscaping details if presenting zoning or development phases.
Assemble Modular Parts
- Large models should be broken into sections for easier printing and painting.
- Use pins or tabs for alignment.
- Bond parts using cyanoacrylate glue or resin-compatible adhesives.
Clean assembly improves appearance and transportability.
Step 6: Avoid Common Print Failures
Fine-detail models introduce unique risks that must be addressed early.
Warping or Cracking
- Use a heated bed and enclosure for large FDM prints.
- For resin prints, avoid rapid cooling after curing.
Loss of Detail
- Ensure nozzle is clean and extruder calibrated for FDM.
- For SLA, regularly filter and stir resin to avoid pigment settling.
Layer Shifting or Weak Joints
- Reinforce narrow columns and thin walls by adjusting design and print orientation.
- Add temporary bracing to delicate structures during the print.
Monitoring early layers helps catch errors before they compromise fine details.
Best Architectural Model Types for 3D Printing
3D printing excels in the following architectural applications:
- Concept Models: Basic forms with massing and volumes.
- Presentation Models: Full-detail scale models for client demos.
- Section Cuts: Revealing interior floorplans and spatial relationships.
- Urban Contexts: Block models of buildings, roads, and landscaping.
- Component Details: Window systems, columns, cladding panels.
- Facade Studies: Repeatable wall textures and design variations.
Match model type to printer capabilities for best results.
Common FAQs About 3D Printed Architectural Models
What is the best scale for 3D printed architectural models?
Scales of 1:100 to 1:500 balance detail and printability. Use 1:50 or 1:20 for interior room layouts or mechanical assemblies.
Can I print entire buildings in one piece?
Only for small models. For detailed structures, divide large buildings into modular parts that assemble after printing.
Should I use supports when printing architectural models?
Use supports carefully. On resin printers, minimize supports on visible surfaces. For FDM, orient parts to avoid unnecessary supports while preserving detail.
What’s the best printer type for architectural detail?
Resin printers (SLA or MSLA) are best for high-resolution detail. Use FDM for larger, less intricate pieces or conceptual massing models.
How can I improve the realism of my model?
Post-processing, paint, landscaping, and material separation can greatly enhance realism. Consider adding color-coded zones, light fixtures, or clear plastic for windows.
Conclusion
3D printing architectural models with fine detail requires careful planning, precise digital preparation, and tuned printing techniques. From selecting the best technology and materials to adjusting slicer settings and optimizing post-processing, every step affects the final result. With the right approach, you can create clean, accurate, and compelling models that enhance presentations, accelerate design decisions, and bring your architectural vision to life in physical form. Whether you’re prototyping a structure or showcasing a finished design, mastering fine-detail 3D printing is an essential tool in the modern architect’s workflow.
