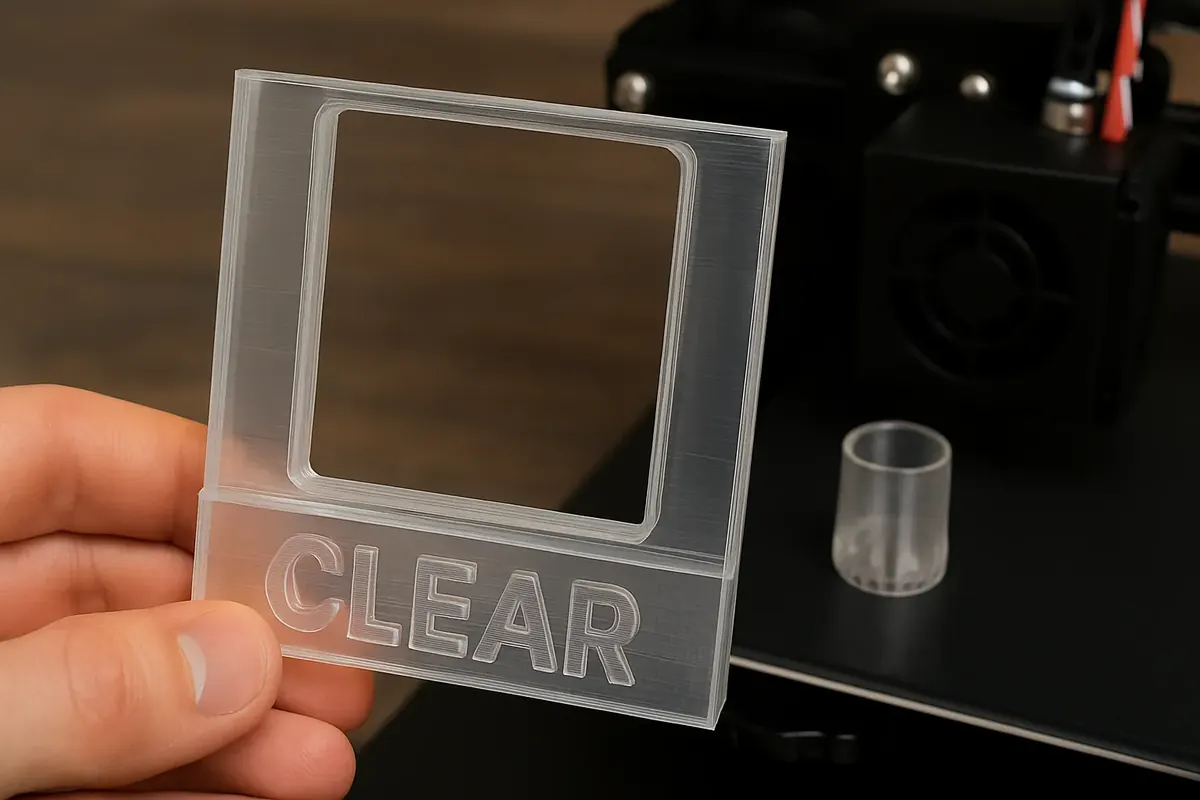

Producing clear, transparent parts using 3D printing is highly sought after for applications like light covers, artistic models, and mechanical prototypes. However, achieving truly transparent prints without a yellow tint or cloudiness requires specific techniques, careful material selection, and precise process control. This guide explains step-by-step how to 3D print transparent parts with maximum clarity and minimal discoloration.

1. Choose the Right Transparent Filament

Not all transparent filaments are created equal. The choice of material has a major impact on both clarity and color accuracy.

• PETG: Offers good transparency, ease of printing, and lower tendency to yellow compared to other materials.
• Polycarbonate (PC): Naturally clear but requires high temperatures and can yellow if printed improperly.
• Transparent PLA: Easier to print but often results in semi-transparent rather than truly clear parts.

Always opt for high-quality, specifically branded transparent filaments known for minimal additives and consistent color purity.

2. Fine-Tune Print Settings

Incorrect print settings can trap air bubbles or cause slight overheating, leading to cloudiness or yellow tint.

• Increase Layer Height: Using thicker layers, around 0.2–0.3 mm, reduces the number of layer lines and improves light transmission.
• Print Slower: Reducing print speed to around 30–40 mm/s allows better bonding between layers, minimizing micro-gaps.
• Optimize Temperature: Stay within the lower end of the filament’s recommended print temperature. Overheating is a common cause of yellowing.
• Disable Cooling Fans: Turning off or lowering cooling fan speed promotes better layer fusion, resulting in a more transparent surface.

Dialing in these parameters through test prints ensures that the material retains its optical qualities during the printing process.

3. Orient the Model for Optical Clarity

The orientation of the model during printing influences how light passes through the material.

• Print Vertically: Printing large flat surfaces vertically reduces the visibility of layer lines when viewed through the part.
• Minimize Supports: Supports leave surface scars that can scatter light. Design models or position them to avoid support structures when possible.
• Simplify Geometry: Complex features introduce optical distortions. Simpler shapes maintain better transparency after printing.

Thoughtful model orientation contributes significantly to the finished part’s visual clarity.

4. Post-Process for Maximum Transparency

Even well-printed transparent parts often require post-processing to achieve glass-like finishes.

• Wet Sanding: Start with 400 grit sandpaper and gradually progress to 2000 grit or higher. Always sand in a circular motion under water to avoid scratches.
• Polishing: After sanding, use a plastic polish or buffing compound to bring out a clear, glossy finish.
• Resin Coating: Applying a thin, clear epoxy resin over the part can fill microscopic imperfections, enhancing transparency and strength.
• Vapor Smoothing (Selective Materials): Some materials like PETG can be vapor smoothed using specific solvents, although it requires caution and controlled environments.

Proper post-processing dramatically improves optical quality and removes residual haze or surface imperfections.

5. Avoid Common Mistakes That Cause Yellowing

Maintaining clarity also involves recognizing and preventing issues that cause yellow tints or cloudiness.

• Avoid Excessive Heat: Printing at too high a temperature degrades polymers and can lead to discoloration.
• Store Filament Properly: Moisture exposure degrades filament quality. Always keep transparent filaments in dry, airtight containers with desiccants.
• Use Fresh Nozzles: A dirty or partially clogged nozzle can burn material slightly, introducing a yellow hue.
• Print in Controlled Environments: Ambient factors like humidity and dust can affect print quality. Printing in a clean, temperature-controlled area helps ensure consistent results.

Attention to these factors ensures the production of truly clear and color-accurate parts.

Common FAQs About 3D Printing Transparent Parts

Why do my transparent prints turn yellow?

Yellowing typically results from excessive printing temperatures, filament degradation due to moisture, or poor filament quality. Adjusting print temperature and using properly stored, high-grade filament can prevent this issue.

Is it possible to achieve glass-like clarity with FDM printing?

With careful printing, wet sanding, polishing, and optionally applying a resin coating, FDM printed parts can approach glass-like clarity, although they may never be as perfectly clear as molded parts.

Does cooling affect transparency?

Yes. Too much part cooling can cause uneven layer bonding, creating microscopic gaps that scatter light. Lowering or disabling the cooling fan during printing improves clarity.

Which filament gives the best clear results?

Transparent PETG often offers the best balance between printability and clarity, with less tendency to yellow compared to materials like PLA or PC when printed correctly.

Can SLA printers produce better transparent parts?

Yes. SLA (resin) printers generally produce much clearer and smoother parts than FDM printers due to finer layer resolution and different material properties. However, proper post-processing is still essential.
