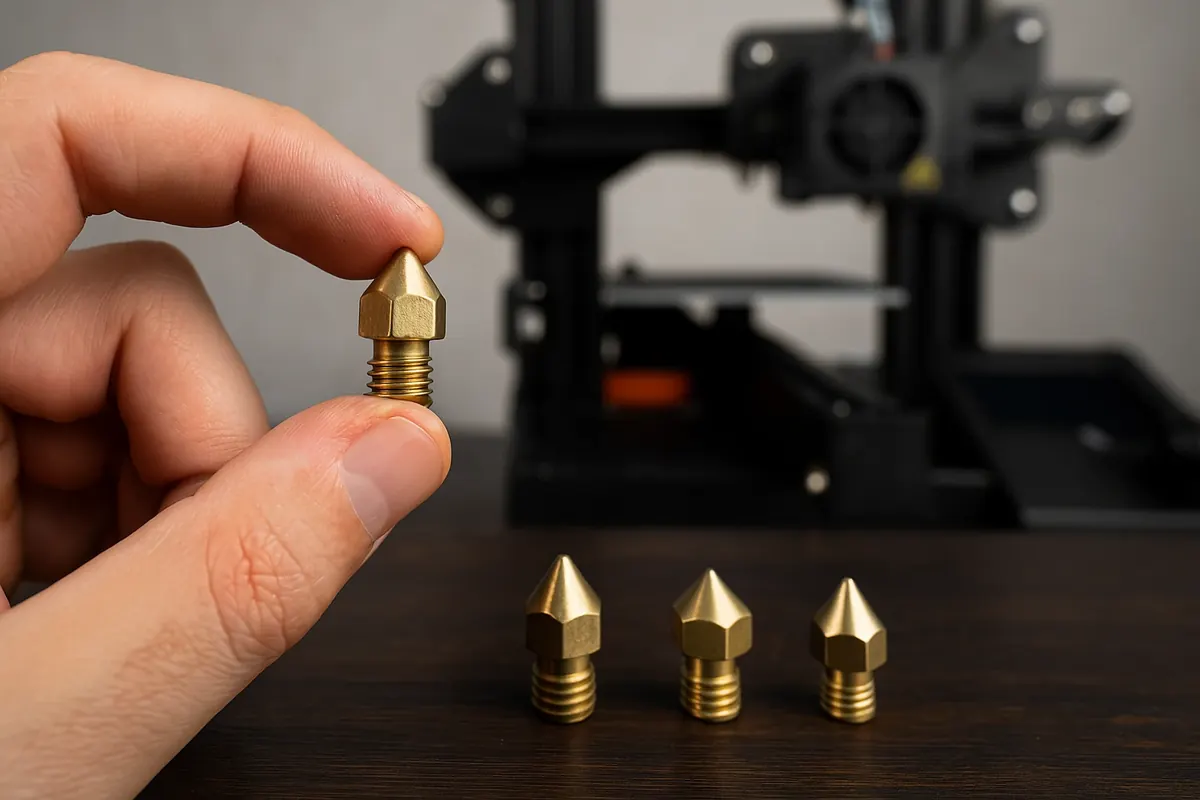

Choosing the right 3D printer nozzle size is one of the most crucial decisions when preparing for a print job. The nozzle size directly influences the quality, speed, and overall success of your prints. While larger nozzles may offer quicker prints, smaller nozzles are essential for higher precision and detailed models. But how do you know which nozzle size is right for your specific project?
This comprehensive guide will walk you through the process of selecting the right 3D printer nozzle size for your print. From understanding how nozzle sizes affect print quality to choosing the best option for your material and model requirements, we’ll cover everything you need to know.
What Is a 3D Printer Nozzle, and Why Does Its Size Matter?
In a 3D printer, the nozzle is a crucial component through which melted filament is extruded layer by layer to build up the object. The size of the nozzle determines how much filament is pushed out during each pass, which in turn affects both the speed and detail of your prints.
- Smaller Nozzles: These are ideal for fine details and intricate models but may require more time to print the object.
- Larger Nozzles: These can print objects faster but may compromise on detail, making them suitable for larger parts that don’t require fine features.
The nozzle size you choose impacts the resolution of your print, the strength of the material, and the overall appearance of your model. A good understanding of how nozzle sizes affect your print job is key to making an informed decision.
The Different Nozzle Sizes and Their Use Cases
Before diving into how to choose the best nozzle size, let’s take a look at the most common nozzle sizes and their typical applications:
1. 0.2mm Nozzle: Ultra Fine Detail
A 0.2mm nozzle is typically used for extremely detailed prints that require precision. It’s commonly used for printing small objects like jewelry, miniatures, or highly detailed models. This nozzle size produces thin layers, ensuring that small features are clearly defined.
Best For:
- High-detail models (e.g., miniatures, intricate figurines)
- Small prototypes
- Models requiring fine details, such as textures or fine lines
Advantages:
- Best resolution and detail
- Sharp edges and smooth surfaces
Disadvantages:
- Slow print speeds
- Higher risk of clogs due to the small diameter
2. 0.4mm Nozzle: Standard Choice
The 0.4mm nozzle is the most common and versatile nozzle size used by 3D printers. It strikes a good balance between print quality and speed, making it the go-to choice for most users. This nozzle size is ideal for general-purpose printing and works well for a wide variety of applications.
Best For:
- Most types of prints, including functional parts and prototypes
- General-purpose printing
- Items requiring moderate detail and strength
Advantages:
- Excellent balance between print speed and detail
- Reliable for a wide range of filament types
Disadvantages:
- Not suitable for ultra-fine details or extremely high-resolution prints
3. 0.6mm Nozzle: Faster Prints with Moderate Detail
The 0.6mm nozzle offers a compromise between speed and resolution. It’s suitable for users who want to print moderately detailed objects quickly. Larger nozzle sizes, like the 0.6mm, allow more filament to flow out, enabling faster prints without sacrificing too much detail.
Best For:
- Faster prints without sacrificing too much resolution
- Larger parts or functional prototypes
- Low-detail models that still require strength
Advantages:
- Faster print times compared to smaller nozzles
- Good balance of detail and speed
Disadvantages:
- Limited detail resolution
- Not ideal for very small parts or high-detail prints
4. 1.0mm and Above: Fast Prints for Large Objects
Nozzles that are 1.0mm or larger are used primarily for very fast prints of large objects. These sizes allow more material to flow through the nozzle, resulting in faster print times. While they’re excellent for creating large parts quickly, the level of detail is often sacrificed.
Best For:
- Large functional parts or rapid prototyping
- Large-scale prints where speed is more important than fine details
- Prints that don’t require intricate features
Advantages:
- Fast printing speed
- Suitable for printing large parts
Disadvantages:
- Poor resolution and low detail
- Can’t be used for models requiring fine features
How Nozzle Size Affects Your Prints
When selecting a nozzle size, it’s essential to understand how it affects different aspects of your 3D print. Below, we’ll explain how nozzle size impacts several important factors:
1. Print Resolution and Detail
- Smaller Nozzles (0.2mm–0.4mm): These nozzles create finer details by extruding thinner layers. They can print intricate features, such as tiny text or sharp edges, making them suitable for high-precision models.
- Larger Nozzles (0.6mm–1.0mm): These nozzles tend to produce less detail, but they are ideal for prints where speed is more important than precision. The layer height will be thicker, leading to less fine resolution.
2. Print Speed
- Smaller Nozzles: Printing with smaller nozzles takes longer due to the smaller extrusion area. You’ll need more time to complete a print, especially for complex or large models.
- Larger Nozzles: Larger nozzles extrude more filament at once, significantly speeding up the printing process. However, this can come at the cost of finer details and higher resolution.
3. Strength and Durability
- Larger Nozzles: Larger nozzles allow you to print with thicker layers, resulting in stronger and more durable prints. This is particularly useful for functional parts that need to withstand stress, such as mechanical components or tools.
- Smaller Nozzles: While smaller nozzles produce prints with more detail, they typically have less material density and can be less strong compared to prints made with larger nozzles. However, the print’s strength will still depend on the filament used.
4. Layer Height and Extrusion Width
The nozzle size directly impacts the minimum layer height you can use. For instance:
- Smaller Nozzles: These allow you to print thinner layers, giving you the ability to create highly detailed surfaces with smoother finishes.
- Larger Nozzles: These allow for thicker layers, which is suitable for large, less detailed prints. Thicker layers also tend to have a more noticeable texture, especially on the surface.
5. Material Compatibility
Some filament types work better with certain nozzle sizes. For example:
- Filaments like PLA, ABS, and PETG are versatile and can be used with a wide range of nozzle sizes.
- Flexible Filaments (TPU): These require a larger nozzle size to allow for the proper flow of the filament, as flexible filaments can be difficult to extrude through smaller nozzles.
- High-temperature Filaments (Nylon, Polycarbonate): These filaments may work better with larger nozzles to ensure smooth extrusion at higher temperatures.
How to Choose the Right Nozzle Size for Your Print
Now that we understand the basics of nozzle sizes and their effects, let’s discuss how to choose the best nozzle size for your specific print. Here are some key factors to consider:
1. Model Complexity and Detail
- High Detail Models: For highly detailed models like miniatures or jewelry, go for a 0.2mm or 0.3mm nozzle. These nozzles will allow you to print small features with excellent precision.
- Functional Parts and Prototypes: If you need to create functional parts or prototypes, a 0.4mm or 0.6mm nozzle will likely be the best choice. These sizes offer a good balance of speed and detail.
- Large Parts: For large-scale objects that don’t require fine details, a 1.0mm nozzle can save time while still producing solid, strong parts.
2. Print Speed vs. Quality
- If speed is a priority, larger nozzles (0.6mm or 1.0mm) will provide faster prints. However, be prepared to compromise on print quality.
- If quality is your main concern, smaller nozzles (0.2mm or 0.4mm) are a better choice, though they will take more time to complete your prints.
3. Material Choice
- Choose a larger nozzle if you’re working with materials like TPU, Nylon, or Polycarbonate, which may require higher flow rates.
- For more common materials like PLA or ABS, a 0.4mm nozzle will work well for most prints.
4. Printer and Software Compatibility
- Ensure that your 3D printer supports the nozzle size you intend to use. Some printers are limited to specific sizes, while others may require additional modifications to handle larger nozzles.
- Make sure your slicing software is set up for the chosen nozzle size. The slicing software will adjust the print settings (layer height, extrusion width, etc.) according to the nozzle size.
Conclusion
Choosing the right 3D printer nozzle size is essential for achieving the desired balance of speed, detail, and print quality. Smaller nozzles are ideal for fine details and precision, while larger nozzles work best for faster prints and functional parts. By considering factors such as model complexity, material choice, and print speed, you can select the best nozzle size for your project.
Nozzle size isn’t a one-size-fits-all solution; it depends on the specific needs of each print job. Experimenting with different sizes and understanding their impact on your prints will help you achieve the best possible results. Happy printing!
