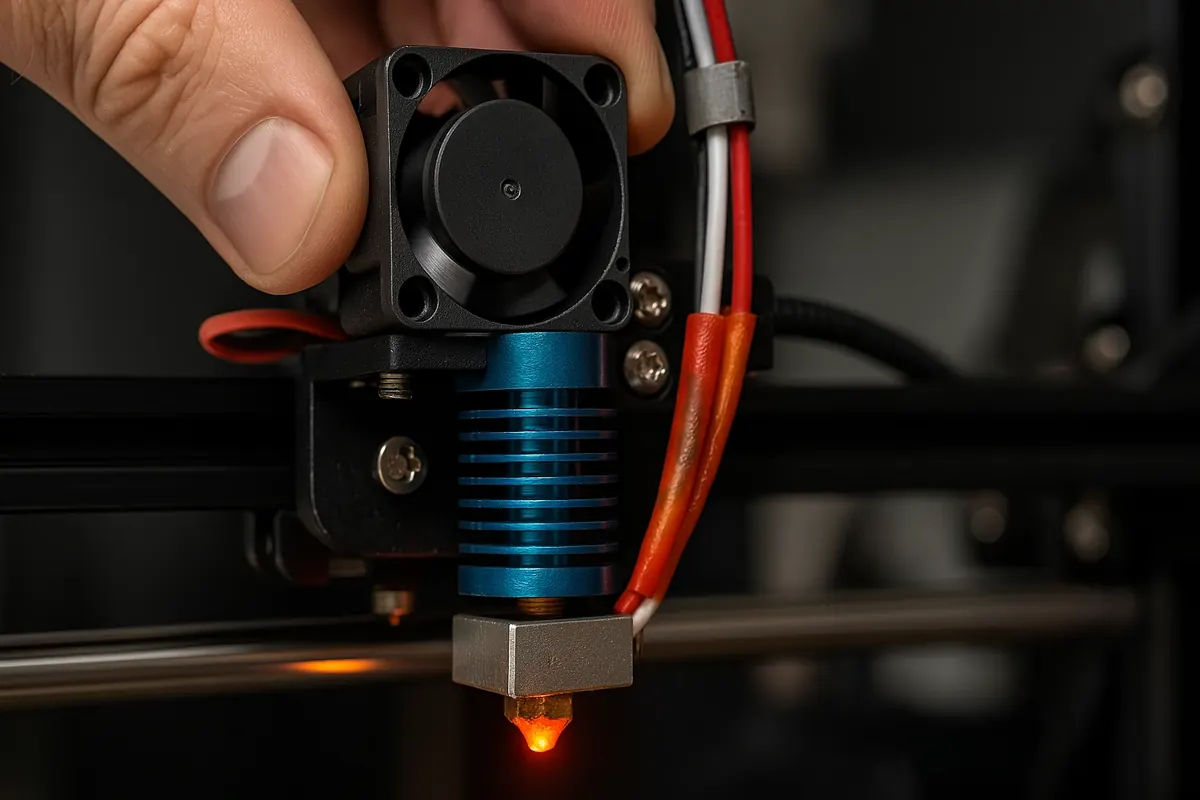

One of the most common issues faced by 3D printing enthusiasts is overheating in the hotend of a 3D printer. This problem can cause filament jams, print failures, and even damage to the printer. Overheating occurs when the hotend becomes too hot and leads to a variety of printing issues, such as inconsistent extrusion, clogs, or melted plastic leaking out of the nozzle in undesirable ways.
In this article, we’ll walk you through the reasons why overheating happens in 3D printer hotends and how you can address and prevent these issues. Whether you’re a beginner or an experienced maker, following these steps will ensure that your 3D printer operates at an optimal temperature and that you avoid overheating-related problems.
Why Is Hotend Overheating a Problem?
The hotend of a 3D printer is responsible for heating the filament to its ideal extrusion temperature. If the hotend gets too hot, it can cause a variety of issues:
- Filament Jams: The filament may start to soften too much before reaching the nozzle, causing jams or clogs.
- Extrusion Problems: Overheating can result in inconsistent extrusion, where the filament either oozes too much or fails to extrude properly.
- Damage to the Hotend: Prolonged overheating can damage the hotend components, especially the thermistor, heater cartridge, and PTFE tube.
- Print Failures: Overheating can lead to poor-quality prints, warped surfaces, or incomplete layers.
Preventing and reducing overheating will help ensure consistent and high-quality prints while extending the life of your 3D printer.
Common Causes of Hotend Overheating
Before we dive into solutions, it’s important to understand the causes of hotend overheating. There are a few common factors that can lead to the temperature rising above the desired level:
1. Faulty or Inaccurate Thermistor
The thermistor is responsible for measuring the temperature of the hotend and sending that data to the printer’s firmware to control the heating process. If the thermistor is faulty or not calibrated properly, it may provide incorrect temperature readings, causing the hotend to overheat.
2. Overpowered or Faulty Heater Cartridge
The heater cartridge is the component that supplies heat to the hotend. If the cartridge is malfunctioning or too powerful, it can cause the hotend to exceed the set temperature, leading to overheating.
3. Thermal Runaway Protection Disabled
Most modern 3D printers come with thermal runaway protection, a safety feature that automatically shuts off the heater if it detects that the hotend temperature is rising uncontrollably. If this feature is disabled or malfunctioning, the printer can overheat, which poses a safety risk.
4. Incorrect Firmware Settings
If the firmware settings of your 3D printer are incorrectly configured, it can lead to the hotend being heated beyond the safe limit. This is often caused by incorrect temperature settings or improper PID (Proportional-Integral-Derivative) tuning.
5. Inadequate Cooling of the Hotend
Some hotends, particularly all-metal hotends, require active cooling (such as a fan) to prevent overheating. Without sufficient cooling, the hotend can overheat, leading to problems with extrusion and print quality.
How to Prevent and Reduce Hotend Overheating
Now that we understand the causes of overheating, let’s look at the steps you can take to prevent or reduce hotend overheating. Following these best practices will ensure smooth printing and a longer lifespan for your 3D printer.
1. Ensure Proper Calibration of the Thermistor
A faulty or improperly calibrated thermistor can give inaccurate temperature readings, leading to overheating. To avoid this, make sure your thermistor is properly installed and calibrated.
Steps to Fix It:
- Check if the thermistor is securely attached to the hotend and in direct contact with the heated block.
- If the thermistor shows inconsistent or inaccurate readings, consider replacing it with a high-quality replacement part.
- Recalibrate your 3D printer’s thermistor settings through the printer’s firmware or in the slicer software.
If you are unsure about calibration, consult your printer’s manual or manufacturer’s guidelines for proper setup.
2. Replace or Upgrade the Heater Cartridge
The heater cartridge plays a crucial role in regulating the hotend’s temperature. If the heater cartridge is too powerful or malfunctioning, it can lead to overheating. Consider upgrading or replacing your heater cartridge if it is old or showing signs of wear.
Steps to Fix It:
- If your printer is overheating consistently, check the heater cartridge’s power rating and ensure it is compatible with your printer’s hotend.
- Replace the heater cartridge if it is damaged or malfunctioning. Choose a high-quality replacement from a trusted manufacturer to avoid future problems.
- Make sure that the heater cartridge is securely installed, with no loose connections.
Upgrading to a higher-quality or more efficient heater cartridge can help prevent overheating while maintaining consistent temperatures during printing.
3. Ensure Thermal Runaway Protection Is Enabled
Thermal runaway protection is a safety feature that prevents the hotend from overheating by shutting off the heater if it detects abnormal temperature fluctuations. If thermal runaway protection is disabled, your printer could overheat dangerously, leading to equipment damage or even fire hazards.
Steps to Fix It:
- Check the printer’s firmware settings to make sure that thermal runaway protection is enabled. This option should be available in the printer’s settings or firmware menu.
- Ensure that your printer’s firmware is up to date, as manufacturers often release updates that improve safety features, including thermal runaway protection.
- If you are using custom firmware, verify that thermal runaway protection is activated. Most popular firmware options, like Marlin, include this feature.
Enabling this protection will automatically shut off the heater in case of malfunction, helping you avoid overheating issues.
4. Perform Regular PID Tuning
PID tuning ensures that your printer’s hotend maintains a stable temperature by fine-tuning the feedback loop between the heater and the thermistor. If your PID settings are incorrect or outdated, your printer may struggle to maintain the right temperature, leading to overheating.
Steps to Fix It:
- Perform PID tuning on your 3D printer. This process can usually be done through the printer’s control panel or via G-code commands (e.g., M303 for Marlin firmware).
- Regularly recalibrate your PID settings, especially after replacing parts like the thermistor or heater cartridge.
- If your prints are inconsistent or you notice sudden temperature spikes, running a PID tune will help stabilize the hotend’s temperature.
By keeping your PID settings accurate, you’ll reduce the likelihood of overheating and ensure more consistent prints.
5. Ensure Proper Cooling with Fans
Many 3D printers, especially those with all-metal hotends, require active cooling to prevent overheating. If the hotend isn’t properly cooled, it can cause the temperature to rise uncontrollably.
Steps to Fix It:
- Ensure that the cooling fan is functioning correctly and is directed towards the hotend to cool it effectively.
- If your printer doesn’t have a dedicated hotend cooling fan, consider adding one to improve airflow and reduce overheating.
- Make sure the fan is not obstructed by filament debris, dust, or other objects.
Active cooling will help maintain a consistent temperature, preventing the hotend from getting too hot during the printing process.
6. Check and Update Firmware Settings
Incorrect firmware settings can also contribute to overheating. Make sure your printer’s firmware is configured correctly to prevent the hotend from reaching unsafe temperatures.
Steps to Fix It:
- Update your printer’s firmware to the latest version. Firmware updates often include bug fixes and improvements for temperature control.
- Adjust temperature settings in the firmware, especially for advanced filaments that require specific heat profiles.
- Verify the settings for temperature limits, heater power, and PID control to ensure that they match the specifications of your printer’s hotend.
Properly configuring your printer’s firmware can prevent overheating issues and improve overall performance.
Conclusion
Overheating in 3D printer hotends is a common issue that can lead to print failures, equipment damage, and safety hazards. By understanding the causes of overheating and following the solutions provided in this guide, you can reduce the risk of overheating and improve the reliability of your 3D printer.
Regular maintenance, proper calibration, enabling thermal runaway protection, and ensuring adequate cooling are essential steps to prevent overheating. By keeping these factors in check, you’ll enjoy smoother, more successful prints and extend the lifespan of your 3D printer.
