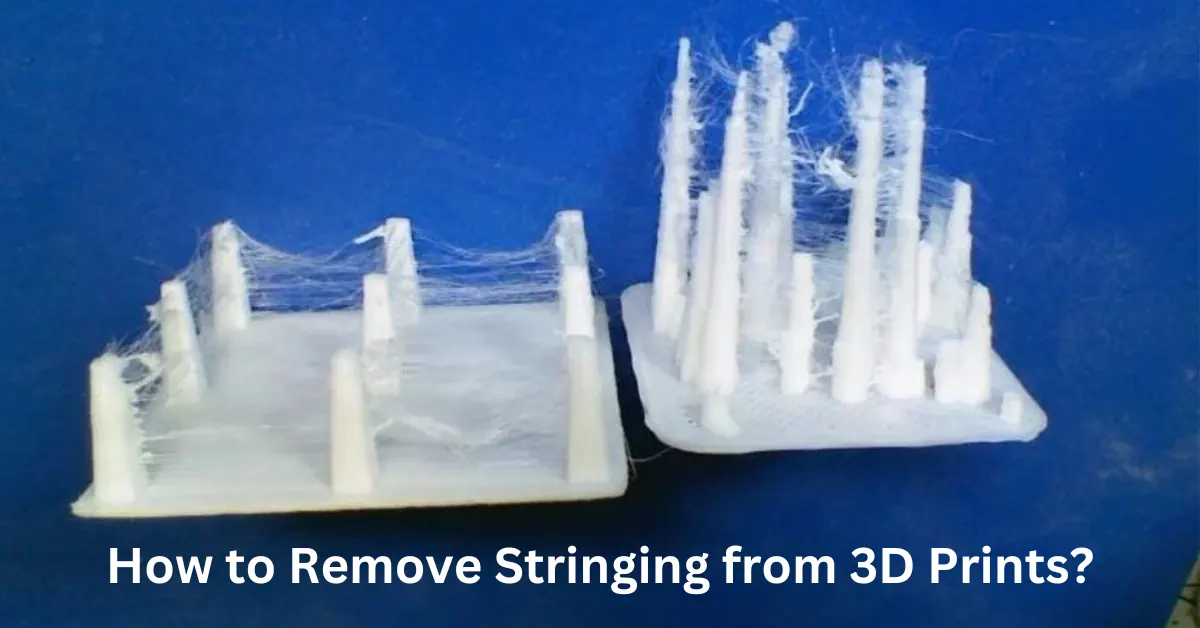

Stringing is a common issue in 3D printing where thin strands of filament, or “strings,” appear between different parts of the print. This can make prints look messy and unprofessional. Fortunately, there are effective ways to reduce or completely eliminate stringing from your 3D prints. This guide will explain the causes of stringing, how to prevent it, and solutions to improve your print quality.
What Causes Stringing in 3D Printing?
Stringing happens when the 3D printer’s nozzle leaks small amounts of filament while moving between two separate areas of the print. As the nozzle travels, the leaking filament forms fine threads or strings. Several factors contribute to this issue, including:
- Improper Retraction Settings: Retraction pulls filament back into the nozzle before moving to a different location. If the retraction is insufficient, stringing occurs.
- High Print Temperature: When the print temperature is too high, the filament becomes too fluid, causing it to ooze out of the nozzle during travel.
- Speed of Travel: Slow travel speeds give the molten filament more time to leak from the nozzle, increasing the likelihood of stringing.
- Material Type: Some filaments, like PLA or flexible materials, are more prone to stringing compared to others like PETG or ABS.
Understanding the cause of stringing can help you take the appropriate steps to prevent it.
How to Prevent Stringing: Step-by-Step Guide
Here are some effective techniques to reduce or eliminate stringing in your 3D prints:
1. Adjust Retraction Settings
Retraction is the first setting to check when stringing occurs. It’s the process by which the filament is pulled back into the nozzle during travel moves, preventing it from oozing. To fine-tune retraction settings:
- Increase Retraction Distance: If filament continues to leak, try increasing the retraction distance in your slicer settings. This forces more filament back into the nozzle, reducing the chance of stringing.
- Increase Retraction Speed: Faster retraction speed minimizes the time available for filament to ooze out. You can experiment with higher retraction speeds to find the best value for your printer and filament.
Remember, excessive retraction can lead to issues like filament grinding or nozzle clogging, so make gradual adjustments.
2. Lower Printing Temperature
Higher temperatures cause filament to melt too much, increasing the chances of oozing. Reducing the print temperature can help prevent stringing. Follow these steps:
- Decrease Temperature in Increments: Start by lowering the nozzle temperature by 5–10°C and observe if the stringing decreases.
- Reference Manufacturer Recommendations: Each filament type has an optimal temperature range. Make sure your settings are within the recommended range provided by the filament manufacturer.
3. Increase Travel Speed
The faster your nozzle moves between sections of the print, the less time the filament has to ooze. To optimize travel speed:
- Increase Non-Printing Travel Speed: In your slicer settings, look for “travel speed” or “non-print move speed” and increase it to around 150–200mm/s. This will reduce stringing by minimizing the time the nozzle spends moving without printing.
4. Enable “Combing”
Some slicers offer a feature called “combing,” which instructs the printer to move within the already printed area while traveling between parts. This prevents the nozzle from crossing empty spaces, reducing the chances of stringing. To enable combing:
- Enable in Your Slicer: If your slicer has this feature, such as Cura or PrusaSlicer, enable it under the travel settings.
- Avoid “Outside Comb: Ensure that the printer avoids traveling outside the print area, as this can still lead to strings forming in the gaps.
5. Use Proper Filament
Some filaments are more prone to stringing than others due to their material properties. For example, flexible filaments like TPU tend to string more, while PETG, PLA+, and ABS are more forgiving. To minimize stringing:
- Test Different Filament Brands: The quality of filament plays a significant role in preventing stringing. Experiment with premium filament brands known for better print quality.
- Dry the Filament: Filament that has absorbed moisture will string more easily. Use a filament dryer or store your filament in airtight containers with desiccants.
Post-Processing Techniques to Remove Stringing
If stringing still occurs despite your best efforts, post-processing methods can help clean up your 3D print:
1. Use a Heat Gun
A heat gun can help melt and remove thin strings without damaging the overall print. Simply apply the heat gun lightly over the affected areas until the strings disappear. Be cautious not to overheat the print, as it can deform the surface.
2. Carefully Trim Strings
A precision knife or small scissors can help you manually trim away any remaining strings. This method requires patience, but it’s effective for cleaning up fine details on your print.
3. Sanding
For larger areas affected by stringing, sanding is an option. Use fine-grit sandpaper to smooth out surfaces, especially in detailed sections. Be gentle to avoid altering the shape of the print.
FAQ: Common Questions about Removing Stringing from 3D Prints
Q: What is the most common cause of stringing?
A: The most common cause of stringing is improper retraction settings. Ensuring the right retraction distance and speed can drastically reduce stringing.
Q: Does filament type affect stringing?
A: Yes, different filament types vary in how much they string. PLA and flexible materials like TPU tend to string more, while PETG and ABS are more resistant.
Q: Can humidity in filament cause stringing?
A: Yes, moisture in filament can lead to stringing. It’s recommended to store filament in dry conditions to prevent water absorption.
Q: Is stringing always caused by the printer?
A: Not always. Stringing can result from improper slicer settings or filament quality as well. It’s important to troubleshoot all potential causes.
Q: Can stringing be completely eliminated?
A: Yes, with the right combination of retraction, temperature, and travel settings, stringing can be almost entirely removed.
Conclusion
Stringing can be a frustrating issue, but with careful adjustments to your 3D printer’s settings and slicer configurations, it can be greatly reduced or eliminated. Start by optimizing your retraction settings, lowering the print temperature, and increasing travel speed. Also, consider the type of filament you use, as different materials have varying tendencies to string. With the proper tuning, your prints will be clean, precise, and string-free.
