3D printing has become a vital tool across various industries and for hobbyists alike. Whether you’re printing prototypes, models, or custom parts, a properly calibrated 3D printer is essential for quality results. Calibration is the backbone of precision in 3D printing, ensuring your machine prints what you expect. However, calibration issues are common, especially for beginners.
In this article, we will walk you through everything you need to know about troubleshooting 3D printer calibration issues. From understanding the types of calibration problems to offering step-by-step solutions, this guide will help you achieve high-quality prints with fewer errors.
Why Calibration Matters in 3D Printing
Calibration is the process of fine-tuning your 3D printer to ensure accurate movements, layer adhesion, and dimensional accuracy. A poorly calibrated printer leads to failed prints, warping, stringing, or even mechanical damage.
Proper calibration affects:
- Print quality
- Print speed
- Material usage
- Printer longevity
- Structural strength of prints
Neglecting calibration can result in wasted filament, time, and energy. It’s always worth checking your machine before every large project or after any hardware/software updates.
Common Signs of Calibration Issues
Before jumping into fixes, you need to recognize the symptoms. Calibration issues can present themselves in several ways:
- First layer not sticking to the bed
- Uneven or warped prints
- Incorrect dimensions
- Nozzle dragging across the print
- Layer shifting
- Stringing or blobs
- Gaps between layers
- Excessive or insufficient extrusion
If you’re seeing any of these signs, it’s time to troubleshoot.
Types of Calibration in 3D Printers
Understanding which part of your printer needs calibration can save you hours of trial and error. Here are the major types:
1. Bed Leveling (Z-Axis Calibration)
The print bed must be perfectly level to ensure even first layers.
2. Nozzle Height Calibration
A too-high nozzle won’t allow proper adhesion; too low, and it scrapes the bed.
3. Extruder Calibration (E-Steps)
This ensures the extruder pushes the right amount of filament.
4. X, Y, and Z Axis Calibration
Affects the dimensional accuracy and overall geometry of your prints.
5. Temperature Calibration
Ensures filament melts and bonds correctly at proper temperatures.
6. Flow Rate Calibration
Controls how much filament is pushed through the nozzle.
Step-by-Step Troubleshooting for Each Calibration Issue
Let’s now look at how to address each issue with clear steps.
1. Fixing Bed Leveling Issues
A misaligned bed leads to first layer issues, warping, and failed prints.
Symptoms:
- First layer doesn’t stick
- One side of the print is higher than the other
How to Fix:
- Home all axes
- Use a piece of paper between the nozzle and bed
- Move the nozzle to each corner and center
- Adjust leveling knobs until you feel slight resistance on the paper
- Use auto bed leveling if your printer supports it
Pro Tip: Use a feeler gauge or bed leveling sensor for accuracy.
2. Nozzle Height Adjustment
The first layer depends heavily on nozzle height.
Symptoms:
- Elephant’s foot (too low)
- Poor bed adhesion (too high)
How to Fix:
- Start with manual leveling
- Adjust Z-offset in your printer settings
- Run a test print (like a single-layer square)
- Tune Z-offset until the filament is smooth and squished slightly
3. Calibrating Extruder Steps (E-Steps)
Over or under-extrusion is often due to incorrect E-steps.
Symptoms:
- Weak prints
- Blobs or missing layers
How to Fix:
- Heat the nozzle to printing temperature
- Mark 120mm of filament above the extruder
- Command printer to extrude 100mm
- Measure how much was actually extruded
- Use the formula:
New E-Step = Current E-Step × (100 / Actual length extruded) - Update firmware or EEPROM settings
4. Axis Calibration (X, Y, Z)
This ensures your prints have correct dimensions.
Symptoms:
- Holes are too small
- Parts don’t fit together
How to Fix:

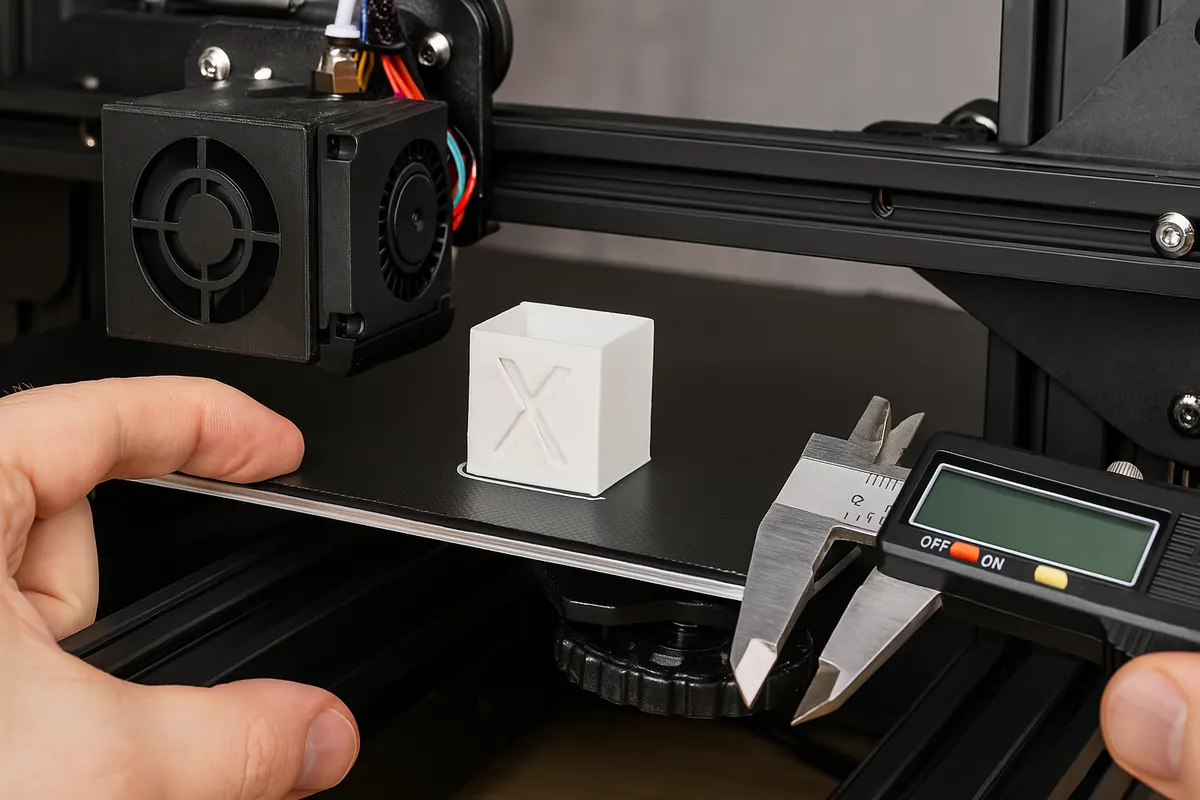

- Print a calibration cube (usually 20x20x20mm)
- Measure with calipers
- Use the formula:
New Step/mm = (Expected size / Measured size) × Current step/mm - Apply changes to firmware
5. Flow Rate Calibration
Helps reduce under or over-extrusion issues.
Symptoms:
- Gaps between walls
- Excess filament at corners
How to Fix:
- Print a single-wall cube
- Measure wall thickness with calipers
- Compare it with slicer settings
- Adjust flow rate (%) in your slicer until it matches
6. Temperature Calibration
Correct temperature avoids clogs, weak bonding, and stringing.
Symptoms:
- Stringing
- Layer separation
- Oozing
How to Fix:
- Use a temperature tower model
- Slice with variable temperature settings (e.g., 190–230°C)
- Print and inspect layers
- Choose the best temperature based on smoothness and bonding
Bonus: Firmware and Slicer Calibration
Your firmware and slicer settings play a major role in how your printer behaves.
Firmware Checkpoints:
- Ensure firmware matches your printer’s specs
- Update to latest version if needed
- Adjust acceleration, jerk, and max speed settings
Slicer Settings to Tune:
- Layer height
- Initial layer speed
- Retraction distance and speed
- Shell thickness
- Print speed and cooling settings
Preventive Maintenance Tips
Proper calibration starts with well-maintained hardware. Here’s what to check regularly:
- Clean nozzle and bed
- Lubricate rods and lead screws
- Tighten belts and pulleys
- Check for loose connectors
- Replace worn-out PTFE tubes
- Update firmware regularly
Tools That Help With Calibration
Calibration doesn’t have to be hard. These tools make it easier:
- Feeler gauge
- Calipers
- Ruler or measuring tape
- Calibration cube STL files
- Bed leveling sensors (like BLTouch)
- OctoPrint plugins
- Visual slicer overlays (Cura, PrusaSlicer)
Troubleshooting Quick Reference Table
| Issue | Cause | Solution |
|---|---|---|
| First layer not sticking | Unleveled bed | Re-level bed, adjust Z-offset |
| Gaps between layers | Under-extrusion | Calibrate E-steps, check nozzle |
| Rough surfaces | Over-extrusion | Tune flow rate |
| Layer shifting | Loose belts | Tighten belts, check motor drivers |
| Prints not to scale | Incorrect axis steps | Calibrate X, Y, Z steps |
| Stringing | High temperature or poor retraction | Lower temp, adjust retraction |
| Warping | Uneven bed or cooling | Use brim, adjust cooling fan |
FAQs
1. How often should I calibrate my 3D printer?
You should calibrate your printer after any hardware changes, filament changes, firmware updates, or if you notice print quality issues.
2. Is automatic bed leveling enough?
Automatic bed leveling helps, but you may still need to manually check nozzle height and Z-offset for the best results.
3. What’s the best test print for calibration?
Calibration cubes, single-layer squares, and temperature towers are great for tuning your machine step-by-step.
4. Can I damage my printer with poor calibration?
Yes. Continuous operation with poor calibration can lead to nozzle jams, motor strain, and bed damage.
5. Do different filaments need different calibration?
Absolutely. Each material (PLA, ABS, PETG) may require unique temperature, flow, and retraction settings.
Final Thoughts
Troubleshooting 3D printer calibration issues may feel overwhelming at first, but it becomes second nature with practice. By methodically approaching each type of calibration—bed leveling, extruder steps, temperature tuning, and more—you’ll quickly diagnose and resolve print problems.
Proper calibration is not just a setup step—it’s an ongoing process. With regular checks and tweaks, you’ll consistently produce high-quality, reliable prints that match your expectations. Armed with the steps in this guide, you’re now ready to take control of your 3D printer and fix calibration issues like a pro.
