3D printing empowers creators to turn digital designs into physical objects with incredible detail. However, one common challenge nearly every 3D printing enthusiast faces is dealing with support marks—those unsightly scars and rough patches left behind after support structures are removed.
While supports are essential for printing overhangs and complex geometries, they often leave visible blemishes that affect both the appearance and functionality of the part. In this advanced guide, you’ll learn how to effectively remove support marks and restore a smooth surface using professional sanding and finishing techniques.
Whether you’re preparing a model for painting, polishing for display, or just aiming for a cleaner finish, this comprehensive tutorial will walk you through every step of the process.
Why Support Marks Occur
Support marks are caused when the support material (usually the same as the main print material) bonds to the surface of the part during printing. Upon removal, they can leave behind:
- Rough or jagged patches
- Visible layer inconsistencies
- Small pits or indentations
- Minor tearing or delamination
These marks are particularly noticeable on flat surfaces, rounded edges, and aesthetic models. Even soluble support materials like PVA or HIPS can leave faint residue or surface roughness.
Choosing the Right Tools for Post-Processing
Successful removal of support marks starts with using the correct tools. The tools you select depend on the print material, part geometry, and desired final finish.
Basic Tools:
- Sandpaper (various grits from 100 to 2000)
- Hobby knife or deburring tool
- Needle files or microfiles
- Small wire brushes (brass or nylon)
- Soft-bristled toothbrush
- Isopropyl alcohol (for cleaning residue)
Advanced Tools:
- Rotary tool with sanding attachments (e.g., Dremel)
- Flexible sanding sponges
- Polishing compound and buffing wheels
- Smoothing filler putty (optional)
- Spray primer (for final finishing)
Step-by-Step: Removing Support Marks Effectively
Here’s a detailed breakdown of the complete post-processing workflow, from initial support removal to fine polishing.
Step 1: Cleanly Remove Supports
Support marks are much easier to manage if the removal process is done carefully and strategically.
Techniques:
- Use pliers or flush cutters to remove large support sections gently.
- Pull supports in the direction of layer lines to minimize surface damage.
- Use a debur tool or hobby knife to scrape excess material without gouging.
- For delicate areas, heat the blade slightly with a lighter for cleaner cuts (use caution).
Tips:
- Don’t rush. Tearing supports off can rip surrounding filament and make smoothing harder.
- Warm water can help soften PLA supports slightly for easier removal.

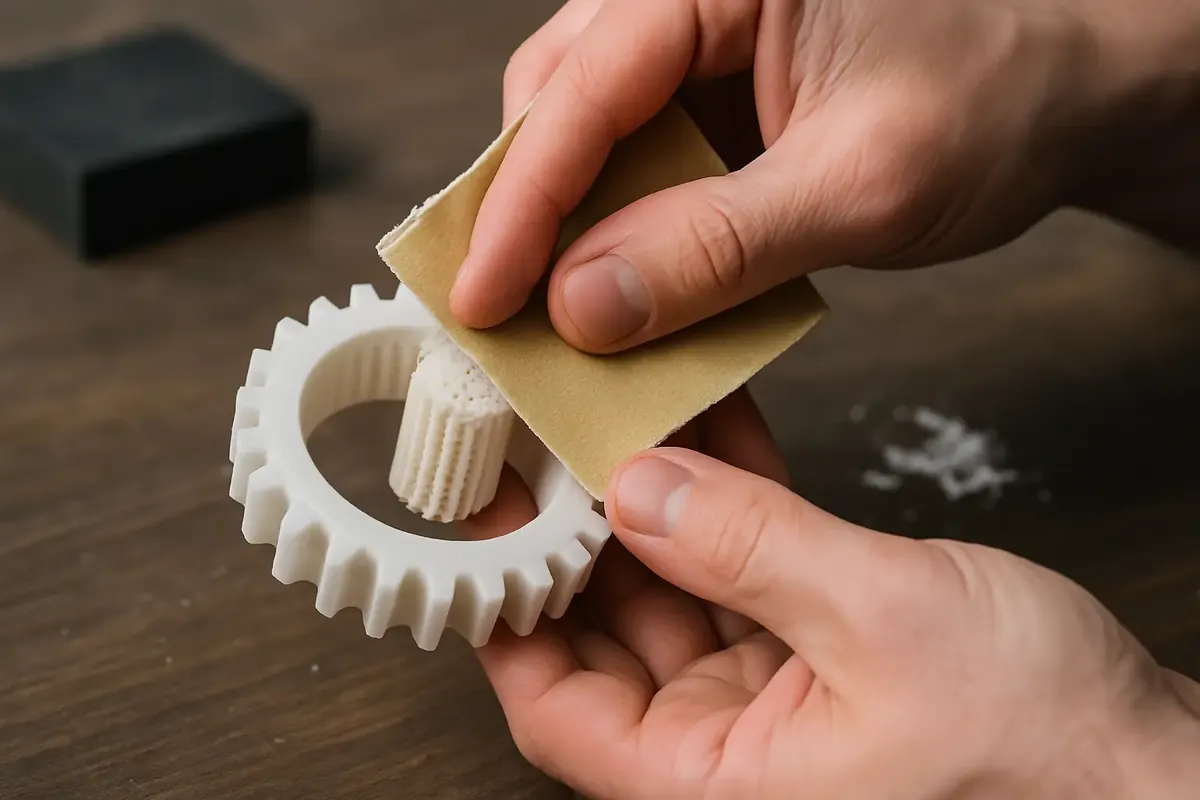

Step 2: Sanding—The Foundation of a Smooth Finish
Sanding is the primary method for removing leftover support marks and creating a polished surface.
Start With the Right Grit
Begin with a grit appropriate for the severity of the marks:
- 100–150 grit: For rough patches or significant support scarring
- 220–400 grit: For medium marks and general smoothing
- 600–1000 grit: For fine smoothing and preparing for paint
- 1200–2000 grit: For glossy or transparent finishes
Sanding Process:
- Dry Sand for Initial Passes: Start with dry sandpaper for heavy removal.
- Wet Sand for Finer Grits: Use water to reduce heat and friction. Wet sanding also minimizes dust.
- Use Circular Motions: Sand in small, controlled circles to avoid creating linear scratches.
- Inspect Frequently: Stop and check your progress under bright light.
Optional: Sanding Blocks or Sponges
Use sanding sponges or foam blocks for curved surfaces and contours. These conform to the part’s shape and distribute pressure evenly.
Step 3: Spot Treatment with Precision Tools
For tight corners, grooves, or complex geometries, large sandpaper sheets may not work.
Tools for Detailed Work:
- Needle files: Perfect for small corners and crevices.
- Dental picks or sculpting tools: Great for scraping tiny remnants.
- Mini sanding sticks: Thin, rigid strips coated in abrasive material.
- Dremel or rotary tool: Use low speed with sanding drums for controlled surface leveling.
Always wear eye protection and keep speeds low to avoid melting the plastic, especially on PLA or PETG.
Step 4: Apply Smoothing Filler (Optional)
Some support marks leave small craters or deep surface imperfections. In these cases, filler products can restore surface uniformity.
Common Fillers:
- Spot putty (automotive grade): Dries quickly and sands easily.
- Epoxy filler: Good for structural parts and deeper defects.
- PLA-compatible gap filler: Designed for bonding with plastic.
Application:
- Apply a thin layer over the scarred area.
- Let it dry completely (follow product instructions).
- Sand smooth with 400–800 grit paper.
- Prime and inspect before finishing.
Filler works best for display models, cosplay props, and parts that will be painted.
Step 5: Apply a Primer for Surface Inspection
Once sanding is complete, apply a light coat of spray primer. Primer highlights any remaining imperfections and prepares the part for painting or sealing.
Types of Primer:
- Filler primer: Fills small scratches and improves sanding.
- Standard gray/white primer: Good for seeing defects on light or dark parts.
- Sandable primer: Can be smoothed after application for ultra-clean surfaces.
Let the primer cure fully, then inspect under direct light or with a raking light angle. Spot-sand as needed.
Step 6: Final Polishing or Coating
If you’re aiming for a professional finish, polishing or clear coating is the final step.
Polishing:
- For PLA or resin, use a plastic polishing compound or automotive polish.
- Apply with a soft cloth or buffing wheel in gentle, circular motions.
- This can create a semi-gloss or high-gloss finish on bare plastic.
Clear Coating:
- Apply matte, satin, or gloss clear spray for protection and visual appeal.
- Seal painted surfaces to prevent flaking or fading.
- Use UV-resistant clear coats for outdoor parts.
Let the final finish cure at least 24 hours before handling or displaying.
Additional Techniques by Material Type
Different filament materials respond to finishing methods in unique ways.
PLA:
- Easy to sand
- Low heat resistance—avoid rotary tools at high RPM
- Accepts primer and paint well
PETG:
- Flexible, slightly more difficult to sand
- Tends to clog sandpaper; use wet sanding
- Heat-sensitive during polishing
ABS:
- Great for sanding and post-processing
- Can be vapor smoothed with acetone (only for ABS)
- Accepts filler and primer easily
Resin:
- Ultra-smooth, ideal for polishing
- Must be fully cured and cleaned before sanding
- Use micro-sanding for the best results
Pro Tips for Better Results
- Start coarse, end fine: Never jump from 150 to 1000 grit. Work your way up.
- Clean between steps: Rinse or wipe the part between grits to avoid embedding particles.
- Use light pressure: Let the abrasive do the work—heavy pressure leads to uneven surfaces.
- Work in a dust-safe area: Fine plastic particles are hard to clean and hazardous if inhaled.
- Take breaks: Sanding can generate heat that may deform soft plastics.
Advanced Finishing Techniques (Optional)
If you’re working on high-end models or production prototypes, consider these additional finishing methods:
Airbrushing:
- Provides uniform color application with fine control
- Ideal for multi-color designs or shading
- Works best on smooth, well-primed surfaces
Metallic or Chrome Coating:
- Requires ultra-smooth base layer
- Use mirror-finish spray paints or electroplating processes
Vapor Polishing (For ABS Only):
- Acetone vapor melts outer layer for a glossy finish
- Requires airtight chamber and temperature control
- Not suitable for PLA, PETG, or resin
Resin Coating:
- Apply thin layers of clear epoxy (e.g., XTC-3D) for a glass-like surface
- Increases durability and waterproofing
Frequently Asked Questions (FAQ)
What’s the fastest way to remove support marks?
A combination of sharp tools for removal and coarse sanding followed by finer grits is the most efficient. Power tools help, but manual sanding gives better control.
Can I remove support marks without sanding?
Not completely. Some chemical smoothing methods (e.g., acetone for ABS) can reduce sanding needs, but most prints require at least minor sanding.
Do all support types leave marks?
Yes, although tree supports, breakaway supports, and soluble supports like PVA or HIPS leave fewer and less severe marks than traditional grid supports.
Is filler necessary?
Not always, but it helps with large or deep scars. It’s most useful when painting or finishing a display-quality piece.
Can sanding affect part strength?
If done excessively, especially on thin walls, yes. However, controlled sanding typically has minimal impact on structural integrity.
Conclusion
Support marks are a natural consequence of FDM and resin printing, but they don’t have to ruin your final result. With the right tools, techniques, and patience, you can achieve a smooth, professional finish that enhances the look and feel of your 3D printed parts.
From careful removal and progressive sanding to optional filler and fine polishing, every step contributes to a cleaner, more refined surface. Whether you’re working on functional prototypes, cosplay pieces, or artistic displays, mastering support mark removal is an essential skill in your 3D printing toolkit.
