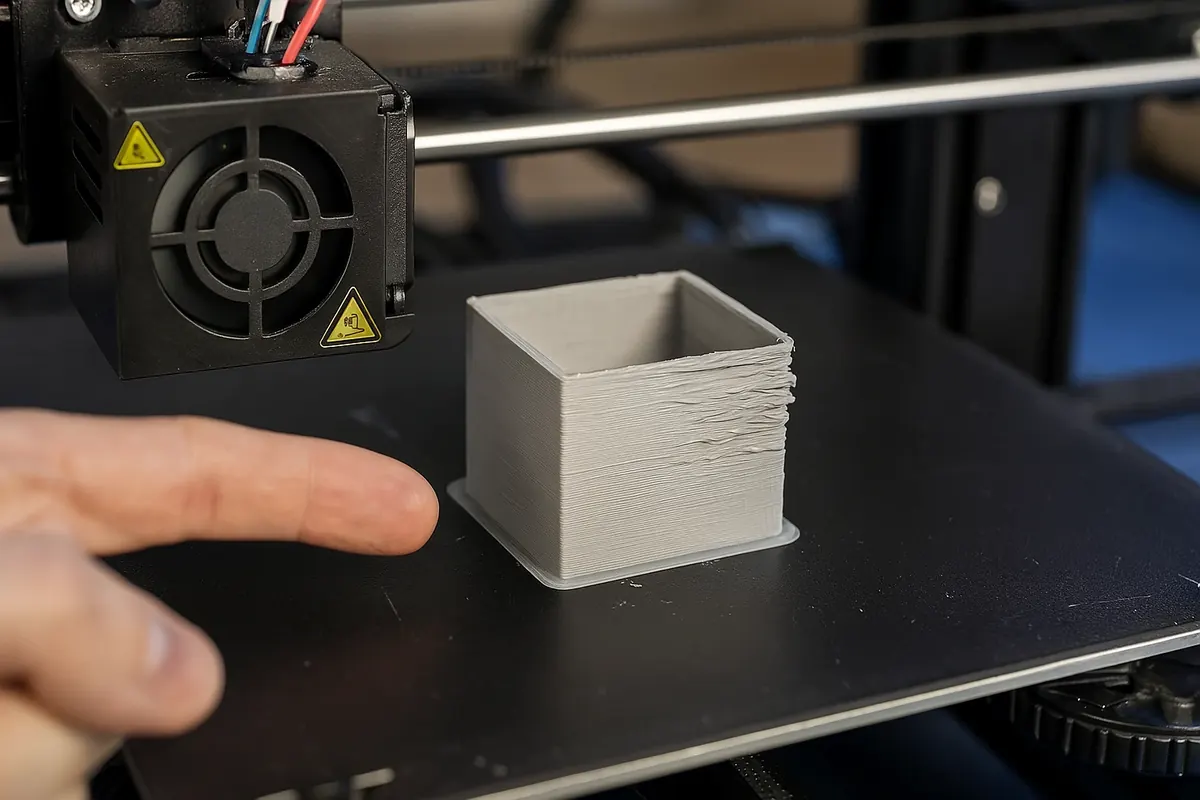

Uneven layers are one of the most frustrating problems that 3D printer users encounter. If your prints have inconsistent or rough layers, it can severely affect the quality and functionality of your models. Fortunately, understanding the potential causes of uneven layers can help you troubleshoot the issue effectively and restore the smooth, high-quality prints you’re aiming for.
In this comprehensive guide, we’ll explore the main causes of uneven layers, how to diagnose the problem, and solutions that will help you get your 3D printer working smoothly again.
What Are Uneven Layers in 3D Printing?
In 3D printing, uneven layers refer to a situation where the layers of a printed model do not have a uniform height or surface texture. This issue can manifest as:
- Z-banding: Visible horizontal bands on the surface of the model.
- Layer Shifts: Gaps or misalignments between layers, causing uneven surfaces.
- Under or Over-Extrusion: Uneven material flow leading to thick or thin layers.
These issues not only affect the appearance of your print but can also impact its strength and overall functionality.
Common Causes of Uneven Layers
Uneven layers in 3D printing can occur due to various factors, from mechanical problems to software settings. Let’s take a deeper look at the most common causes:
1. Improper Bed Leveling
One of the most common reasons for uneven layers is improper bed leveling. If the print bed isn’t level or is too far away from the nozzle, the first few layers of the print may not adhere properly, leading to uneven surfaces in subsequent layers.
Symptoms:
- Inconsistent extrusion on the first layers.
- Gaps or misalignment between layers.
Solution:
- Recalibrate your printer’s bed leveling to ensure the nozzle is at an equal distance from all parts of the bed.
- Use an automatic bed leveling system if your printer supports it.
- If leveling manually, ensure that the nozzle is just a tiny bit above the bed at each point, with just a small resistance when using a piece of paper to test the distance.
2. Incorrect Extruder Calibration
Another common culprit for uneven layers is incorrect extruder calibration. The extruder is responsible for feeding filament to the nozzle at the correct rate. If the extruder isn’t calibrated properly, it can lead to under-extrusion (insufficient material) or over-extrusion (too much material), causing uneven layers.
Symptoms:
- Thin or thick layers of material in random spots.
- Gaps between layers or excessive material buildup.
Solution:
- Perform an extruder calibration (also known as “steps per millimeter” calibration) to ensure that the correct amount of filament is being fed.
- Check the extruder’s drive gear for debris or wear. Clean or replace it if necessary.
3. Issues with the Z-Axis
Problems with the Z-axis can cause uneven layers if the printer head isn’t moving correctly along the vertical axis. Z-axis issues can cause the nozzle to be too high or too low, affecting the consistency of each layer.
Symptoms:
- Layer misalignment or height difference between layers.
- Visible lines or gaps along the print height.
Solution:
- Check the Z-axis lead screws and ensure they are clean and lubricated. If the screws are dirty or have insufficient lubrication, the Z-axis movement will be jerky.
- Inspect the Z-axis motor and ensure it’s working smoothly.
- If you notice inconsistent Z-axis movement, try recalibrating the Z-axis steps per mm or replacing any worn-out components.
4. Worn or Misaligned Belts
Belts that are worn, loose, or misaligned can lead to layer shifting, causing uneven prints. The X and Y-axis belts move the print head back and forth horizontally, and if they’re not properly tensioned or aligned, the print head can shift unexpectedly, resulting in misaligned layers.
Symptoms:
- Visible layer shifts, where the layers don’t align properly.
- Wobbly or jerky movements on the print head.
Solution:
- Inspect the belts for any wear or fraying and replace them if needed.
- Ensure that the belts are properly tensioned, not too loose or tight.
- Check the alignment of the belts and pulleys. Make sure the pulleys are not slipping or misaligned.
5. Clogged Nozzle
A clogged nozzle is a frequent cause of uneven layers, especially when the extruder is not feeding material evenly. Clogs can happen over time due to filament buildup or contaminants that block the nozzle.
Symptoms:
- Inconsistent extrusion or gaps between layers.
- The nozzle extrudes only small amounts of filament intermittently.
Solution:
- Heat the nozzle and perform a cold pull to clear the blockage.
- Use a needle or cleaning tool to clear any debris inside the nozzle.
- Regularly clean the nozzle to prevent clogs from developing in the first place.
6. Incorrect Printing Speed or Temperature
Printing too fast or too slow, or using incorrect temperatures for your filament, can result in uneven layers. When printing at a high speed, the material may not have enough time to cool and settle, leading to uneven extrusion.
Symptoms:
- Uneven layer height or visible print imperfections.
- Warping or layer separation due to improper cooling.
Solution:
- Lower the printing speed to ensure consistent extrusion, especially for high-detail prints.
- Adjust the print temperature to the manufacturer’s recommendations for your filament type.
- Consider adjusting your cooling fan settings for better heat dissipation during the print.
7. Issues with the Filament
Not all filaments are created equally. Variations in filament diameter, quality, and material composition can cause uneven extrusion and printing issues.
Symptoms:
- Thin or thick spots in the printed layers.
- Filament tangles or breaks during the printing process.
Solution:
- Use high-quality filament with a consistent diameter (usually 1.75mm or 2.85mm, depending on your printer).
- Measure the filament diameter with calipers to ensure consistency throughout the spool.
- Store filament properly in a dry environment to avoid moisture absorption, which can affect the extrusion.
8. Incorrect Layer Height
The layer height refers to the thickness of each individual layer in the print. If the layer height is too large relative to the nozzle size, it can result in uneven layers, as the printer may struggle to maintain consistent extrusion at high layer heights.
Symptoms:
- Uneven layer bonding or gaps between layers.
- Visible inconsistencies in the print surface.
Solution:
- For best results, set the layer height to be around 70-80% of the nozzle size (e.g., for a 0.4mm nozzle, use a layer height of 0.28–0.32mm).
- Experiment with different layer heights to achieve the optimal balance between print speed and detail.
9. Mechanical Issues with the Printer
If your 3D printer has mechanical problems such as a loose frame, misaligned components, or malfunctioning motors, these can all contribute to uneven layers. Vibrations, loose parts, or improper calibration can all result in visible imperfections in the print.
Symptoms:
- Unpredictable layer shifts or misalignment.
- Wobbling or shaking during prints.
Solution:
- Tighten all screws and bolts on the printer frame to ensure that there is no play or wobble.
- Check for any loose parts, particularly in the print bed and extruder assembly.
- Ensure the printer’s moving components, such as the gantry and rails, are well-lubricated and moving smoothly.
How to Prevent Uneven Layers in Future Prints
After addressing the issues that cause uneven layers, there are several things you can do to prevent the problem from occurring again in the future:
- Regular Maintenance: Regularly clean the printer, check calibration, and replace worn-out components.
- Use Quality Filament: Use high-quality filament from reputable manufacturers to reduce the chances of extrusion issues.
- Monitor Print Settings: Always double-check your print settings for temperature, speed, and layer height before starting a print.
- Invest in an Automatic Bed Leveling System: This can ensure that your print bed remains level and properly calibrated for each print job.
Conclusion
Uneven layers are a common issue in 3D printing, but with proper troubleshooting and preventive measures, you can eliminate these problems and achieve high-quality prints. Start by diagnosing the cause, whether it’s a bed leveling issue, incorrect extruder calibration, or something else, and address the problem with the appropriate solution. Regular maintenance and careful monitoring of your 3D printer will help ensure consistent, even layers in your future prints, producing the best results every time.
With this guide, you now have the tools to troubleshoot uneven layers effectively. Take your time, experiment with different settings, and don’t be afraid to adjust your workflow as needed. Happy printing!
