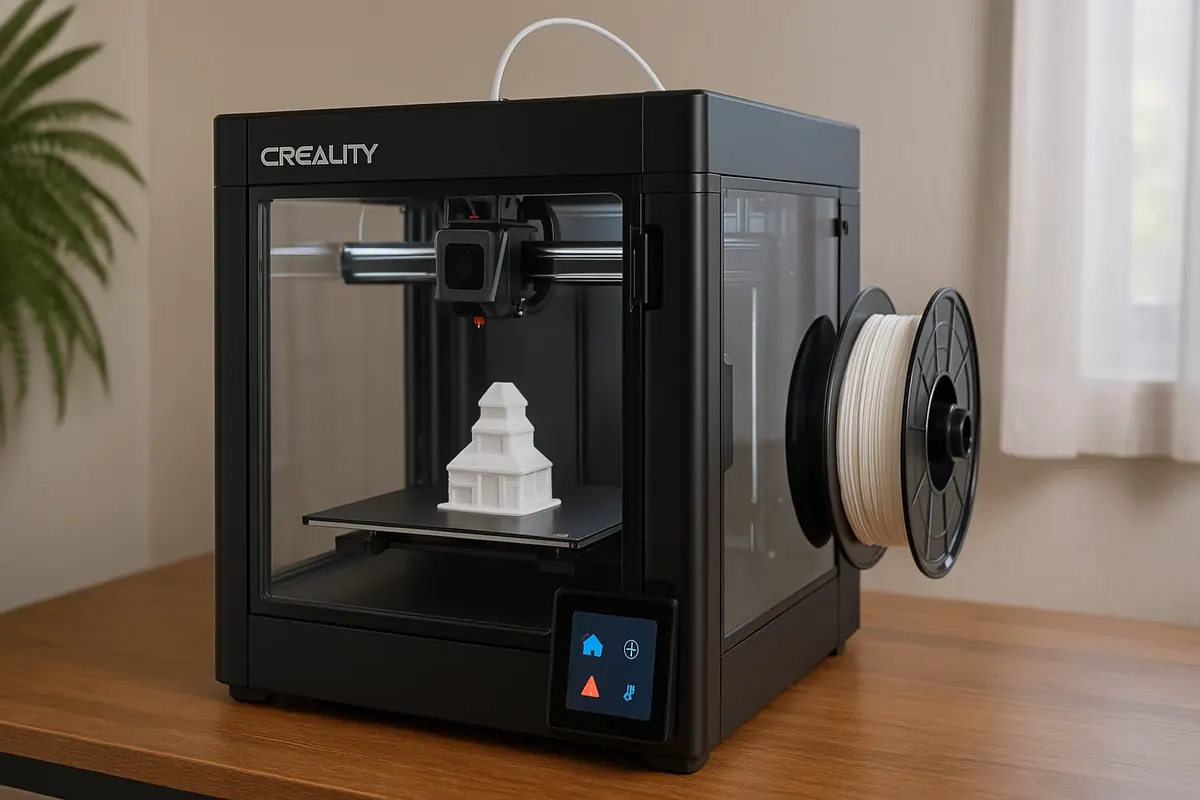

Creality K1 & K1 Max Beginner Setup Guide (2025)

  • 3DISM

The Creality K1 and K1 Max are powerful and feature-rich 3D printers designed to cater to both beginners and experienced users. With a streamlined design, intuitive user interface, and advanced features, these printers are becoming popular choices for hobbyists, educators, and professionals alike. However, setting up your Creality K1 or K1 Max for the first time can feel overwhelming if you’re not familiar with 3D printers. This guide will walk you through the step-by-step process to get your Creality K1 or K1 Max printer up and running in no time.

Let’s break it down into easy-to-follow steps to ensure you have a smooth setup and a great first printing experience.

1. Unboxing Your Creality K1/K1 Max

What’s Inside the Box:

Before diving into the setup, it’s important to make sure you have everything you need. The box should include:

  • The Creality K1 or K1 Max 3D printer.
  • A power cable and USB drive.
  • Printer tools like a spanner, screwdrivers, and extra nozzles.
  • A filament spool (usually PLA) and filament holder.
  • User manual and warranty card.
  • SD card for storing print files (depending on your model).
  • A spray bottle of lubricant (if needed).

First Steps:

  1. Carefully remove all items from the box and inspect them for any damage that may have occurred during shipping.
  2. Place the printer on a stable, level surface where it has plenty of space for both printing and ventilation.

2. Assembly of the Creality K1/K1 Max

While the Creality K1 and K1 Max are mostly pre-assembled, there are a few assembly steps required to get the printer fully ready.

Step-by-Step Assembly:

  1. Attach the Gantry:
    • The gantry is usually already attached to the base, but you’ll need to secure it by fastening the screws. Use the provided screwdriver and spanner to lock the screws in place.
    • If you’re assembling the K1 Max, the gantry may be larger, so extra care is needed when handling the larger frame.
  2. Install the Display Screen:
    • The touchscreen is mounted on the frame but may need to be connected via the provided cables.
    • Gently connect the display to the mainboard of the printer, ensuring the connection is secure.
  3. Attach the Filament Holder:
    • The filament spool holder usually snaps onto the back of the printer.
    • Place your filament spool onto the holder and make sure it spins freely.
  4. Connect the Power Supply:
    • Plug the power cable into the back of the printer and connect the other end to a power outlet.
    • Ensure the printer is in a stable and well-ventilated area to avoid overheating.

3. Leveling the Bed and Calibration

Proper bed leveling and calibration are essential for ensuring high-quality prints and proper adhesion. Fortunately, Creality has made this process relatively straightforward, and the K1 and K1 Max come with automatic bed leveling.

How to Level the Bed:

  1. Turn on the Printer by pressing the power button located on the side or front of the machine.
  2. Select the ‘Auto Leveling’ option from the touchscreen display.
  3. The printer will perform a series of probes to map the surface of the bed and calibrate itself for optimal printing height.

Tip: If the automatic leveling doesn’t seem perfect, you can manually adjust the Z-axis offset to fine-tune the bed leveling.

Additional Calibration:

  • Extruder Calibration: Ensure that the extruder is feeding filament correctly. Check the extruder steps per mm using the printer’s calibration options if you’re facing any extrusion issues.
  • Temperature Calibration: It’s important to set the correct temperatures for your chosen filament. The K1 and K1 Max come with preset profiles, but you can always adjust them in the printer settings if needed.

4. Installing Filament

Step-by-Step Guide to Loading Filament:

  1. Preheat the Extruder:
    • From the touchscreen, select the Preheat option to heat the extruder to the required temperature based on the filament type (e.g., PLA, PETG, ABS).
  2. Insert the Filament:
    • Insert the filament into the filament inlet of the extruder. You may need to push gently until you feel some resistance.
  3. Manually Feed Filament:
    • On the display screen, select Feed Filament. The extruder will push the filament through the hot end and start feeding it.
  4. Check the Extrusion:
    • Once the filament is loaded, you should see a small amount of filament coming out of the nozzle. This confirms that the filament is properly loaded and ready for printing.

5. Setting Up Your First Print

Now that your printer is assembled, calibrated, and ready with filament, it’s time to load your first print.

Step-by-Step Printing Guide:

  1. Insert the SD Card or USB Drive:
    • Load your SD card or USB drive with a 3D model (typically in .stl format). Most Creality K1 and K1 Max users upload files through Creality Slicer, which integrates directly with the printer.
  2. Prepare Your Model in Creality Slicer:
    • Open Creality Slicer on your computer.
    • Import your 3D model file and make any necessary adjustments (e.g., print speed, layer height, supports).
    • Slice the model and save the G-code to your SD card or USB drive.
  3. Select the File from the Printer Screen:
    • Insert the SD card or USB drive into the printer and select your file from the touchscreen menu.
    • Press Start Print to begin the printing process.

6. Printer Settings and Maintenance Tips

Fine-Tuning Printer Settings:

  • Print Speed: Set your print speed according to the complexity and material you are using. Slower speeds often lead to better quality.
  • Temperature Settings: Make sure your extruder and heated bed temperatures are set to the recommended values for the filament type.

Regular Maintenance:

  1. Nozzle Cleaning: Periodically clean the nozzle to avoid clogs.
  2. Lubrication: Keep the rails and lead screws lubricated to ensure smooth movement.
  3. Check for Loose Screws: As with any printer, regular checks for loose screws can prevent unexpected issues during printing.

7. Common Troubleshooting Tips

Issues You May Encounter:

  • Prints not sticking to the bed: Ensure the bed is clean and properly leveled. You can use adhesive aids like glue stick or blue painter’s tape.
  • Filament Jams: If the filament isn’t feeding smoothly, check for obstructions in the extruder and clean it regularly.
  • Stringing: If you notice strings between parts of your print, adjust the retraction settings in your slicer software.

Conclusion

Setting up your Creality K1 or K1 Max doesn’t have to be intimidating. By following these steps—unboxing, assembling, calibrating, and printing—you can ensure a smooth and successful 3D printing experience right from the start. With practice and proper maintenance, your Creality 3D printer will deliver stunning prints for years to come.

By taking advantage of Creality’s slicer, automatic calibration, and easy-to-use features, you can start creating incredible models with minimal setup. Keep this guide handy for troubleshooting and maintaining your printer, and you’ll be printing like a pro in no time.
