If you’ve been tinkering with your 3D printer long enough, you’ve probably come across the idea of a Dual Z-Axis upgrade. Commonly promoted as a way to improve stability, precision, and bed leveling, it sounds like an easy win—but is it really worth the investment?
In this guide, we’ll break down what a Dual Z-Axis is, its real-world benefits (and limitations), and whether it’s a smart upgrade for your specific printer setup. Whether you’re printing tall models or chasing next-level layer consistency, we’ll help you make the right call.
What Is a Dual Z-Axis System?

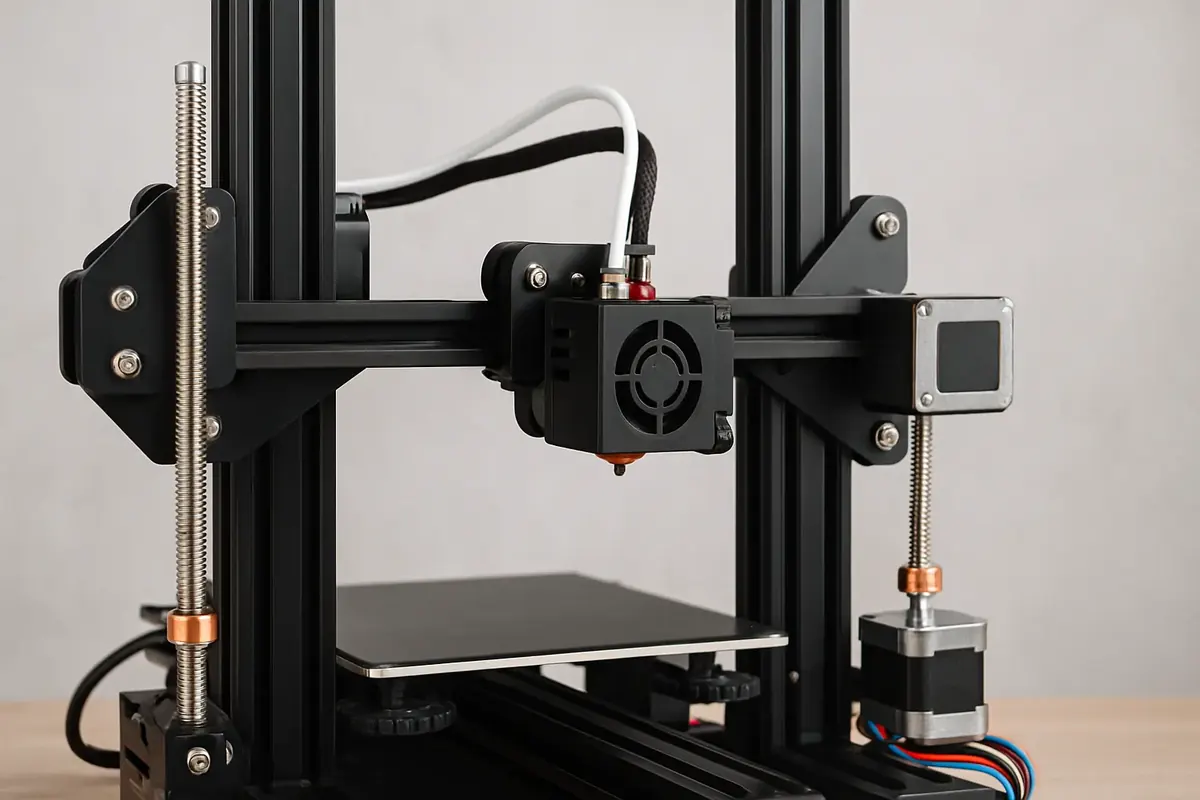

Most 3D printers use a single Z-axis lead screw to raise and lower the X-axis gantry. In a Dual Z-Axis system, two stepper motors (or one motor with a synchronized second lead screw) lift the gantry from both sides, reducing tilt or uneven motion.
Single vs Dual Z-Axis
| Feature | Single Z-Axis | Dual Z-Axis |
|---|---|---|
| Motor Count | 1 | 2 (or 1 + sync shaft) |
| Lead Screw Count | 1 | 2 |
| Stability | Lower | Higher |
| Risk of Sagging | Moderate to High | Minimal |
| Cost | Lower | Slightly higher |
📌 Dual setups are typically found in larger printers or high-precision machines.
Benefits of a Dual Z-Axis Upgrade
Let’s look at what this upgrade actually improves—and when it matters.
1. Improved Gantry Stability
With a single Z motor, one side of the gantry can droop or become misaligned, especially over time. A dual setup holds the X-axis level, reducing:
- Z wobble
- Drooping gantries
- First-layer inconsistencies
✅ Best for printers with wide beds or heavy hotends (like IDEX or direct-drive systems).
2. Better Layer Uniformity
Inconsistent Z movement affects how evenly each layer is laid down. Dual Z-Axis helps ensure both sides move in sync, creating:
- Sharper details
- Smoother walls
- Reduced banding
📌 Especially useful for tall prints or ornamental designs.
3. More Reliable Bed Leveling
On single-Z printers, the gantry can lean slightly if the lead screw isn’t perfectly perpendicular. This throws off bed tramming and auto bed leveling.
With dual Z, the gantry holds its position better after:
- Power cycles
- Transportation
- Long prints
✅ Works great with ABL sensors like BLTouch or CR-Touch.
4. Easier Maintenance & Gantry Alignment
Dual motors let you manually adjust each side using the stepper’s microstepping or software sync functions (like in Klipper or Marlin).
📌 Bonus: Some firmware can auto-align dual Z motors after homing.
Drawbacks to Consider
No upgrade is without trade-offs. Here’s what to keep in mind:
1. Cost and Complexity
- You’ll need an extra stepper motor, wiring, and sometimes a new mainboard with more drivers.
- Installation can be tricky for beginners.
💡 Kits cost anywhere from $20 to $80, depending on printer model and parts.
2. Firmware Configuration
- Your firmware must support dual Z steppers.
- On Marlin: Enable
Z_DUAL_STEPPER_DRIVERS - On Klipper: Add a
[stepper_z1]section with coordinates and sync settings.
✅ Not a dealbreaker, but does require some setup knowledge.
3. More Parts = More Things to Fail
- Misaligned dual screws can bind or desync if not properly tensioned.
- Dual motors without synchronization can drift if power is cut mid-move.
📌 Use dual Z sync via belts or firmware auto-align to avoid this.
Who Should Consider a Dual Z-Axis Upgrade?
✅ Highly Recommended For:
- Printers with large build volumes (e.g. Ender 5 Plus, Artillery Sidewinder)
- Users printing tall or detailed models
- Machines with direct drive extruders
- Printers that frequently lose gantry level
🚫 May Not Be Necessary For:
- Compact printers (e.g. Ender 2, Prusa Mini)
- Lightweight hotend setups
- Users who rarely print large vertical models
Tips for a Successful Dual Z-Axis Installation
- Use matching lead screws and couplers.
- Tighten all mounts evenly to avoid tilt.
- Flash compatible firmware and test before printing.
- For Marlin users: use
G34(Z auto-align) if supported. - For Klipper users: define
[stepper_z1]withposition_min/maxand align macros.
FAQs
Q1: Do I need a second Z motor or can I sync the lead screws with a belt?
Both options work. A belt-synced single motor setup is more mechanically reliable but harder to tension. Dual motors offer better control with firmware support.
Q2: Will dual Z make my prints faster?
No. It improves print quality and reliability, not speed.
Q3: Is this upgrade better than auto bed leveling?
They serve different purposes. Dual Z stabilizes your gantry, while ABL compensates for bed irregularities. They complement each other.
Q4: Can I add dual Z to any printer?
Mostly yes, but ensure your mainboard has a spare stepper driver, or use a splitter cable (less ideal).
Conclusion
The Dual Z-Axis upgrade is absolutely worth it—for the right setup. If you’re running a large-bed printer, printing tall models, or want more consistent first layers and vertical walls, this upgrade will deliver visible results.
But if you’re using a compact printer with no signs of sagging or layer shifts, your money might be better spent elsewhere—like on a better bed surface, extruder, or enclosure.
When paired with good firmware tuning and regular maintenance, a Dual Z system adds a layer of mechanical precision that can unlock cleaner, more professional-quality prints.
