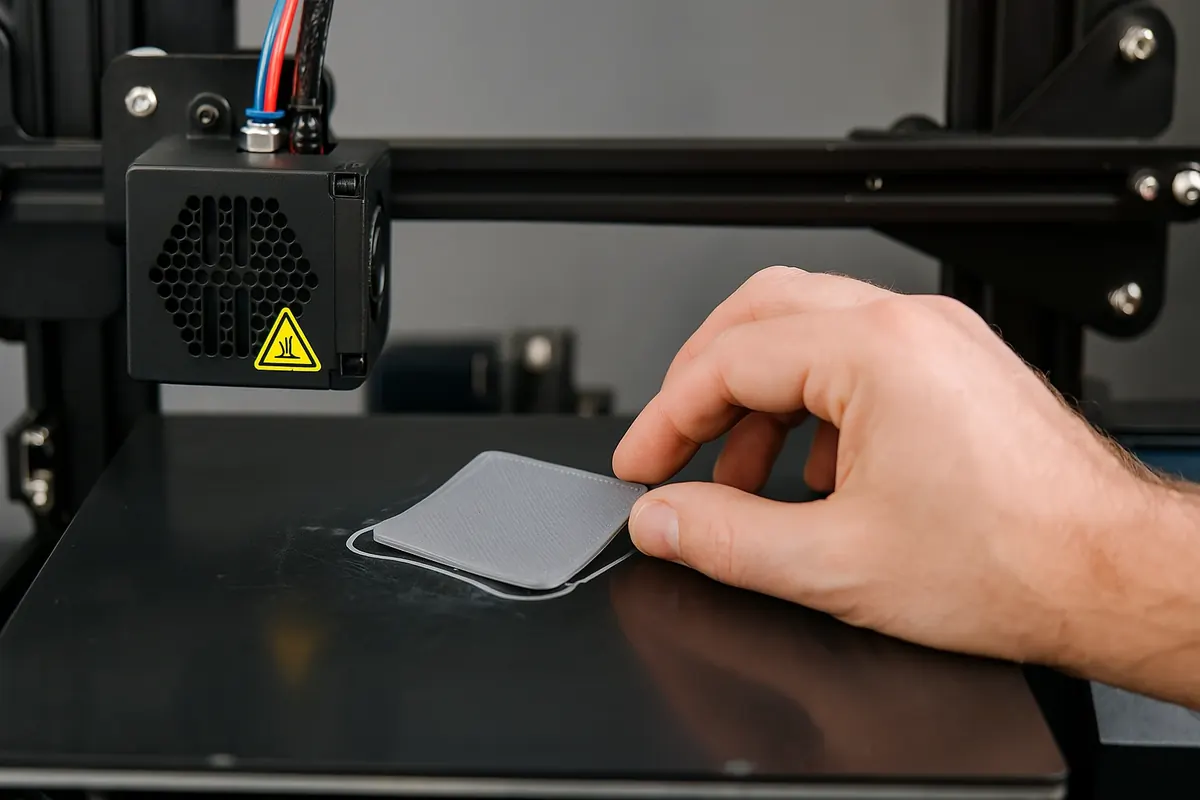

One of the most frustrating issues in 3D printing is when a print detaches from the print bed midway through the process. This not only wastes time and material but can also result in a ruined print that may be difficult to fix. Understanding why prints detach and how to prevent it from happening is crucial to achieving high-quality and consistent results.
In this article, we will explore the main reasons why 3D prints detach from the print bed and provide practical solutions to prevent this issue, ensuring successful prints every time.
Why Do Prints Detach from the Print Bed?
Before diving into the solutions, it’s important to understand why prints detach from the print bed in the first place. There are several factors that can contribute to this problem, including:
1. Poor Bed Adhesion
One of the most common causes of print detachment is inadequate adhesion of the first few layers of the print to the bed. If the first layer isn’t properly attached, it’s easy for the print to lose contact with the bed and detach.
2. Incorrect Bed Leveling
If the print bed isn’t level, the nozzle will be too far from the bed at some points, causing weak adhesion in specific areas. This is especially problematic for large prints that require good contact with the bed throughout.
3. Incorrect Print Temperature
The extruder and bed temperatures play a significant role in print adhesion. If the extruder is too cold, the filament may not stick well to the bed, while a too-hot extruder may cause the filament to warp and detach.
4. Warping of the Print
Certain materials, like ABS, tend to shrink as they cool, which can create warping, pulling the print away from the bed. If this happens early in the print, the print may detach entirely.
5. Inconsistent Filament Flow
If the filament is not extruding smoothly, whether due to a clogged nozzle or inconsistent material supply, it can lead to weak bonding between the layers and poor adhesion to the bed.
6. Environmental Factors
Drafts, temperature changes, or even a cold room can affect the print process, especially for materials like ABS, which are sensitive to environmental changes.
How to Prevent Prints from Detaching Midway
Now that we know what causes prints to detach, let’s go over the solutions to ensure your prints stay attached to the bed throughout the entire process.
1. Ensure Proper Bed Leveling
Leveling the print bed is critical for proper adhesion. If your bed is not level, parts of the print will be too far from the nozzle, causing uneven extrusion and poor adhesion. Regularly check the bed level before starting a print.
How to Level Your Bed:
- Use a Leveling Probe: Some 3D printers come with auto-leveling sensors, making this process easier.
- Manual Leveling: For printers without auto-leveling, you can use the “paper method” where you move the nozzle to different points on the bed, placing a piece of paper between the nozzle and the bed. Adjust the bed until you feel slight friction when moving the paper.
- Test for Evenness: After leveling, print a small test object like a calibration cube to ensure the bed is uniformly level.
2. Use a Suitable Bed Adhesive
For better adhesion, especially with difficult-to-stick filaments like ABS, you can use various bed adhesives. Common options include:
- Blue Painter’s Tape: Great for PLA and can be used with a heated bed.
- Glue Stick: Apply a thin layer of glue to the bed, which works well for both PLA and ABS.
- Hair Spray: A quick fix for PLA; it creates a sticky surface for better adhesion.
- BuildTak or PEI Sheets: These are durable bed surfaces that provide excellent adhesion for a wide range of materials.
3. Adjust Bed and Extruder Temperatures
The correct temperatures are crucial for print adhesion and preventing detachment.
- Bed Temperature: Ensure the bed is heated to the recommended temperature for your filament type. PLA typically prints well at around 60°C, while ABS requires a bed temperature around 100°C.
- Extruder Temperature: Make sure the extruder temperature matches the recommended range for your filament. A too-cold extruder will not extrude enough material, while an over-heated extruder may cause excessive oozing or warping.
4. Enable Brims or Rafts in Your Slicing Software
A brim or raft is a common solution for improving bed adhesion. These structures are printed around or beneath your model to help secure it to the bed.
- Brim: A brim adds additional layers of material around the object, which increases adhesion. It’s especially useful for prints with small contact areas.
- Raft: A raft is a structure printed underneath the model to ensure it sticks well to the bed. It can be helpful for prints with challenging adhesion or for materials prone to warping.
5. Use the Right Print Speed and Layer Height
Printing too fast or with incorrect layer heights can negatively impact the adhesion of the first few layers. A slow print speed for the first few layers allows better bonding to the bed. Similarly, a smaller layer height (such as 0.1mm to 0.2mm) allows the filament to adhere more strongly to the bed.
- First Layer Speed: Lower the print speed for the first layer (around 10-15mm/s) to allow the filament to better adhere to the bed.
- Layer Height: The first layer should be thicker than the rest of the print. Use a height of around 0.2mm for the first layer for better adhesion.
6. Use a Heated Print Bed
A heated print bed is essential for preventing warping, especially with filaments like ABS. The heat keeps the print from cooling too quickly, reducing the chance of detachment.
- PLA: Bed temperature around 50-60°C.
- ABS: Bed temperature should be higher, around 100-110°C.
By ensuring the bed is heated to the right temperature for your filament, you reduce the risk of warping and improve adhesion.
7. Ensure Smooth Filament Flow
Ensure your extruder and filament supply are consistent to avoid poor adhesion. This includes checking for common issues like:
- Clogged Nozzle: A clogged nozzle can cause uneven extrusion, which weakens the bond between the first layer and the bed. Regularly clean the nozzle if you experience extrusion issues.
- Filament Quality: Poor-quality filament can have inconsistent extrusion. Always use good-quality filament from a reputable source to ensure smooth printing.
- Check for Filament Tangling: Make sure the filament is feeding smoothly from the spool to the extruder. Tangling or knots can disrupt the flow of filament and cause issues with adhesion.
8. Ensure an Optimal Printing Environment
Environmental factors like drafts or temperature fluctuations can affect adhesion, especially with temperature-sensitive materials like ABS. To prevent issues:
- Avoid Drafts: Ensure the printer is placed in a location where it’s shielded from drafts, air conditioning, or fans.
- Maintain Stable Temperature: Keep the room temperature stable, as extreme temperature fluctuations can cause prints to warp or detach.
Conclusion
Print detachment is a frustrating issue, but it can be avoided by taking a few simple precautions and ensuring proper setup. By leveling your bed correctly, using the right adhesive, adjusting your temperatures, and enabling brims or rafts, you can significantly improve adhesion and prevent prints from detaching mid-way.
