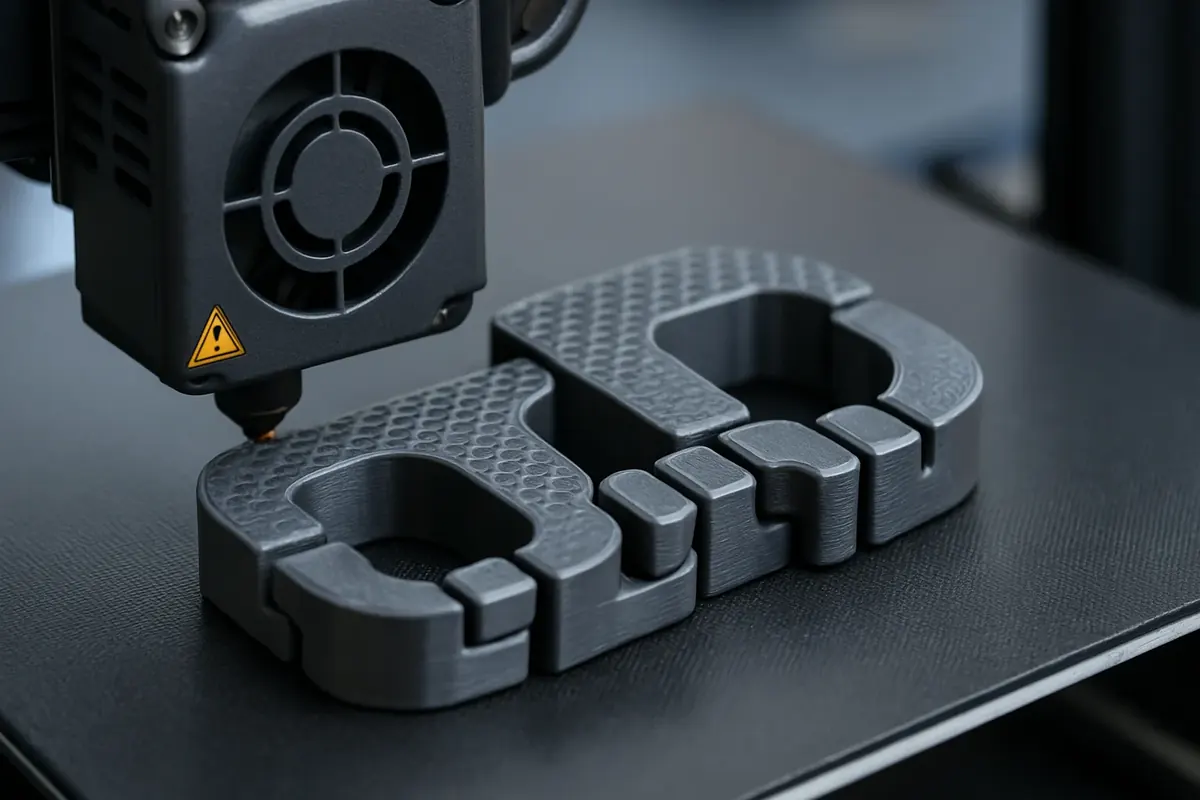

One of the most fascinating aspects of 3D printing is the ability to create functional, movable assemblies in a single print without requiring assembly afterward. These are known as Print-in-Place (PIP) objects.
Print-in-place designs can feature working hinges, joints, chains, gears, and locks—all coming straight off the printer, fully functional, without gluing, screwing, or snapping anything together.
But designing successful PIP objects requires specific strategies, precise tolerances, and careful planning to avoid parts fusing together during printing.
This expert guide explains exactly how to design your own print-in-place objects, step-by-step, so they work perfectly straight off the bed.
What Is a Print-in-Place (PIP) Object?
A Print-in-Place object is a model that includes moving parts printed simultaneously in a fixed position but freely movable after printing.
Examples include:
- Hinges
- Ball joints
- Chains
- Gears
- Complex puzzles
- Snap-fit parts
The magic happens because the parts are designed with just enough clearance to avoid sticking together, but close enough to be printed in one go.
Benefits of Designing Print-in-Place Objects
| Benefit | Description |
|---|---|
| No Assembly Required | Saves time and complexity after printing |
| Cleaner Aesthetic | No screws, glue, or visible assembly marks |
| Full 3D Utilization | Takes advantage of 3D printing’s unique capabilities |
| Functional Movement | Hinges, gears, and joints are operational immediately |
| Fun and Practical | Toys, tools, mechanical parts, and art pieces can be made |
Creating successful print-in-place designs showcases creativity, engineering skill, and deep understanding of 3D printing mechanics.
Challenges in Print-in-Place Design
| Challenge | Why It Matters |
|---|---|
| Proper Clearance | Too tight = fused parts; too loose = wobbly |
| Support Management | Supports inside moving parts can ruin functionality |
| Bridging and Overhangs | Moving parts often rely on solid bridging to print correctly |
| Print Orientation | Poor orientation can lead to layer fusing |
| Material Behavior | Different filaments shrink, ooze, and cool differently |
Designing without accounting for these leads to failed prints, stuck parts, or weak movements.
Key Principles for Successful Print-in-Place Design
Let’s dive into the exact techniques you should use.
1. Design with Proper Clearance
Clearance is the gap between moving parts in your model.
| Printer Type | Recommended Clearance |
|---|---|
| Highly Tuned Printer | 0.2–0.3 mm |
| Average Printer | 0.4–0.6 mm |
| Entry-Level Printer | 0.6–0.8 mm |
Tips:
- Measure your printer’s dimensional accuracy first (test cube prints).
- Remember: X, Y, and Z tolerances may differ slightly.
- Clearance is additive. Two adjacent parts each contribute to the total gap.
Example: If you give each wall 0.3 mm offset, total clearance = 0.6 mm.
2. Avoid Supports Inside Moving Parts
Supports are usually bad inside mechanical parts because:
- They fuse parts together permanently.
- They are hard or impossible to remove from enclosed joints.
Solutions:
- Design self-supporting structures (bridges, chamfers, gentle overhangs).
- Orient joints horizontally whenever possible.
- Use split joints where necessary: design pockets that can print without needing supports.
Most slicers allow support blockers—use them aggressively around your PIP joints.
3. Master Bridging and Overhangs
Print-in-place joints often rely on bridges for the tops of gaps.
To ensure clean bridges:
- Use small gap sizes (under 5 mm) for bridging success.
- Tune your cooling for better bridging performance (strong fan, lower speed).
- Use minimal layer height (0.1–0.2 mm) to improve bridging ability.
If necessary, design sacrificial bridges: thin membranes that are broken after printing to free parts.
4. Plan Movement Direction with Printing Orientation
Gravity matters during printing:
- Parts printed parallel to the build plate are easiest to free.
- Parts printed vertically risk sagging or fusing if poorly supported.
Best Practices:
- Design hinges and axles lying horizontally on the bed.
- Align gaps with the XY plane when possible.
- Limit Z-direction stresses for easier first-layer bonding and smoother releases.
5. Choose the Right Filament
Different materials behave differently when cooling:
| Filament | Suitability for PIP |
|---|---|
| PLA | Excellent (minimal warping, good bridging) |
| PETG | Good (minor stringing control needed) |
| ABS | Fair (higher shrinkage risk) |
| TPU | Difficult (flexible; parts deform easily) |
Tips:
- Use high-quality PLA for your first PIP designs.
- Dry your filament to avoid stringing, blobs, and adhesion issues inside gaps.
Essential Design Features for PIP Objects
Incorporate these smart features:
1. Chamfers and Fillets
Adding slight chamfers or rounded edges helps:
- Prevent parts from fusing together at edges.
- Improve bridging by giving filament a gradual starting surface.
- Strengthen parts by reducing stress concentrations.
Chamfer inner faces of hinges, gears, and snap joints whenever possible.
2. Breakaway Tabs (Optional)
Design tiny breakaway connections (thin sacrificial strands) if:
- You need to lock parts temporarily during printing.
- You expect some friction after printing.
Easy to snap manually after print completion.
3. Sacrificial Support Columns (When Needed)
For very complex floating parts:
- Add tiny columns (0.2–0.4 mm thick) between moving sections.
- Easily break away after printing.
- Design them strategically where you can easily access them.
How to Prototype and Test PIP Designs
Start simple:
- Create a hinge test: a basic two-plate hinge with 0.4 mm gap.
- Print it horizontally, observe clearance.
- Adjust based on whether it fuses or feels too loose.
Build up gradually to:
- Chains
- Ball joints
- Multi-part puzzles
- Interlocking gears
Each iteration should teach you more about your printer’s behavior.
Best Slicer Settings for Print-in-Place Objects
| Setting | Recommended Value |
|---|---|
| Layer Height | 0.1–0.2 mm |
| Wall Count | 2–3 |
| Infill Density | 10–20% (lightweight parts move easier) |
| First Layer Height | Normal (no squish to avoid fusing) |
| Retraction | Tuned carefully to minimize stringing |
| Print Speed | Moderate (40–50 mm/s) |
| Cooling Fan | 100% after first few layers |
Critical Notes:
- Avoid excessive first layer squish—set Z-offset carefully.
- Watch for elephant foot—slightly higher first layer Z-offset or “elephant foot compensation” helps prevent lower layers fusing parts together.
Common Mistakes and How to Avoid Them
| Mistake | Result | Solution |
|---|---|---|
| Clearance too tight | Parts fuse together | Increase clearance slightly |
| Over-squished first layer | Fuses base joints | Raise Z-offset |
| Supports in wrong place | Internal fusion | Block supports around gaps |
| Poor bridging | Sagging, stuck joints | Tune bridging settings |
| Too small moving parts | Under-extrusion or weak features | Scale up or reinforce thin parts |
Amazing Examples of Print-in-Place Models
Looking for inspiration? Check out these:
- Print-in-Place Chains (free-moving chain links)
- Articulated Dragons (flexible fantasy creatures)
- Working Gearboxes (functional gear trains)
- Print-in-Place Wrenches (adjustable tools)
Sites like Printables, Thingiverse, and MyMiniFactory have hundreds of creative designs to study and learn from.
Final Tips for Mastering Print-in-Place Design
✅ Always design with tested clearances in mind
✅ Avoid needing supports inside moving parts
✅ Use chamfers, fillets, and gradual curves to improve printability
✅ Tune bridging and cooling settings before critical prints
✅ Prototype small assemblies before complex models
✅ Keep parts aligned to gravity for better success rates
✅ Choose materials wisely based on your goal (use PLA for easy results)
Print-in-place design is both an art and a science. Master it, and you’ll unlock one of the most powerful advantages that 3D printing has to offer—building fully functional machines, toys, and mechanical systems right from your bed.
Conclusion
Designing print-in-place objects successfully demands careful attention to clearance, bridging, orientation, and material choice, but the reward is tremendous.
You can create intricate, movable assemblies without any post-processing or assembly—showcasing the true magic of 3D printing technology.
Start small, experiment often, and soon you’ll be producing stunning, functional print-in-place masterpieces that will amaze anyone who sees them.
