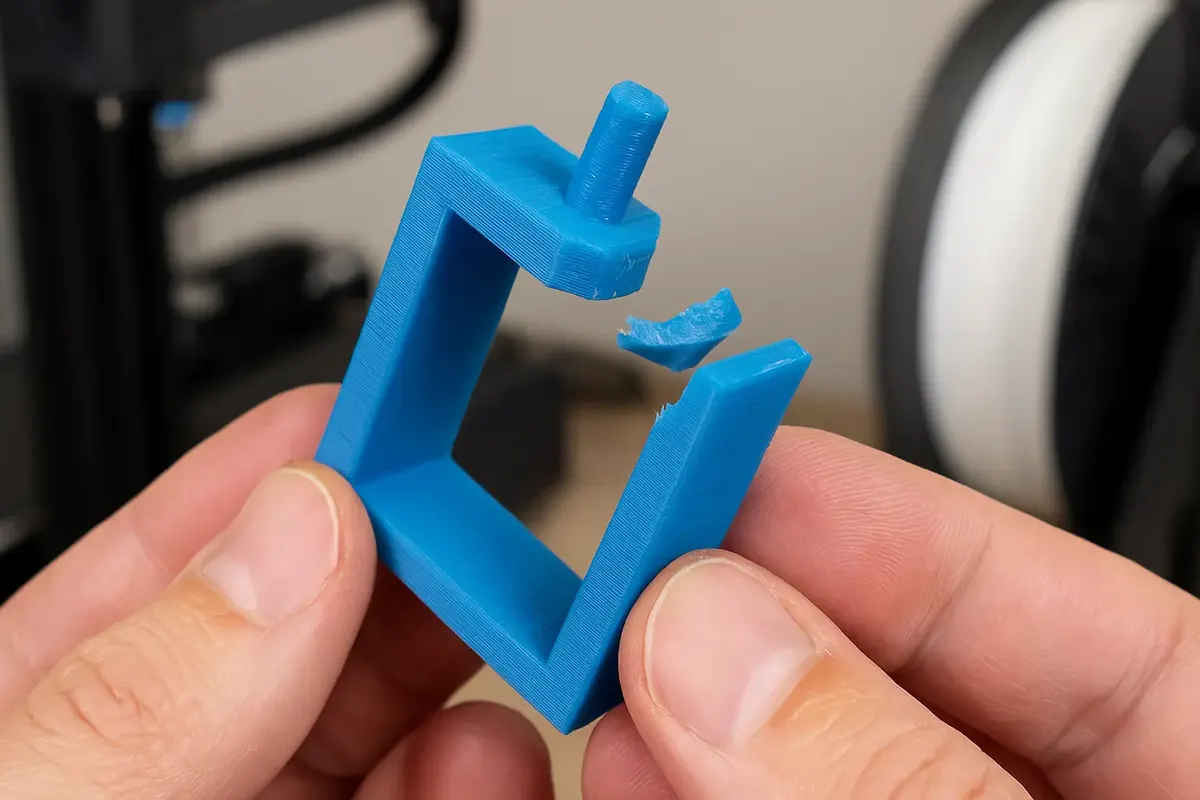

Nothing is more frustrating than spending hours printing a part—only for it to snap or shatter easily during handling or use.
Brittle 3D prints are a common issue, especially when printing with materials like PLA, PETG, or even ABS without the right settings.
Fortunately, brittle prints are usually a solvable problem.
In this guide, you’ll learn the main causes of brittle 3D prints and exactly how to fix them to get stronger, tougher, and more reliable parts.
Common Causes of Brittle 3D Prints
1. Incorrect Printing Temperature
Too low nozzle temperatures cause poor layer bonding, making prints fragile.
| Symptom | Cause |
|---|---|
| Layers break apart easily | Nozzle temp too low |
| Brittle parts even after solid printing | Under-extrusion due to cold filament flow |
📌 Lower temperatures cause filament to extrude poorly and layers to bond weakly.
2. Poor Layer Adhesion
- Weak bonding between layers creates natural fracture points.
- Happens due to low temp, insufficient extrusion, or overcooling.
3. Wet Filament
Moisture in filament causes bubbles, weak layers, and internal voids.
| Symptom | Cause |
|---|---|
| Small holes, popping sounds while printing | Water in filament |
| Fragile, rough surfaces | Moist filament evaporating during extrusion |
📌 Especially critical for hygroscopic materials like Nylon, PETG, and TPU.
4. Over-Cooling
Too much part cooling:
- Hardens each layer too quickly.
- Prevents good layer bonding.
- Makes parts more brittle and prone to splitting.
5. Incorrect Material for the Job
- PLA is naturally more brittle than PETG or Nylon.
- Using the wrong material for high-impact applications results in failure.
6. Thin Wall Thickness
- Too few walls (perimeters) make parts snap easily under load.
- Thin single-wall parts can’t handle mechanical stress.
7. Improper Print Orientation
3D printed parts are strongest along layer lines and weakest between them.
Incorrect orientation puts stress across the weakest axis.
How to Fix Brittle 3D Prints: Complete Solutions
1. Increase Nozzle Temperature
Raise nozzle temps by 5–15°C above your normal settings (stay within safe filament limits).
| Material | Recommended Temp Range |
|---|---|
| PLA | 190–220°C |
| PETG | 230–250°C |
| ABS | 230–260°C |
| Nylon | 250–270°C |
📌 Hotter filament flow improves layer adhesion dramatically.
2. Dry Your Filament Properly
- Use a filament dryer or dry filament in an oven at 45–65°C for 4–6 hours.
- Store filament in airtight containers with desiccants.
Tip:
If you hear popping or see bubbling during printing, dry the filament immediately before continuing.
3. Adjust Cooling Settings
| Action | Effect |
|---|---|
| Reduce cooling fan speed | Improves layer fusion |
| Turn off cooling for first few layers | Strengthens base adhesion |
Recommended Cooling:
- PLA: 50–80% fan
- PETG: 20–40% fan
- ABS/Nylon: Fan OFF (use enclosure)
4. Increase Wall Count and Top/Bottom Layers
Walls contribute more to strength than infill does.
| Setting | Minimum for Strong Parts |
|---|---|
| Wall Count | 3–5 walls |
| Top Layers | 5–8 layers |
| Bottom Layers | 5–8 layers |
📌 Boosting walls thickens outer shells, making prints tougher against flexing and impacts.
5. Use Better Infill Patterns and Density
- Gyroid, Cubic, or Triangular infill patterns distribute stress better.
- 30–50% infill density is enough for strong mechanical parts.
Avoid low-density infill (10–20%) if you need strength over light weight.
6. Use Stronger Materials
If strength is critical, choose materials designed for toughness:
| Material | Notes |
|---|---|
| PETG | Tough, flexible, impact resistant |
| ABS | Durable and heat resistant |
| Nylon | Extremely strong and flexible |
| Carbon Fiber Reinforced Filaments | Super stiff and strong (requires hardened nozzle) |
📌 PLA is great for ease of use, but it’s not ideal for impact-prone parts.
7. Optimize Part Orientation
Print with the stress along the layer lines, not across them.
| Example | Solution |
|---|---|
| Printed handle snapping easily | Rotate part so force pulls along layers, not between layers |
Printing orientation affects mechanical strength more than many realize.
Quick Troubleshooting Checklist
| Symptom | Most Likely Cause | Quick Fix |
|---|---|---|
| Layers peel apart | Low nozzle temp, over-cooling | Increase nozzle temp, reduce cooling |
| Part snaps easily when bent | Thin walls, poor orientation | Increase wall count, reorient part |
| Popping sounds, rough print | Wet filament | Dry filament before printing |
| Cracks after printing | Warping stresses | Use enclosure, slow cooling |
FAQs
Q1: Can brittle PLA prints be fixed by post-processing?
Post-processing (like annealing) can strengthen PLA slightly, but correct print settings are much more effective for preventing brittleness.
Q2: Is more infill the solution to brittle prints?
Not alone. Walls and layer adhesion are more important than just increasing infill percentage.
Q3: Why does my PETG still feel brittle?
Likely causes include wet filament, under-extrusion, or too much cooling.
Q4: Can layer height affect print strength?
Yes. Smaller layer heights (0.1–0.2 mm) create more overlap between layers, improving bonding strength.
Conclusion
Brittle 3D prints are usually a sign of poor layer adhesion, moisture problems, or wrong settings—not a problem with your printer itself.
By adjusting temperatures, cooling, wall thickness, and filament storage, you can produce tougher, longer-lasting prints with almost any material.
Start with small adjustments, print test pieces, and you’ll quickly see massive improvements in the durability of your 3D prints.
