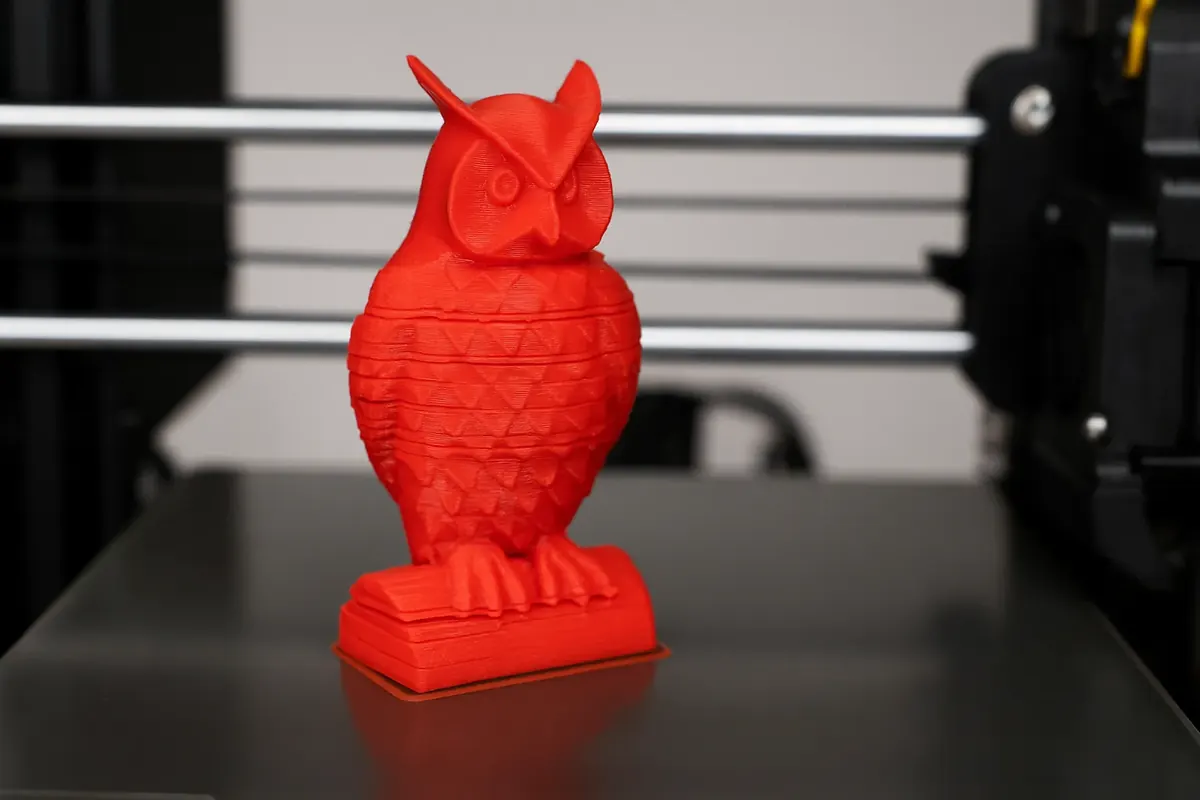

Layer shifts and misalignments are among the most frustrating issues in 3D printing. They ruin prints by causing the layers to move out of alignment, resulting in a jagged or offset appearance. Understanding the causes and learning effective troubleshooting techniques can help you fix and prevent these problems, ensuring smooth, accurate prints every time.

1. Check Belt Tension and Condition

Loose or worn belts are a leading cause of layer shifts.

• Tighten Belts Properly: Belts should be taut but not overly tight. Loose belts cause skipped steps, while overly tight belts strain motors.
• Inspect for Wear and Tear: Cracked, frayed, or stretched belts need replacement. Worn belts slip during movement, leading to shifts.
• Adjust Belt Pulleys: Ensure pulleys are securely attached to motor shafts with no play or wobble.

Proper belt tension and condition are essential for maintaining precise motion control.

2. Secure the Stepper Motor and Pulleys

If the stepper motors or their attached pulleys are loose, the printer cannot move the print head accurately.

• Tighten Motor Mounts: Check that the stepper motors are firmly secured to the frame with no movement.
• Fix Pulley Set Screws: Ensure that pulley set screws are tight against the motor shaft’s flat spot to prevent slipping.

Regular maintenance of motors and pulleys minimizes mechanical inconsistencies that cause misalignments.

3. Reduce Print Speed and Acceleration

High speeds and aggressive acceleration can overpower the printer’s mechanical limits, leading to missed steps and shifted layers.

• Lower Print Speeds: Reduce overall print speed to 40–60 mm/s for better stability.
• Decrease Acceleration Settings: Set acceleration to 500–1000 mm/s² to minimize sudden, jerky movements.
• Enable Jerk Control: Fine-tune jerk settings to soften direction changes and reduce mechanical strain.

Controlling motion dynamics improves the reliability of layer-by-layer positioning.

4. Inspect and Lubricate Linear Motion Components

Friction or obstruction in linear rails, rods, or bearings can cause stalling and layer shifts.

• Clean Rails and Rods: Dust and debris buildup increases friction. Regular cleaning maintains smooth movement.
• Lubricate Moving Parts: Apply appropriate lubricants, such as PTFE or light machine oil, to rods, rails, and lead screws.
• Check for Damage: Bent rods, worn bearings, or damaged rails must be replaced to ensure consistent motion.

Smooth linear motion is critical for preventing mechanical interruptions during prints.

5. Verify Printer Frame Stability

A shaky or misaligned printer frame can introduce unpredictable shifts, especially during fast movements.

• Tighten Frame Bolts: Ensure all bolts and screws holding the frame together are properly tightened.
• Square the Frame: Use a carpenter’s square to check that the printer’s frame is perpendicular and properly aligned.
• Place Printer on a Stable Surface: Vibrations from unstable tables can transmit into the printer and cause layer misalignments.

Frame stability is the foundation for accurate and consistent 3D printing.

Common FAQs About Fixing Layer Shifts in 3D Printing

What causes layer shifts halfway through a print?

Mid-print layer shifts are usually caused by loose belts, motor overheating, accidental printer movement, or sudden impacts during printing.

Can software settings alone fix layer shifts?

While software settings like speed and acceleration can help minimize the risk, mechanical issues such as belt tension, pulley attachment, and frame rigidity must also be addressed.

How do I know if my stepper motor is the problem?

Symptoms like buzzing, skipped movements, or loss of torque under slight resistance often indicate stepper motor or driver issues needing inspection or replacement.

Should I re-slice my model if I experience layer shifting?

Layer shifting is rarely caused by slicing errors. It is almost always mechanical or hardware-related. However, double-checking slicer settings for speed and acceleration can help if issues persist.

Can enabling sensorless homing cause layer shifts?

Incorrect sensorless homing settings or overly sensitive stall detection parameters can cause false triggers, leading to layer shifts during printing.
