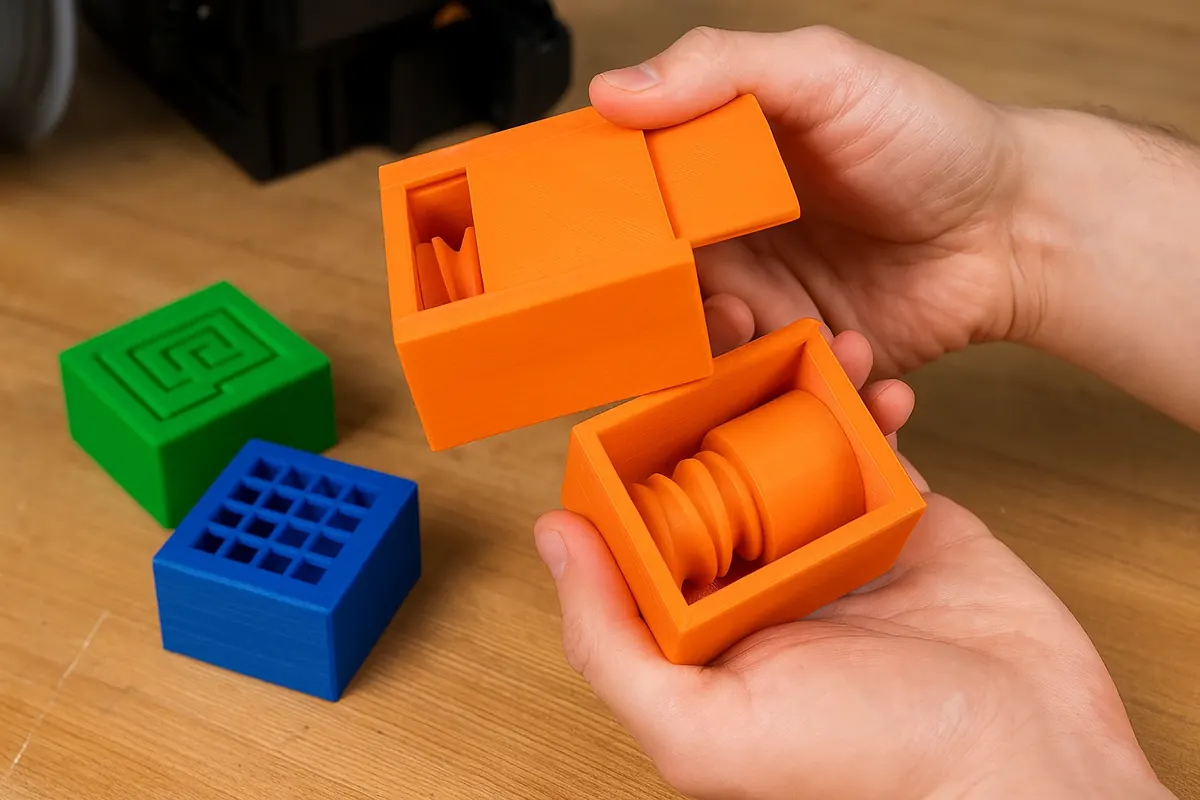

Puzzle boxes are fun, clever, and satisfying objects that challenge your mind while impressing your friends. With 3D printing, you can design and create your own custom puzzle boxes at home—even if you are just starting out.
From simple sliding mechanisms to intricate multi-step locks, 3D printed puzzle boxes offer endless possibilities for creativity and skill-building.
In this beginner-friendly guide, you’ll learn how to design, print, assemble, and tune your own puzzle boxes, step-by-step.
Why 3D Print Puzzle Boxes?
- Affordable: No expensive tools or materials needed
- Customizable: Design difficulty and style exactly how you like
- Creative outlet: Combine engineering with artistic design
- Perfect gifts: Personalized, interactive presents
- Skill builder: Great way to learn about tolerances, moving parts, and mechanical design
Puzzle boxes are excellent beginner projects that teach valuable CAD and 3D printing skills while being fun to solve and share.
Step 1: Understand Puzzle Box Mechanics
Before designing or printing, get familiar with basic puzzle box types:
| Puzzle Type | Mechanism | Example |
|---|---|---|
| Slider Box | Move parts in a specific sequence | Simple hidden compartment |
| Twist Lock Box | Rotating parts to unlock | Maze cylinder boxes |
| Hidden Latch Box | Press or manipulate hidden buttons | Spring-loaded latch boxes |
| Sequential Movement Box | Perform multiple steps in order | Multi-stage puzzle |
📌 For beginners, slider boxes and simple hidden latch boxes are the easiest to start with.
Step 2: Choose a Puzzle Box Design
You have two options:
Option 1: Download Ready-to-Print Puzzle Boxes
There are many beginner-friendly puzzle box designs available for free or purchase:
- Thingiverse (simple sliding puzzles, secret compartments)
- Printables.com (highly rated mechanical puzzles)
- MyMiniFactory (artistic puzzle boxes)
Choose a design labeled easy or beginner to start.
Option 2: Design Your Own Simple Puzzle Box
If you want to create your own:
- Start with a basic box (e.g., 60×60×60 mm)
- Add internal sliders or rotating locks
- Keep the clearance between moving parts at 0.3–0.5 mm to allow smooth movement after printing
- Design guides or grooves for parts to slide or rotate correctly
Software recommendations:
- Tinkercad (easy and intuitive)
- Fusion 360 (for precision and parametric design)
Step 3: Slice Your Puzzle Box Properly
Printing puzzle boxes requires precision and good tolerances.
Recommended Slicer Settings:
| Setting | Value |
|---|---|
| Layer Height | 0.16–0.2 mm |
| Wall Count | 3 walls minimum |
| Infill | 20–30% (Grid or Cubic pattern) |
| Print Speed | 30–50 mm/s |
| Support Material | Minimal, only if absolutely necessary |
| Flow Rate | Fine-tune to avoid over-extrusion |
Tips:
- Enable z-seam alignment to hidden areas to avoid visible lines across moving parts.
- Test print a small section (like a single slider) to verify tolerances before committing to the full box.
Step 4: Choose the Right Material
| Material | Best For | Notes |
|---|---|---|
| PLA | Beginner projects | Easy to print, accurate, slight brittleness |
| PETG | Stronger moving parts | Slight flexibility, better impact resistance |
| ABS/ASA | Durable outdoor puzzles | Needs an enclosure; more warp-resistant for tight fits |
📌 For first projects, PLA is recommended because of its ease of printing and dimensional stability.
Step 5: Post-Processing for Smooth Movement
- Lightly sand moving parts with 400–600 grit sandpaper if they are tight.
- Use a plastic-safe lubricant (e.g., PTFE spray) on sliding or rotating mechanisms.
- If pieces are too tight, carefully adjust by sanding or reprinting with slightly larger clearances.
Simple Beginner Puzzle Box Ideas to Try
| Project | Highlights |
|---|---|
| Sliding Top Box | Simple lid unlocking with side sliders |
| Twist-to-Open Capsule | Rotate a hidden internal lock to release |
| Button Release Box | Press hidden buttons or pins to open |
| Hidden Drawer Box | Slide panels in a sequence to reveal a hidden drawer |
Each of these projects introduces core mechanical concepts used in more advanced puzzle designs.
Common Problems and How to Solve Them
| Problem | Cause | Solution |
|---|---|---|
| Moving parts fused together | Over-extrusion, wrong clearances | Reduce flow rate or increase clearance by 0.1–0.2 mm |
| Parts too loose and fall apart | Clearance too large | Tighten tolerances in CAD |
| Supports ruin small features | Poor support placement | Redesign with minimal overhangs or manually edit supports |
| Difficult to remove supports | Thin parts too delicate | Use tree supports or custom supports for easier removal |
Advanced Ideas Once You Master Basics
- Create multi-stage puzzle boxes with sequential unlocking mechanisms.
- Design maze locks where sliders must navigate internal mazes.
- Add magnets or springs to create hidden snapping or resetting mechanisms.
- Integrate LEDs or electronics for interactive puzzles.
With 3D printing, the complexity you can achieve is limited only by your creativity and patience.
FAQs
Q1: How much clearance should I design between moving parts?
Typically, 0.3–0.5 mm is ideal for PLA. Slightly more clearance may be needed for flexible filaments or rougher printers.
Q2: Can I print a fully assembled puzzle box?
Yes. Many designs are printed as single assemblies, but require proper orientation and clearance tuning to work correctly.
Q3: What printer settings matter most for puzzle boxes?
- Dimensional accuracy (proper flow rate calibration)
- Good bed leveling
- Minimal stringing and clean overhangs
Q4: Can flexible filaments be used for puzzle boxes?
Yes, but flexible materials are better for gaskets, snapping mechanisms, or soft latches, rather than full box structures.
Conclusion
3D printing puzzle boxes is one of the most enjoyable and educational projects for makers of all skill levels.
By starting simple, paying attention to design clearances, and carefully tuning your printer, you can create functional, impressive puzzles right from your home workspace.
Once you master basic projects, the only limit is your imagination—unlock your creativity, and start designing truly unique 3D printed puzzles today.
