3D printing can be an exciting and rewarding experience, but it comes with its own set of challenges, one of the most common being clumping or clogging in the extruder. Clogging occurs when filament is unable to flow freely through the nozzle, leading to under-extrusion, print failures, and wasted material. If left unresolved, clogs can result in even more significant damage to your printer’s hotend, potentially requiring costly repairs.
Fortunately, clumping or clogging issues can usually be prevented with a combination of good maintenance, correct settings, and proper printing techniques. In this guide, we will walk you through the common causes of extruder clogs and the steps you can take to prevent them, ensuring that your prints are smooth, reliable, and successful.
What Is Clumping or Clogging in 3D Printing?
Clumping or clogging refers to the build-up of material inside the printer’s hotend or extruder assembly, which prevents the filament from flowing freely. This can manifest in a variety of ways:
- Under-extrusion: Insufficient filament is being extruded, leading to poor print quality.
- Print Failures: The printer stops extruding altogether, causing prints to fail mid-way.
- Uneven Layering: The layers of the print may not bond properly due to inconsistent filament flow.
While clumping can occur for various reasons, the good news is that most of the issues are avoidable with regular maintenance and best printing practices.
Causes of Clumping or Clogging in 3D Printer Extruders
Understanding the underlying causes of extruder clogs is key to preventing them. Here are some of the most common culprits:
1. Poor-Quality Filament
Low-quality filament is one of the leading causes of clogging in 3D printers. Filaments with inconsistent diameter, impurities, or moisture can easily cause clumping in the extruder.
- Problem: Filament with variations in diameter can cause inconsistent extrusion, while contaminants like dust or debris can block the nozzle.
- Solution: Always buy filament from trusted suppliers and make sure the filament is of good quality. Choose brands with consistent diameter and minimal additives.
2. Moisture in Filament
3D filament, especially hygroscopic materials like PLA, ABS, and Nylon, can absorb moisture from the air. When the filament is exposed to moisture, it may cause bubbles or steam during the extrusion process, leading to clogs.
- Problem: Filament with absorbed moisture can expand when heated, causing it to swell or create steam in the nozzle, which leads to blockages.
- Solution: Store your filament in a dry environment, such as in a sealed bag with desiccants. You can also use a filament dryer to remove any moisture before printing.
3. Incorrect Temperature Settings
The temperature at which the filament is extruded plays a crucial role in preventing clogs. If the hotend temperature is too low, the filament may not melt properly, leading to poor flow and clumping.
- Problem: Extruding filament at a temperature that is too low can cause the filament to solidify inside the hotend or nozzle before it has fully extruded.
- Solution: Always use the recommended extrusion temperature for your filament. Most filaments come with a recommended printing temperature range (e.g., PLA is typically between 190°C and 220°C). Ensure your printer’s hotend is accurately heating to the desired temperature.
4. Nozzle Blockages
A clogged or partially blocked nozzle is one of the most common issues that can cause clumping in the extruder. Over time, debris, burnt filament, or residue from previous prints can build up in the nozzle.
- Problem: When filament cannot pass through the nozzle due to an obstruction, it leads to under-extrusion and print failures.

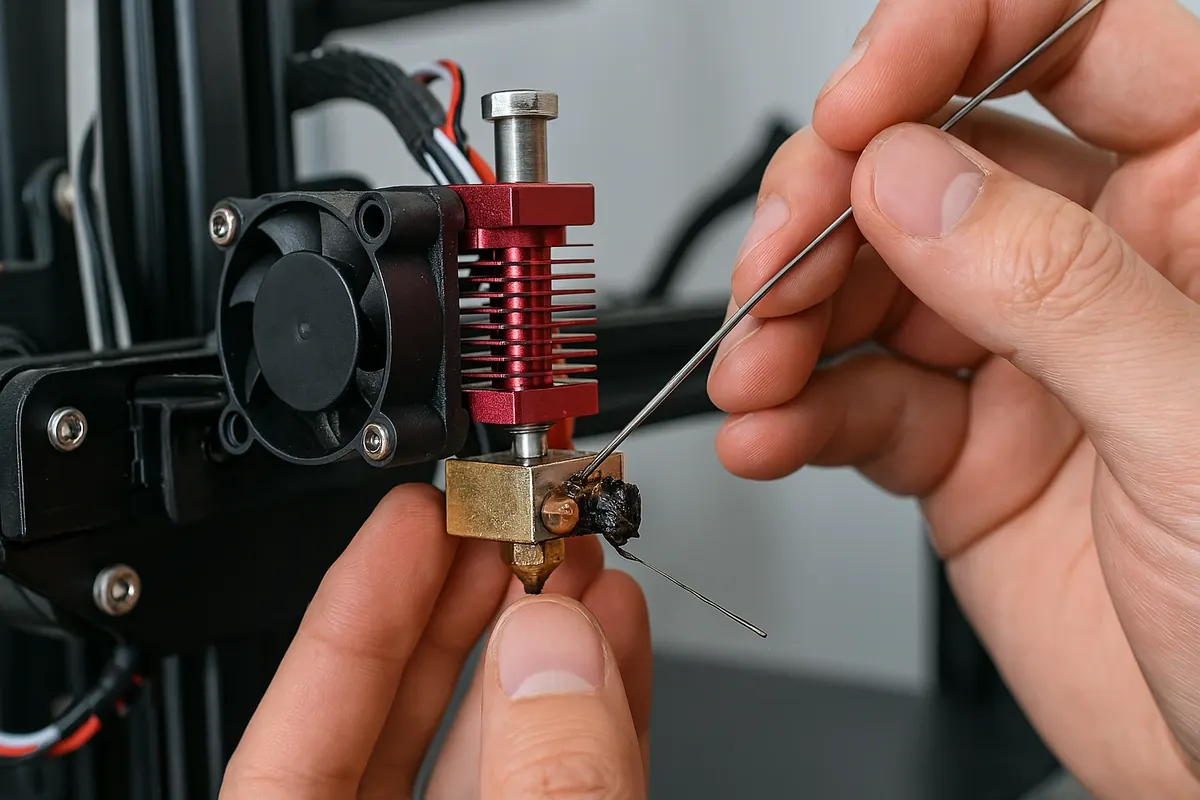

- Solution: Clean your nozzle regularly using appropriate tools, such as a needle or a wire brush. For stubborn clogs, you may need to heat the nozzle to a higher temperature and perform a cold pull to remove the blockage.
5. Improper Retraction Settings
Retraction settings control how the filament is pulled back into the extruder during non-printing moves. If the retraction settings are incorrect, it can cause filament to jam inside the extruder, leading to clogs.
- Problem: Excessive retraction can cause the filament to stretch or even snap, while insufficient retraction may cause oozing or stringing, both of which can result in clogging.
- Solution: Adjust your retraction settings in your slicer software. Typical settings to adjust include retraction distance (typically between 1-6 mm) and retraction speed (between 20-40 mm/s).
6. Inadequate Cooling of the Extruder
An extruder that is not adequately cooled can overheat, which leads to filament degradation or excessive pressure inside the hotend, causing clogs.
- Problem: A hotend that remains too hot for too long can cause the filament to cook inside the nozzle, leading to hardened, brittle clumps of filament.
- Solution: Make sure the cooling fans on your printer are working properly. Regularly check and clean the cooling fans and heatsinks to prevent overheating.
7. Filament Entanglement or Tangles
Filament that is tangled on the spool can cause feeding issues that may lead to clumping or clogging in the extruder. Tangles can prevent the filament from feeding smoothly into the extruder, creating jams or uneven extrusion.
- Problem: Tangles in the filament spool can create tension that pulls the filament unevenly, leading to inconsistent extrusion and clogs.
- Solution: Regularly check your filament spool for tangles. Ensure that the spool is properly mounted on the printer and able to spin freely without obstruction.
Preventative Measures to Avoid Clumping and Clogging
Now that we’ve outlined the common causes of clumping or clogging, here are some actionable steps you can take to prevent these issues from happening.
1. Use High-Quality Filament
Always invest in high-quality filament that has a consistent diameter and minimal additives. This helps ensure smooth extrusion and reduces the chances of blockages in the nozzle. Trusted brands such as Hatchbox, Prusa, and MatterHackers offer reliable filaments that are less likely to cause clogs.
2. Proper Filament Storage
Store your filament in a cool, dry environment to prevent moisture absorption. Use sealed bags with desiccants to keep moisture out. For extra precaution, consider investing in a filament drying oven that can dry out the filament before each print.
3. Regular Nozzle Maintenance
Regularly check your nozzle for clogs and clean it as necessary. Perform a cold pull (also known as an atomic pull) when changing filaments or after a print that has left residue in the nozzle. You can also use a needle to clear any minor blockages. If necessary, disassemble the hotend and clean it thoroughly.
4. Correct Temperature Settings
Ensure that your hotend is set to the correct temperature for the filament you are using. Avoid printing at temperatures too low for the material, as this can lead to under-extrusion and clogs. On the other hand, printing at temperatures too high can lead to filament degradation and buildup.
5. Adjust Retraction Settings
Fine-tune your retraction settings in your slicing software. If you are experiencing clogs or filament jams, try reducing the retraction distance or speed slightly. This can help prevent excessive tension on the filament, reducing the likelihood of clogs.
6. Clean the Extruder Regularly
Make it a habit to clean the extruder regularly, including both the hotend and the extruder gears. Accumulated filament dust, oils from your hands, or debris can lead to clogs. If your extruder has a gear-based feeder, clean it to ensure smooth filament movement.
7. Use Filament Guides
To prevent filament tangles, make sure that the filament spool is mounted properly on the printer and can rotate freely. Consider using filament guides to help guide the filament to the extruder, preventing tangles and twists in the filament path.
8. Calibrate Your Printer
Regular calibration of your 3D printer ensures that all components, including the extruder, are functioning properly. Perform regular calibration of the print bed, extruder alignment, and stepper motor adjustments to ensure consistent filament feed and smooth operation.
Conclusion
Clumping and clogging in a 3D printer extruder can be frustrating and lead to wasted filament and time. However, by understanding the common causes of clogs and taking preventative measures, you can significantly reduce the likelihood of these issues. Regular maintenance, proper filament handling, and adjustments to your printer’s settings are key to keeping your extruder running smoothly and ensuring high-quality prints every time.
By incorporating these practices into your routine, you can enjoy a seamless 3D printing experience and avoid the headaches associated with extruder clogs.
