3D printing flexible hinges and living hinges in a single piece opens the door to creating dynamic, functional designs without assembly. From folding boxes to moving parts in complex mechanisms, understanding how to print these flexible sections correctly is crucial for durability and functionality. This guide will walk you through everything you need to know to print flexible and living hinges successfully.

What Is a Living Hinge?

A living hinge is a thin, flexible section of a part that connects two rigid sections, allowing them to bend or pivot without separate moving parts. These hinges are typically made from a continuous material and rely on the material’s flexibility to function correctly.

Living hinges are commonly found in injection-molded products like plastic bottle caps, toolboxes, and folding cases. In 3D printing, creating an effective living hinge requires careful consideration of material, design, and print settings.

What Is a Flexible Hinge in 3D Printing?

A flexible hinge in 3D printing is often a designed joint or link that flexes due to the material properties and print design. Flexible hinges may use curved geometries, slits, or specialized joint patterns to allow controlled movement.

Unlike traditional mechanical hinges, flexible hinges are integral to the part and printed at the same time, eliminating the need for fasteners or complex assembly.

Key Factors for Successfully Printing Living and Flexible Hinges

Several elements must come together for a hinge to function properly:

Material selection: Needs flexibility and durability.
Correct design geometry: Proper thickness and hinge width.
Printer settings: Optimized for strength and layer adhesion.
Print orientation: Ensures that the hinge bends along strong filament paths.

Mastering each of these areas greatly improves the performance and lifespan of your printed hinges.

Step 1: Choose the Right Material

Material selection is critical. Not every filament can handle repeated flexing without cracking or breaking.

Best Materials for Hinges:

Polypropylene (PP): Highly flexible and durable, the traditional choice for injection-molded living hinges.
Nylon: Excellent toughness, flexibility, and fatigue resistance.
TPU (Thermoplastic Polyurethane): Very flexible, but softer and more rubber-like, suitable for wide-bending hinges.
PETG: Can be used for short-term hinges but may show fatigue over repeated cycles.
PLA: Generally unsuitable for living hinges due to brittleness, unless specifically formulated for flexibility.

Always verify the filament’s mechanical properties before starting your hinge project.

Step 2: Design the Hinge Correctly

The design of the hinge determines whether it will function well and survive repeated use.

Hinge Thickness:

Ideal living hinge thickness is between 0.3 mm and 0.6 mm, depending on the material.
Thinner hinges bend more easily but may wear out faster.

Hinge Width:

Wider hinges distribute stress more evenly.
Aim for at least 5 mm width for small parts and 10 mm or more for larger designs.

Fillet the Hinge Edges:

Round the edges where the hinge connects to rigid parts.
Fillets reduce stress concentrations and improve flexibility and durability.

Use Gentle Curves:

Sharp angles increase fatigue.
Designing the hinge with a gentle pre-bend or natural curve improves longevity.

Reinforce Surrounding Areas:

The areas adjacent to the hinge should be thicker to handle stresses without cracking.

Step 3: Optimize Printer Settings

Your slicer settings significantly impact hinge performance.

Layer Height:

Use smaller layer heights (0.1 mm to 0.2 mm) for better resolution and smoother stress distribution.

Wall Count:

Use at least two to three perimeters to strengthen the surrounding structure.
Avoid overly thick walls directly in the hinge zone.

Infill Settings:

For the hinge itself, low infill or even solid infill (100%) ensures consistent bending behavior.
For surrounding rigid parts, 20–40% infill is usually sufficient.

Print Speed:

Reduce speed slightly when printing hinge sections to improve layer adhesion and prevent defects.
Speeds of 30–50 mm/s are recommended for hinge areas.

Cooling:

Reduce cooling fan speed when printing nylon or flexible filaments to improve layer bonding.
For TPU, minimal cooling helps prevent warping while maintaining flexibility.

Step 4: Correct Print Orientation

The orientation of your part affects the hinge’s strength and function.

Align Layers Parallel to the Bend:

Print the hinge so that layer lines run parallel to the bending motion.
Bending across layer lines causes cracks and early hinge failure.

Avoid Vertical Hinges:

Printing a hinge vertically makes it highly prone to delamination.
Always print living hinges flat on the bed to maximize flexibility.

Consider Bed Adhesion Aids:

Use brims or rafts for better bed adhesion if printing flexible materials.
This ensures the hinge and connected parts stay firmly attached during printing.

Step 5: Post-Processing and Testing

After printing, a few simple steps can enhance hinge performance.

Gentle Break-In:

Flex the hinge slowly the first few times.
This helps settle layer bonding and identifies weak points early.

Annealing (Optional):

For some materials like nylon or PETG, mild annealing improves ductility.
Carefully heat the hinge in an oven at low temperatures based on the filament’s recommended annealing range.

Inspect for Defects:

Look for any delamination or surface cracks before putting the part into real use.
Redesign and reprint if serious structural issues appear.

Common Problems and How to Solve Them

The hinge cracks after a few uses

Likely caused by using a brittle material or printing with poor layer adhesion.
Solution: Use a flexible material like nylon or TPU and optimize print temperature and cooling settings.

The hinge is too stiff to bend

Possibly caused by making the hinge too thick or too narrow.
Solution: Reduce hinge thickness or widen the hinge area.

The hinge delaminates between layers

A sign that layer bonding is weak, often due to wrong orientation or low nozzle temperature.
Solution: Print hinge sections flat on the bed and increase printing temperature slightly.

Tips for Designing Durable Hinges

Design hinges wider than you think necessary; stress will spread out better.
Add multiple smaller hinges instead of one large one for heavy-duty applications.
Test your hinge design by printing small prototypes before committing to large parts.
Use consistent wall thickness near the hinge to avoid stress concentrations.

Small design adjustments often dramatically improve real-world hinge performance.

Common FAQs About Printing Hinges

Can PLA be used for living hinges?

PLA is generally too brittle for living hinges. Some specialty PLA blends offer better flexibility, but for reliable living hinges, materials like polypropylene, nylon, or TPU are preferred.

How thick should a 3D printed hinge be?

A hinge thickness of 0.3 mm to 0.6 mm works well for most flexible materials. Thicker hinges are stronger but harder to bend; thinner hinges are more flexible but may wear out faster.

Does orientation affect hinge strength?

Yes. Hinges should be printed flat on the bed with layer lines running parallel to the bending axis. Printing hinges vertically almost guarantees early failure due to poor interlayer bonding.

What is the best filament for flexible hinges?

Polypropylene is ideal, but nylon and TPU are excellent alternatives for 3D printed hinges, providing great flexibility and fatigue resistance.

Can I print a living hinge with PETG?

Yes, but PETG hinges have a limited lifespan compared to nylon or TPU. PETG hinges may eventually crack after repeated flexing.

Conclusion

Successfully printing flexible hinges and living hinges in one piece requires careful attention to material selection, design principles, print settings, and orientation. By using flexible, fatigue-resistant materials, designing thin yet strong hinge areas, and printing with optimal settings, you can produce durable, functional hinges ready for real-world use. A well-printed living hinge can outperform many assembled mechanical hinges, offering clean, simple movement with no extra parts. Mastering this skill expands your 3D printing capabilities into truly functional design.

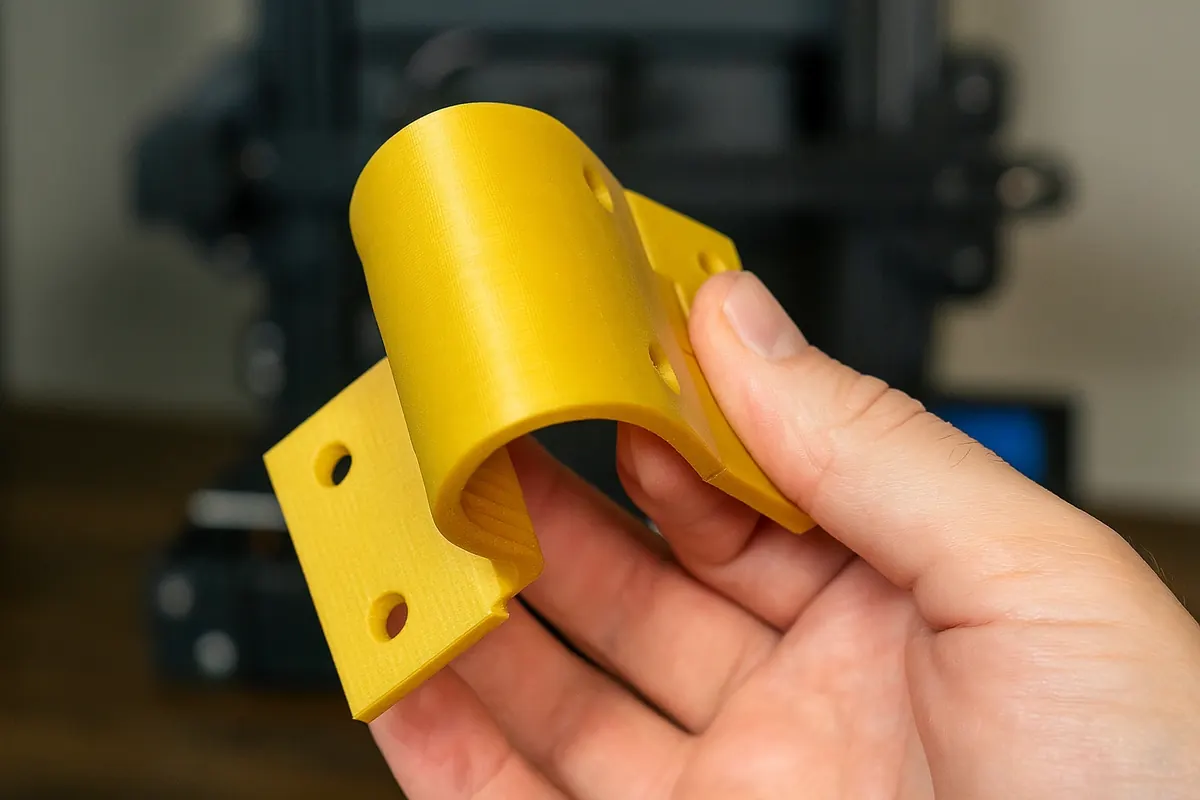

How to Print Flexible Hinges and Living Hinges in One Piece
