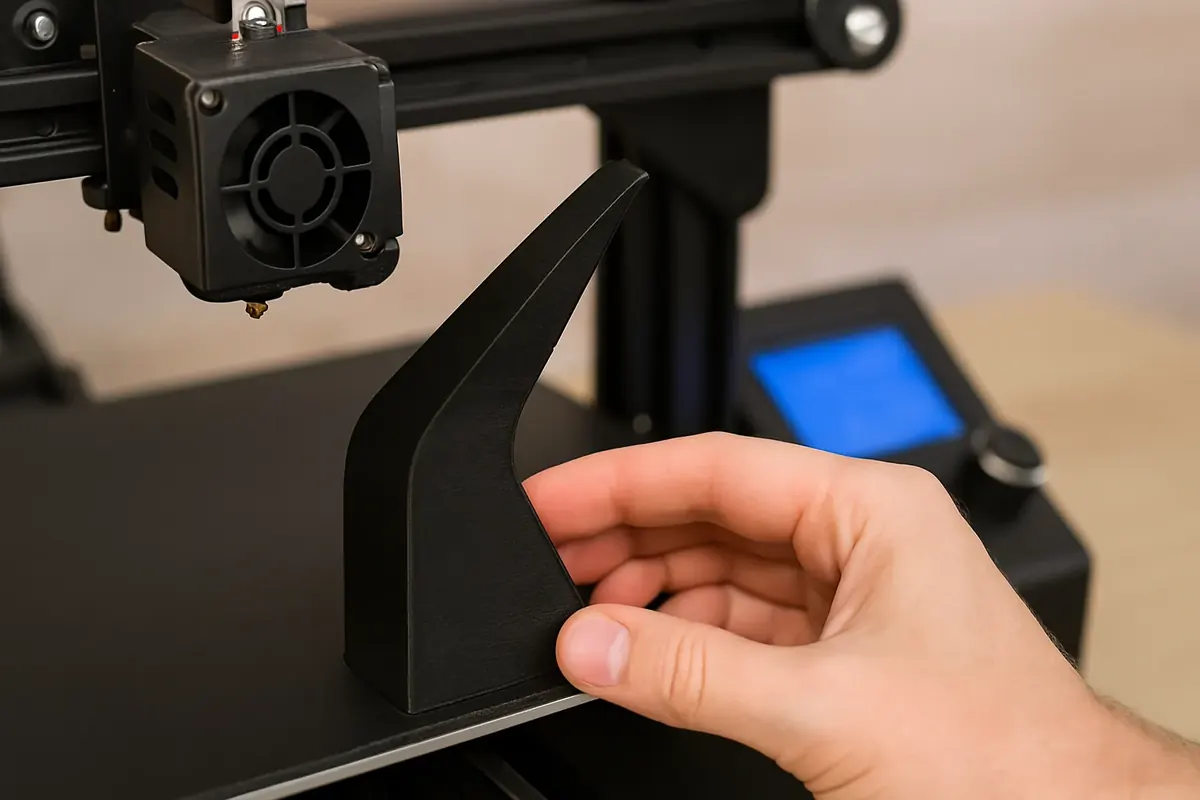

Printing extreme overhangs—those pushing 80 degrees or beyond—without using supports might sound impossible, but with the right techniques, slicer settings, and printer tuning, it’s very achievable.
Mastering this skill lets you create faster prints, cleaner models, stronger parts, and easier post-processing by eliminating unnecessary supports.
Whether you’re printing detailed sculptures, functional parts, or architectural models, understanding the science of overhangs is essential to elevate your 3D printing results.
This complete guide reveals the expert techniques that make it possible to successfully print overhangs at 80+ degrees—cleanly, reliably, and without relying on support structures.
Why Printing Extreme Overhangs Is So Challenging
At steep angles like 80° or more, the freshly extruded filament has:
- Almost no underlying support
- Minimal contact with the previous layer
- Increased exposure to gravity, sagging, and drooping
- Greater dependence on cooling speed and extrusion control
If conditions aren’t tuned perfectly, the filament sags mid-air, leading to ugly surfaces, poor mechanical strength, or complete print failure.
But—with precision cooling, tight mechanical calibration, smart slicer settings, and fine-tuned extrusion, you can consistently print extremely steep overhangs.
Core Principles for Successful High-Angle Overhang Printing
Here are the key areas you must master:
- Extreme Cooling Management
- Careful Slicer Tuning
- Slow and Controlled Printing
- Material Choice and Preparation
- Printer Hardware Precision
Each one plays a critical role—and you cannot skip any if you want reliable 80° overhang success.
1. Extreme Cooling Management
Cooling is everything at steep overhangs.
- As soon as filament exits the nozzle, it needs to solidify rapidly before gravity pulls it downward.
- Traditional fan setups may not deliver enough airflow.
Tips for Maximum Cooling:
- Use a powerful 5015 radial fan (or dual fans) instead of weak stock fans.
- Print with a focused fan duct (like Hero Me Gen7, Petsfang) that targets airflow right under the nozzle.
- Max out your part cooling fan to 100% after the first few layers.
- Enable “bridge fan speed” overrides for overhang sections in your slicer.
- Use a duct that surrounds the nozzle, providing cooling from multiple sides.
- Slightly lower the ambient temperature (cooler room or small draft directed carefully).
Bonus Tip:
Position a second small external fan gently aimed at the print area during steep overhang sections—but not so strong that it cools the nozzle or causes warping.
2. Careful Slicer Tuning
Smart slicer settings are critical to make overhangs behave.
Essential Slicer Settings:
| Setting | Recommendation |
|---|---|
| Layer Height | 0.1–0.15 mm (small layers solidify faster) |
| Line Width | 110–120% of nozzle size |
| Wall Count | 3 walls (more perimeter support) |
| Print Speed | 15–25 mm/s for overhang perimeters |
| Outer Wall Acceleration | 300–500 mm/s² (slow for control) |
| Overhang Angle Threshold | Enable at 45° and use optimized speeds |
| Bridge Settings | Use bridge flow and bridge speeds for unsupported lines |
Advanced Slicer Adjustments:
- Enable Overhang Shells: Some slicers allow adding extra perimeters when overhangs are detected.
- Reduce Flow Slightly (1–2%): To prevent over-extrusion causing blobs on unsupported layers.
- Increase Cooling Only on Overhangs: Smart slicers like PrusaSlicer and OrcaSlicer allow fan speed changes based on geometry.
3. Slow and Controlled Printing
Patience wins at extreme overhangs.
Printing Speed Strategy:
- Slow perimeter speed down to 15–25 mm/s.
- Keep infill and inner walls faster to avoid excessive print times.
- Reduce travel acceleration to avoid shaking the overhanging parts loose.
Every perimeter should have time to cool, stabilize, and bond gently without being disturbed by quick movements.
4. Material Choice and Preparation
Not all filaments behave equally.
Best Filaments for Extreme Overhangs:
| Filament | Overhang Performance | Notes |
|---|---|---|
| PLA | Excellent | Cools fast, holds sharp angles |
| Silk PLA | Poor | Flows too easily, droops |
| PETG | Moderate | Needs tuning; prone to sag |
| ABS | Poor | Warps and curls without supports |
| ASA | Better than ABS, but still tricky | |
| Special PLA Blends | Good | Some high-flow PLAs work surprisingly well |
PLA is the undisputed champion for sharp overhangs because it solidifies almost immediately with cooling.
Preparation Tips:
- Dry your filament: Moist filament causes inconsistent extrusion and weak bridges.
- Print in a dry environment: Humid air affects overhang consistency.
Use a filament dryer or dry box before and during printing for best results.
5. Printer Hardware Precision
Mechanical stability is non-negotiable at high overhangs.
Tune These Areas:
- Belt Tension: Proper X/Y belt tension reduces slop and vibrations.
- Extruder Calibration: Perfect e-steps ensure accurate, even extrusion.
- First Layer Adhesion: Good bed leveling prevents shifting forces on upper overhangs.
- Frame Rigidity: Tighten all frame bolts; loose frames create ringing and missed steps.
- Hotend Health: Clean, consistent extrusion matters; replace worn nozzles.
Consider upgrading to a direct drive extruder for better retraction and flow control if using Bowden setups.
Extra Techniques for Extreme Overhang Mastery
For pushing beyond 80°, these expert tricks make a real difference:
1. Use “Air Bridging” Techniques
Overhangs can behave like tiny bridges.
- Enable Bridge Flow and Bridge Speed settings.
- Print overhanging layers with special bridging speeds and flow reductions.
This tricks the slicer into treating sharp overhangs like controlled bridges, improving survival rates.
2. Gradual Angle Increase
Instead of sudden steep overhangs:
- Design parts with gradual curves approaching 80°.
- Chamfer sharp overhangs rather than making abrupt 90° cliffs.
Smooth transitions help the printer naturally climb steep angles without collapsing layers.
3. Temperature Towers and Cooling Towers
Before serious overhang prints:
- Run a temperature tower to find the perfect balance between extrusion temperature and cooling response.
- Some slicers allow cooling towers to fine-tune fan behavior during steep geometries.
Experimentation before the real print saves material and time.
Common Problems and How to Fix Them
| Problem | Cause | Solution |
|---|---|---|
| Sagging Layers | Poor cooling or high speed | Increase fan, slow outer walls |
| Blobbing at Overhang | Overextrusion | Calibrate flow; slight flow reduction |
| Layer Curling | Overheating filament | Lower nozzle temperature slightly |
| Underextrusion in Overhangs | Wet filament, slow extrusion | Dry filament, ensure extruder health |
| Surface Stringing | Improper retraction or cooling | Tune retraction settings carefully |
Summary: Expert Checklist for Printing 80°+ Overhangs
✅ Use powerful, focused cooling with strong radial fans
✅ Slow outer wall speed to 15–25 mm/s
✅ Print small layer heights (0.1–0.15 mm)
✅ Calibrate flow and extruder properly
✅ Dry filament before use
✅ Optimize slicer bridge and overhang settings
✅ Strengthen printer belts, frame, and mechanical systems
✅ Run overhang test models to validate tuning
By following this checklist consistently, you’ll be able to print overhangs at 80 degrees, 85 degrees, and sometimes even near-horizontal bridges without needing supports—saving time, material, and achieving incredible visual results.
Final Thoughts
Printing overhangs at 80+ degrees without supports is a real, achievable goal—but only with detailed attention to cooling, tuning, materials, and technique.
As you refine your settings and practice with calibration models, you’ll soon be producing strong, beautiful, and professional-quality parts that seem almost impossible on a regular FDM printer.
Push your skills, fine-tune your machine, and you’ll unlock a level of 3D printing mastery that very few achieve.
