Resin 3D printers have revolutionized the way we create models, prototypes, and functional parts. They offer high-resolution prints with exceptional detail, making them ideal for industries like jewelry, dentistry, and engineering. However, with their high-quality output comes a significant concern: the fumes and VOCs (volatile organic compounds) released during the printing process. These emissions can be harmful to your health if not managed properly. Therefore, proper ventilation is critical to maintaining a safe and effective workspace when using a resin 3D printer.
In this comprehensive guide, we’ll explore the importance of ventilation, how to set up an effective system, and the safety precautions you should take to ensure a healthy 3D printing environment.
Why Is Proper Ventilation Important for Resin 3D Printers?
When printing with resin, the photopolymer material undergoes a chemical reaction under UV light. This reaction can release potentially harmful substances such as VOCs and fumes, which, if inhaled, may lead to headaches, nausea, dizziness, or more serious long-term health issues. Moreover, the resins themselves can be toxic if they come into contact with skin or are inhaled, so adequate ventilation helps reduce the risk of exposure.
There are several reasons why proper ventilation is crucial:
- Health and Safety: The primary reason to ventilate is to protect your health. Resin fumes can cause respiratory issues, skin irritation, or even more severe health problems when inhaled for long periods.
- Odor Control: Resin printing often produces strong odors. Proper ventilation helps dissipate these smells, keeping your workspace more comfortable.
- Maintaining Print Quality: Inadequate ventilation may cause moisture to build up in the printing chamber, leading to issues such as resin sticking to the build plate or layer misalignment. Proper airflow can prevent such print defects.
- Complying with Safety Standards: Many 3D printing environments need to comply with local health and safety regulations, which may require the installation of proper ventilation systems.
Types of Resin Fumes and Emissions
Resin 3D printing involves both the resin material and the photopolymerization process, both of which can release various fumes. These fumes are typically categorized into two main types:
1. Volatile Organic Compounds (VOCs)
VOCs are chemicals that can easily vaporize at room temperature and can be harmful if inhaled. These chemicals are typically found in the liquid resin and may be released into the air when the resin is exposed to UV light during the printing process.
- Common VOCs in resin printing: Benzene, toluene, styrene, and various acrylates.
- Health effects: Short-term exposure to VOCs can cause headaches, dizziness, nausea, or skin irritation. Prolonged exposure may lead to more severe respiratory issues and long-term health problems.
2. Aerosols
Aerosols are tiny particles that can remain suspended in the air. These particles can be released when the resin is agitated during printing, washing, or curing. While these particles are less of a concern than VOCs, they can still pose a health risk if inhaled.
- Common aerosols: Fine particles from cured resin or uncured resin that vaporize under UV light exposure.
3. Strong Odors
The chemical process involved in resin printing often emits strong odors, which are not only unpleasant but may also contribute to a polluted indoor air quality if not ventilated.
- Mitigation: Good ventilation helps to remove these odors and create a more pleasant workspace.
Key Considerations for Ventilating a Resin 3D Printer
Proper ventilation goes beyond just setting up a fan or opening a window. A well-designed system will help you ensure that toxic fumes are filtered out and that there is sufficient airflow to keep the air in your workspace safe and breathable. Below are key considerations when setting up your ventilation system.
1. Location of the Printer
The first step in proper ventilation is to choose the right location for your resin 3D printer. Ideally, place it near a window or an area where you can easily access the outdoors, allowing you to vent fumes directly outside. However, keep in mind that simply placing the printer near an open window may not be enough to adequately disperse harmful emissions.
Best Practices for Location:
- Place the printer near a window or in a room with an external exhaust system.
- Avoid placing the printer in small, confined spaces where air cannot circulate freely.
- Ensure that the printer is on a stable surface, away from high-traffic areas, to avoid accidental spillage of resin.
2. Choosing the Right Ventilation System
When it comes to resin 3D printer ventilation, the type of system you choose is vital for both efficiency and safety. Below are the most common types of ventilation systems:
Exhaust Fans

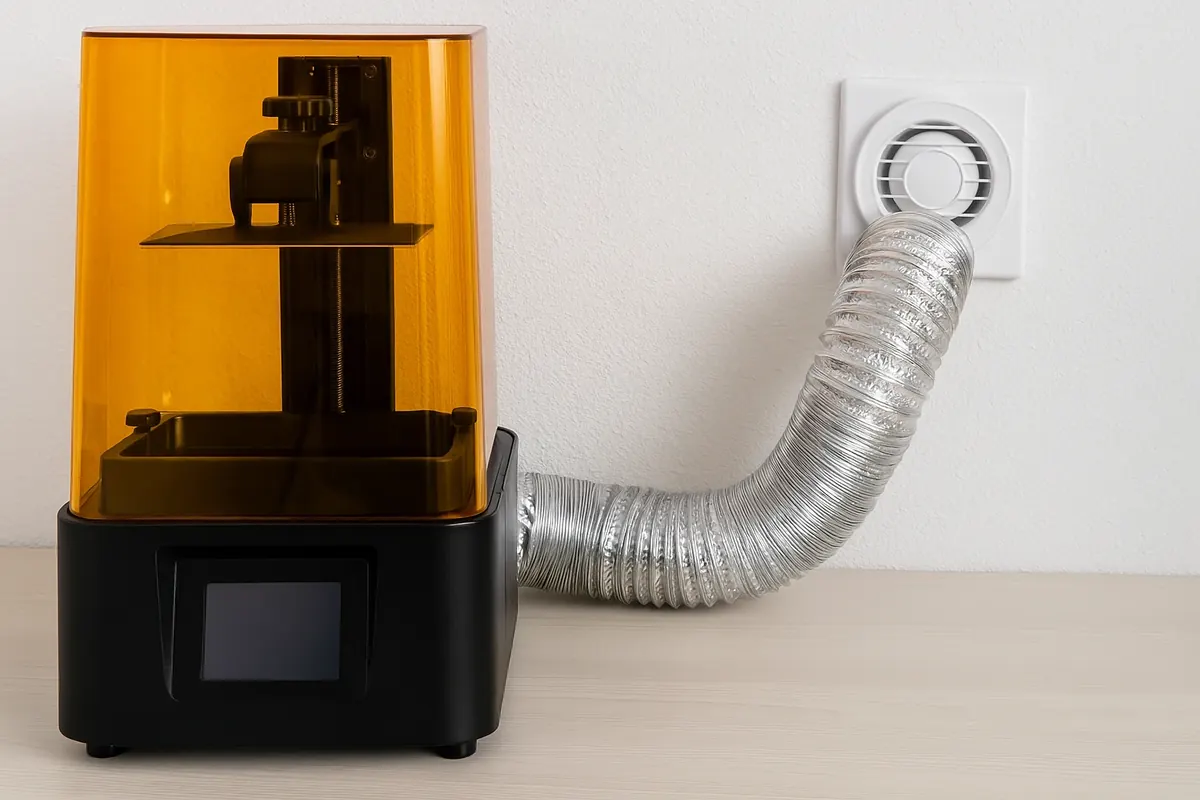

An exhaust fan is one of the simplest and most effective ways to remove resin fumes from your workspace. These fans pull air from the printing area and expel it outside. To set up an exhaust fan, you’ll need to:
- Positioning: Install the fan near the printer, ideally in the same room, so that it can draw in the air from the printer’s chamber.
- Ducting: Attach ducting that leads outside the room to prevent the fumes from re-entering the environment.
- Fan Size: Choose an appropriately sized exhaust fan to ensure that it can handle the volume of air your printer produces during the printing process.
Activated Carbon Filters
Activated carbon filters are excellent for removing odors and VOCs. Many 3D printer enclosures and resin printers come with built-in filtration systems that include activated carbon filters. These filters adsorb harmful chemicals and particles, purifying the air before it is released into the environment.
- Setup: Place an activated carbon filter inside a printer enclosure or directly near the printer to capture the fumes.
- Maintenance: Replace or clean the filters regularly to ensure maximum efficiency.
Fume Extractors
Fume extractors are designed to capture and filter harmful emissions from the air. They often feature multiple filtration stages, including HEPA filters for particle removal and activated carbon filters for VOC absorption. A fume extractor is an excellent choice for high-precision printing environments that need enhanced protection.
- Setup: Position the fume extractor near the printer’s ventilation outlet and ensure that it connects to a filtration system.
- Maintenance: Check the filters periodically and replace them according to the manufacturer’s instructions.
Additional Ventilation Tips
While installing an exhaust system or filter is the primary solution, there are additional tips you can follow to further optimize your resin printer’s ventilation.
1. Use a Printer Enclosure
A printer enclosure serves multiple purposes, such as temperature control and noise reduction. It also helps to contain fumes and directs them to a dedicated ventilation system. The enclosure should be airtight and include vents that allow air to escape through the filtration system.
2. Ensure Airflow
Even with a dedicated ventilation system, airflow is crucial. A well-ventilated room will naturally have better air circulation. If you are using an exhaust system, make sure the intake and exhaust points are well-positioned to promote smooth airflow.
- Tip: Place small fans around the room to encourage air movement and prevent stagnant air pockets.
3. Regularly Check Your Ventilation System
Maintaining your ventilation system is as important as installing it. Regularly check the ducts, filters, and exhaust fans to ensure they are working effectively. Over time, filters may get clogged, reducing the efficiency of your system.
4. Wear Protective Gear
While ventilation helps reduce the amount of harmful particles in the air, it’s also wise to wear personal protective equipment (PPE) when working with resin. This includes gloves, safety glasses, and a face mask (such as an N95) to prevent skin contact and inhalation of any residual fumes.
Conclusion
Proper ventilation is crucial when using a resin 3D printer to ensure a safe, healthy, and productive working environment. By installing an exhaust system, using activated carbon filters, and ensuring adequate airflow, you can significantly reduce the risks associated with resin printing fumes and particles. Regular maintenance of your ventilation system is key to its effectiveness, and taking personal protective measures will further safeguard your health.
