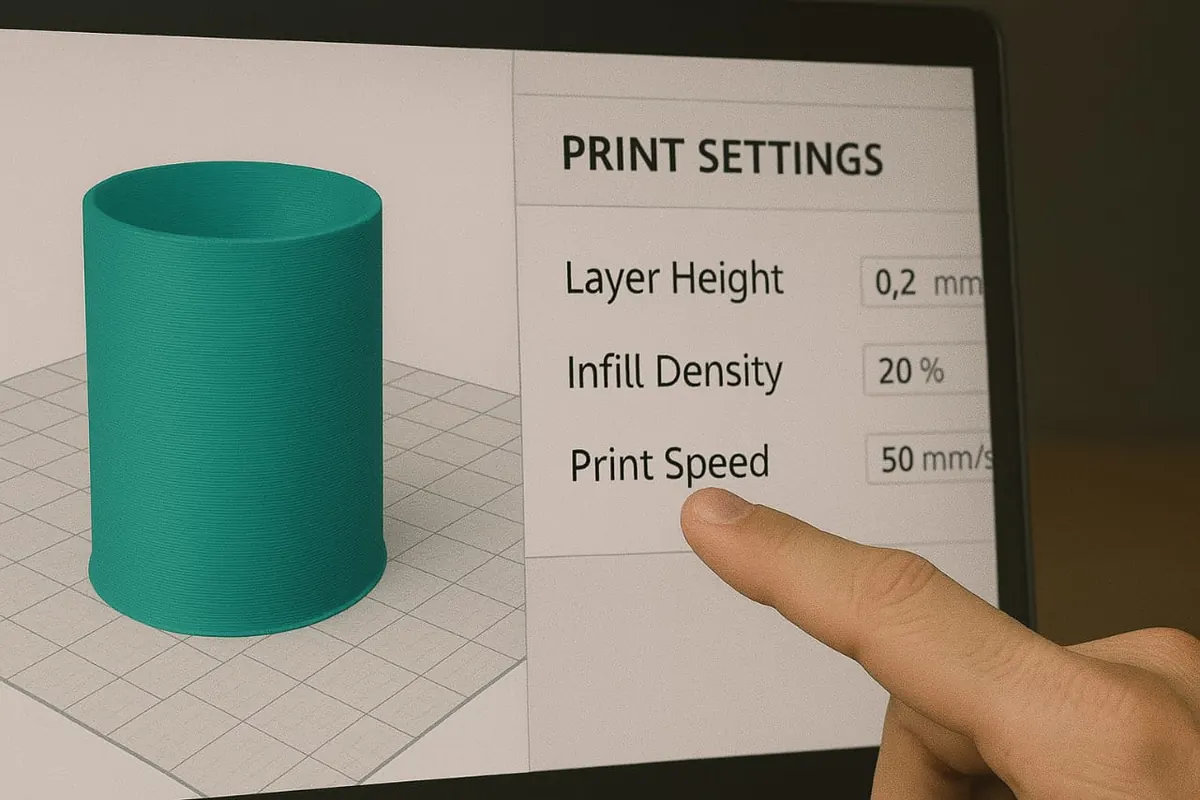

When it comes to 3D printing, slicing is one of the most critical steps. It translates your 3D model into instructions that the printer can understand and execute. While default slicer settings can get you good results, fine-tuning these settings can make a significant difference in your print quality. Whether you’re looking for improved accuracy, faster print times, or better surface finishes, the right slicer adjustments can help you achieve your goals.
In this article, we’ll explore advanced slicer settings that actually matter for optimizing print quality. These settings often go unnoticed by beginners but are crucial for those who want to take their 3D prints to the next level.
1. Layer Height: Balancing Quality and Speed
Why It Matters:
Layer height determines the thickness of each layer your 3D printer will print. A smaller layer height results in finer, smoother details, while a larger layer height increases speed but sacrifices fine details.
Advanced Settings to Adjust:
- Standard Layer Height: For high-detail prints, use a layer height between 0.1 mm to 0.2 mm. For faster prints with less detail, go for 0.3 mm or higher.
- Adaptive Layer Height: Some slicers, like PrusaSlicer, offer adaptive layer height, where thicker layers are used in areas of the model that are less detailed and thinner layers are used for fine details.
- Fine-Tuning for Overhangs: For prints with significant overhangs, using smaller layers can help with better bridging and smoother transitions.
2. Print Speed: Finding the Right Balance
Why It Matters:
The print speed affects not only the quality of the print but also the durability and consistency of the extruded filament. Too high a speed can lead to poor layer bonding and defects, while too low can unnecessarily extend print time.
Advanced Settings to Adjust:
- Outer Shell Speed: The speed of the outer layers is critical to achieving smooth surfaces. Lower the outer shell print speed to around 20-30 mm/s while keeping the inner layers faster at around 50-60 mm/s.
- Infill Speed: You can afford to print infill at a higher speed (around 60-80 mm/s) since it won’t affect the visible surface as much.
- First Layer Speed: Always reduce the first layer print speed to 20 mm/s to ensure proper adhesion to the print bed.
3. Infill Density and Pattern: Optimizing Strength and Material Usage
Why It Matters:
Infill determines the internal structure of your print. Too much infill increases print time and material usage, while too little can result in a weak and flimsy print. Choosing the right infill density and pattern is key for balancing strength, material usage, and print time.
Advanced Settings to Adjust:
- Infill Density: For functional prints, an infill density between 20-40% is typical. However, for aesthetic prints or prototypes, reducing this to 10-15% can save material without compromising too much on strength.
- Infill Pattern: Use different patterns for different applications. For strength, grid, gyroid, or cubic patterns are excellent. For faster prints, lines or rectilinear can save time without drastically affecting strength.
- Infill Overlap: Adjust the overlap percentage between the infill and outer walls (typically between 10-30%) to improve adhesion between the two.
4. Wall Line Count: Strengthening Outer Layers
Why It Matters:
The number of wall lines (perimeter) directly impacts the strength and surface finish of your prints. Adding extra wall lines makes the outer layers more robust, which is crucial for models that require impact resistance.
Advanced Settings to Adjust:
- Wall Line Count: For stronger parts, use 3-5 wall lines. If strength isn’t a concern, you can go with just 2 wall lines.
- Wall Thickness: Wall thickness is the product of the number of wall lines and the nozzle diameter. For stronger walls, make sure the wall thickness is at least 1.2x the nozzle diameter.
5. Temperature Settings: Fine-Tuning for Material Type
Why It Matters:
Temperature settings influence extrusion consistency and adhesion. Different materials require different temperatures to print optimally. Printing too hot or too cold can result in issues such as stringing, under-extrusion, or poor layer bonding.
Advanced Settings to Adjust:
- Extruder Temperature: Most filaments have an optimal extrusion temperature range. For PLA, a typical range is 190-220°C, while for ABS, it’s 230-250°C. Always check the manufacturer’s recommended temperature for best results.
- Bed Temperature: The heated bed temperature should match the material’s adhesion requirements. For PLA, around 50-60°C works well, while ABS typically needs around 90-110°C.
- Coasting and Retraction: Fine-tune these settings to reduce stringing. Coasting pushes a small amount of filament out of the nozzle at the end of a print move, while retraction pulls back filament to prevent oozing.
6. Retraction Settings: Reducing Stringing and Blobbing
Why It Matters:
Retraction settings control the pulling back of filament when the printhead moves over non-printing areas. Proper retraction reduces stringing and blobbing, ensuring that your print has a smooth surface.
Advanced Settings to Adjust:
- Retraction Distance: For direct-drive extruders, use 0.5-1 mm retraction, while for Bowden extruders, use 4-6 mm. This ensures the filament is retracted enough to prevent leakage but not so much that it causes under-extrusion.
- Retraction Speed: A retraction speed of 25-45 mm/s is typically ideal. Too slow can result in stringing, while too fast can cause clogs or jams.
- Retraction Extra Prime Amount: This setting controls how much filament is pushed back out after retraction. Adjust this to fine-tune the extrusion after each retraction move to avoid under-extrusion.
7. Print Cooling: Managing Layer Cooling for Accuracy
Why It Matters:
Cooling is essential for controlling layer bonding and print quality, especially for materials like PLA. However, too much cooling can lead to warping and poor layer adhesion, while too little can result in a rough finish or stringing.
Advanced Settings to Adjust:
- Fan Speed: Set the fan to run at 100% after the first few layers for most filaments like PLA. However, for materials like ABS, reduce the fan speed to 50-70% to prevent warping.
- Cooling for Overhangs: Increase the cooling fan for models with significant overhangs or bridging to help them solidify faster, minimizing sagging.
- Minimum Layer Time: This setting ensures the printer waits long enough for a layer to cool before proceeding to the next. For fine details, use a minimum layer time of 10-20 seconds.
8. Support Settings: Improving Overhangs and Bridges
Why It Matters:
Support structures are essential for printing complex geometries and overhangs. The type of support material and density affects how easy it is to remove supports and the overall quality of the print.
Advanced Settings to Adjust:
- Support Density: Use a support density of 15-30% for most prints. Too high a density makes support removal difficult, while too low a density may lead to insufficient support.
- Support Overhang Angle: Set the overhang angle to 45° for standard prints. For steeper overhangs, reduce the angle to ensure supports are placed correctly.
- Support Structure Type: Use tree supports for complex or organic shapes, as they are easier to remove and provide better support coverage without excessive material waste.
9. Print Acceleration and Jerk Settings: Reducing Vibrations
Why It Matters:
Acceleration and jerk settings control how quickly the printer changes direction. If these settings are too high, you may experience vibrations or ghosting, which negatively impacts the print quality.
Advanced Settings to Adjust:
- Acceleration: Lowering the acceleration can help reduce ringing or ghosting. A typical acceleration setting is around 800-1000 mm/s² for most printers.
- Jerk: Reduce jerk to 5-10 mm/s for better surface finish. This helps with smoother movement during printing and reduces sudden movements that could cause defects.
10. Z-Hop: Preventing Scratching or Damage
Why It Matters:
Z-hop lifts the print head slightly when moving over non-printing areas to avoid scraping or damaging already printed layers. This is especially useful for prints with lots of detailed features.
Advanced Settings to Adjust:
- Z-Hop When Retracted: Enable this feature to lift the nozzle slightly when retracting filament, typically set to around 0.2-0.4 mm.
- Z-Hop Speed: A Z-hop speed of 3-5 mm/s is ideal for smooth movement without introducing extra print time.
Conclusion
Fine-tuning your slicer settings can drastically improve the quality and efficiency of your 3D prints. By adjusting layer height, print speed, infill density, and several other advanced settings, you can achieve cleaner prints, faster print times, and stronger models. Remember that the best settings depend on the material, model complexity, and printer capabilities, so experiment with these settings to find the perfect balance for your needs. With these adjustments, you’ll take your 3D printing to a professional level.
