High-speed 3D printing demands more than just a fast printer. One of the most critical components influencing print quality and success at high speeds is the nozzle. Choosing the right nozzle upgrade can make the difference between flawless prints and persistent failures. This guide explores the best nozzle options for high-speed 3D printing, important considerations when upgrading, and common FAQs to help users make informed decisions.
Why Nozzles Matter in High-Speed 3D Printing
The nozzle is the last part of the hotend where filament melts and gets extruded. In high-speed 3D printing, the nozzle must handle increased flow rates, maintain temperature stability, and resist wear from abrasive materials. Without an optimized nozzle, users may experience under-extrusion, poor surface finishes, and even catastrophic hotend failures.
Key Factors to Consider When Choosing a Nozzle for High-Speed Printing
1. Flow Rate Capacity
At higher speeds, the printer must push filament through the nozzle faster. Nozzles with larger internal geometries and smooth flow paths are essential to prevent bottlenecks.
2. Material Composition
Durability is crucial when dealing with constant high-speed extrusion. Hardened steel, ruby-tipped, or tungsten carbide nozzles offer greater longevity compared to standard brass nozzles.
3. Thermal Conductivity
A nozzle with good thermal conductivity maintains consistent extrusion temperatures even when flow rates spike. Brass excels in heat transfer but may wear quickly, while plated nozzles balance conductivity and strength.
4. Nozzle Size
Larger nozzle diameters, such as 0.6mm or 0.8mm, are better suited for high-speed printing. They allow more filament to flow through per second, reducing pressure build-up and maintaining quality.
5. Internal Geometry
An optimized internal shape, like a tapered transition from the melt zone to the tip, reduces extrusion resistance. Specialized high-flow nozzles often feature such designs to enhance performance.

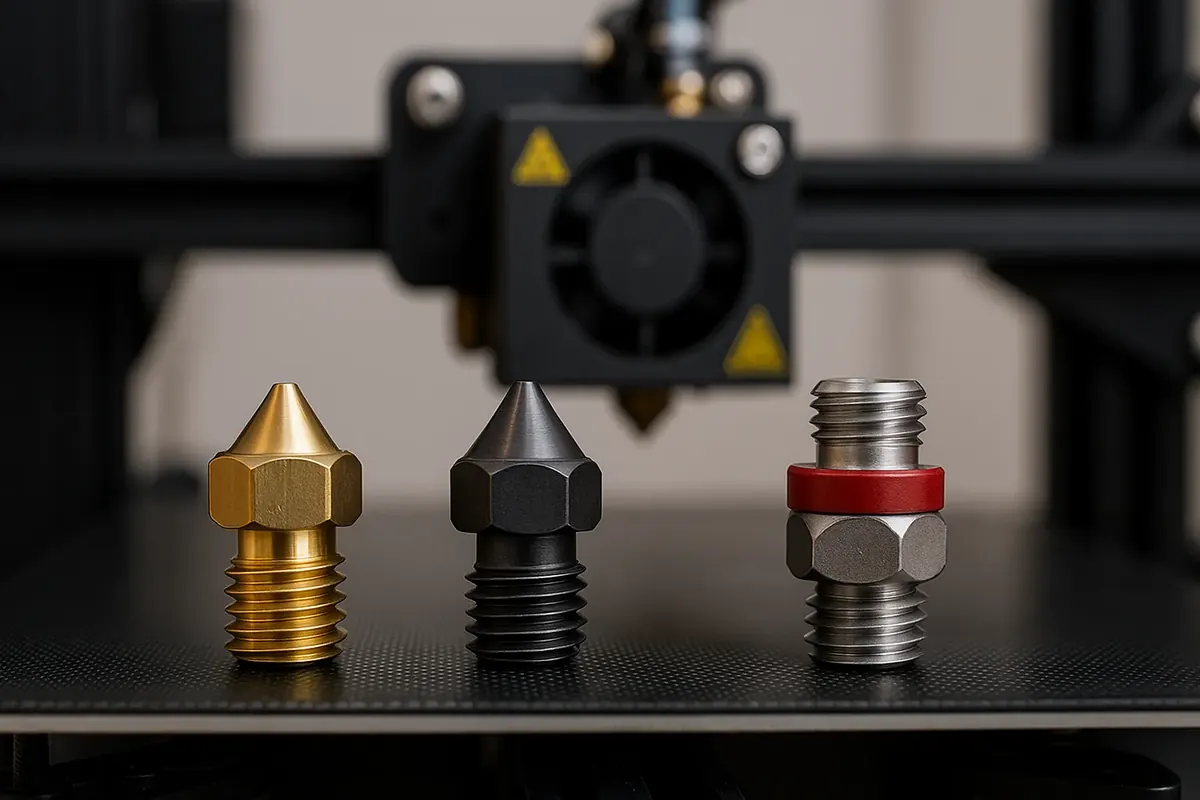

Best Nozzle Upgrades for High-Speed 3D Printing
1. Hardened Steel Nozzles
Hardened steel nozzles are a popular choice for high-speed 3D printing, especially when printing abrasive filaments like carbon fiber composites. They offer excellent wear resistance but lower thermal conductivity compared to brass. To compensate, users may need to slightly raise printing temperatures.
Pros:
- Superior wear resistance
- Suitable for abrasive filaments
- Long-lasting
Cons:
- Lower thermal conductivity
- Slightly heavier
2. Tungsten Carbide Nozzles
Tungsten carbide nozzles provide the best of both worlds — high hardness and excellent thermal conductivity. They are capable of maintaining consistent temperatures during high-speed prints and resist almost all forms of wear.
Pros:
- Extremely durable
- High thermal conductivity
- Ideal for aggressive, high-speed printing
Cons:
- Higher cost
- More brittle compared to steel
3. Ruby-Tipped Nozzles
Ruby nozzles combine a brass body with a tiny ruby at the tip. This design ensures maximum thermal performance while providing a highly abrasion-resistant tip. They are favored for high-speed printing with abrasive materials where maintaining print quality is critical.
Pros:
- Outstanding wear resistance
- Excellent thermal performance
- Precision extrusion at high speeds
Cons:
- Expensive
- Fragile under impact
4. Plated Copper Nozzles
Plated copper nozzles offer superb thermal conductivity, helping maintain a consistent extrusion temperature during rapid movements. Some models feature coatings like nickel or chromium for added abrasion resistance.
Pros:
- Exceptional heat transfer
- Available in high-flow designs
- Good resistance to filament buildup
Cons:
- Less wear-resistant than hardened steel or tungsten carbide
- Requires careful material matching
5. High-Flow Nozzles
Several manufacturers now offer nozzles specifically engineered for high-flow, high-speed printing. These nozzles often feature wider internal paths and optimized tip shapes. They reduce extrusion pressure and support extremely fast print speeds without loss of quality.
Pros:
- Designed for speed and flow
- Compatible with large layer heights
- Smooth extrusion even at extreme speeds
Cons:
- May require tuning slicer profiles
- Can sacrifice fine detail at very large sizes
How Nozzle Size Impacts High-Speed Printing
Selecting the correct nozzle diameter is critical when upgrading for speed. Standard 0.4mm nozzles may struggle at high flow rates, leading to under-extrusion or poor surface quality. Larger sizes like 0.6mm or 0.8mm enable:
- Faster layer deposition
- Greater tolerance for minor filament inconsistencies
- Shorter print times without sacrificing strength
However, users must accept a trade-off in terms of fine detail. Layer lines will be more visible, and small features may lose sharpness.
Best Practices When Upgrading Nozzles for Speed
Adjust Print Temperatures
Larger flow rates mean more heat is pulled from the hotend. Increase print temperatures by 5°C to 15°C when switching to high-speed nozzles.
Calibrate Flow Rate
Perform flow rate calibration to ensure the printer delivers the right amount of filament at higher speeds.
Tune Retraction Settings
Faster flow may require retraction adjustments to prevent stringing and oozing.
Update Slicer Profiles
Modify layer heights, line widths, and flow settings to match the new nozzle characteristics for optimal results.
Common FAQs About High-Speed 3D Printing Nozzles
What is the best nozzle size for high-speed 3D printing?
For high-speed printing, a nozzle size of 0.6mm to 0.8mm strikes the best balance between speed, strength, and quality. Larger nozzles allow for higher material throughput, reducing pressure inside the hotend.
Do I need to upgrade my hotend for high-speed nozzles?
Not always, but it depends on your hotend’s flow capacity. If your hotend cannot keep up with the increased filament demand, you might need a high-flow hotend upgrade alongside a nozzle swap.
Can I use brass nozzles for high-speed printing?
Brass nozzles can be used at high speeds with standard, non-abrasive filaments like PLA and PETG. However, for demanding materials or sustained high-speed operation, stronger materials like hardened steel or tungsten carbide are recommended.
How do I maintain a high-speed nozzle?
Regular cleaning is essential. Perform cold pulls to remove debris and inspect the nozzle for signs of wear. Replace nozzles that show erosion at the tip or inconsistent extrusion patterns.
Will a high-speed nozzle affect print quality?
High-speed nozzles can maintain excellent quality if slicer settings are properly tuned. Expect some loss of fine detail when using larger nozzles, but overall strength and layer adhesion often improve.
Conclusion
Upgrading your 3D printer’s nozzle is a simple yet powerful way to unlock higher speeds and better performance. By choosing the right nozzle material, size, and internal geometry, users can enjoy faster prints without compromising quality. Hardened steel, tungsten carbide, ruby-tipped, plated copper, and high-flow nozzles each offer unique advantages tailored to different needs. Careful selection, setup, and maintenance ensure the best results and long-term success in high-speed 3D printing.
