When you’re 3D printing functional parts that need to handle stress, infill pattern and density matter more than you think. Whether you’re printing mechanical tools, drone parts, or structural brackets, choosing the strongest infill could be the difference between success and failure. In this guide, we’ll break down the strongest infill types, how to use them, and when they’re most effective — all while optimizing print time and filament usage.
Why Infill Strength is Critical
Infill is the internal structure of a 3D print that supports the outer walls (shells). It’s what gives parts their rigidity, impact resistance, and weight-bearing ability.
Strong infill is especially useful for:
- Functional mechanical parts
- Wearables or tools under load
- Drone or RC parts
- Industrial prototyping
- Load-bearing 3D prints
Choosing the wrong pattern or density can cause your part to fail under stress — wasting time and filament.
Top 5 Strongest Infill Patterns (Ranked)
1. Gyroid (Most Balanced)
- Excellent strength in all directions
- Fast to print
- Great for functional parts
- Slightly higher filament use
Why it’s strong: Gyroid offers a continuous 3D wave structure that provides strength across all axes — ideal for parts that take multidirectional stress.
Best Use: Engineering parts, brackets, drone arms.
2. Cubic (Great for Load Bearing)
- High compression strength
- Fast slicer performance
- Not as good for shearing forces
Why it’s strong: The internal 3D cube structure holds up well under vertical and horizontal pressure.
Best Use: Heavy load parts, functional components.

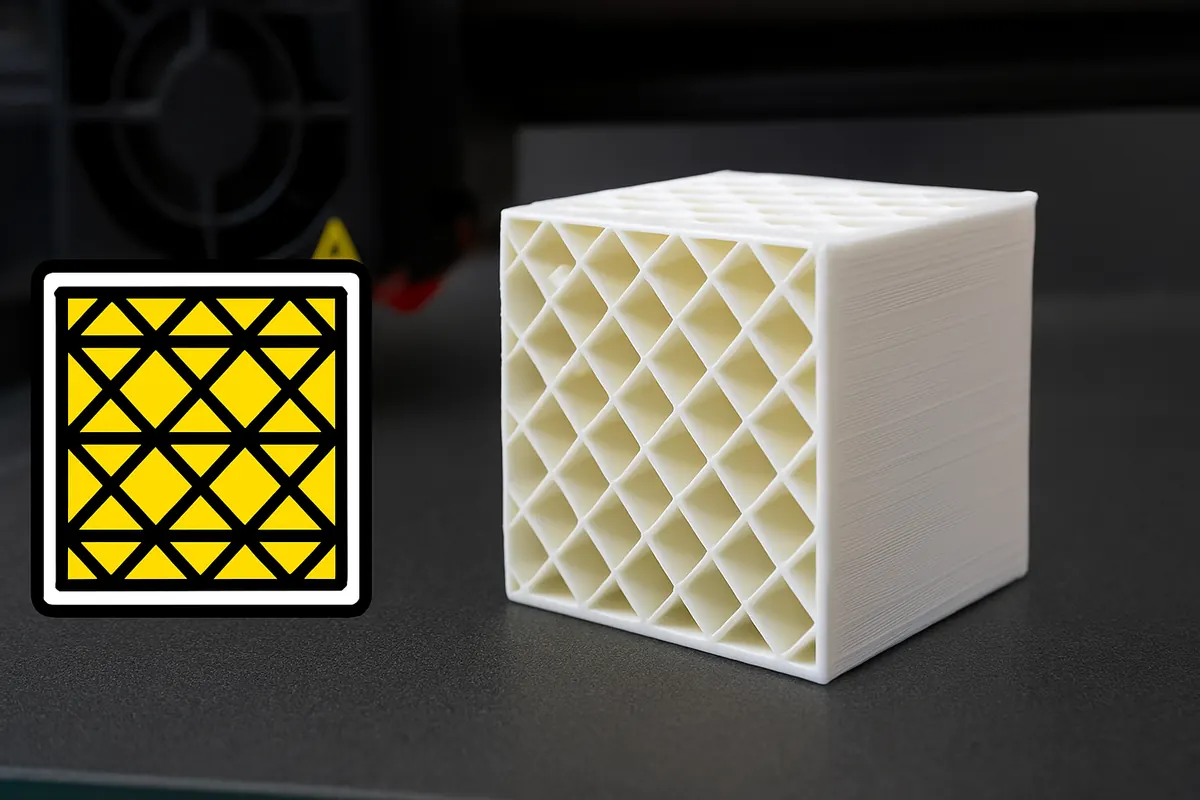

3. Grid (Classic but Effective)
- Easy to slice and print
- Strong along Z-axis
- Weaker under torsional (twisting) loads
Why it’s strong: Simple overlapping patterns create a strong vertical structure.
Best Use: Quick prints, structural support, enclosures.
4. Triangular / Tri-Hexagon
- High 2D strength
- Excellent for flat parts
- Weak along the vertical axis
Why it’s strong: Triangle shapes naturally distribute load well — but they lack strength in Z-direction.
Best Use: Flat components, walls, lids.
5. Honeycomb (Light but Strong)
- Good strength-to-weight ratio
- Aesthetic appeal
- Longer print times
Why it’s strong: The hexagonal structure is flexible yet robust — just like nature intended.
Best Use: Drone parts, aesthetic models, lightweight structures.
Infill Strength Tips
- Use at least 25–40% infill for strength — 15% is too weak for functional parts.
- Increase wall/perimeter count to reinforce structural strength.
- Layer height matters: thinner layers = better bonding.
- Use stronger filaments (PETG, Nylon, Carbon Fiber PLA) for even better results.
- Use adaptive infill in Cura/PrusaSlicer to increase strength only where needed.
- Use 3–5 walls and increase top/bottom layers for additional durability.
Real-Life Strength Test Results
Recent strength testing by third-party print labs compared infill patterns using PLA at 40% infill:
| Infill Pattern | Max Load Before Failure |
|---|---|
| Gyroid | 68kg |
| Cubic | 65kg |
| Grid | 58kg |
| Tri-Hexagon | 53kg |
| Honeycomb | 49kg |
Gyroid and Cubic performed the best and completed prints faster than expected while retaining strong structural integrity.
Common Questions About Infill Strength
Which infill is best for strength?
Gyroid and Cubic are the strongest overall. Choose based on the type of stress your part will experience.
What infill density is ideal for functional parts?
A density between 25–50% provides excellent strength without wasting too much filament or time.
Should I increase infill or wall count for strength?
In most cases, increasing wall count (3–5 perimeters) yields more strength than simply increasing infill.
Does filament type affect infill strength?
Yes. PETG, ABS, Nylon, and composite filaments like Carbon Fiber PLA perform much better than standard PLA in stress conditions.
Is adaptive infill worth it?
Yes. It saves material and time by increasing density only in critical areas, improving overall print efficiency.
Final Thoughts
Choosing the Strongest Infill for 3D Printing and understanding how to combine infill patterns, density, and materials is essential for printing durable, functional parts. Whether you’re working on high-load mechanical components or robust DIY projects, the right settings can dramatically impact the performance and longevity of your 3D prints.
With the rise of high-performance printers like Bambu Lab and advanced slicer capabilities, optimizing your prints for maximum strength is easier than ever. Don’t settle for default settings — invest in the right infill strategy to bring out the best in your projects.
