The nozzle is one of the most crucial components of your 3D printer. It is the part through which the filament is extruded, and any issues with the nozzle can lead to a variety of printing problems, such as under-extrusion, poor print quality, or even complete print failures. Nozzle wear and tear are inevitable over time, but knowing when to replace the nozzle can help prevent serious printing problems.
In this comprehensive guide, we’ll explore the signs that indicate your 3D printer nozzle might need replacing. We will discuss how to identify these issues, why they occur, and how to ensure that your 3D prints continue to be of high quality.
Why Is the Nozzle So Important?
Before diving into the signs of a worn-out nozzle, it’s essential to understand the role it plays in your 3D printing process. The nozzle controls the flow of molten filament from the extruder onto the print bed. It directly impacts the precision, quality, and smoothness of your printed objects.
Key functions of the nozzle include:
- Regulating the flow of melted filament.
- Ensuring precise extrusion for layer-by-layer build-up of the print.
- Controlling the consistency of the print, affecting everything from layer adhesion to surface smoothness.
If the nozzle is clogged, damaged, or worn down, it can cause extrusion issues, resulting in prints that are poorly formed, weak, or inconsistent. Knowing when to replace the nozzle is key to maintaining a high-quality printing experience.
Common Causes of Nozzle Wear and Tear
Several factors contribute to nozzle wear and tear, and understanding these causes can help you avoid prematurely replacing your nozzle. Some of the most common causes include:
1. Abrasive Filaments
Filaments that are filled with carbon fiber, metal, or other abrasive materials can cause significant wear on your nozzle. These filaments are harder than regular filament types like PLA, ABS, or PETG, and over time they erode the inside of the nozzle.
- Solution: If you frequently print with abrasive filaments, consider upgrading to a hardened steel or brass-coated nozzle that is more resistant to wear.
2. High Print Temperatures
Running your 3D printer at high temperatures can degrade the material inside the nozzle. For instance, certain filaments like PLA should be printed at around 190-220°C, while other materials like ABS require temperatures of around 230-250°C. Using higher-than-necessary temperatures can cause the filament to degrade inside the nozzle, resulting in build-up and wear.
- Solution: Make sure to use the recommended temperature for your specific filament and avoid overheating the nozzle.
3. Inconsistent Filament Quality
Low-quality filament that has irregular thickness or contains impurities can cause clogs and abrasion in the nozzle. Contaminants like dust, dirt, or moisture can clog the nozzle and increase the friction inside, causing faster wear.
- Solution: Always use high-quality filament from trusted brands and store it properly to prevent contamination.
4. Poor Maintenance
Failing to clean the nozzle regularly can lead to residue build-up that increases friction over time. The longer you leave this build-up, the more pressure it can put on the nozzle, eventually leading to wear and possible clogs.
- Solution: Regularly clean your nozzle using tools like a needle, brass brush, or specialized cleaning filament.
5. Incorrect Calibration
If your 3D printer is not properly calibrated, it can cause the nozzle to be too close to the print bed or exert excessive pressure during extrusion. This additional pressure can cause damage to the nozzle over time.
- Solution: Ensure your printer is regularly calibrated to ensure proper spacing between the nozzle and print bed.
How to Identify When Your Nozzle Needs Replacing
Knowing when to replace your 3D printer’s nozzle is crucial for maintaining print quality. Here are the key signs that indicate your nozzle may need replacement:
1. Under-Extrusion
Under-extrusion is one of the most common signs of a worn-out or clogged nozzle. If the nozzle is partially blocked or worn down, the printer may fail to extrude enough filament, resulting in thin, inconsistent layers, gaps in the print, or even a complete failure to extrude.
- Cause: A worn-out nozzle may have a wider opening, causing the filament to flow unevenly.
- Solution: Inspect the nozzle for any visible wear or clogs. If cleaning doesn’t resolve the issue, replacing the nozzle may be necessary.
2. Frequent Clogging
Clogs are another common sign that your nozzle may need replacing. If your printer repeatedly experiences clogs despite cleaning, this could indicate that the nozzle is damaged or the opening has become too narrow due to wear and tear.
- Cause: A worn-out nozzle may not allow filament to pass through smoothly, leading to frequent clogs.
- Solution: Try cleaning the nozzle first, but if the clogs persist, it’s time to replace the nozzle with a new one.
3. Inconsistent or Poor Print Quality
If your prints are showing signs of inconsistent extrusion, such as rough surfaces, gaps between layers, or uneven lines, the nozzle might be to blame. A worn nozzle may cause the filament to flow unevenly, resulting in a lack of precision in your prints.
- Cause: The nozzle may be worn down, causing irregular filament flow.
- Solution: Inspect the nozzle for wear and debris build-up. If the print quality does not improve after cleaning, it’s likely time for a replacement.
4. Stringing and Oozing
Stringing and oozing occur when excess filament leaks out of the nozzle, causing unwanted threads between parts of your print. While stringing can sometimes be caused by incorrect print settings (like high temperature or low retraction), a worn nozzle can exacerbate this problem.
- Cause: A worn or enlarged nozzle can allow filament to leak more easily.
- Solution: Clean the nozzle to check if stringing improves. If it doesn’t, replacing the nozzle may resolve the issue.
5. Visible Damage or Deformation
Over time, the nozzle may suffer visible damage due to wear and tear or contact with abrasive materials. If you notice any physical damage such as cracks, dents, or chips, it’s a clear sign that the nozzle needs replacing.
- Cause: Physical damage to the nozzle can disrupt filament flow and cause printing issues.
- Solution: If you notice physical damage, replace the nozzle immediately to avoid further damage and print issues.
6. Uneven Flow or Layer Adhesion
If you observe that certain layers are not adhering well or that the filament is not extruding consistently, it may be a sign that the nozzle is worn. An uneven or blocked nozzle will result in inconsistent extrusion and poor adhesion between layers.
- Cause: A worn or partially clogged nozzle can result in uneven filament deposition, leading to poor layer adhesion.
- Solution: Inspect and clean the nozzle. If this doesn’t resolve the issue, replacing the nozzle may be necessary.

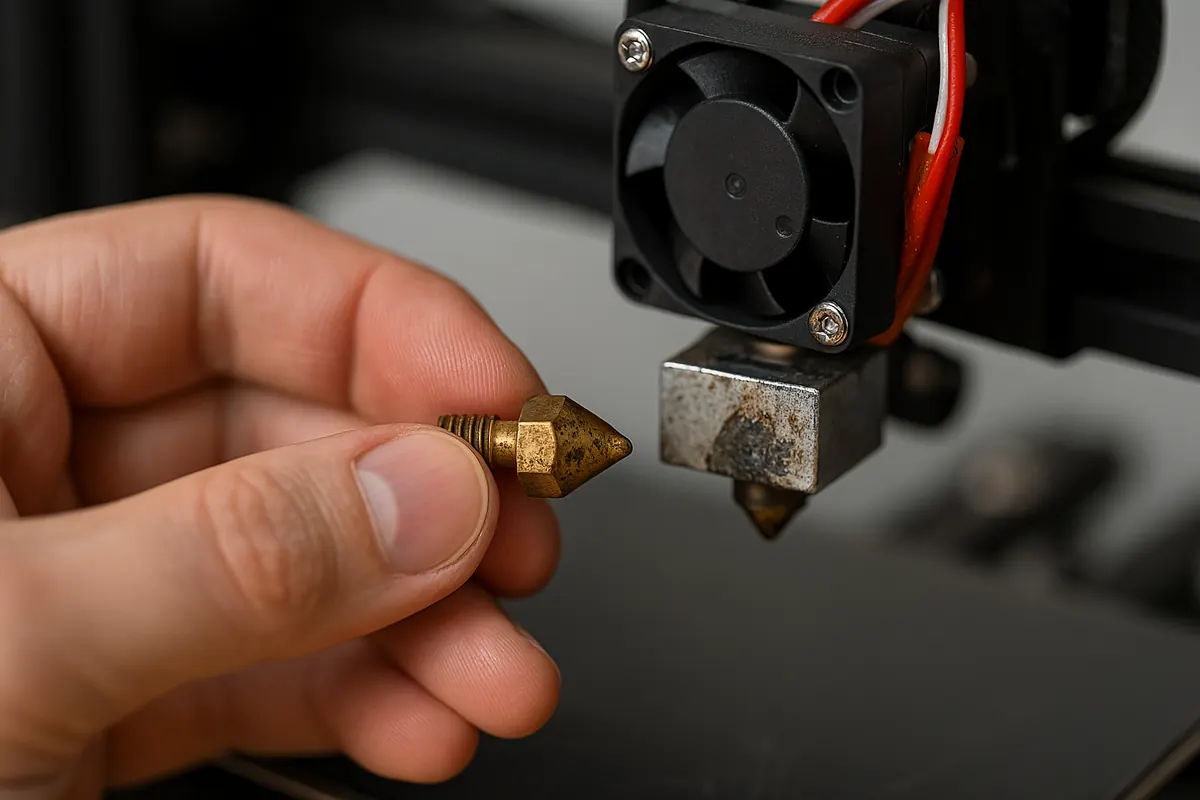

How to Replace Your 3D Printer Nozzle
Replacing a 3D printer nozzle is a relatively simple process, but it requires some care to ensure everything is done correctly. Here are the general steps for replacing the nozzle on most 3D printers:
1. Turn Off and Cool Down the Printer
Before you replace the nozzle, ensure that your printer is powered off and has cooled down completely to avoid burns or damage.
- Tip: Never replace the nozzle while it is still hot. Wait until it has cooled down to room temperature.
2. Remove the Old Nozzle
Using the appropriate tools (such as a wrench or nozzle tool), carefully unscrew the old nozzle from the hotend. Be sure to grip it firmly to avoid damaging the hotend or the threads of the nozzle.
- Tip: If the nozzle is stuck, heat the hotend to a temperature of around 200°C to soften any filament that may be causing the nozzle to seize. Then, try unscrewing it again.
3. Install the New Nozzle
Take the new nozzle and screw it gently into place. Ensure that it is properly aligned with the threads and that it is tightly secured, but avoid overtightening, as this could damage the hotend.
- Tip: Make sure the new nozzle is the correct size and material for your printer and filament.
4. Calibrate Your Printer
Once the nozzle is replaced, perform a quick calibration of your printer to ensure that the nozzle height and print bed are correctly aligned.
- Tip: Use your printer’s auto-bed leveling feature, if available, to make the calibration process easier and more accurate.
5. Run a Test Print
After replacing the nozzle, run a test print to ensure that the new nozzle is functioning properly and that extrusion is consistent.
- Tip: Start with a simple object, such as a calibration cube, to check the flow and quality of the extrusion.
Conclusion
Replacing your 3D printer nozzle is an essential part of maintaining your printer’s performance and ensuring high-quality prints. Knowing the signs of nozzle wear, such as under-extrusion, frequent clogs, and poor print quality, can help you identify when it’s time to replace the nozzle.
