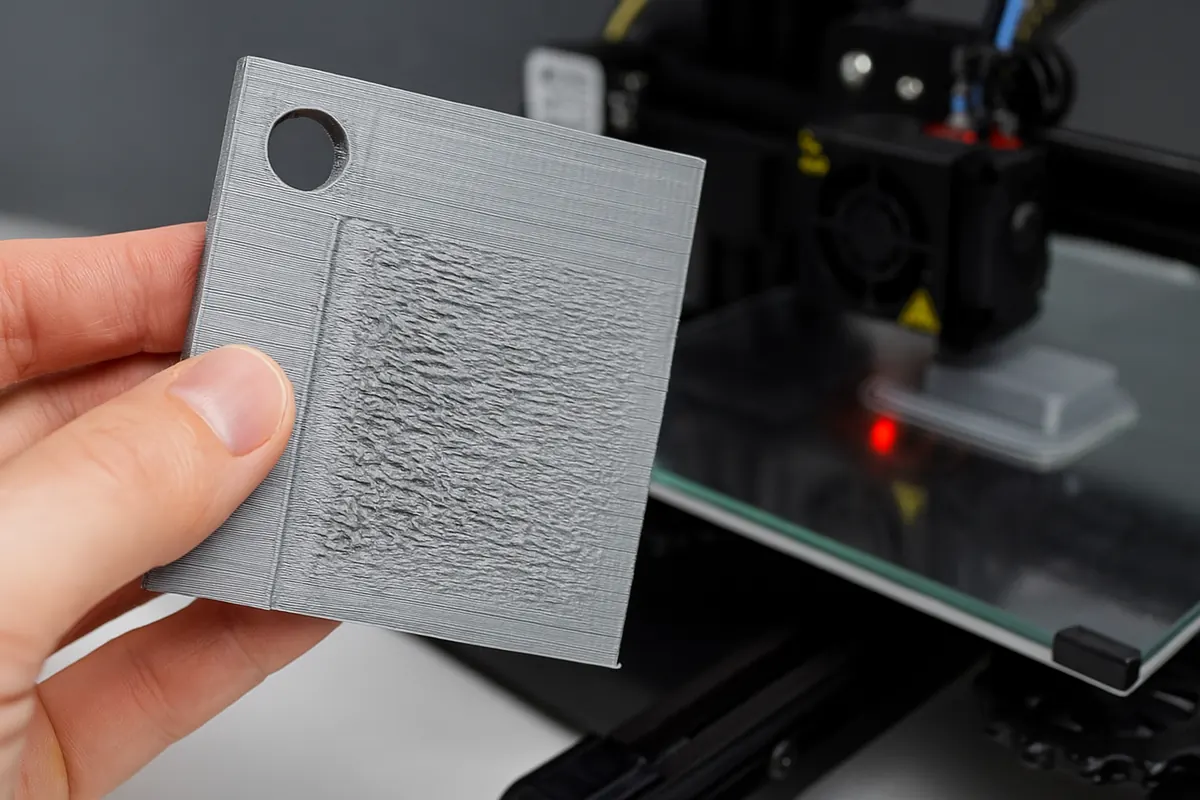

A key aspect of 3D printing is producing high-quality prints with smooth, professional-looking surfaces. However, it’s not uncommon to encounter rough or poor surface finishes, which can be frustrating when you’re expecting clean, polished results. Surface quality plays a vital role in the overall appearance, strength, and functionality of a 3D-printed object, especially for prototypes or parts that will be visible to clients or end-users.
In this comprehensive guide, we’ll explore the various reasons why your 3D printer may be producing rough or poor surface finishes. We’ll discuss the common causes, the solutions to fix them, and tips for achieving the smoothest print possible.
Why Is Surface Finish Important in 3D Printing?
Before we dive into troubleshooting rough surface finishes, it’s essential to understand why surface quality matters in 3D printing. The surface finish of a print can affect:
- Aesthetic Appeal: For visible parts, a smooth surface enhances the final appearance.
- Functional Properties: In certain applications, such as mechanical parts, surface smoothness can affect the part’s strength and performance, including wear resistance, friction, and aerodynamics.
- Post-Processing: A rough surface requires additional work, such as sanding or painting, to achieve a smoother look, which can be time-consuming.
Achieving high-quality surface finishes helps avoid these issues, saving time in post-processing and improving the functional performance of the part.
Common Causes of Rough or Poor Surface Finishes
Several factors can contribute to rough or poor surface finishes in 3D prints. Identifying and addressing these issues can help you achieve smoother and more accurate results.
1. Incorrect Print Temperature
One of the most common causes of poor surface finishes is an incorrect print temperature. Printing at too high or too low a temperature can cause issues like stringing, blobbing, and inconsistent layer adhesion, all of which contribute to a rough finish.
- High Temperatures: If the print temperature is too high, it can cause excessive oozing, leading to blobs or rough patches. This excess filament can create an uneven surface that needs extra post-processing to smooth out.
- Low Temperatures: If the temperature is too low, the filament may not flow properly, leading to under-extrusion. This results in weak layer bonding and visible gaps or ridges between layers.
Solution: Ensure you are using the correct print temperature for the filament you are using. Check the filament manufacturer’s recommended temperature range and calibrate your printer to the appropriate setting.
2. Inconsistent or Low Extrusion
Inconsistent extrusion is a major contributor to poor surface finishes. If your printer is not extruding the filament evenly or if the flow rate is too low, the surface of your print will look rough or patchy. This is often caused by issues like clogged nozzles, worn-out extruder gears, or incorrect printer settings.
- Clogged Nozzle: A clogged or partially blocked nozzle can cause irregular filament flow, leading to uneven extrusion.
- Worn-out Extruder Gears: If the extruder gears are worn, they may not grip the filament correctly, resulting in under-extrusion.
- Incorrect Flow Rate: A flow rate that is too low can lead to gaps or inconsistent layer adhesion, making the surface rough.
Solution: Clean your nozzle regularly to prevent clogs. Check your extruder gears for wear, and if needed, replace them. Ensure that your flow rate is calibrated properly in your slicing software, taking into account the type of filament you’re using.
3. Inappropriate Layer Height
Layer height plays a crucial role in the surface finish of your 3D print. If the layer height is set too high or too low, it can lead to visible lines, gaps, or inconsistent surfaces.
- Too High Layer Height: If the layer height is too high, each layer won’t be able to properly adhere to the one beneath it, creating noticeable steps or ridges.
- Too Low Layer Height: A very low layer height can result in excessive detail, but it can also cause the print to take too long, leading to other issues like warping or insufficient layer bonding.
Solution: Use an appropriate layer height based on your printer’s capabilities and the level of detail required. Generally, for a smooth surface, aim for a layer height between 0.1mm to 0.3mm, depending on your printer’s resolution.
4. Overhangs and Unsupported Sections
When printing models with overhangs or unsupported sections, the 3D printer may struggle to maintain the smoothness of the surface. Overhangs cause the printer to deposit material in mid-air, which can lead to rough, droopy, or sagging surfaces.
- Cause: Without proper support structures, overhangs may cause the filament to not adhere correctly to the layer beneath it, leading to unsightly surface defects.
- Solution: Add support structures to your design, or use a support material (like PVA or HIPS) that dissolves in water to avoid rough overhang surfaces. Ensure that the angle of the overhangs in your model is within the printer’s capabilities, typically 45° or less.
5. Inadequate Cooling
Cooling is critical for proper layer adhesion and smooth surface finishes. If your printer’s cooling system is not working effectively, it can cause the printed filament to cool too quickly or unevenly. This leads to issues like warping, stringing, and poor surface quality.
- Cause: Without proper cooling, the filament may not solidify properly, causing it to sag or create visible texture on the surface.
- Solution: Make sure that your cooling fan is functioning properly. For materials like PLA, cooling fans are essential for achieving smooth, well-defined prints. Consider increasing the fan speed in your slicer settings if you’re printing materials that require better cooling.
6. Speed Issues
Printing speed can also impact surface finish quality. Printing too quickly can cause extruder inconsistencies, while printing too slowly can lead to overheating and other issues.
- Too Fast: If you print too fast, the extruder may struggle to keep up, causing gaps or uneven surfaces.
- Too Slow: On the other hand, printing too slowly can cause the material to overheat, leading to warping or degraded surface quality.
Solution: Adjust your print speed based on the material you’re using. For most standard filaments, a print speed between 40-60mm/s will give you good results. Fine-tune the speed for specific models and materials.
7. Filament Quality
Low-quality filament can be one of the biggest contributors to poor surface finishes. Cheap filaments are often inconsistent in diameter, contain impurities, or have moisture content that affects how they extrude.
- Cause: Filament that is too thick, too thin, or inconsistent will cause the nozzle to struggle with extrusion, resulting in poor adhesion and rough surfaces.
- Solution: Use high-quality filament from reputable brands and store it properly to avoid moisture absorption. Check the diameter consistency of your filament before use.
8. Incorrect Retraction Settings
Retraction settings determine how much filament the printer pulls back when it moves from one part of the print to another. If retraction settings are incorrect, it can lead to issues such as stringing, blobs, and rough surfaces.
- Cause: Incorrect retraction can cause excess material to leak from the nozzle when the extruder is not actively printing, leading to strings or uneven extrusions on the surface.
- Solution: Adjust your retraction settings to ensure that the extruder pulls the filament back properly during travel movements. Start with the default values in your slicing software and fine-tune from there.
9. Inaccurate Printer Calibration
One of the most important steps to achieving smooth surface finishes is having an accurately calibrated printer. If your printer’s bed is not level or the nozzle is too close to or too far from the bed, the extrusion will be inconsistent, leading to rough surfaces.
- Cause: An uncalibrated bed or extruder can cause uneven extrusion, leading to layer misalignment and rough surfaces.
- Solution: Regularly calibrate the print bed and ensure that the nozzle height is correctly adjusted. Use the auto-leveling feature if your printer has one, or manually adjust the bed for optimal printing conditions.
How to Improve Surface Finish Quality in 3D Printing
Now that we’ve covered the common causes of poor surface finishes, let’s discuss some tips for improving the quality of your 3D prints.
1. Use a Higher-Quality Nozzle
Consider upgrading your nozzle to one made from hardened steel or another wear-resistant material. These nozzles last longer, especially when printing with abrasive filaments, and ensure a more consistent extrusion flow, leading to better surface finishes.
2. Post-Processing Techniques
If your print still has rough surfaces despite addressing the common issues, consider using post-processing techniques like sanding, polishing, or applying a surface coating to smooth the print. Techniques like vapor smoothing (for ABS prints) or using a hot air gun can also help achieve a smoother surface.
3. Optimize Slicer Settings
Fine-tuning your slicing settings, such as infill density, wall thickness, and shell layers, can improve surface finishes. Experiment with these settings to find the optimal configuration for your printer and filament.
4. Use a Different Filament
If you’re consistently experiencing poor surface quality with one filament type, try experimenting with other filament types. Some filaments, like PETG, have smoother finishes by nature, and using the right filament for your application can improve the final result.
Conclusion
Rough or poor surface finishes in 3D printing can be caused by several factors, ranging from incorrect print temperatures to improper calibration or low-quality filament. By identifying the root causes and making the necessary adjustments to your printer, slicing software, and materials, you can achieve smooth, high-quality prints that are both functional and aesthetically pleasing.
