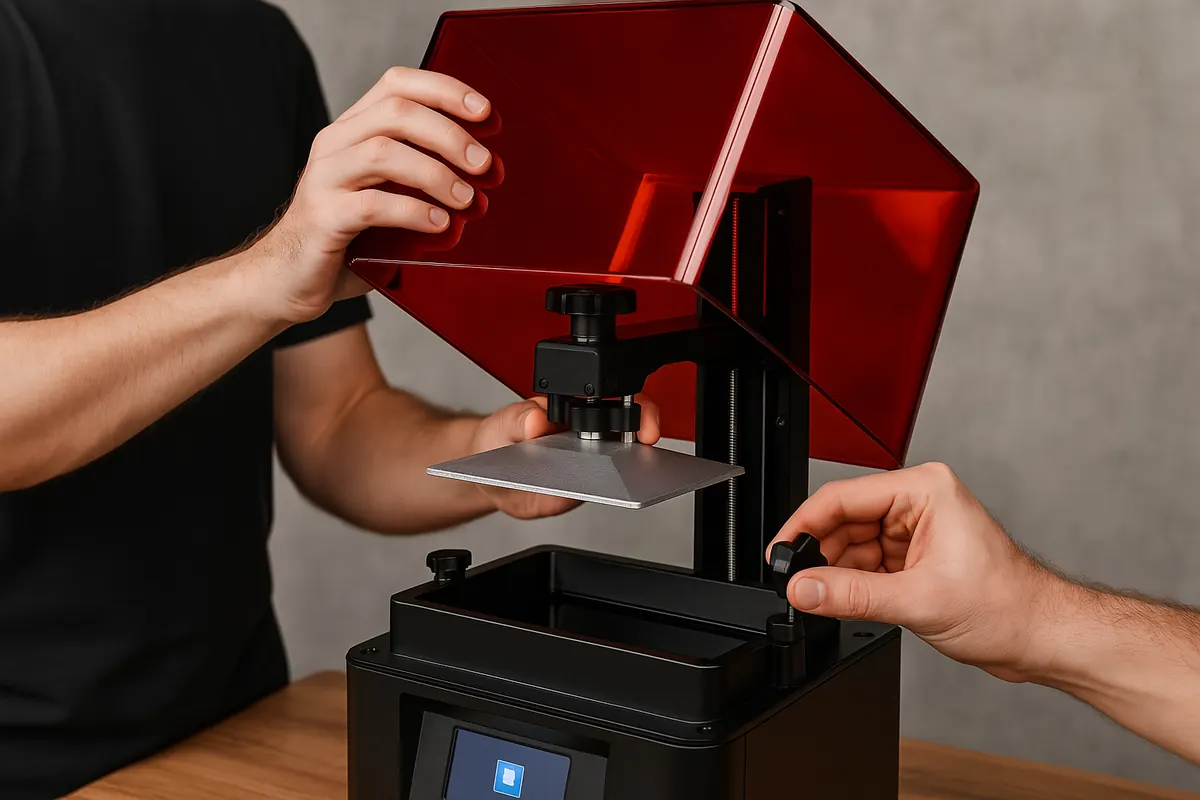

Resin 3D printing, commonly known for its high detail and smooth finishes, has become a popular choice for professionals, hobbyists, and designers. Unlike filament-based FDM (Fused Deposition Modeling) printers, resin printers use photosensitive liquid resin that hardens when exposed to UV light, layer by layer. To get the best results with a resin printer, it’s crucial to set it up properly. In this article, we’ll guide you through the steps to achieve optimal resin printing results, from setting up the printer to post-processing your prints.
Why Proper Resin Printer Setup is Important
Properly setting up your resin printer is critical because it can affect:
- Print Quality: Ensures smooth layers, fine details, and accurate dimensional prints.
- Printer Longevity: Reduces the wear and tear on parts like the resin vat, FEP film, and UV light.
- Material Efficiency: Helps reduce resin waste and ensures consistent results.
- Safety: Proper handling of resin ensures a safe environment and a smoother printing experience.
Now, let’s break down the process into manageable steps to get the best out of your resin printer.
Step 1: Unboxing and Assembly
Before you can start printing, ensure that your resin printer is properly assembled. Most resin printers come pre-assembled, but you still need to check some key components:
Key Components to Check:
- Build Plate: The surface where the print adheres.
- Resin Vat: The container that holds the liquid resin.
- FEP Film: The transparent film at the bottom of the resin vat, which is essential for resin transfer during the printing process.
- UV Light Source: The light source that cures the resin layer by layer.
Unboxing Tips:
- Ensure the printer is free from any shipping damage.
- Clean the build plate and resin vat before starting.
- Make sure the resin vat is level and free of any dirt or resin residue from previous prints.
Step 2: Leveling the Build Plate
Leveling the build plate is one of the most crucial steps in resin printing. If the build plate isn’t perfectly level with the resin vat, your prints may fail to stick to the plate or may be misaligned.
How to Level the Build Plate:
- Place the build plate on the printer: Attach it to the Z-axis.
- Home the printer: Follow your printer’s instructions to move the build plate to its starting position (typically lowering it until it touches the resin vat’s FEP film).
- Adjust the screws: Many resin printers have screws on the build plate that allow you to adjust its tilt. Tighten the screws slowly while the build plate is in contact with the FEP film to ensure an even surface.
- Test the level: Perform a test print of a small object (e.g., a calibration cube) to check if the first few layers adhere properly to the build plate.
Step 3: Preparing the Resin
Choosing the right resin and properly preparing it are essential steps for achieving optimal results.
Types of Resin:
- Standard Resin: Good for general-purpose prints, offering high detail and smoothness.
- Flexible Resin: Ideal for objects that need flexibility, like rubber-like parts.
- Castable Resin: Used for jewelry making or casting, with materials that burn off cleanly.
- Durable Resin: For creating parts that require high impact resistance and toughness.
Resin Preparation Tips:
- Shake the Resin: Resin can settle during storage, so shake the bottle well before use.
- Strain the Resin: To remove any clumps or debris, strain the resin before pouring it into the vat.
- Check the Resin Expiry: Resin has a shelf life, so ensure it’s not expired for optimal results.
Step 4: Setting the Exposure Settings
Each resin printer requires different exposure settings based on factors like resin type and the model being printed. The exposure time controls how long the printer’s UV light will shine on each layer of resin, affecting layer bonding.
Common Settings to Adjust:
- Exposure Time: Controls the curing time for each layer. Too short can result in weak prints, while too long can cause overcuring and reduced print quality.
- Bottom Exposure Time: The first few layers often require a longer exposure time to ensure they adhere strongly to the build plate.
Default Starting Points:
- Layer Exposure Time: Typically 5-8 seconds per layer for standard resins.
- Bottom Layer Exposure Time: 50-100 seconds for the first few layers.
Test and adjust exposure settings based on the results from your test prints. If the print is too weak, increase the exposure time slightly, and if it’s too brittle, reduce it.
Step 5: Choose the Right Slicing Software
Resin printers use slicing software to prepare 3D models for printing. The software converts your 3D model into layers and generates the necessary printing instructions. Most resin printers come with their own slicing software, but there are third-party options as well.
Popular Slicing Software for Resin Printers:
- ChiTuBox: A widely used slicer for resin printers, offering detailed controls over print settings.
- Lychee Slicer: A user-friendly slicer with features tailored for resin printing.
- PrusaSlicer: Another slicer that supports resin printing with good pre-configured profiles.
Slicing Tips:
- Orientation of Model: Proper model orientation can significantly affect the print’s success. Models should be tilted to reduce the number of supports needed and improve printing speed.
- Supports: Use automatic or custom supports in the slicing software to ensure the model doesn’t collapse during printing. Ensure the supports don’t interfere with detailed parts of the model.
Step 6: Pouring Resin into the Vat
After leveling the build plate and setting up the slicing software, it’s time to pour resin into the vat.
Resin Pouring Tips:
- Fill Only Half the Vat: You don’t need to fill the vat to the top. Pour enough resin to cover the build plate, but leave some room to avoid spillage.
- Avoid Contaminating the Resin: Wear gloves to prevent skin oils or dirt from contaminating the resin. Ensure the vat is clean before adding resin.
- Cover the Vat: When you’re not printing, always cover the resin vat to prevent dust and contaminants from settling into the resin.
Step 7: Start Printing and Monitoring the Process
Once the printer is set up, load the model and begin the print. It’s crucial to keep an eye on the printing process, especially for the first few layers. The first layers should adhere firmly to the build plate. If they don’t, the print will likely fail.
What to Monitor:
- Print Adhesion: Watch for any signs that the print is not adhering well to the build plate. If the resin pulls away during printing, stop the process and adjust your exposure time or re-level the plate.
- Resin Level: As printing progresses, check the resin level in the vat. Refill if necessary.
- Print Progress: If you’re printing a complex model, periodically check for any problems like warping or incomplete curing.
Step 8: Post-Processing
After the print is complete, you will need to clean and cure the printed model. Resin prints require post-processing to ensure they reach their full strength and detail.
Post-Processing Steps:
- Clean the Print: Use isopropyl alcohol (IPA) to wash the model and remove excess resin. A resin wash station or ultrasonic cleaner can help speed up this process.
- Remove Supports: Carefully remove the support structures from the print. Be gentle to avoid damaging the delicate model.
- Cure the Print: Use a UV curing station or place the model under a UV light source to fully cure the resin. This step is essential to ensure the print becomes solid and durable.
Conclusion
Setting up your resin printer properly is crucial to achieving the best print results. By following these steps—assembling the printer, leveling the build plate, preparing the resin, adjusting exposure settings, and properly post-processing your prints—you can significantly improve the quality, efficiency, and longevity of your prints.
