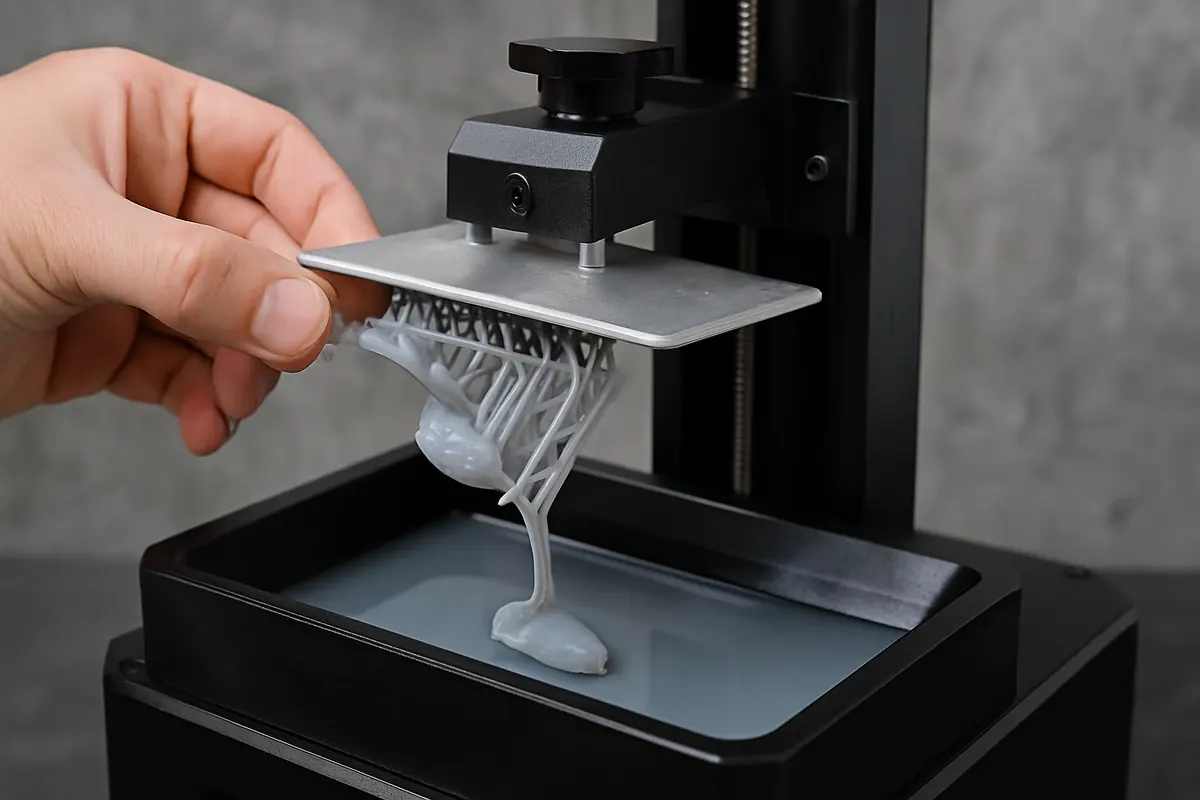

Nothing is more frustrating in resin 3D printing than checking your print mid-process, only to find your model floating in the vat, partially formed—or worse, stuck to the FEP film.
Detachment from the build plate is one of the most common causes of failed resin prints, and it wastes both time and expensive materials.
The good news is that most causes of detachment are easily fixable once you understand the science behind adhesion and lifting forces in resin printing.
This guide will explain why your prints keep detaching from the build plate, and how you can solve and prevent the issue permanently with practical techniques.
How Resin Prints Stick to the Plate (The Basics)
For a successful resin print:
- The first few layers must adhere tightly to the build plate.
- This adhesion must withstand the peeling force during each lift cycle.
- Supports must anchor the model strongly enough through the entire print.
Failure at any of these stages causes prints to detach, float, or collapse.
Top Causes of Resin Prints Detaching from the Plate (And Solutions)
Let’s break it down systematically:
1. Poor Build Plate Leveling
Problem:
If the plate isn’t perfectly leveled, some areas will have too much gap or pressure, causing partial or complete adhesion failure.
Signs:
- Partial prints (one side sticks, the other floats)
- Prints detaching after a few layers
- Uneven raft thickness
Solutions:
✅ Re-level the plate carefully using the paper method.
✅ Make sure the plate is evenly tightened without tilting.
✅ Some printers need re-leveling after every print (especially budget models).
Pro Tip:
Slightly tighten the build plate screws only after lowering the plate onto a paper or calibration card, then press gently before tightening.
2. Insufficient Bottom Exposure Time
Problem:
Bottom layers (the initial layers printed on the plate) need longer exposure to ensure solid adhesion.
Signs:
- First layers are soft or half-formed.
- Print peels off at the beginning.
Solutions:
✅ Increase bottom exposure time by 20–50%.
✅ Common settings: 30–60 seconds for bottom layers, depending on printer and resin.
Pro Tip:
Use more bottom layers (usually 4–8) for better bond strength.
3. Dirty or Oily Build Plate Surface
Problem:
Any contamination (oil, fingerprints, resin residues) creates an invisible barrier that weakens adhesion.
Signs:
- Prints randomly fall off despite proper settings.
- Multiple fails even after exposure adjustments.
Solutions:
✅ After every print, thoroughly clean the build plate with 90%+ isopropyl alcohol.
✅ Wear gloves when handling the plate.
✅ Deep clean occasionally with a light abrasive pad to remove microscopic residues.
4. Build Plate Too Smooth
Problem:
Super-smooth plates (like mirror-polished aluminum) offer less mechanical grip for cured resin.
Signs:
- Consistent adhesion failures even after cleaning and leveling.
- Prints popping off at certain angles.
Solutions:
✅ Lightly scuff the build plate using 400–600 grit sandpaper.
✅ Create a subtle, even texture for better mechanical lock.
✅ Some aftermarket plates come pre-textured for this reason.
Pro Tip:
Scuff in a circular pattern, clean thoroughly afterward.
5. Incorrect Lift Speeds and Distances
Problem:
If the lift (peel) is too fast or too high, it yanks prints off the plate during early layers.
Signs:
- Prints start well but detach at mid-height.
- Visible layers torn apart.
Solutions:
✅ Slow down the lift speed (around 50–100 mm/min during bottom layers).
✅ Lower lifting distance to minimize excessive peel force.
Pro Tip:
For large heavy prints, increase lift height slowly but keep lift speed low.
6. Wrong Resin Settings
Problem:
Each resin brand—and even each color—needs slightly different exposure times.
Signs:
- Some resins fail even though previous ones succeeded.
- Clear, colored, and specialty resins behave differently.
Solutions:
✅ Perform a resin exposure calibration test (e.g., RERF prints or exposure towers).
✅ Check the manufacturer’s recommended settings—and tweak based on your environment and printer.
7. Ambient Temperature Too Low
Problem:
Cold resin prints poorly because UV curing slows dramatically at low temperatures.
Signs:
- Peeling and detachment worsen in winter.
- Prints look incomplete, rubbery, or undercured.
Solutions:
✅ Maintain room temperature between 20°C and 25°C (68°F–77°F).
✅ Warm up resin by shaking the bottle or using a heating pad or heated enclosure if needed.
Pro Tip:
Warm resin behaves more consistently and increases adhesion.
8. Bad Model Orientation
Problem:
Flat surfaces printed parallel to the plate create huge suction forces, pulling prints off.
Signs:
- Bases warp or peel.
- Rafts stretch and tear off.
Solutions:
✅ Tilt models by 30–45 degrees.
✅ Reduce cross-sectional areas contacting the plate.
✅ Use hollow designs or drill drain holes to reduce suction.
9. Poor Support Structures
Problem:
If your supports aren’t thick, dense, or well-positioned enough, parts detach under their own weight.
Signs:
- Supported sections droop, collapse, or float.
- Midprint failures (especially on detailed models).
Solutions:
✅ Use medium to heavy supports for structural areas.
✅ Increase support density for heavy models.
✅ Anchor supports directly to the plate with a strong raft.
10. Improper Raft or Base Layer Design
Problem:
Thin rafts or minimal contact points can’t handle peeling forces during printing.
Signs:
- Rafts separate from the plate while the print remains attached to the raft.
Solutions:
✅ Increase raft thickness and raft margin in your slicer.
✅ Widen the base contact between supports and raft.
✅ Use brim or large base layers for fragile models.
Quick Troubleshooting Table: Print Detachment at a Glance
| Problem | Likely Cause | Solution |
|---|---|---|
| Full print detaches early | Low bottom exposure, bad leveling | Increase bottom exposure, re-level |
| Partial print stuck, partial floating | Uneven leveling, dirty plate | Deep clean plate, re-level carefully |
| Supports fail midprint | Thin supports, fast lift speeds | Thicken supports, slow lift speeds |
| Warped base, first layer lifts | Low exposure, no chamfered edges | Increase bottom exposure, add chamfer |
| Consistent failure on one side | Tilted plate or resin unevenness | Level carefully, refill resin evenly |
Pro Tips for Maximum Plate Adhesion
✅ Always warm your resin to room temperature before printing.
✅ Add extra bottom layers for large prints (6–10 layers).
✅ After sanding, clean plates carefully to avoid micro-residue.
✅ Use slicer features like Z-lift slowdowns for delicate early layers.
✅ Hollow out large prints and add multiple drain holes.
✅ For stubborn models, print a separate raft manually modeled for heavy adhesion.
Conclusion
If your resin prints keep detaching from the plate, the cause is usually simple to diagnose and fix:
- Re-level your build plate.
- Increase bottom exposure time.
- Ensure perfect plate cleanliness.
- Adjust model orientation and supports intelligently.
Once you master these core principles, you’ll enjoy consistent, reliable resin prints with rock-solid first layers and beautiful results.
A well-adhered first layer is the foundation of every successful resin print—treat it with care, and your printing experience will transform overnight.
