Removing supports from 3D prints can be one of the most delicate parts of post-processing. Improper removal techniques often result in surface damage, broken parts, or unwanted scars. However, with the right approach, it is possible to remove supports cleanly and preserve the quality of the print. This comprehensive guide outlines the best methods to remove supports without damaging your 3D prints, with expert recommendations and practical tips.

1. Choose the Right Support Settings in the Slicer

Support removal starts even before the print begins. Using the right slicer settings makes supports easier to remove and reduces the risk of damage.

• Lower Support Density: Reducing support density to around 10–20 percent makes supports less aggressive and easier to break away.
• Use Support Interfaces: A thin support interface layer separates the support from the model, creating a clean break and protecting the surface.
• Set Proper Z-Distance: Increasing the Z-gap slightly between the support and the part helps the supports detach without excessive force.
• Use Tree Supports: For complex models, tree supports provide minimal contact points and peel away more easily than traditional supports.

Tuning these settings allows you to create supports that do their job without becoming a permanent fixture on the model.

2. Remove Supports Carefully by Hand

Manual removal is the most common and often safest method when performed patiently and correctly.

• Twist, Do Not Pull: Instead of pulling supports straight off, gently twist them to break the adhesion without stressing the print.
• Work in Sections: Remove supports gradually, one area at a time, instead of trying to remove all supports at once.
• Use Controlled Pressure: Apply even and controlled pressure to avoid snapping thin parts or causing stress fractures.

Working slowly and systematically with your hands often achieves the cleanest results for prints with straightforward support structures.

3. Use Specialized Tools for Precision

Sometimes, supports are located in tight or delicate areas that require more than just your fingers.

Recommended tools include:

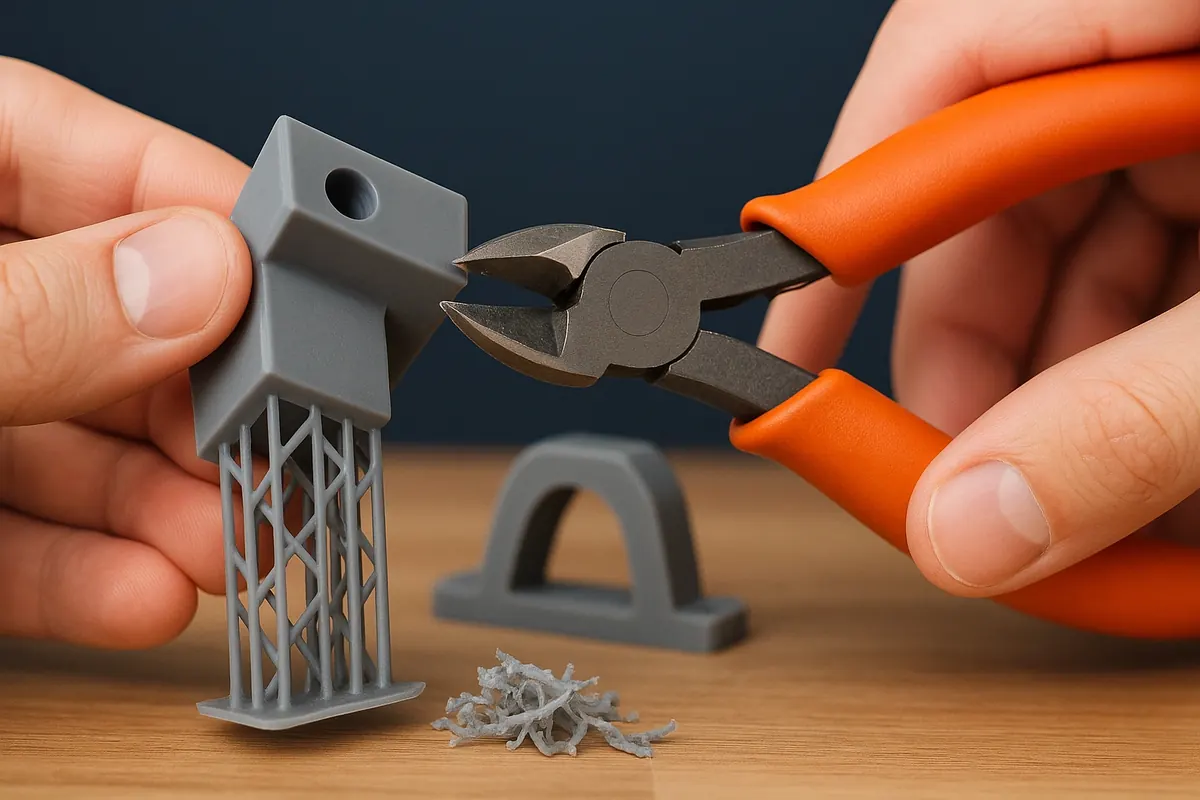

• Flush Cutters: Sharp flush cutters can snip support structures very close to the model without damaging the surface.
• Needle-Nose Pliers: Small pliers help grab and twist supports in confined areas where fingers cannot reach.
• Deburring Tools: A handheld deburring tool gently scrapes off residual support marks without gouging the surface.
• Scalpels or Hobby Knives: Precision knives allow careful trimming of small support nubs in detailed areas.

Using the right tools minimizes the risk of scratching, cracking, or accidentally cutting into the model itself.

4. Apply Heat for Easier Removal

Gentle heat application softens support materials and makes them easier to detach, particularly with tough filaments like PETG or ABS.

• Use a Heat Gun on Low Setting: Lightly warming the support areas with a heat gun can reduce brittleness and improve flexibility.
• Warm Water for Certain Materials: Some water-soluble supports, such as PVA, dissolve in warm water, allowing for damage-free removal without physical force.
• Avoid Overheating: Only slight heating is necessary. Excessive heat can deform the print or create unwanted warping.

Applying controlled heat is especially helpful when supports are firmly adhered and manual methods prove too harsh.

5. Sand and Smooth Residual Support Marks

Even with careful removal, tiny imperfections or marks often remain after supports are detached. Proper finishing techniques can erase these minor flaws.

• Fine-Grit Sandpaper: Starting with around 400 grit and progressing to 1000 grit or higher smooths the surface without removing excessive material.
• Wet Sanding: Using water while sanding reduces dust, improves surface finish, and prevents heat buildup that can cause filament softening.
• Filler Primer: For models that require painting, a filler primer covers minor scars and prepares the surface for a professional finish.

Post-processing steps like sanding ensure that the final model appears clean and free of visible support remnants.

Common FAQs About Removing Supports from 3D Prints

What is the easiest filament to remove supports from?

PLA generally allows for easier support removal compared to more flexible or sticky materials like PETG or TPU. Proper support settings can make removal straightforward even for challenging filaments.

How do you avoid damaging thin parts when removing supports?

Supporting thin parts with your fingers while removing supports can prevent stress and snapping. Additionally, using fine tools like flush cutters instead of pulling by hand reduces the risk of breakage.

Should I remove supports immediately after printing?

It is often easier to remove supports shortly after printing while the part is still slightly warm, especially with certain materials. However, for very brittle filaments, allowing the print to fully cool may be safer.

Can support marks be completely eliminated?

Support marks can be minimized to near invisibility through careful removal, fine sanding, and the application of filler primers or coatings, depending on the level of finish required.

Are soluble supports better than traditional supports?

Soluble supports, like PVA or HIPS, can provide perfect surface preservation since they dissolve completely in water or limonene. However, they require dual-extruder printers and specific environmental conditions for reliable printing.
