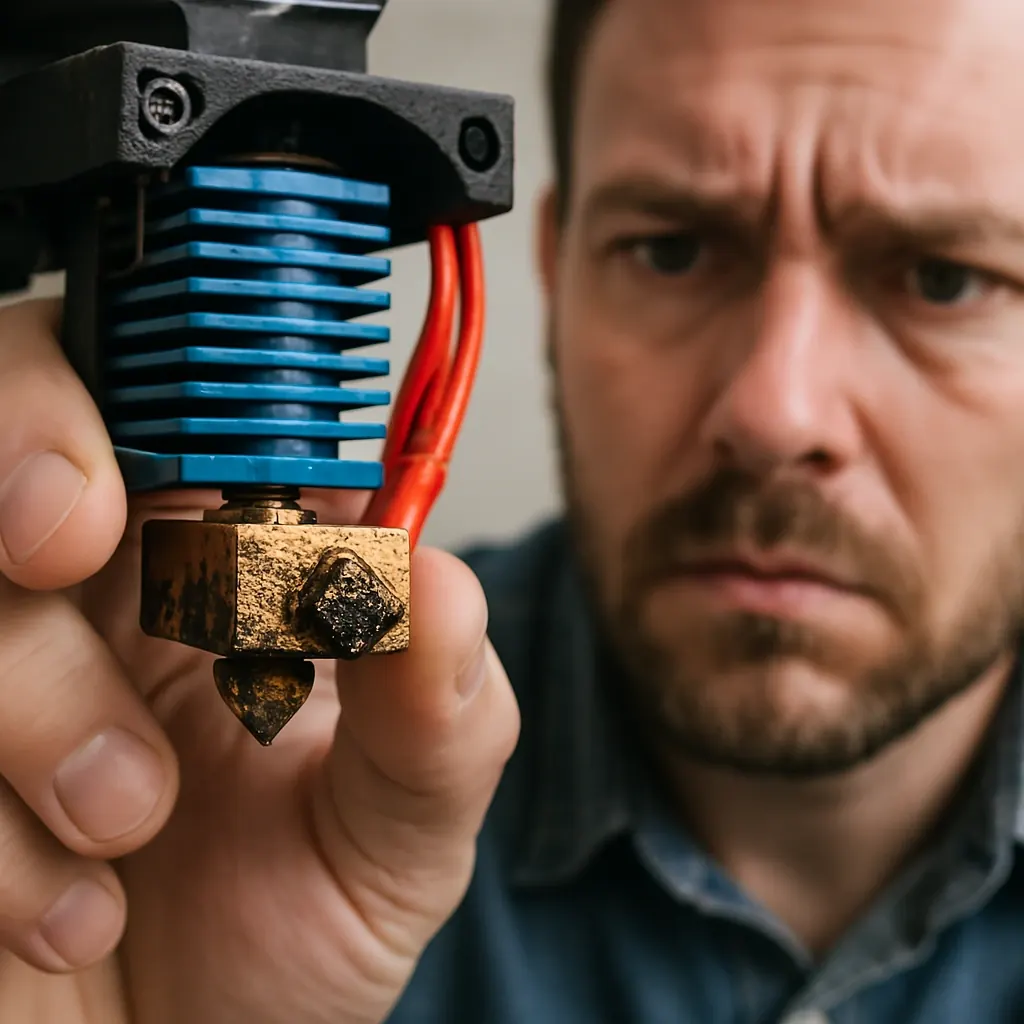

One of the most critical components of any 3D printer is the nozzle. It is through this small yet crucial part that filament is extruded to create your 3D printed objects. Over time, however, the nozzle can experience wear and tear, which may lead to issues such as clogs, under-extrusion, poor print quality, or even complete print failures. Understanding how to handle and prevent nozzle wear and tear is key to maintaining the longevity of your 3D printer and ensuring high-quality prints.
In this comprehensive guide, we will explain the causes of nozzle wear, how to identify when your nozzle needs attention, and the steps you can take to handle and prevent nozzle wear and tear effectively.
What Is Nozzle Wear and Tear?
Nozzle wear and tear refer to the gradual degradation or damage of the 3D printer nozzle over time. This wear can result from several factors, such as high print volumes, abrasive filaments, or poor maintenance. When a nozzle experiences wear, it can lead to various printing problems, including inconsistent extrusion, lower print quality, or complete failure to extrude filament.
The nozzle is responsible for regulating the flow of melted filament and ensuring it is deposited precisely on the print bed. If the nozzle is compromised in any way, it can lead to several issues, such as clogging, under-extrusion, or even damage to other components of the 3D printer.
Common Causes of Nozzle Wear and Tear
Understanding the causes of nozzle wear and tear is essential for preventing it. Below are some of the most common factors that contribute to nozzle degradation:
1. Use of Abrasive Filaments
Certain filaments, such as those infused with carbon fiber, metal, or glow-in-the-dark additives, are highly abrasive and can wear down nozzles much faster than regular filaments like PLA or ABS.
- Problem: Filaments with added materials such as carbon fiber or metal particles can scrape against the nozzle, gradually causing it to erode.
- Solution: If you plan to use abrasive filaments, consider using nozzles made from harder materials, such as stainless steel or hardened steel. These nozzles are more resistant to wear and can handle abrasive filaments more effectively.
2. Frequent Printing at High Temperatures
Printing at high temperatures for extended periods can accelerate nozzle wear. Higher temperatures can cause the filament to degrade, leaving behind residue inside the nozzle, which can increase friction and wear.
- Problem: Excessive heat can cause filament to burn, leaving carbon deposits that can clog or degrade the nozzle’s interior.
- Solution: Use the recommended print temperature for your filament and avoid unnecessarily high temperatures. Regularly clean the nozzle to remove any build-up from previous prints.
3. Inconsistent Filament Quality
Low-quality filament can cause several issues, including nozzle wear. Filaments that have inconsistencies in diameter or contain impurities like dust, moisture, or debris can create excess friction inside the nozzle, causing it to wear out more quickly.
- Problem: Filament with a non-uniform diameter or contaminants can increase the stress on the nozzle, leading to faster wear and clogs.
- Solution: Always use high-quality filament from reputable brands. Additionally, make sure the filament is stored in a dry place to prevent moisture absorption, which can cause clogging and wear.
4. Extended Use without Cleaning
Not cleaning the nozzle regularly can result in the accumulation of debris and residue inside the nozzle. This build-up increases friction, leading to wear and tear over time.
- Problem: Residue and burnt filament inside the nozzle can harden, making it more difficult for the filament to flow smoothly, causing extra stress on the nozzle.
- Solution: Regularly clean the nozzle to ensure smooth filament flow. Use tools such as a needle, brass brush, or nozzle cleaning tool to remove any built-up material.
5. Incorrect Calibration
If your 3D printer is not calibrated correctly, it can cause issues such as excessive pressure on the nozzle, leading to premature wear. Misalignment between the print bed and the nozzle can result in a poor extrusion path, causing the filament to scrape against the nozzle.
- Problem: Poor bed leveling and nozzle calibration can cause unnecessary friction and wear on the nozzle.
- Solution: Regularly calibrate your 3D printer to ensure proper bed leveling, nozzle height, and extruder alignment. This helps reduce unnecessary wear on the nozzle and ensures smooth, consistent prints.
Signs of Nozzle Wear and Tear
Knowing when your nozzle is starting to wear out is essential to preventing print failures and maintaining print quality. Here are some common signs that your nozzle may be suffering from wear and tear:
1. Under-Extrusion
One of the most obvious signs of nozzle wear is under-extrusion. If the nozzle has worn out, it may not be able to extrude filament properly, resulting in gaps, lines, or inconsistent layers in your prints.
- Cause: Wear inside the nozzle may lead to a larger or uneven extrusion path, causing the filament to flow inconsistently.
- Solution: Check your extrusion settings, and if the problem persists, inspect the nozzle for signs of wear or clogging. A worn-out nozzle may need to be replaced to restore proper extrusion.
2. Clogs and Jams
If you notice frequent clogs or jams in the extruder, especially after multiple prints, it could be a sign that the nozzle is worn or damaged. Clogs occur when the filament cannot pass through the nozzle properly, often due to an obstruction or a narrowed path caused by wear.
- Cause: Worn nozzles may have irregular or enlarged holes that prevent smooth filament flow.
- Solution: If cleaning the nozzle doesn’t resolve the issue, it may be time to replace it.
3. Inconsistent Layer Quality
Worn nozzles can lead to uneven extrusion, which can result in poor print quality. You may notice issues like rough surface finishes, inconsistent layer bonding, or visible gaps between layers in your printed objects.
- Cause: A worn-out nozzle may cause uneven flow of filament, leading to inconsistency in the final print.
- Solution: Examine the nozzle for any visible damage or build-up. If you see any signs of wear, cleaning or replacing the nozzle can help restore consistent quality.
4. Stringing and Oozing
Stringing and oozing are common issues caused by excessive filament leakage from the nozzle. While stringing can result from settings like high temperature or insufficient retraction, a worn-out nozzle can exacerbate this problem.
- Cause: A nozzle with an enlarged or uneven hole can allow filament to leak, leading to stringing or oozing.
- Solution: Clean the nozzle or replace it if necessary to eliminate stringing and improve extrusion control.
How to Handle Nozzle Wear and Tear
Now that you understand the causes and signs of nozzle wear and tear, let’s explore how you can handle and prevent these issues effectively.
1. Regular Cleaning of the Nozzle
One of the most effective ways to prevent nozzle wear is by cleaning it regularly. Removing debris and filament build-up helps to maintain smooth extrusion and reduce friction, prolonging the life of the nozzle.
- Solution: Clean the nozzle with a needle or brass brush to remove any residue. For more stubborn clogs, you can use a technique called “cold pull” where you heat the nozzle to a high temperature and then pull out the filament to remove any blockages.
2. Replace Worn Nozzles
Nozzles will eventually wear out, especially if you use abrasive filaments or print for extended periods. If cleaning and troubleshooting don’t resolve extrusion issues, it may be time to replace the nozzle.
- Solution: Replace your nozzle with a new one of the same size or a different material (e.g., hardened steel for abrasive filaments). Keep spare nozzles on hand to quickly swap them out when necessary.
3. Use the Right Nozzle for Your Filament
Different types of filament require different types of nozzles. If you’re using abrasive filaments like carbon fiber, metal-infused, or glow-in-the-dark filaments, make sure to use a nozzle designed to handle such materials.
- Solution: Opt for nozzles made from wear-resistant materials like hardened steel, ruby, or brass with a steel coating. These materials are designed to withstand the abrasion caused by specialized filaments.
4. Calibrate Your 3D Printer
To reduce unnecessary wear and tear on the nozzle, ensure your printer is calibrated properly. This includes leveling the bed, adjusting the nozzle height, and ensuring proper alignment between the extruder and the hotend.
- Solution: Perform regular calibration checks to ensure that your printer’s settings are optimized. This will reduce the pressure and strain on the nozzle, extending its lifespan.
5. Monitor Filament Quality
Using high-quality filament reduces the chances of nozzle wear caused by impurities or inconsistent diameters. When you use subpar filament, you risk introducing contaminants into the nozzle, which can cause clogs and increased wear.
- Solution: Always buy filament from reputable brands and ensure it’s stored properly in dry conditions to prevent moisture absorption, which can cause clogging.
Conclusion
Handling nozzle wear and tear is an essential part of maintaining your 3D printer. Nozzles are subject to gradual wear over time, especially when printing with abrasive materials or neglecting maintenance. By regularly cleaning your nozzle, using high-quality filament, and replacing worn nozzles when necessary, you can keep your printer in optimal condition and produce high-quality prints consistently.
