Layer separation is one of the most common issues in 3D printing, especially when creating large or complex prints. It occurs when the layers of the print fail to properly bond with each other, leading to visible gaps, cracks, or even complete failure of the print. While it can be frustrating, understanding the causes of layer separation is the first step toward solving the issue and improving the quality of your prints.
In this article, we will explore the common causes of layer separation in 3D printing, how they impact your prints, and what steps you can take to prevent them from happening.
What is Layer Separation in 3D Printing?

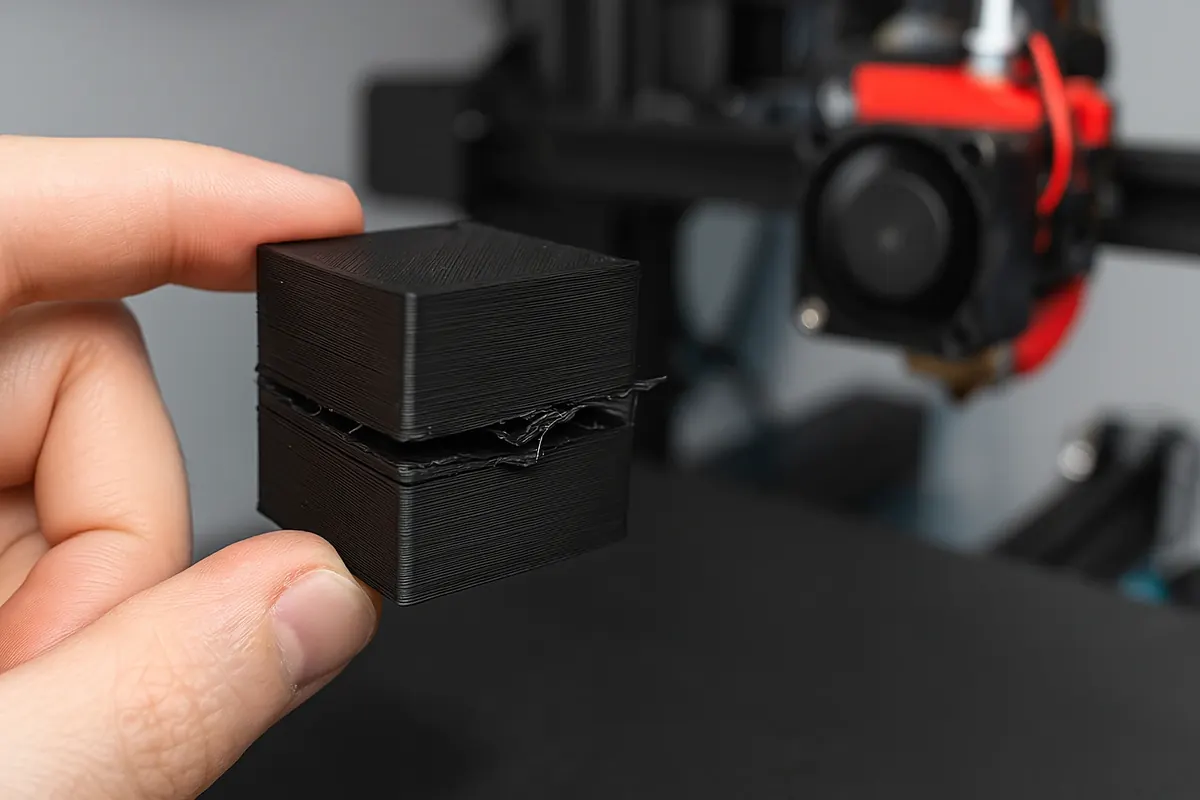

Layer separation refers to the phenomenon where the layers of filament that are meant to adhere to one another fail to bond during the printing process. This can result in noticeable gaps or cracks between the layers, which weakens the overall structure of the print. In severe cases, the layers may even peel apart entirely.
There are several potential reasons why layer separation might occur. Understanding these causes can help you troubleshoot the issue and make the necessary adjustments to your 3D printing process.
Common Causes of 3D Print Layer Separation
1. Incorrect Printing Temperature
One of the most common causes of layer separation is incorrect extrusion temperature. If the temperature is too low, the filament won’t melt properly, and the layers won’t bond well with one another. Conversely, if the temperature is too high, the filament may over-extrude, leading to inconsistencies that can cause separation.
How Temperature Affects Layer Bonding:
- Too Low: When the extruder temperature is too low, the filament may not fully melt, leading to poor adhesion between layers. This is particularly noticeable with filaments like PLA, ABS, and PETG, which require specific temperature ranges.
- Too High: Overheating the filament can cause it to become too runny, which leads to excessive extrusion and uneven layering. This can result in warping, stringing, and, ultimately, layer separation.
Recommended Temperature Settings:
- PLA: 190°C to 210°C
- ABS: 220°C to 240°C
- PETG: 230°C to 250°C
Make sure to adjust the extruder temperature according to the specific filament you’re using and monitor for signs of over- or under-heating.
2. Inadequate Bed Adhesion
Proper adhesion to the print bed is critical for successful prints. If the first layer does not adhere well to the bed, it can lead to layer separation as the print progresses. This issue is often noticeable in larger prints, where the layers have more surface area and are more susceptible to shifting.
How Bed Adhesion Affects Layer Separation:
- If the first layer doesn’t adhere well, the print may become unstable, causing the upper layers to separate.
- Adhesion problems are more common with materials like ABS and PETG, which tend to warp during printing. Warped corners or edges can result in uneven bonding between layers.
- Insufficient adhesion may also lead to the print lifting off the bed, which can cause layers to peel away as the print continues.
Solutions to Improve Bed Adhesion:
- Ensure the print bed is clean and level. A dirty or uneven bed can prevent the first layer from sticking properly.
- Use bed adhesion aids like glue sticks, blue painter’s tape, or a heated bed to improve adhesion.
- Set the first layer speed to slower settings to ensure proper bonding.
3. Incorrect Print Speed
The print speed plays a crucial role in the bonding of the layers. If the print speed is too fast, the filament may not have enough time to properly adhere to the previous layer. This can cause the layers to separate, leading to print failure.
How Print Speed Affects Layer Adhesion:
- Too Fast: Printing too quickly may not allow the filament to bond properly with the previous layer, leading to weak adhesion. This is particularly problematic with filaments that require slower speeds for good layer bonding.
- Too Slow: On the other hand, printing too slowly can result in over-extrusion, where excess filament is deposited and causes poor layer fusion or curling.
Recommended Print Speeds:
- PLA: 40–60 mm/s
- ABS: 30–50 mm/s
- PETG: 40–60 mm/s
Adjusting the print speed can help achieve the right balance between efficient printing and proper adhesion between layers.
4. Improper Cooling Settings
Cooling is essential for solidifying each layer of filament after extrusion. However, if the cooling settings are too aggressive, they can cause the filament to cool too quickly, leading to poor adhesion between layers. If cooling is too slow, it can result in an overly soft print, causing the layers to separate under pressure.
How Cooling Affects Layer Bonding:
- Too Much Cooling: Excessive cooling, especially when printing with materials like ABS or Nylon, can cause the filament to contract too quickly, leading to warping and layer separation.
- Not Enough Cooling: On the other hand, insufficient cooling can result in a print that remains too soft for a longer period, making it more prone to layer separation as the print progresses.
Optimal Cooling Settings:
- PLA: 100% cooling fan after the first few layers.
- ABS and PETG: 30-50% fan speed to prevent excessive cooling and warping.
- Nylon: Minimal cooling to avoid warping and cracking.
Make sure to adjust the cooling fan speed according to the filament material and the size of the print.
5. Low Quality or Moisture-Absorbed Filament
Filament that has absorbed moisture is more likely to cause layer separation during printing. Moisture can cause the filament to bubble or steam as it melts, resulting in weak spots between the layers. This is especially true for hygroscopic filaments such as Nylon, PETG, and ABS, which tend to absorb moisture from the air.
How Moisture-Affected Filament Causes Layer Separation:
- When filament absorbs moisture, it releases steam during extrusion. The trapped steam can lead to bubbles in the extrusion, which results in poor bonding between layers.
- Moisture can cause the filament to become more brittle, leading to cracks and layer separation as the print progresses.
Preventing Moisture Issues:
- Store filament in airtight containers with silica gel packs to keep it dry.
- Use a filament dryer or dry your filament in an oven before printing if you suspect moisture absorption.
- Only use high-quality filament from reputable manufacturers to minimize the risk of impurities.
6. Print Settings for Layer Height and Flow Rate
Layer height and flow rate can affect how well each layer bonds to the previous one. If the layer height is too large, the filament may not adhere properly to the previous layer, causing separation. Similarly, if the flow rate is too low, not enough material may be deposited to ensure a strong bond between layers.
How Layer Height and Flow Rate Affect Layer Bonding:
- Layer Height: If the layer height is too large relative to the nozzle diameter, the filament may not have enough time to bond with the layer below it. This can lead to layer separation.
- Flow Rate: A low flow rate may result in weak adhesion between layers, while a high flow rate can cause over-extrusion, which leads to poor bonding and layer separation.
Optimizing Layer Height and Flow Rate:
- Layer Height: Use a layer height that is around 75% of the nozzle diameter. For example, if you’re using a 0.4 mm nozzle, set the layer height to about 0.3 mm.
- Flow Rate: Set the flow rate to 100% unless you’re printing a particularly delicate model or material. For precise parts, adjusting the flow rate to 95–98% can prevent over-extrusion.
7. Environmental Factors (Drafts and Temperature Fluctuations)
Environmental factors can also play a significant role in layer separation. Drafts, temperature fluctuations, or inadequate heating can cause uneven cooling of the print, leading to poor adhesion between layers.
How Environmental Factors Contribute to Layer Separation:
- Drafts: A draft or cool air can cause uneven cooling, leading to warping or shrinking of the printed layers, which can cause separation.
- Temperature Fluctuations: A printer located in an area with fluctuating temperatures can cause inconsistent layer bonding, especially with materials like ABS and Nylon, which are sensitive to changes in temperature.
- Inadequate Heated Bed: If the heated bed is not sufficiently heated, it can lead to adhesion problems, causing the print to lift and layers to separate.
Solutions for Environmental Factors:
- Print in a temperature-controlled room or use an enclosure for your 3D printer to reduce the effects of drafts and temperature changes.
- Use a heated bed and ensure it’s set to the appropriate temperature for the filament you are using (usually around 50–60°C for PLA, 90–110°C for ABS).
- If using ABS, consider investing in a 3D printer with an enclosed build chamber to maintain consistent temperatures.
How to Prevent Layer Separation in 3D Printing
Now that we’ve covered the most common causes of layer separation, let’s look at ways to prevent this issue from happening.
- Proper Temperature Settings: Ensure that the extruder and heated bed are set to the recommended temperature range for your filament.
- Improved Bed Adhesion: Use adhesive solutions like glue sticks, painter’s tape, or a heated bed to improve first-layer adhesion.
- Slower Print Speeds: Consider slowing down the print speed to allow better bonding between layers.
- Adjust Cooling Settings: Modify the cooling fan settings to avoid excessive cooling and warping.
- Dry Filament: Store filament properly and use a filament dryer if necessary to prevent moisture-related issues.
- Regular Maintenance: Clean and maintain your printer, especially the extruder and nozzle, to prevent clogs that can affect layer bonding.
- Control the Environment: Print in an environment with stable temperatures and avoid drafts.
Conclusion
Layer separation is a common but preventable problem in 3D printing. By understanding the common causes, including temperature settings, bed adhesion, print speed, filament quality, and environmental factors, you can take the necessary steps to avoid this issue. Regular printer maintenance, proper settings, and storage practices for your filament will go a long way in ensuring that your prints come out with strong, well-bonded layers.
