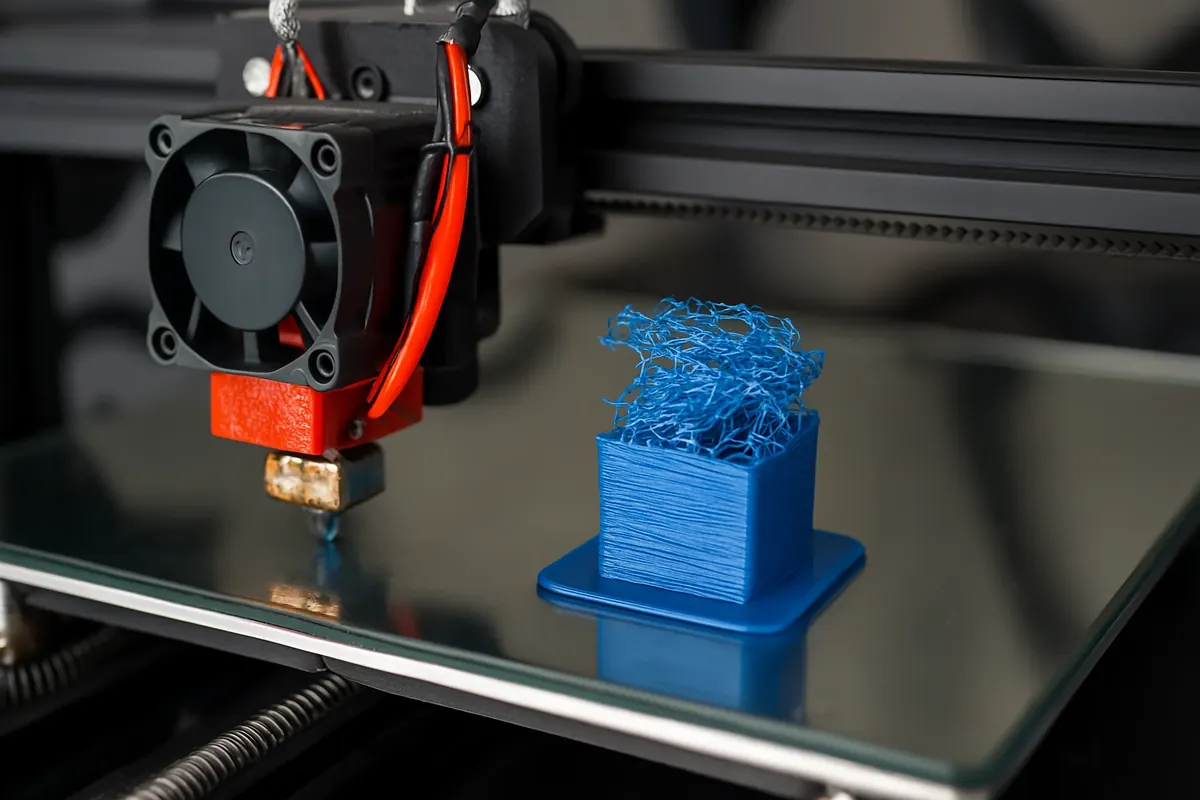

One of the frustrating problems in 3D printing is when your printer skips layers or misses steps during a print. This issue can result in distorted prints, poor quality, or even complete print failures. Skipping layers typically means that the printhead doesn’t accurately follow the designed path, leading to gaps, misalignment, or inconsistent prints.
If you’ve encountered this problem, you’re not alone. It can occur for several reasons, and understanding the underlying causes can help you troubleshoot and fix the issue. In this article, we’ll go over the common causes of skipped layers and missed steps, along with practical solutions to ensure that your prints come out successfully.
1. Incorrect Stepper Motor Current or Driver Settings
Cause:
Stepper motors are responsible for moving the printhead and bed along the X, Y, and Z axes. If the motor current is set too low or too high, the motor may not provide enough torque to move smoothly, causing the printer to miss steps or skip layers.
Solution:
- Adjust Motor Current: Ensure that the stepper motor current is set correctly in the printer’s firmware or through the motor driver settings. Many 3D printers allow users to adjust motor current via the control panel or using a configuration file in the firmware.
- Check Driver Settings: If you’re using an external stepper driver, check the current limit settings. Too little current can lead to skipped steps, while too much can cause overheating or strain on the motors.
2. Insufficient or Inconsistent Power Supply
Cause:
A weak or inconsistent power supply can affect the stepper motors and other components of the printer. If the power supplied to the motors is insufficient, they may not receive enough power to move correctly, leading to missed steps.
Solution:
- Check Power Supply: Ensure that your 3D printer’s power supply is functioning correctly and providing enough voltage and current for the motors and hotend.
- Test Voltage: If possible, measure the voltage output from the power supply to make sure it’s stable and within the specifications for your printer.
3. Loose or Worn Belts
Cause:
Belts are responsible for moving the printhead and bed along the X, Y, and Z axes. If the belts are loose, stretched out, or worn, they may not grip properly, causing skipped layers or missed steps.
Solution:
- Check Belt Tension: Inspect the belts and ensure they are properly tensioned. Tighten any loose belts but avoid overtightening, as this can increase wear and tear.
- Replace Worn Belts: If the belts appear worn or frayed, they should be replaced. Worn belts can result in a lack of precision, which leads to missed steps.
- Lubricate: Applying a small amount of lubricant to the moving parts can reduce friction and improve the printer’s performance.
4. Inaccurate or Worn Out Linear Rails or Rods
Cause:
The printhead moves along linear rails or rods, which guide the motion of the X, Y, and Z axes. If these rails or rods are dirty, damaged, or worn out, the printhead may not move smoothly, causing missed steps.
Solution:
- Clean Rails and Rods: Regularly clean the rails and rods of the 3D printer to remove dirt, debris, and dust that could affect movement.
- Check for Wear: Inspect the rails for any signs of damage or wear. If they are significantly worn, they may need to be replaced to ensure smooth movement of the printhead.
5. Incorrect Slicing Settings
Cause:
Incorrect slicing settings can cause issues such as too high print speeds or insufficient layer heights, both of which can result in missed steps or skipped layers.
Solution:
- Adjust Print Speed: Reduce the print speed in your slicing software, especially for the outer layers or more detailed areas of the model. Slower speeds allow the printer to move more precisely, preventing skipped steps.
- Increase Layer Height: If your layer height is too small, the printer may struggle to deposit material correctly, especially at high speeds. Increasing the layer height slightly can reduce strain on the motors.
- Check Extruder Settings: Ensure that the extrusion settings are correct, and your printer is extruding the right amount of filament. Under-extrusion can cause inconsistent layers.
6. Overheating Stepper Motors
Cause:
Stepper motors can overheat, especially if they’re running for extended periods or working under high current. Overheating can cause the motor to lose power temporarily, leading to skipped steps.
Solution:
- Improve Ventilation: Ensure your 3D printer has proper airflow and ventilation to keep the stepper motors cool.
- Use Cooling Fans: Install cooling fans near the stepper motors if your printer does not already have them. This will help keep the motors at a safe temperature.
- Monitor Print Time: Avoid printing excessively long jobs at once if your stepper motors are overheating. Consider breaking long prints into shorter jobs.
7. Issues with the Extruder or Hotend
Cause:
If the extruder or hotend is not functioning correctly, it can affect the filament flow, causing the printer to skip layers. This is especially noticeable in prints with fast-moving extruders or intricate details.
Solution:
- Check Extruder Gear: Make sure the extruder gear is clean and free of debris that could interfere with filament feeding. If the gear is worn out, replace it.
- Clear Clogs: A clogged nozzle or partial clog in the hotend can cause inconsistent extrusion, leading to missed layers. Perform regular maintenance to clear clogs and ensure smooth filament flow.
- Check Filament: Ensure the filament is of good quality and is feeding smoothly into the extruder. Tangled or brittle filament can cause under-extrusion and missed steps.
8. Firmware or Software Bugs
Cause:
Sometimes, firmware or software bugs can interfere with the proper operation of the printer, causing steps to be skipped or layers to be missed.
Solution:
- Update Firmware: Check for updates for your 3D printer’s firmware. Manufacturers often release bug fixes and optimizations that could resolve issues with skipping layers.
- Use Compatible Software: Make sure that the slicing software you are using is compatible with your printer and that there are no known issues with your current version. Consider updating to the latest version of the slicing software.
- Reset Printer: Sometimes, performing a factory reset on the printer and reloading the firmware can resolve unusual behavior caused by software glitches.
9. Too High Print Speeds
Cause:
Printing too quickly can cause the motors to struggle to keep up, leading to missed steps. This is particularly true for larger prints or detailed models that require more precise movements.
Solution:
- Reduce Print Speed: Try lowering the print speed in your slicing software, especially for detailed prints or larger objects. Slower printing speeds allow for better accuracy and reduce the chances of missing steps.
- Use Lower Layer Heights: For intricate prints, consider using smaller layer heights. This not only improves print quality but also reduces the chances of skipped layers.
Conclusion
Skipping layers or missing steps can result in frustrating 3D printing failures, but with the right approach, you can identify the root cause and resolve the issue effectively. Whether it’s adjusting motor currents, tightening belts, reducing print speeds, or improving the cooling system, taking the time to troubleshoot the issue will improve the quality and reliability of your prints.
By paying attention to the settings, hardware maintenance, and software configurations, you can significantly reduce the chances of skipped layers and ensure smoother, higher-quality prints.
