Chapter 01

Before you start

Safety

Warning: Switch the printer off and unplug it before working on the toolhead.
Warning: Let the hotend cool down completely. The nozzle and heater block stay hot long after the screen goes dark.
Warning: Never heat the hotend with the hotend cooling fan disconnected.
Warning: Connect or disconnect cables only while the printer is off.
Warning: Do not overtighten bolts that go into printed parts. Snug is enough.

Tools you need

Hex keys 2.0 mm and 2.5 mm (M3 bolts)
Small Phillips screwdriver (breakout board)
Sharp blade or PTFE tube cutter
Flat-nose pliers or a small bench vise (press-fits)
Tweezers (steel ball)
Ruler or caliper

How to read the steps

Coloured bullets match the arrows of the same colour in the picture.
Letters are part labels. See the parts list.
Warning: Warning. Read before you continue.
Check: Check. Test this before moving on.
Tip: Tip. Makes the job easier.

Front view means the gear side of the main body faces you; back view is the motor side.

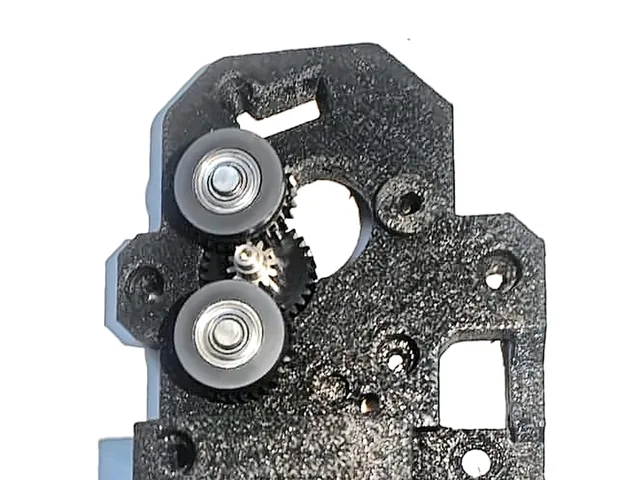

Front view: the gear side of the main body

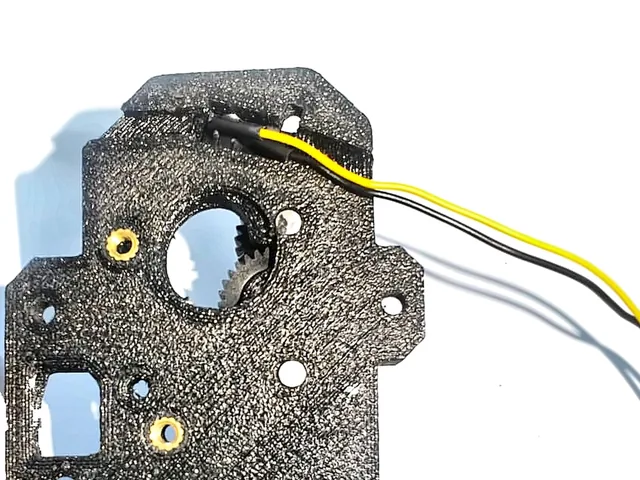

Back view: the motor side of the main body

Chapter 02

Parts list

Every step refers to the parts by these letters.

Fasteners

Fastener	Qty	Used in

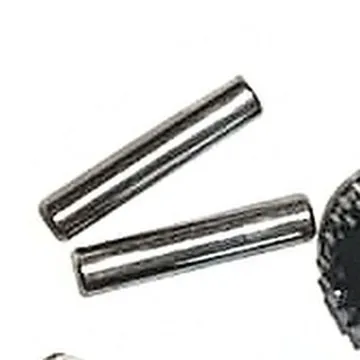

M4 dowel pin (B)	2	Step 3
M3 bolt: motor	1	Step 12
M3 bolt: extruder front body	3	Step 15 (one removed and refitted in steps 17 and 19)
M3 bolt: hotend clamp	2	Step 19
M3 bolt: hotend fan	2	Step 20
Screw: breakout board		Step 21

Chapter 03

Gear stage

Gear stage parts

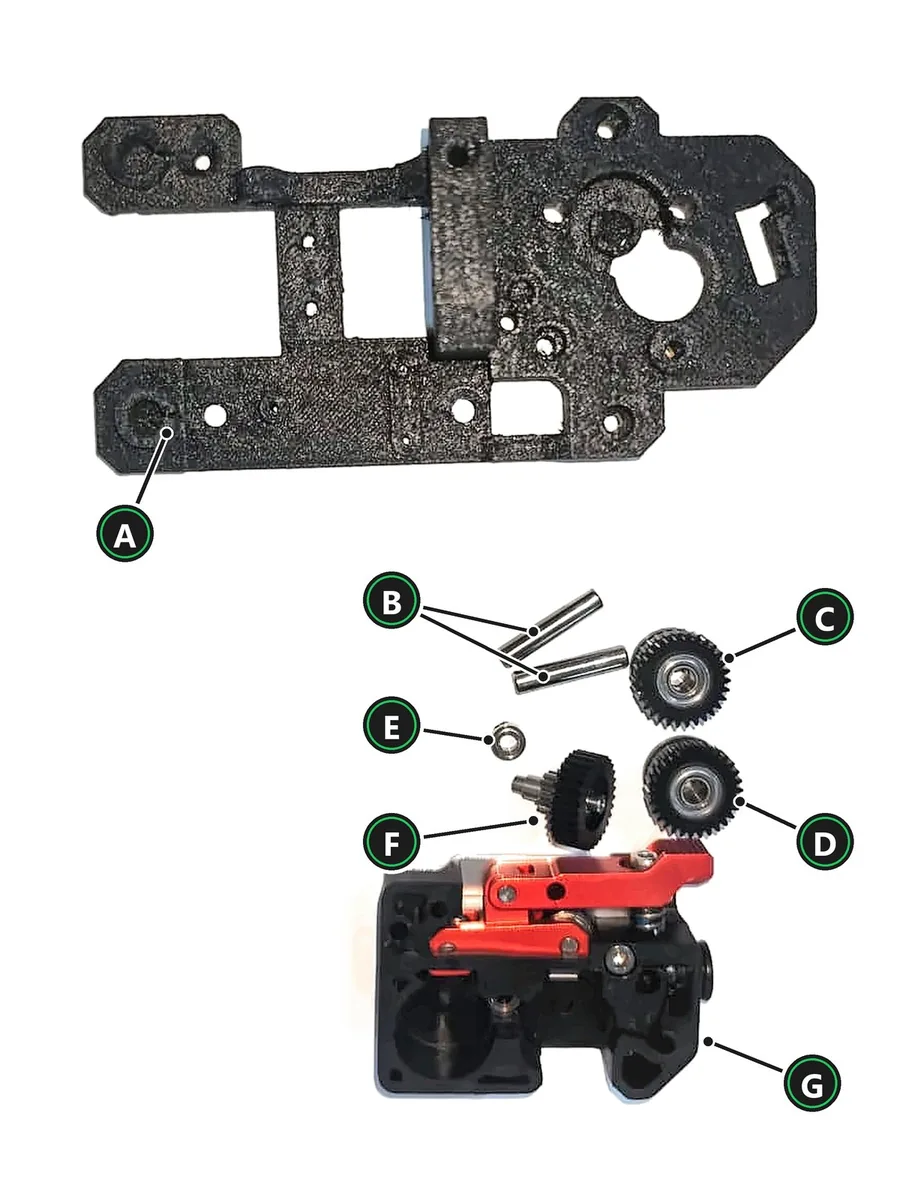

Step 1 of 22

For the first stage you need these parts:

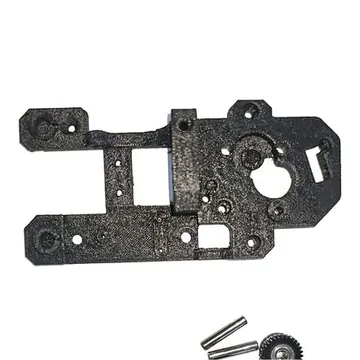

Main body (printed)
M4 dowel pins (2×)

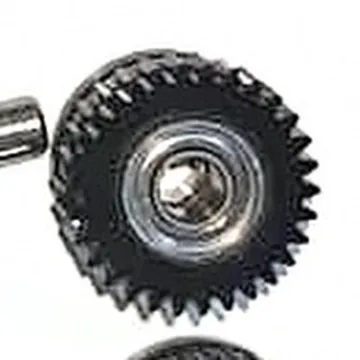

Drive gear with bearing, upper

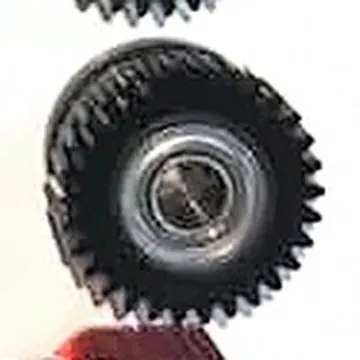

Drive gear with bearing, lower

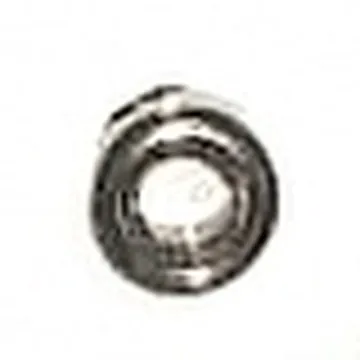

6×2 mm bearing
Central drive gear
Extruder front body (used from step 8)
Tip: Work on a clean, light-coloured surface. Small parts, like the steel ball used later, are easy to lose.

Inserting the bearing

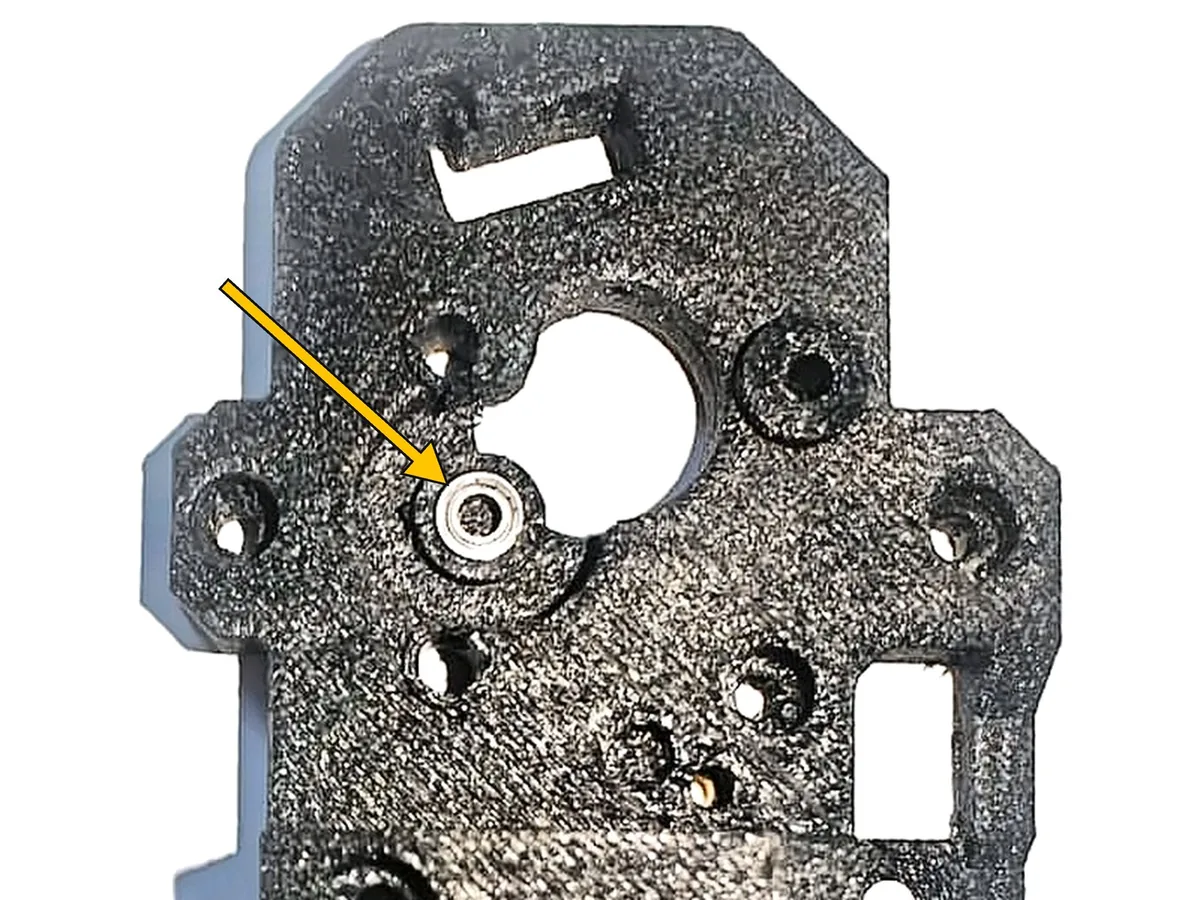

Step 2 of 22

Lay the main body (A) flat with the front side up. This is the side the gears go on.
Press the 6×2 mm bearing (E) into the round pocket to the left of the large motor hole.
Check: The bearing sits fully down and flush with the surface. It must not wobble.
Warning: Press on the bearing's outer ring only. Pushing on the inner ring can damage the bearing.

Inserting the dowel pins

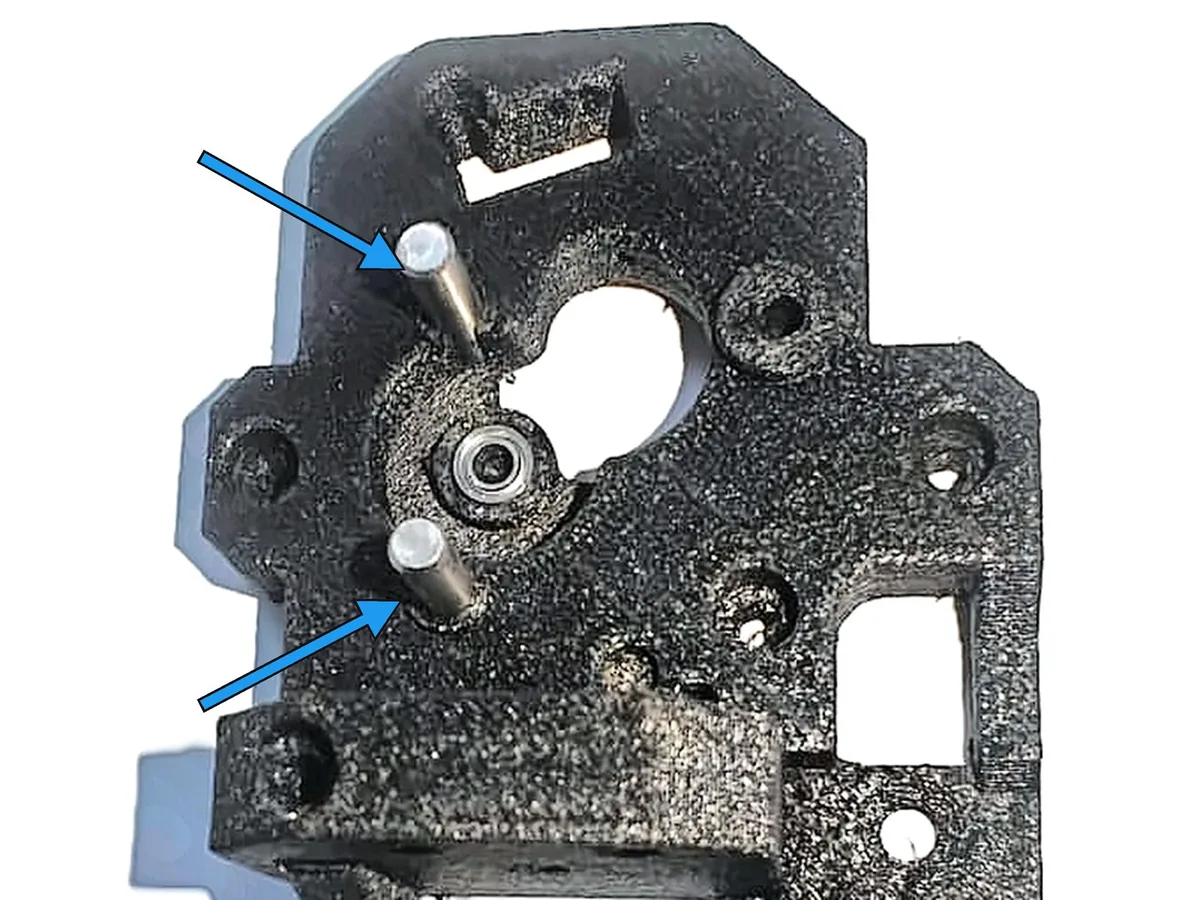

Step 3 of 22

Press the two M4 dowel pins (B) into the holes above and below the bearing.
Check: Both pins stand straight and are fully seated. The drive gears turn on these pins.
Tip: If a pin is tight, press it in with a small vise or flat-nose pliers. Do not hammer the printed part.

Installing the central drive gear

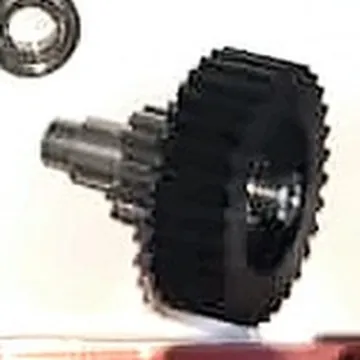

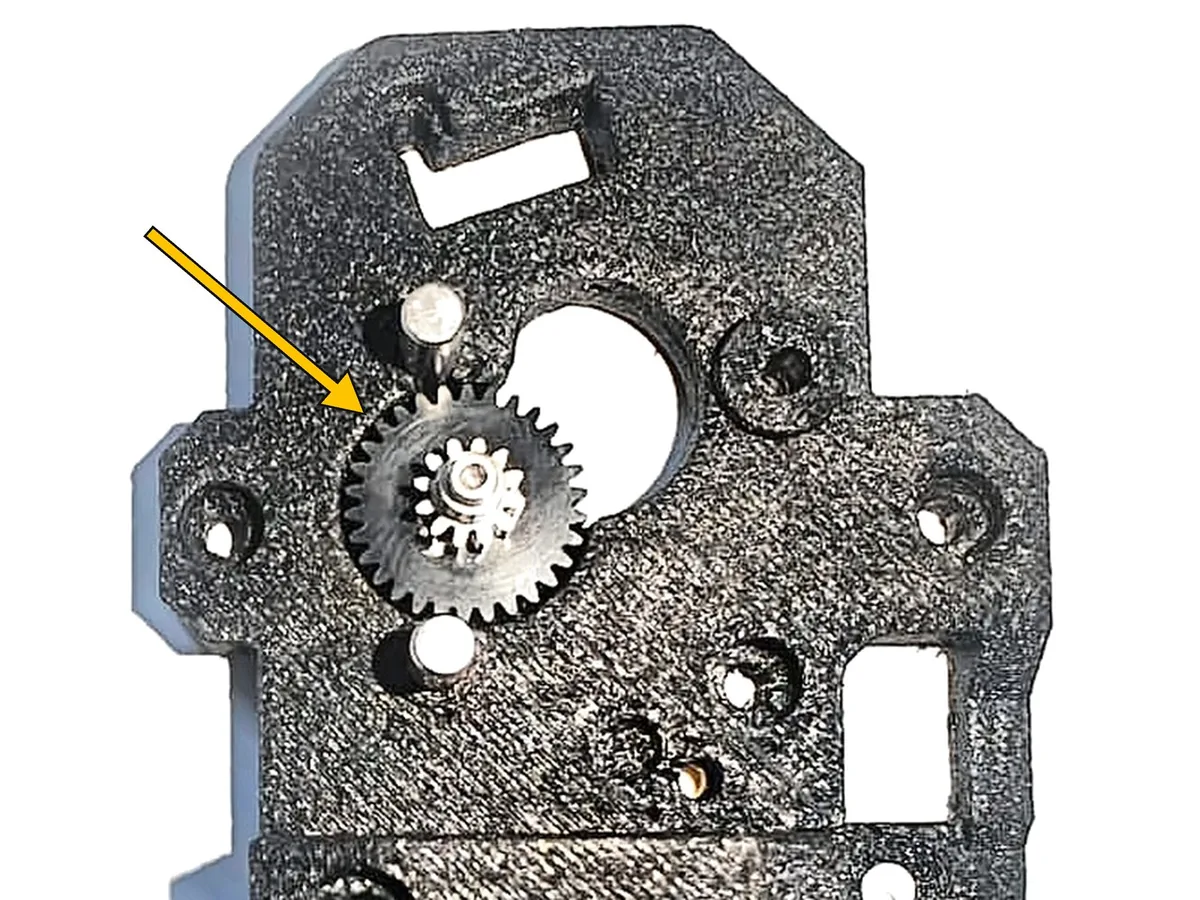

Step 4 of 22

Fit the central drive gear (F). One end of its shaft goes into the 6×2 mm bearing (E).
Check: Turn the gear with a finger. It spins freely and does not rub on the body.

Installing the drive gears

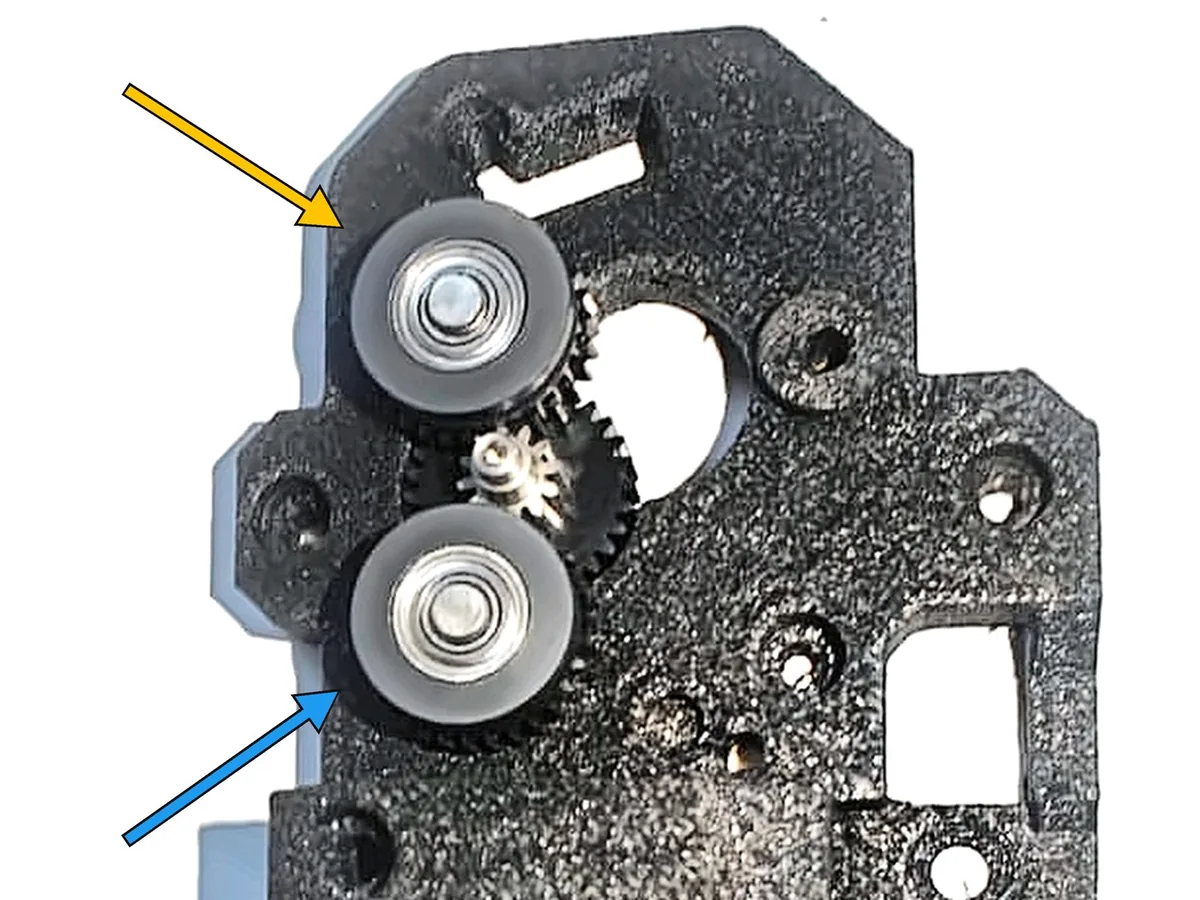

Step 5 of 22

Slide the upper drive gear (C) onto the upper dowel pin.
Slide the lower drive gear (D) onto the lower dowel pin.
The teeth of both drive gears mesh with the central drive gear (F).
Check: Turn the central gear. Both drive gears turn with it, smoothly and without binding.

Chapter 04

Runout sensor

Mounting the runout switch

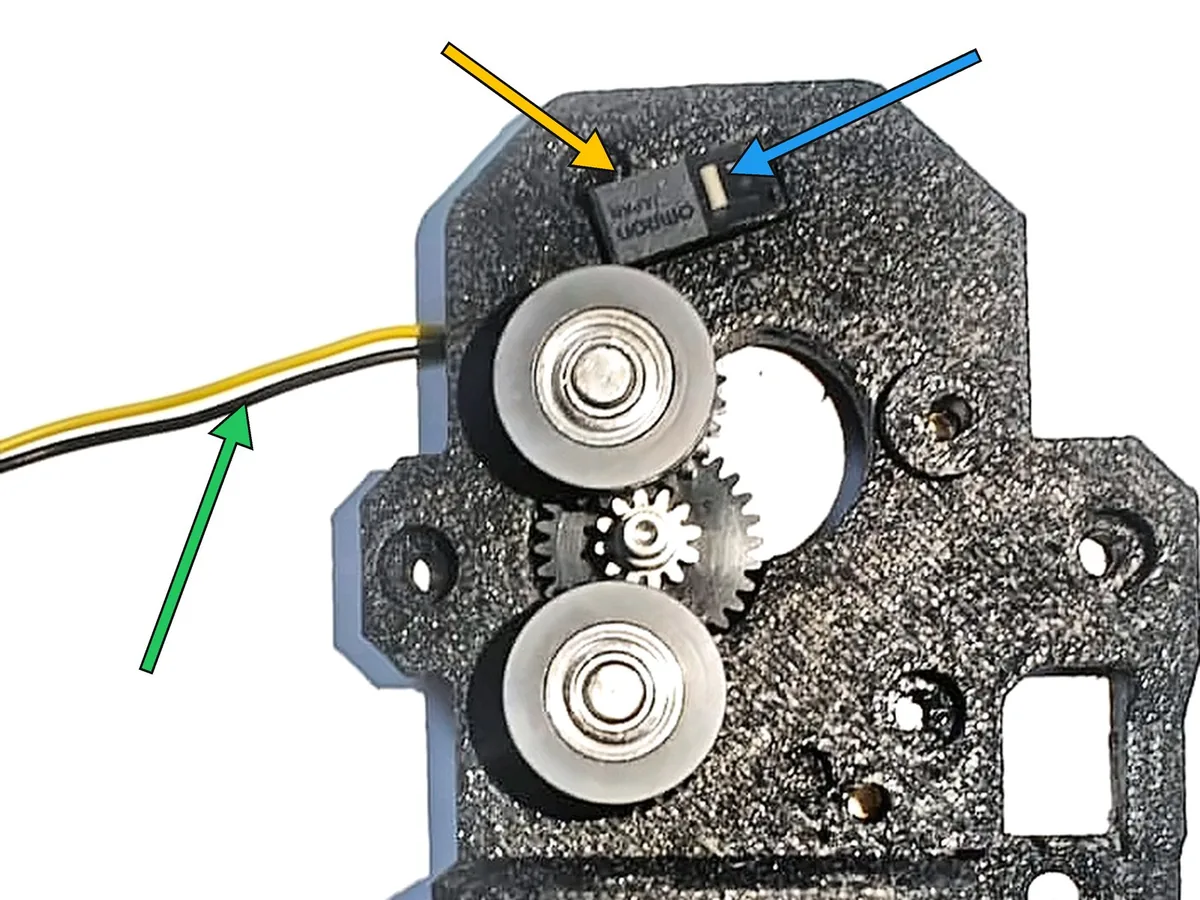

Step 6 of 22

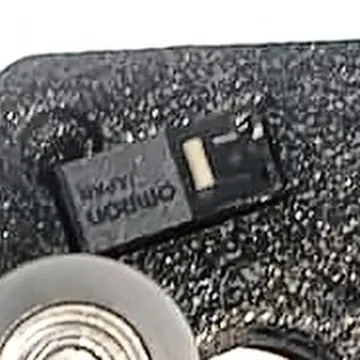

Insert the filament runout switch (H) into the slot at the top of the main body.
Front view: the switch trigger must be on the right.
Front view: the switch wire must come out on the left side.
Warning: If the switch is fitted the other way round, the runout sensor will not work.

Checking the switch wire

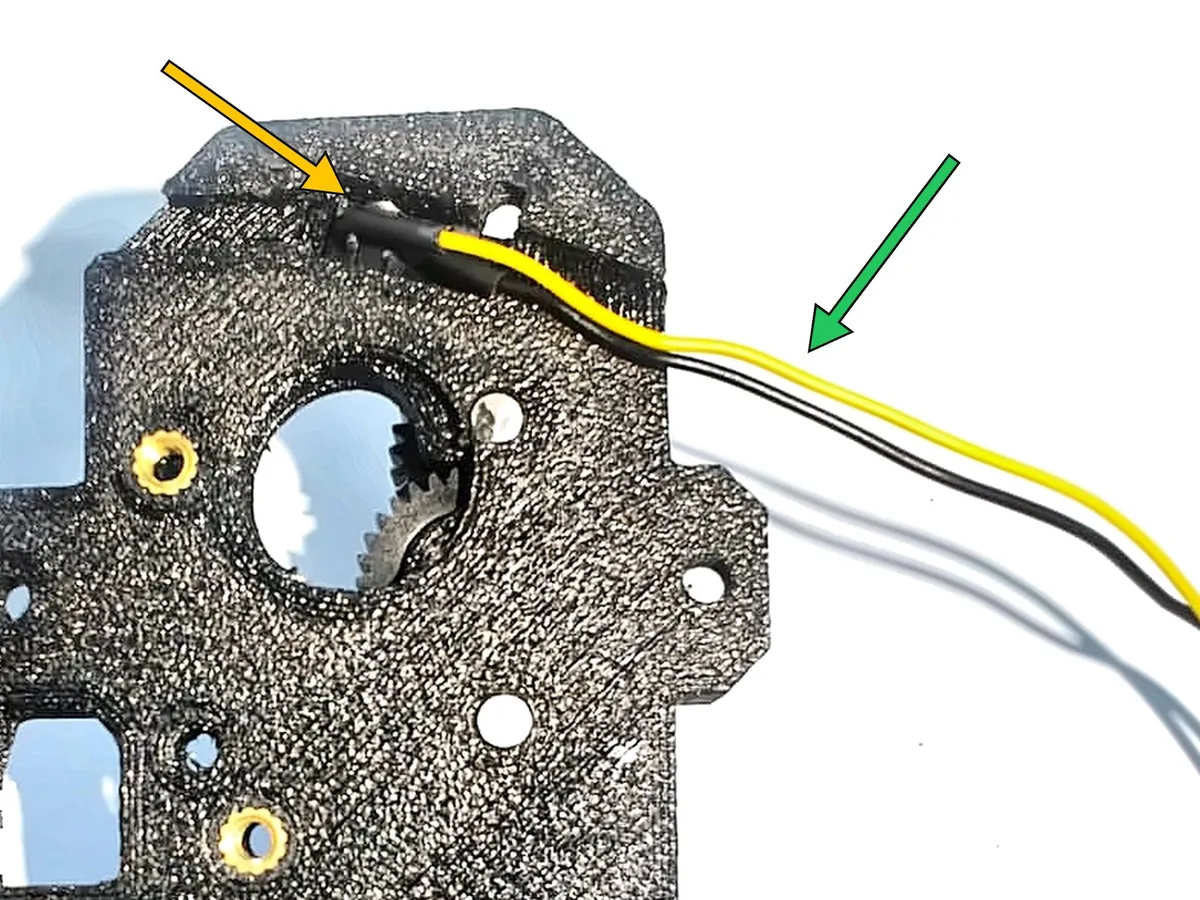

Step 7 of 22

Turn the main body over. This is the back view.
The runout switch (H) sits in its slot at the top.
From the back, the switch wire runs out to the right. This is the same side as "left" in the front view.

Preparing the PTFE insert

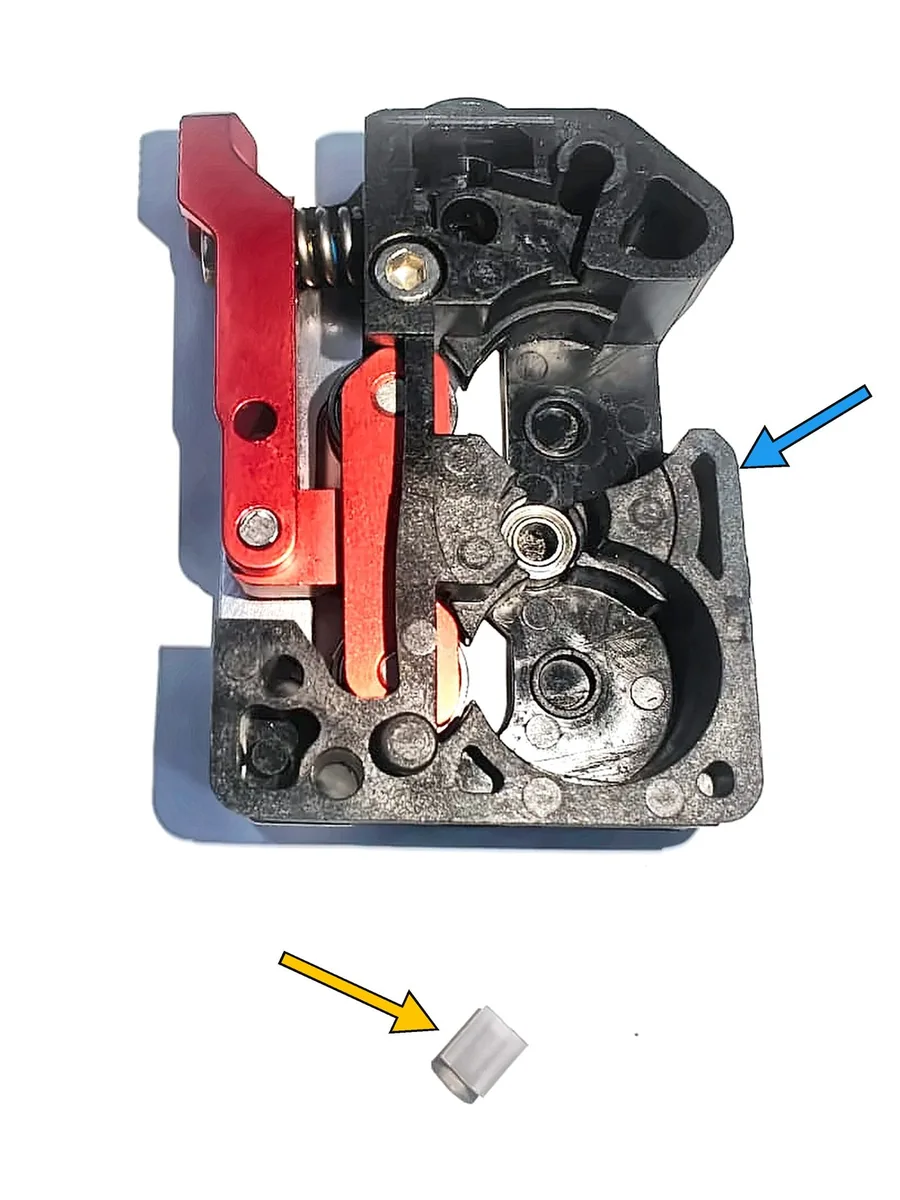

Step 8 of 22

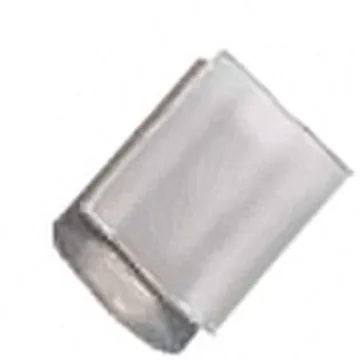

Cut a 5 mm piece of 4×2 mm PTFE tube (I): 4 mm outside, 2 mm inside diameter.
Tip: Cut it square with a sharp blade or a PTFE cutter. A crushed or angled end can catch the filament.

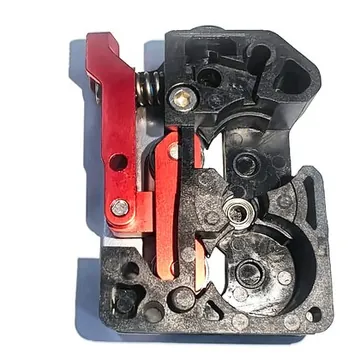

Take the extruder front body (G).

Inserting the PTFE insert

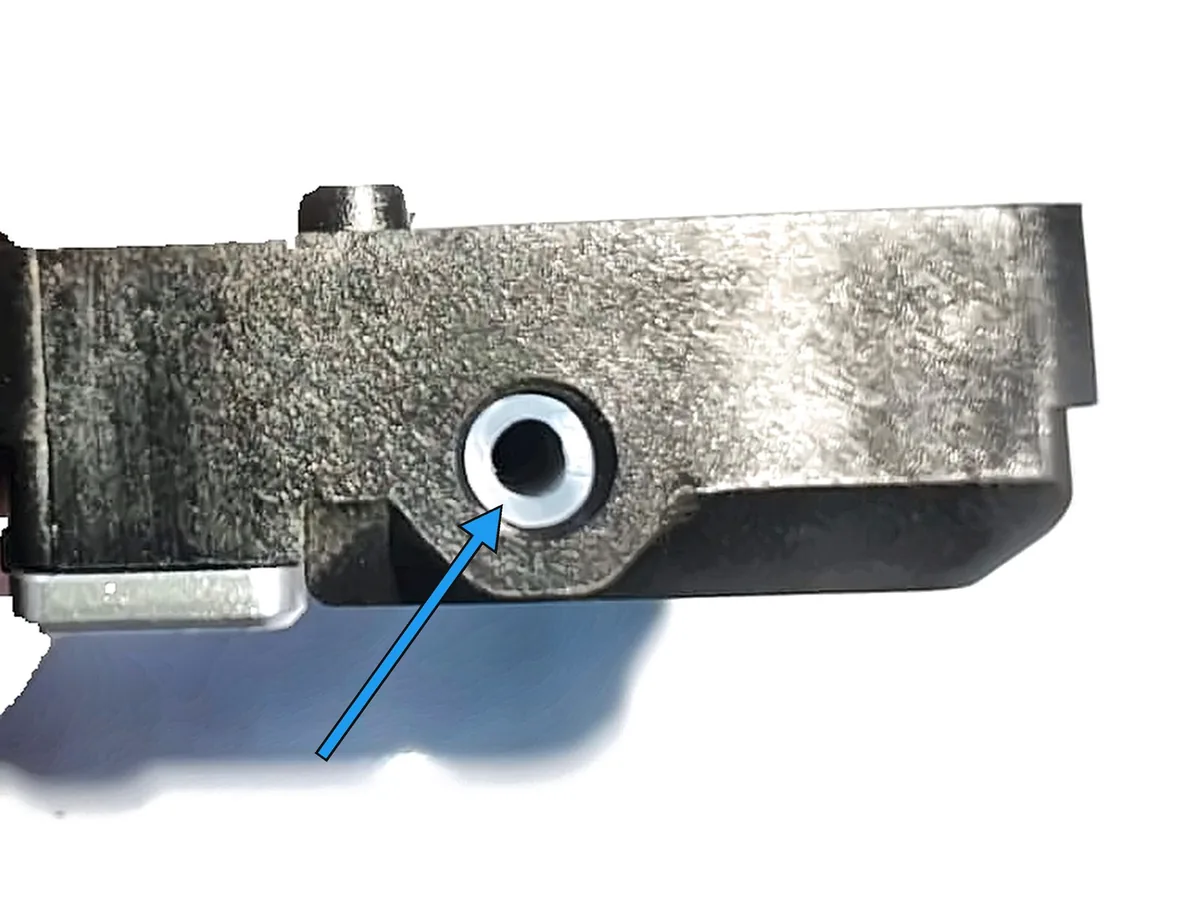

Step 9 of 22

Push the PTFE insert (I) into the filament hole on the bottom of the front body (G).
Check: The insert is fully in and its hole is clear and round.

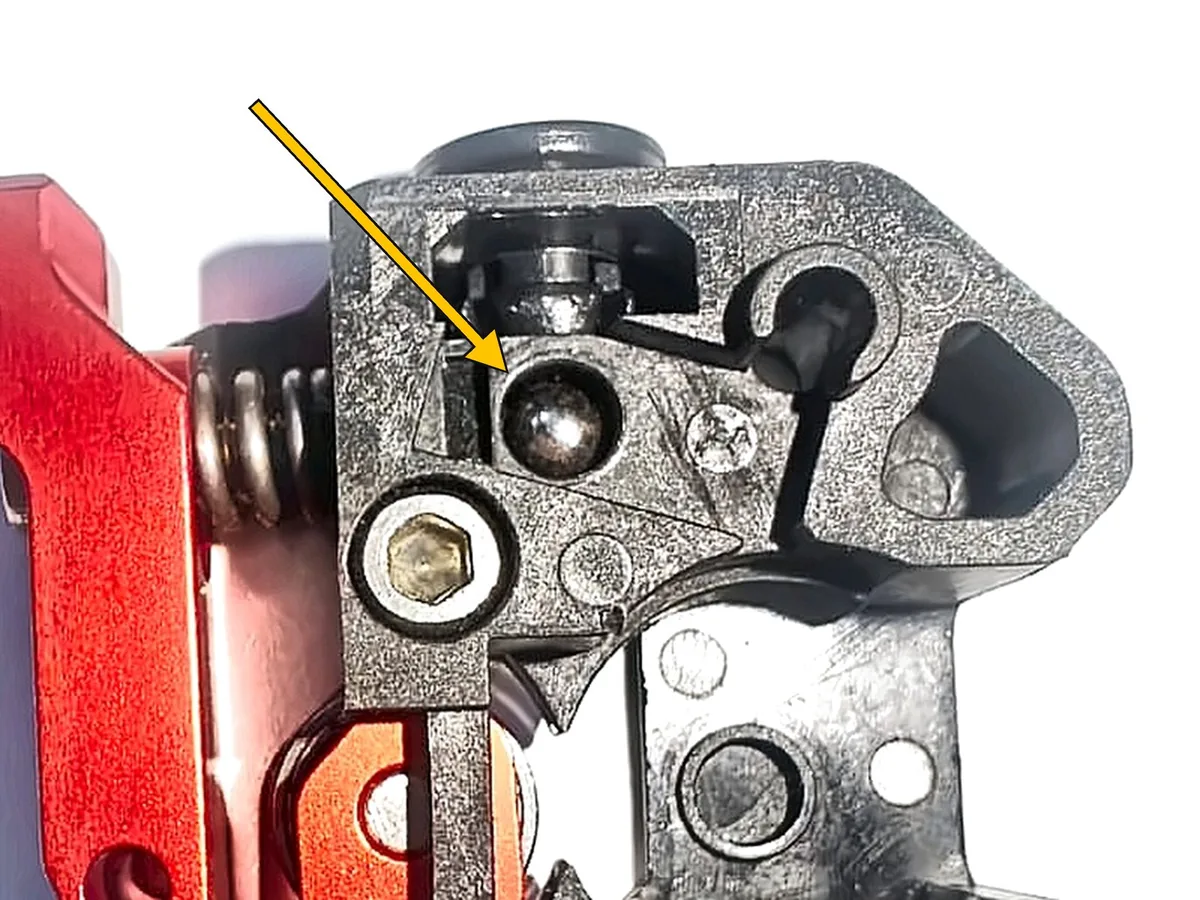

Inserting the trigger ball

Step 10 of 22

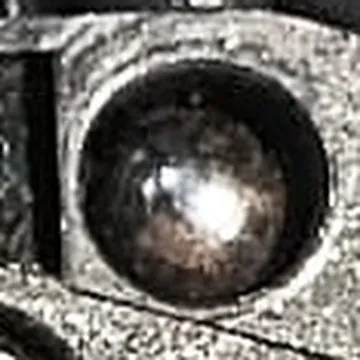

Drop the 4 mm steel ball (J) into its pocket in the front body.
The ball is the trigger for the filament runout sensor. Loaded filament pushes the ball against the runout switch (H). When the filament runs out, the switch releases.
Warning: From now on, keep the front body upright so the ball does not fall out.

Chapter 05

Extruder motor

Preparing the motor

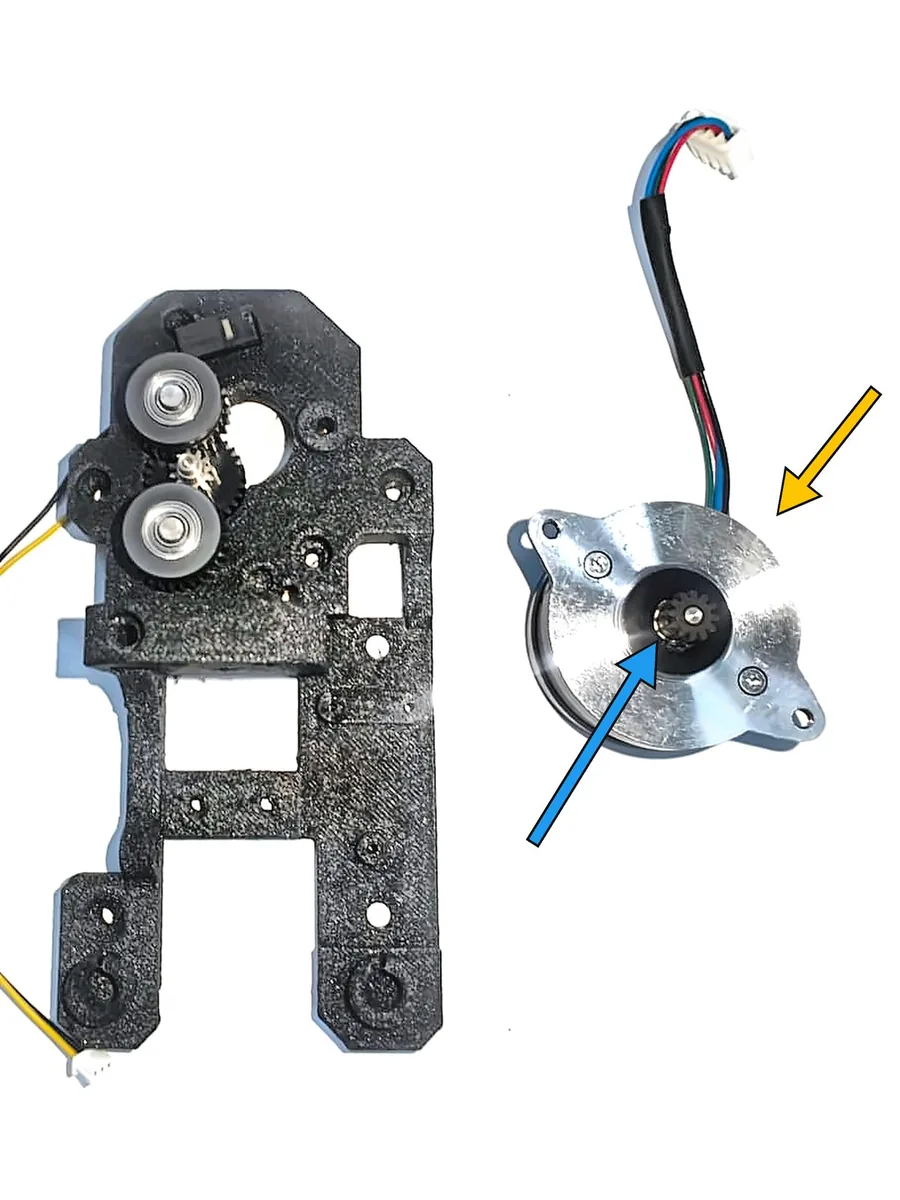

Step 11 of 22

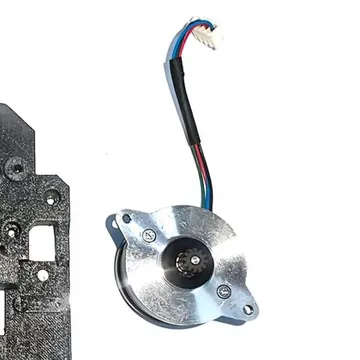

Take the extruder stepper motor (K).
The small pinion gear on the motor shaft goes through the large hole in the main body and drives the gears.

Mounting the motor

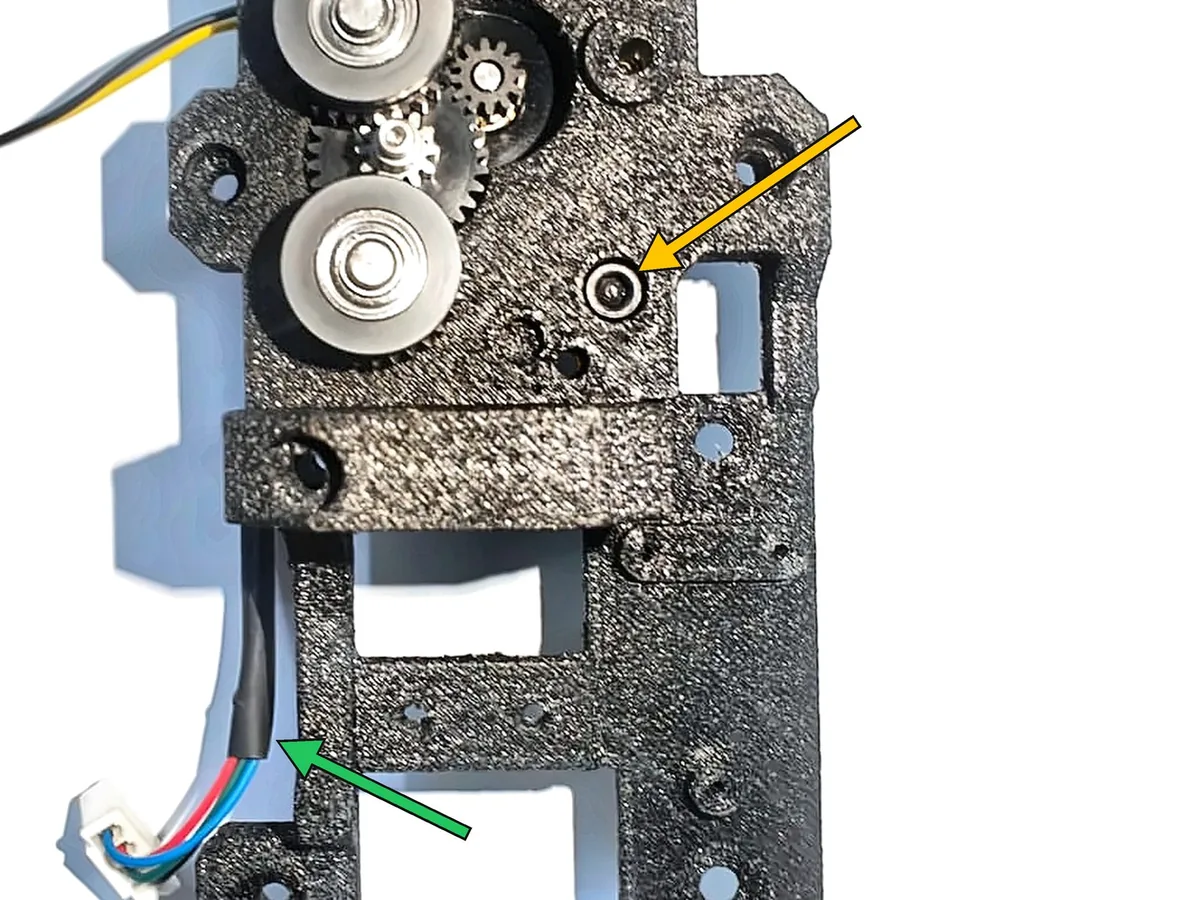

Step 12 of 22

Place the motor (K) on the back of the main body, with its pinion through the large hole.
Secure the motor with an M3 bolt from the front.
Front view: the motor wire must come out on the left side.
Warning: Tighten firmly but do not crush the printed part.

Routing the motor wire

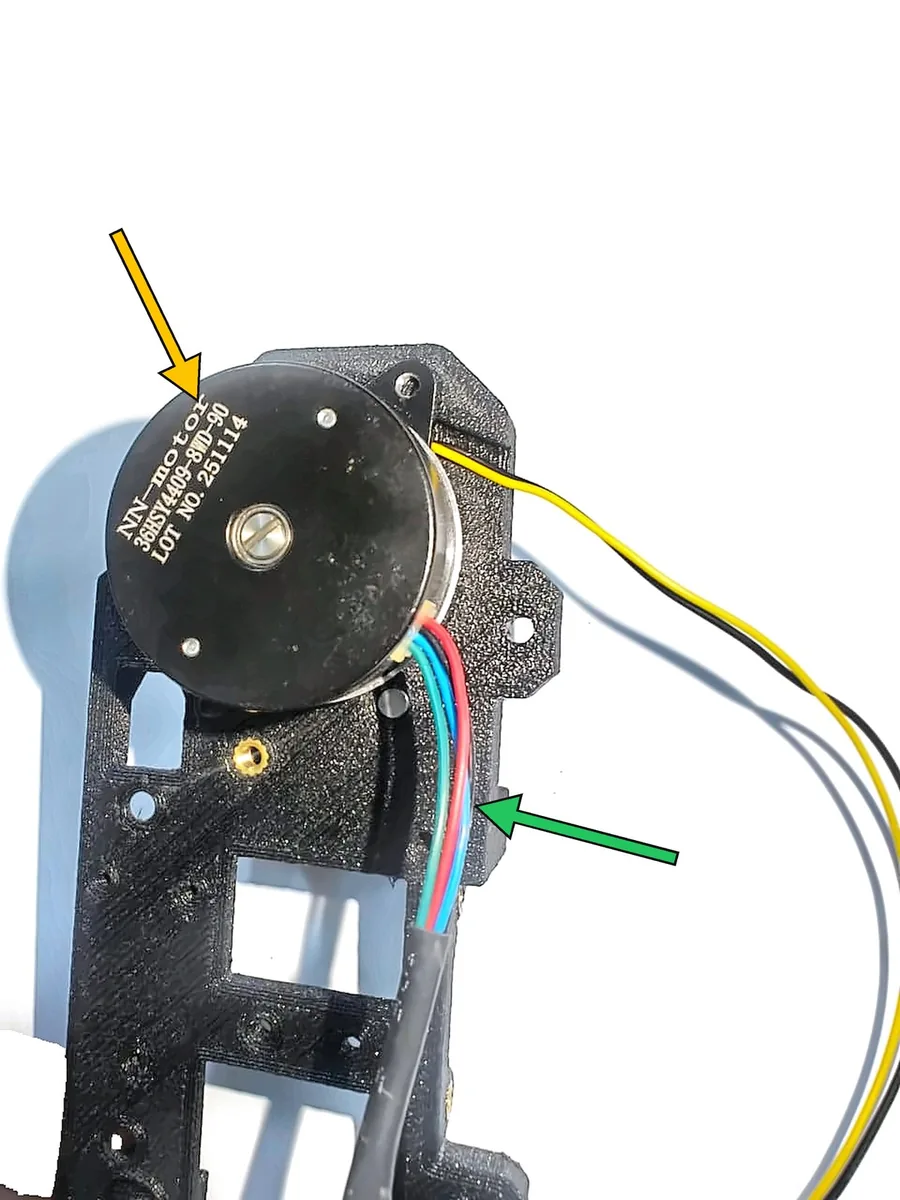

Step 13 of 22

Back view: the motor (K) sits on the back of the main body.
The motor wire runs down the right side (back view). This is the same side as the runout switch wire.
Check: Turn the drive gears by hand. The gears and the motor shaft turn together without binding.

Chapter 06

Extruder front body

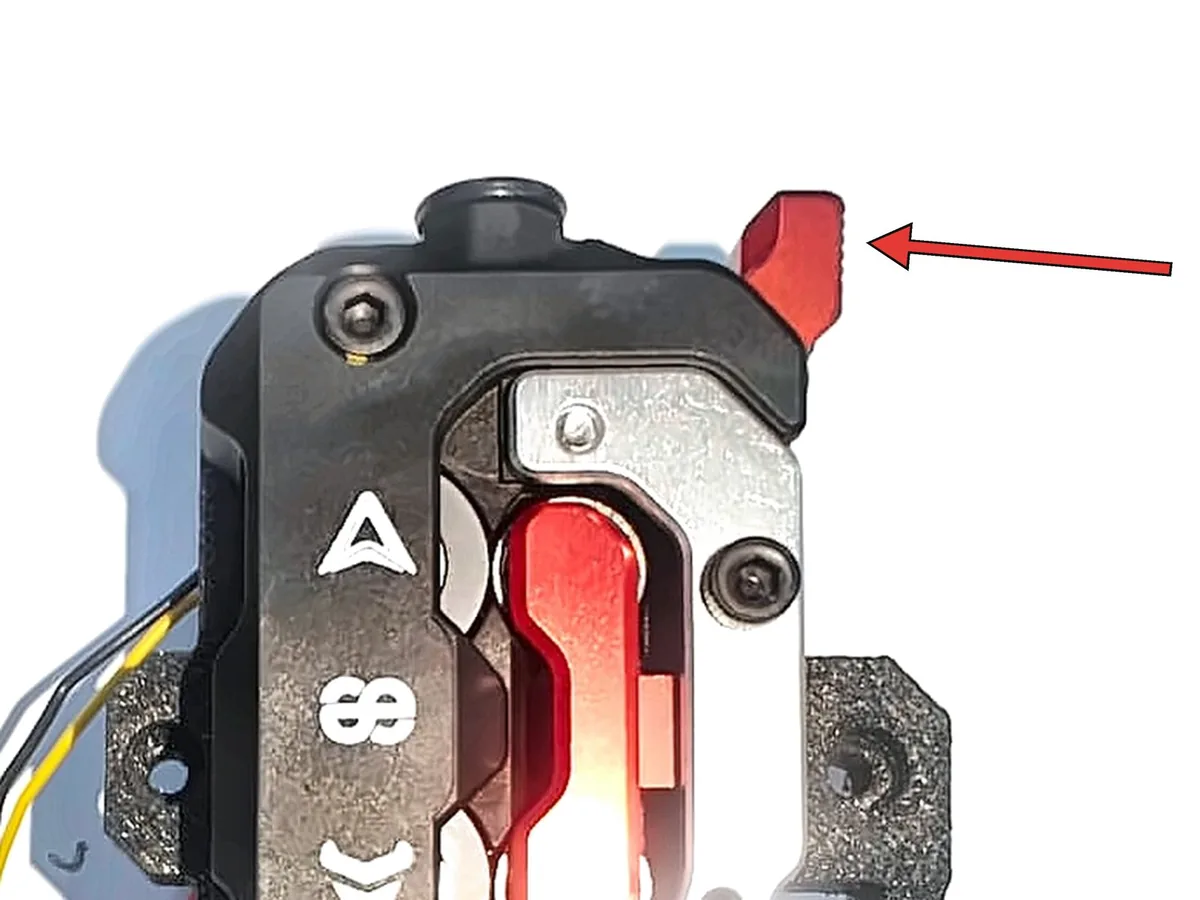

Setting the tension bolt

Step 14 of 22

On the extruder front body (G), find the tension bolt on the red-lever side. It is an M3 bolt with a spring.
Fully tighten the tension bolt before you mount the front body.
Warning: This bolt works in reverse. Tightened = minimum filament grip. Loosened = maximum grip. Fully tightened puts the lever in its most open position.
Tip: You set the final grip after assembly, in step 22.

Mounting the extruder front body

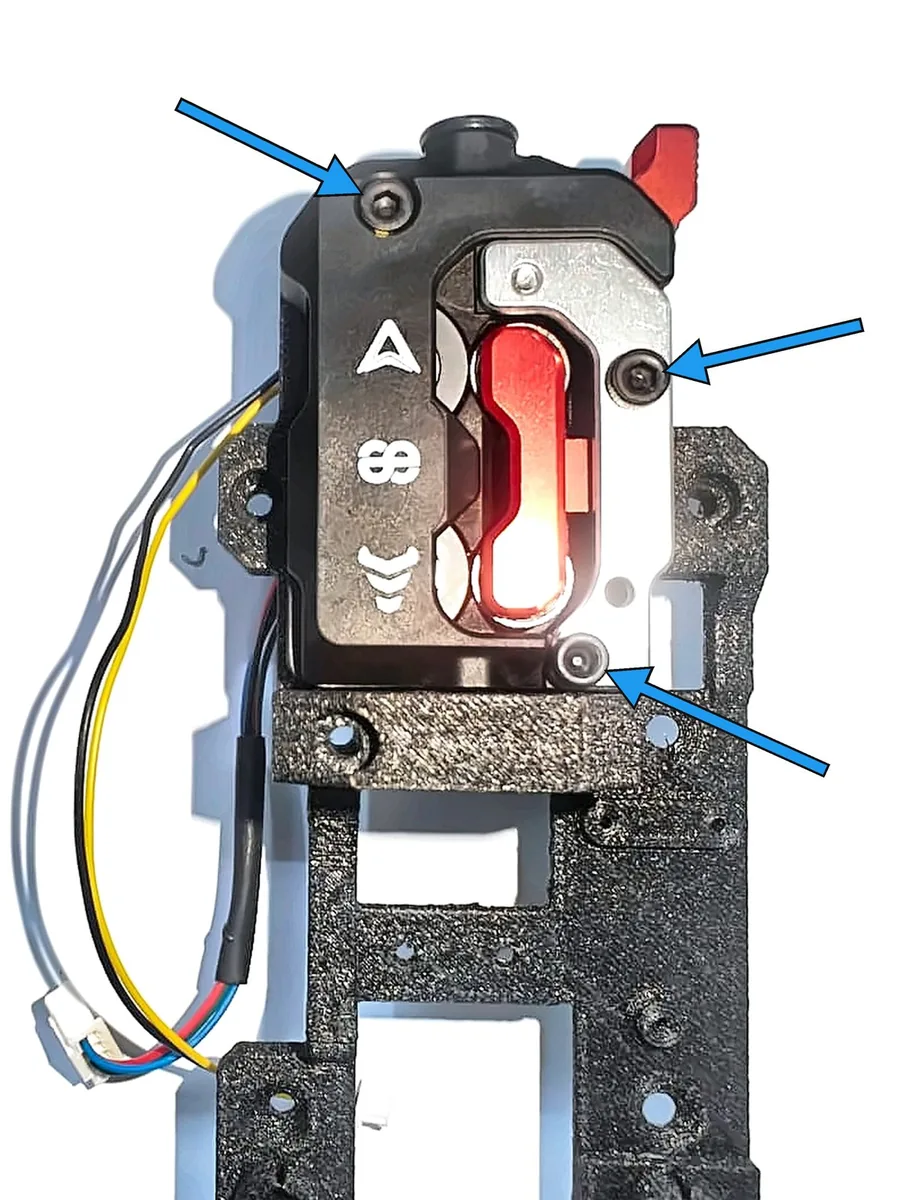

Step 15 of 22

Carefully place the front body (G) onto the main body. Keep it upright.
Warning: Make sure the steel ball (J) stays in its pocket and the PTFE insert (I) is still in place.
With the tension bolt still fully tightened, fit the three M3 bolts.

Chapter 07

Hotend, fan and breakout board

Hotend and fan parts

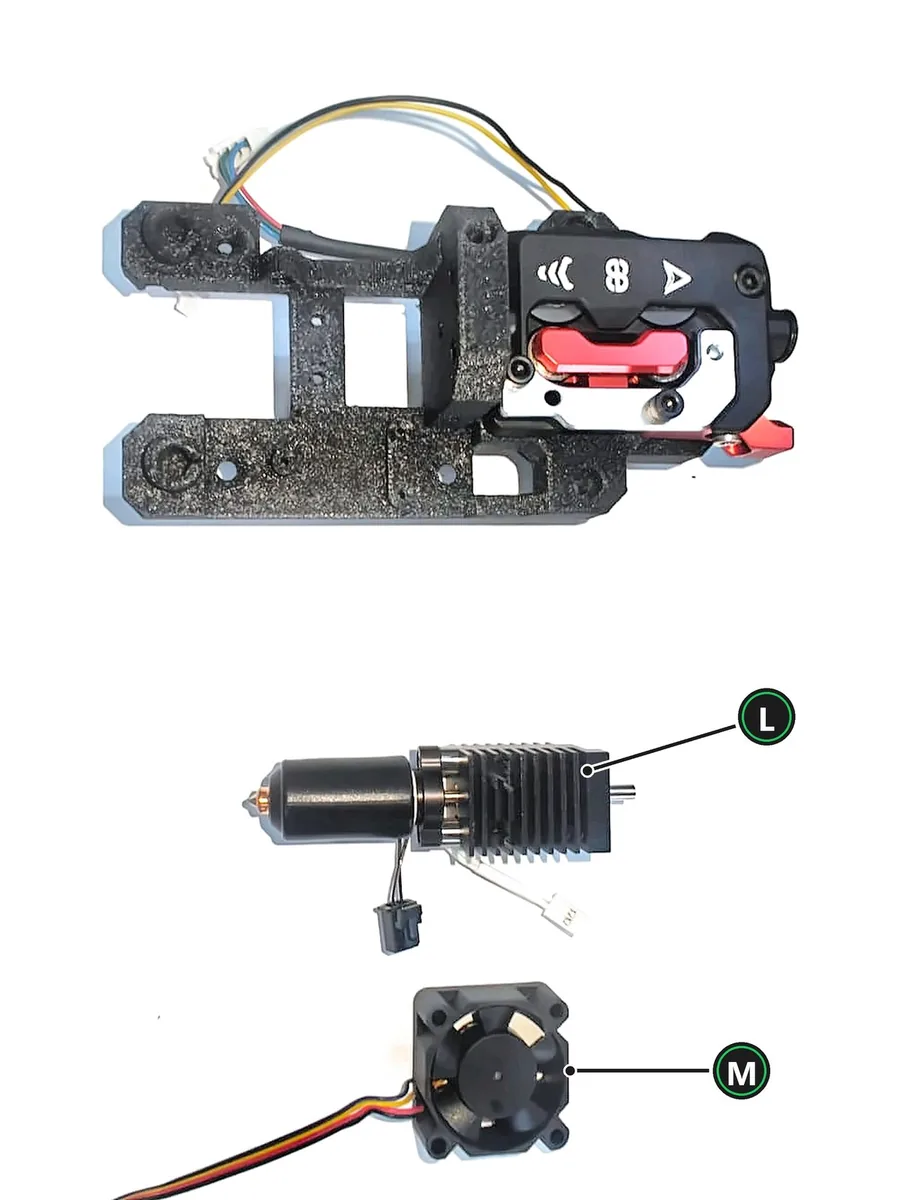

Step 16 of 22

For the hotend stage you need:
the extruder assembly from the previous steps,

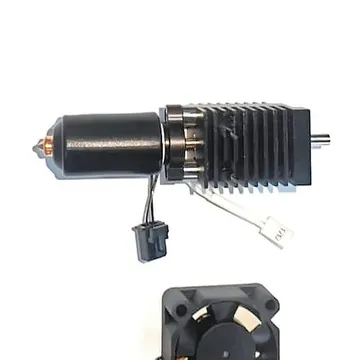

Hotend
Hotend cooling fan

Removing one bolt

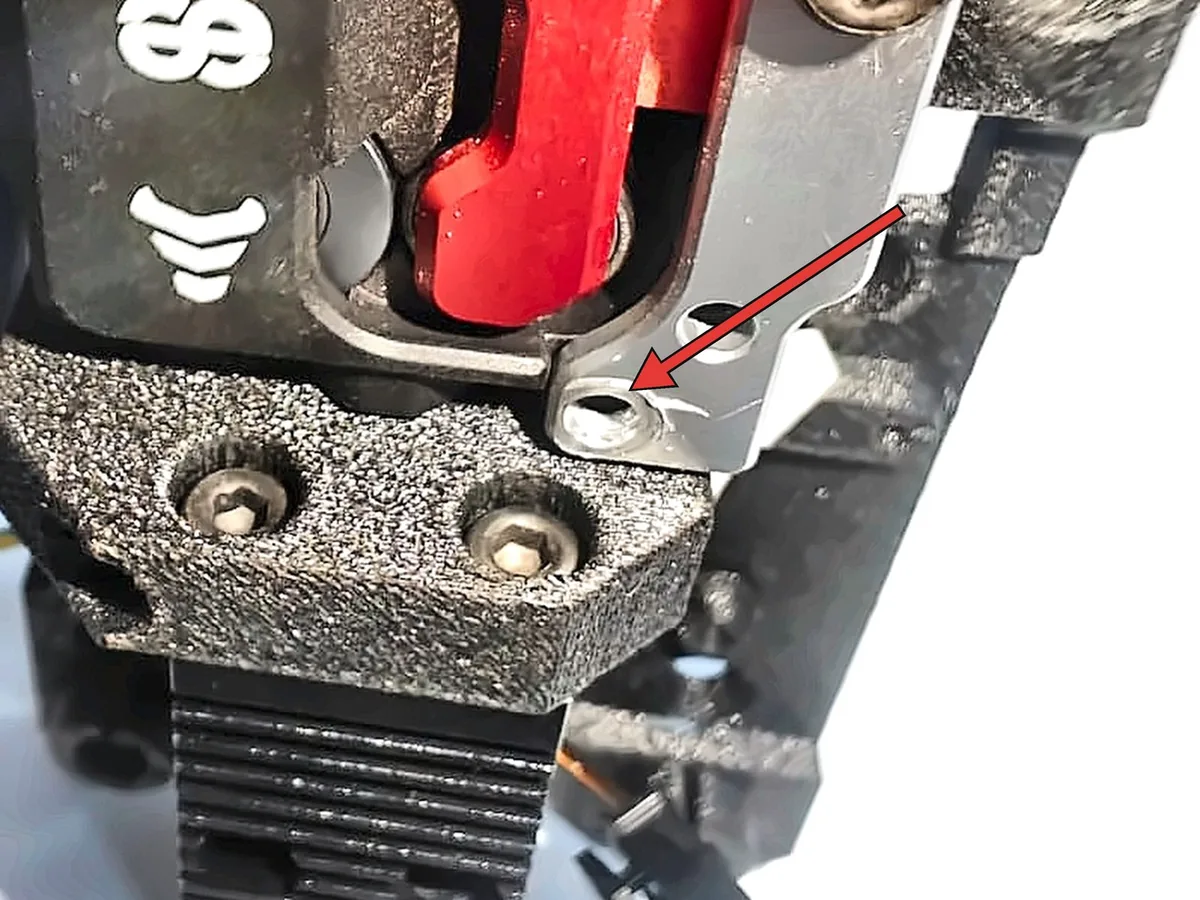

Step 17 of 22

Temporarily remove the lower M3 bolt of the front body.
Tip: Keep the bolt close by. It goes back in step 19.

Inserting the hotend

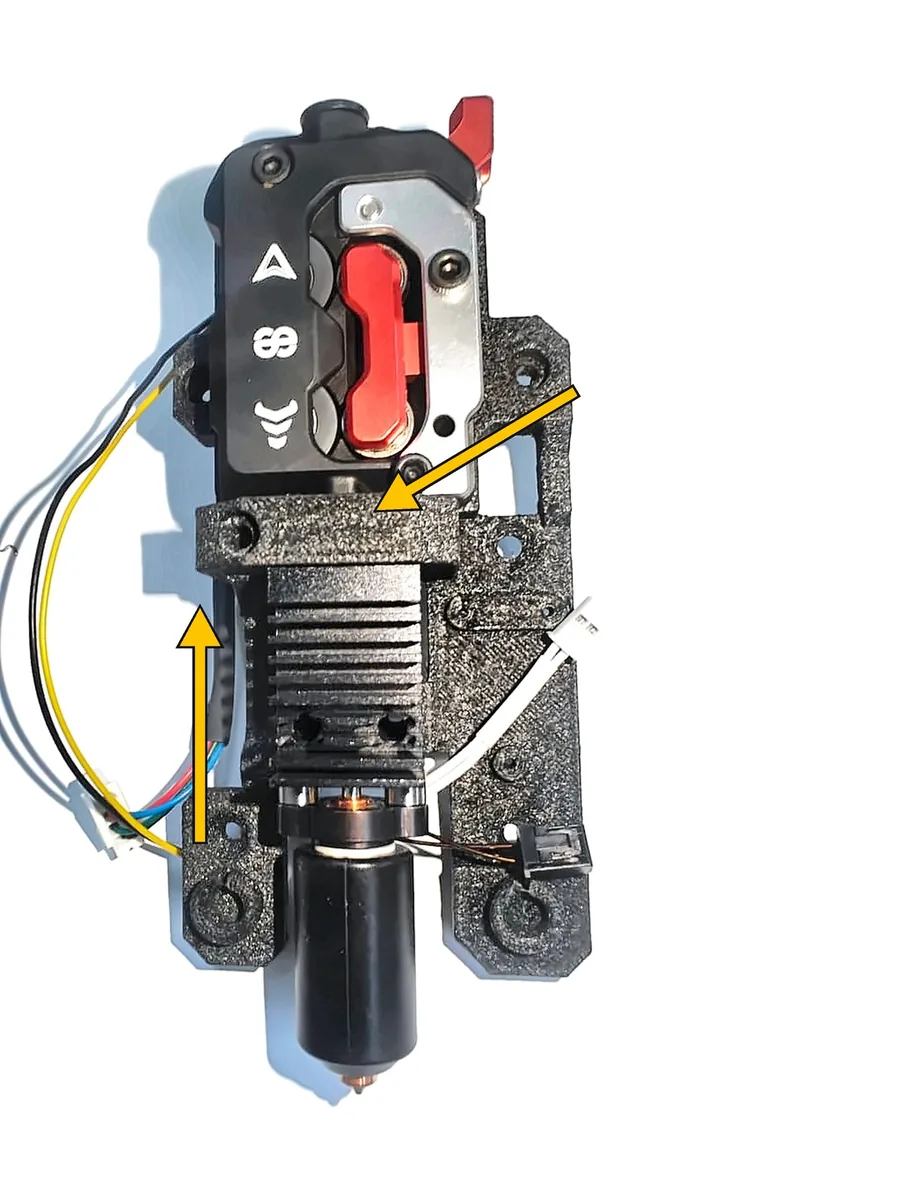

Step 18 of 22

Slide the hotend's stainless-steel throat up into the plastic clamp block.

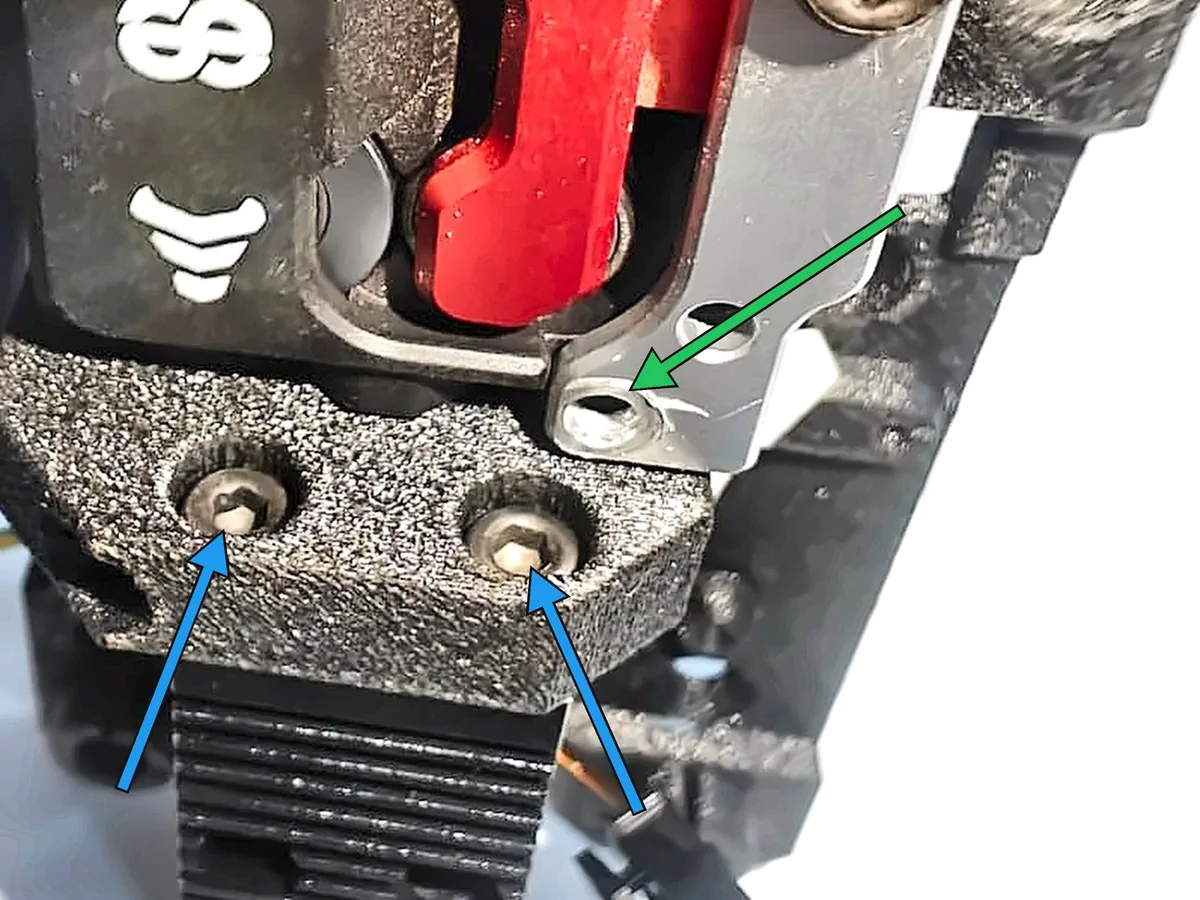

Securing the hotend

Step 19 of 22

Tighten the two M3 clamp bolts on top of the clamp block to secure the hotend.
Refit the front-body bolt you removed in step 17.
Warning: Do not forget this bolt. It holds the front body.
Check: Pull the hotend gently. It does not move or turn.

Mounting the hotend fan

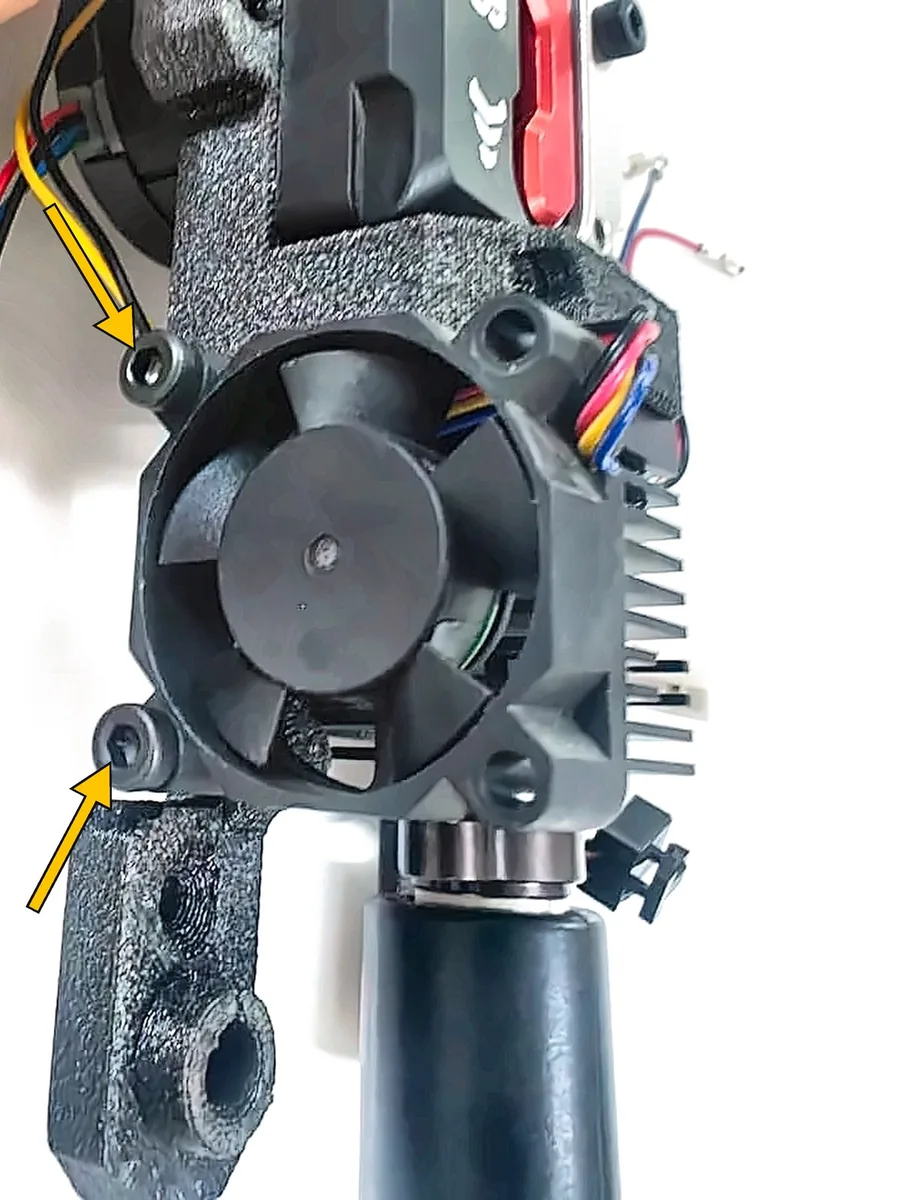

Step 20 of 22

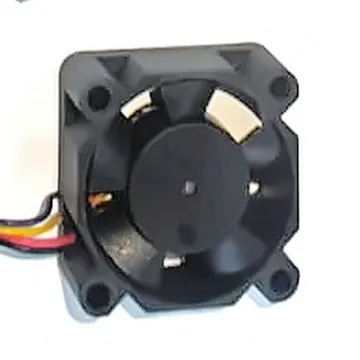

Mount the hotend cooling fan (M) on the side of the heatsink with two M3 bolts.
Tip: The fan must blow air into the heatsink fins. On most fans the air comes out on the side with the sticker.

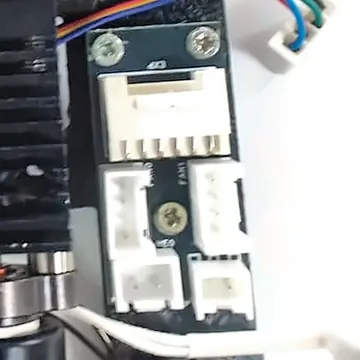

Mounting the breakout board

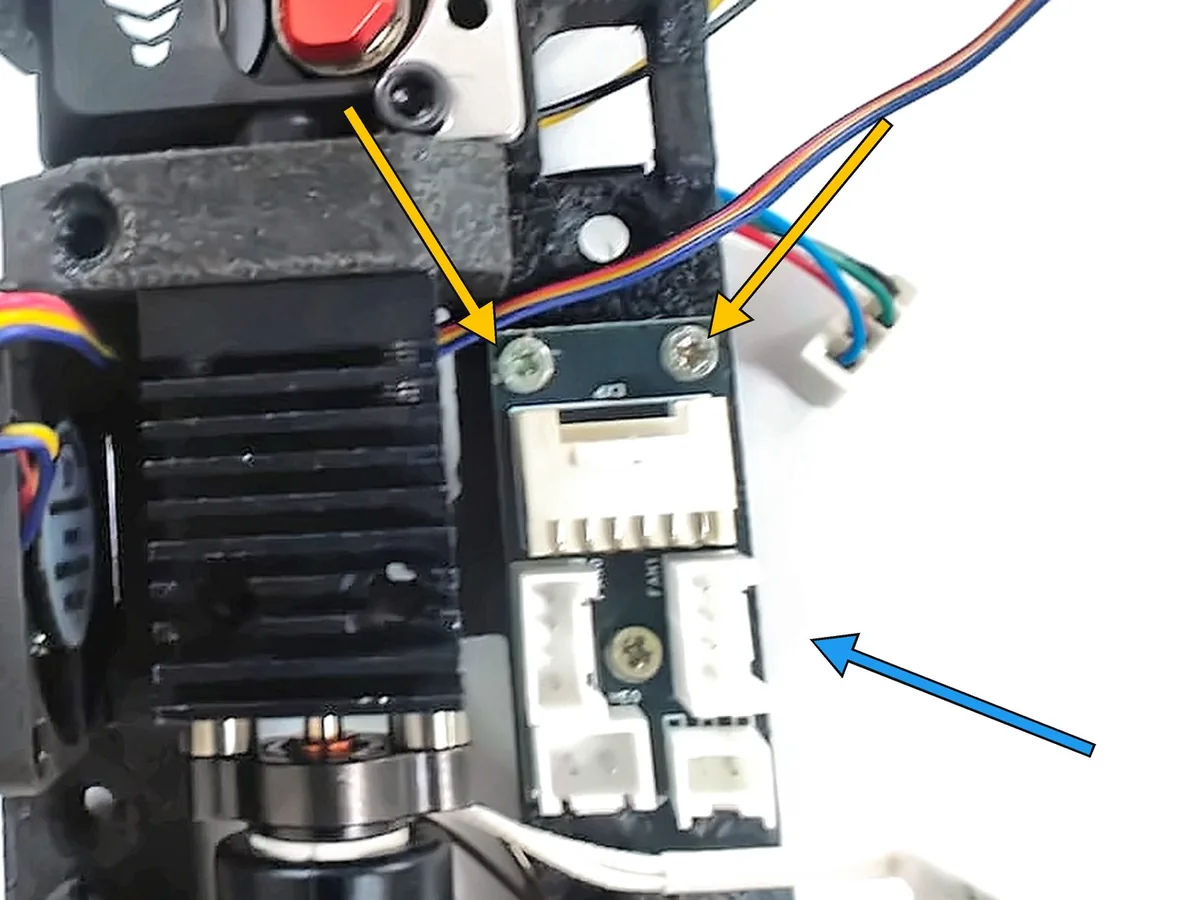

Step 21 of 22

Fix the toolhead breakout board (N) with its screws.
Connect the cables to the breakout board (N).
Warning: Push each plug in until it is fully seated. Connect cables only while the printer is off.

Chapter 08

Final checks

Assembly complete

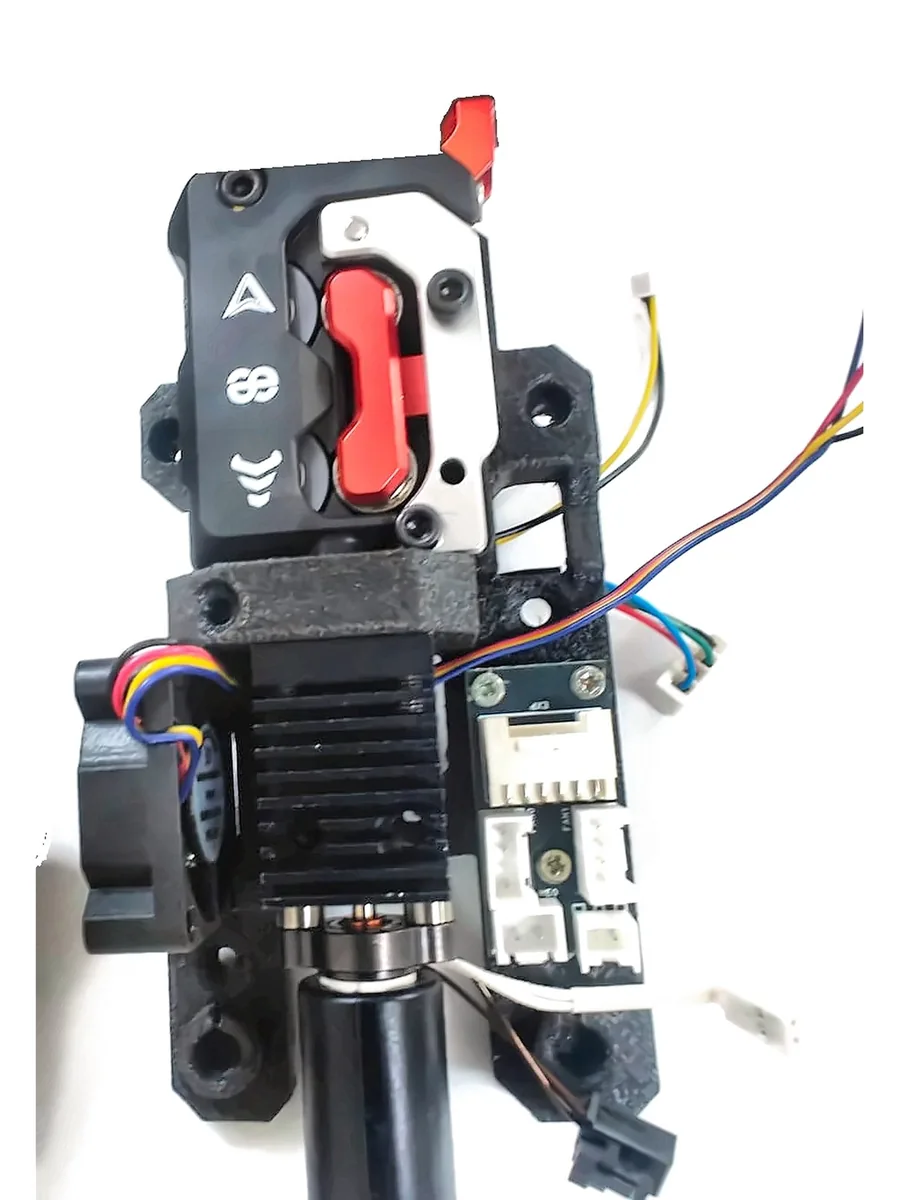

Step 22 of 22

Well done. Before you print, check:
Check: All gears turn freely by hand.
Check: Every bolt is in, including the one you refitted in step 19.
Check: No wire touches the heater block or the nozzle.
Check: Runout sensor: with filament loaded, the printer shows filament present. Without filament, it shows empty.
Warning: Set the filament grip before printing. The tension bolt is still fully tight (minimum grip). Loosen it step by step until the filament feeds without slipping. Remember: loosen = more grip.

Chapter 09

Troubleshooting

Problem	Likely cause	Fix
Extruder clicks or skips, filament does not move	Tension bolt still fully tight (minimum grip)	Loosen the tension bolt step by step until the filament feeds reliably. Loosen = more grip. Also check that the hotend is at printing temperature.
Filament is chewed, plastic dust in the extruder	Grip too strong	Tighten the tension bolt a little (tighten = less grip). Blow out the dust.
Gears bind, motor hums or stalls	Dowel pin (B) not fully in, bearing (E) not flush, or a gear not meshing	Remove the front body and motor. Check that every gear turns freely by hand (steps 2 to 5).
Runout sensor always shows "no filament"	Steel ball (J) missing, or switch (H) fitted the wrong way	Check the ball is in its pocket (step 10) and the switch trigger is on the right (step 6).
Runout sensor never triggers	Switch cable unplugged or damaged	Check the plug on the breakout board (step 21) and the switch wiring.
Filament stops at the hotend or will not load	PTFE insert (I) missing, wrong length or crushed; hotend throat not fully in	Cut a new square 5 mm insert (step 8). Re-seat the hotend (step 18).
Hotend wobbles or sits crooked	Clamp bolts loose	Tighten the two M3 clamp bolts (step 19).
Jams after printing for a while	Hotend fan not running or mounted the wrong way round (heat creep)	Check the fan cable and the airflow direction (step 20). Never heat the hotend without this fan.

Still stuck?

Send 3DISM support on WhatsApp (+92 313 6806169) a photo or a short video of the problem and tell us your printer model. We build and service these toolheads every day.
