QALAM Series
QALAM Pro 400
Bigger canvas. Same precision.
₨ 375,000
In stock — ships across Pakistan
The same 500 mm/s CoreXY speed, scaled to a massive 400 × 400 × 400 mm enclosed build volume — 64 litres for large-format parts and production batches, without the wait.
Machines are paid by bank transfer (no cash on delivery) — we confirm everything on WhatsApp before you pay, and ship your machine assembled & calibrated.

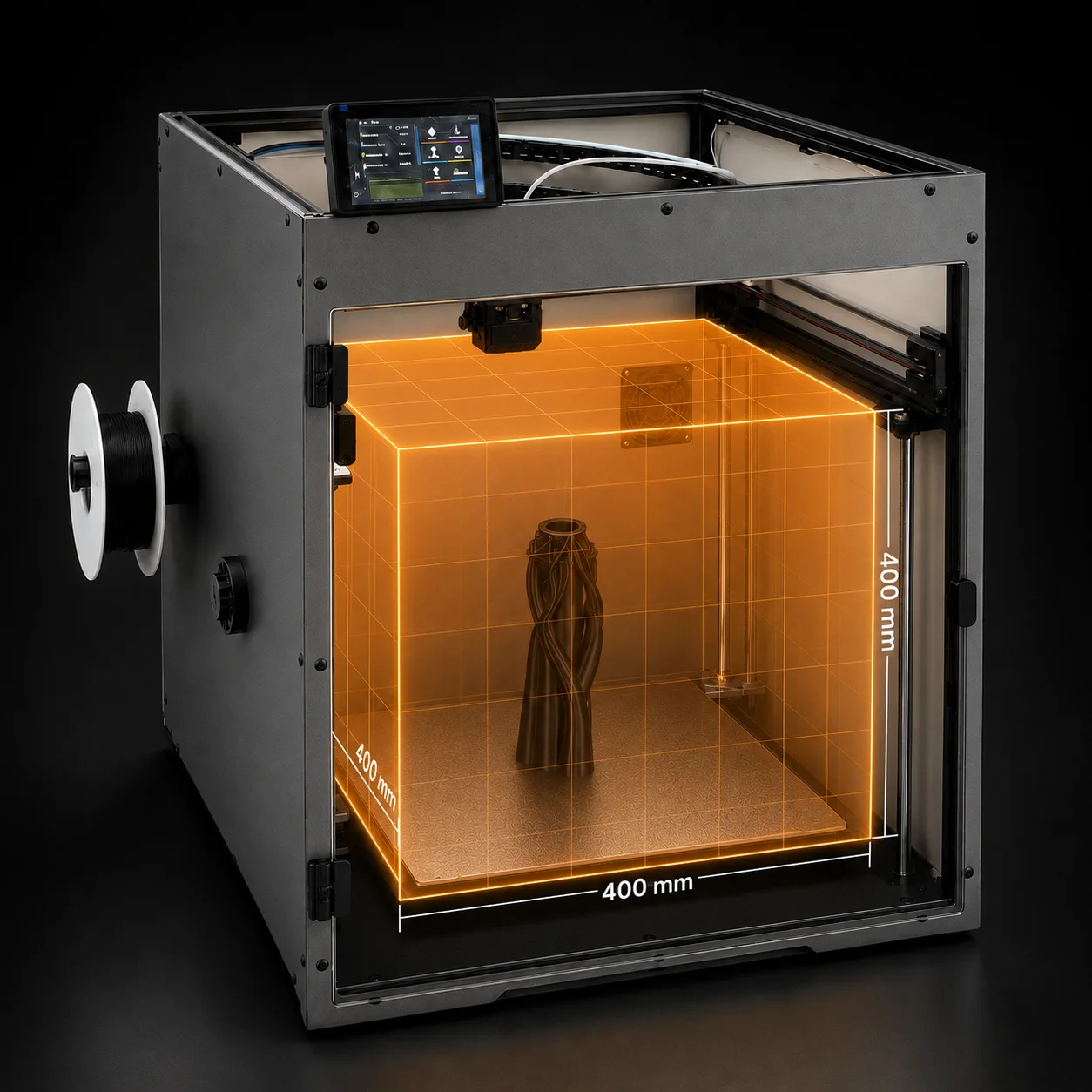

64 litres of enclosed build space
A 400 × 400 × 400 mm cube — print helmets, enclosures, cosplay armour, jigs and production batches in one piece. No splitting, no gluing.
500 mm/s. All day.
Rigid CoreXY motion at 500 mm/s and 11,000 mm/s² acceleration, with input shaping and pressure advance tuned per machine — speed that never costs you corners.
350 °C. Every material.
All-metal high-performance hotend sustains 350 °C — PLA to polycarbonate, nylon, and carbon-fiber composites. Your material, your rules.

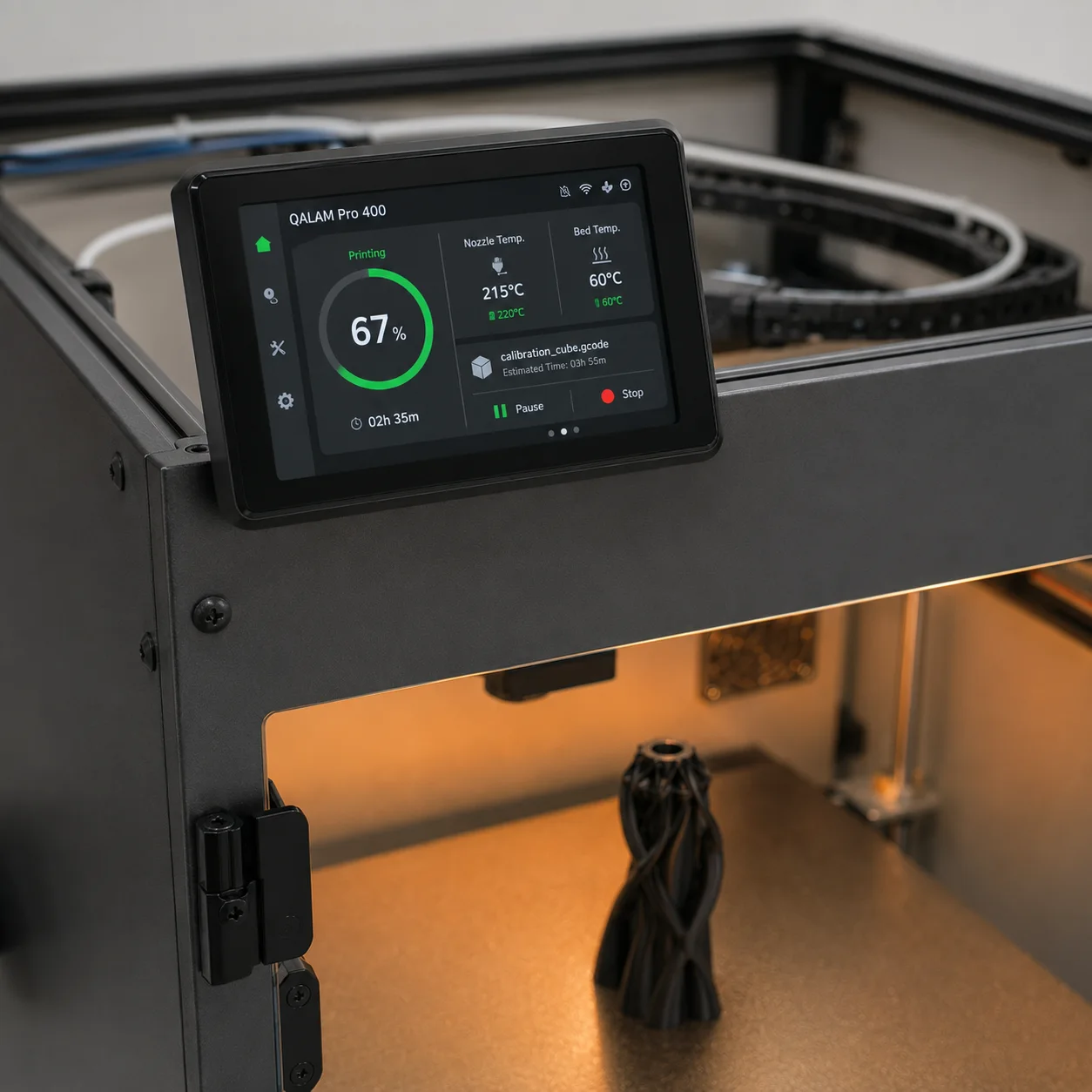

Touchscreen + free remote monitoring
Full-HD touchscreen running 3DISM's own Klipper fork, plus 3DISM Remote — watch and control prints from any browser, free for life, zero setup.
Built and supported in Pakistan
Designed, assembled and serviced by 3DISM. Local spare parts, local warranty, and support on WhatsApp in your language — no import gamble.
Build volume
64 litres of enclosed build space
A 400 × 400 × 400 mm cube — print helmets, enclosures, cosplay armour, jigs and production batches in one piece. No splitting, no gluing.
About the QALAM Pro 400
The QALAM Pro 400 takes the Pro 300 platform and scales it up for large-format work: bigger single-piece prints, higher batch counts, and more room for production — 64 litres of build volume, well over double the Pro 300.
Big does not mean slow. It shares identical motion and thermal specifications with the Pro 300 — the same 500 mm/s CoreXY system at 11,000 mm/s², the same 350 °C all-metal hotend and 125 °C bed, the same fully enclosed chamber, the same touchscreen and free remote monitoring. Moving between the two machines feels identical, just bigger.
For workshops, service bureaus and product developers in Pakistan who keep running out of bed space, this is the machine that ends the compromise.
Inside the QALAM
Engineered without compromise
Extrusion
DXC dual-drive extruder
A top-of-the-line direct-drive extruder with dual hardened drive gears and a low-friction DXC coating — grippy, precise filament control from flexible TPU to abrasive carbon-fibre composites, with none of the slipping or grinding cheaper extruders suffer at speed.
Hotend
350 °C all-metal hotend
An all-metal hotend that sustains 350 °C — hot enough for PLA and PETG right through to polycarbonate, nylon and carbon-fibre-filled engineering materials. Your material, your rules.

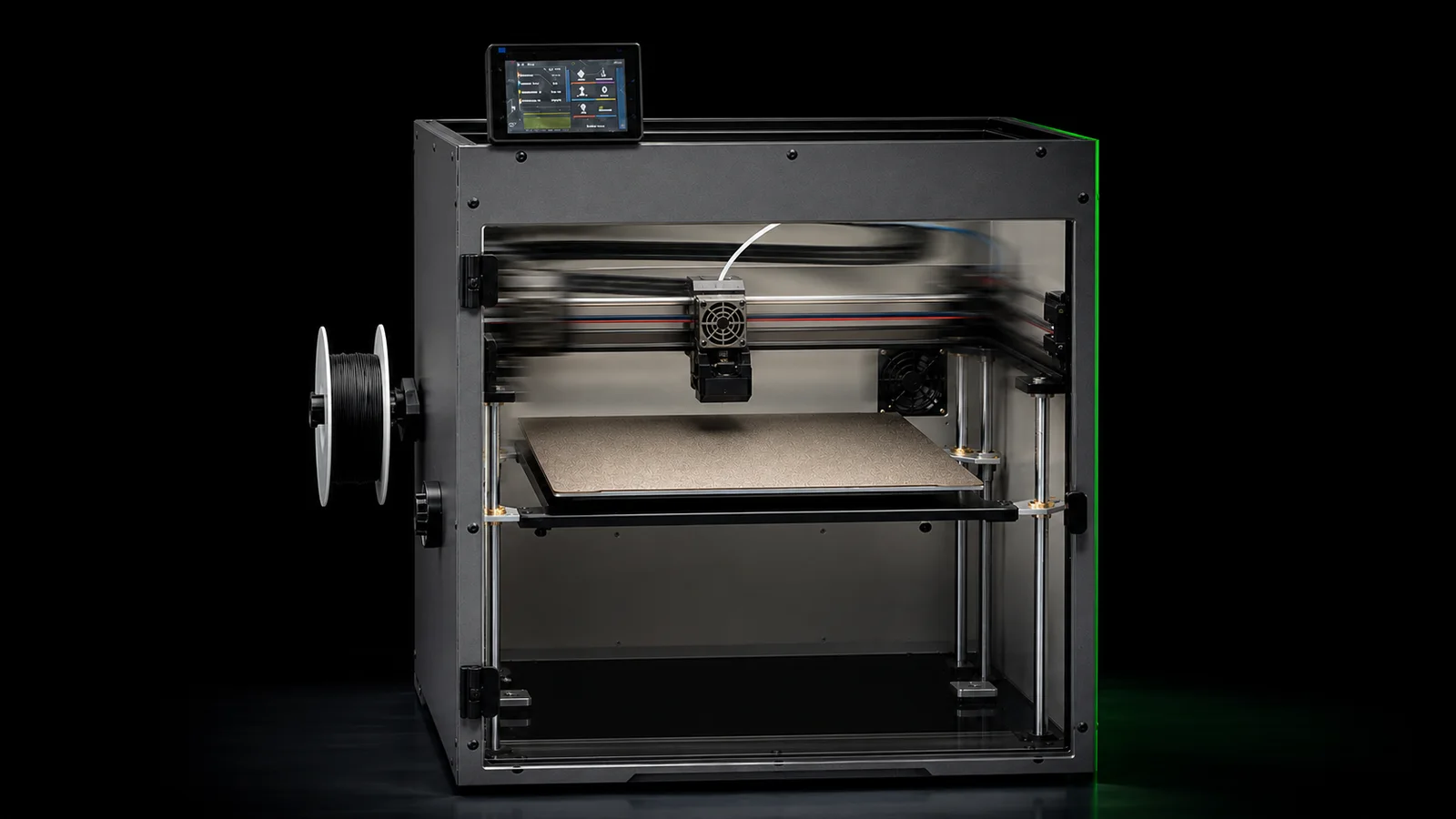

Speed
500 mm/s CoreXY motion
A rigid CoreXY motion system runs at 500 mm/s with 11,000 mm/s² acceleration, tuned per machine with input shaping and pressure advance so corners stay sharp at full pace. Prints that take a bedslinger all weekend come off a QALAM overnight.

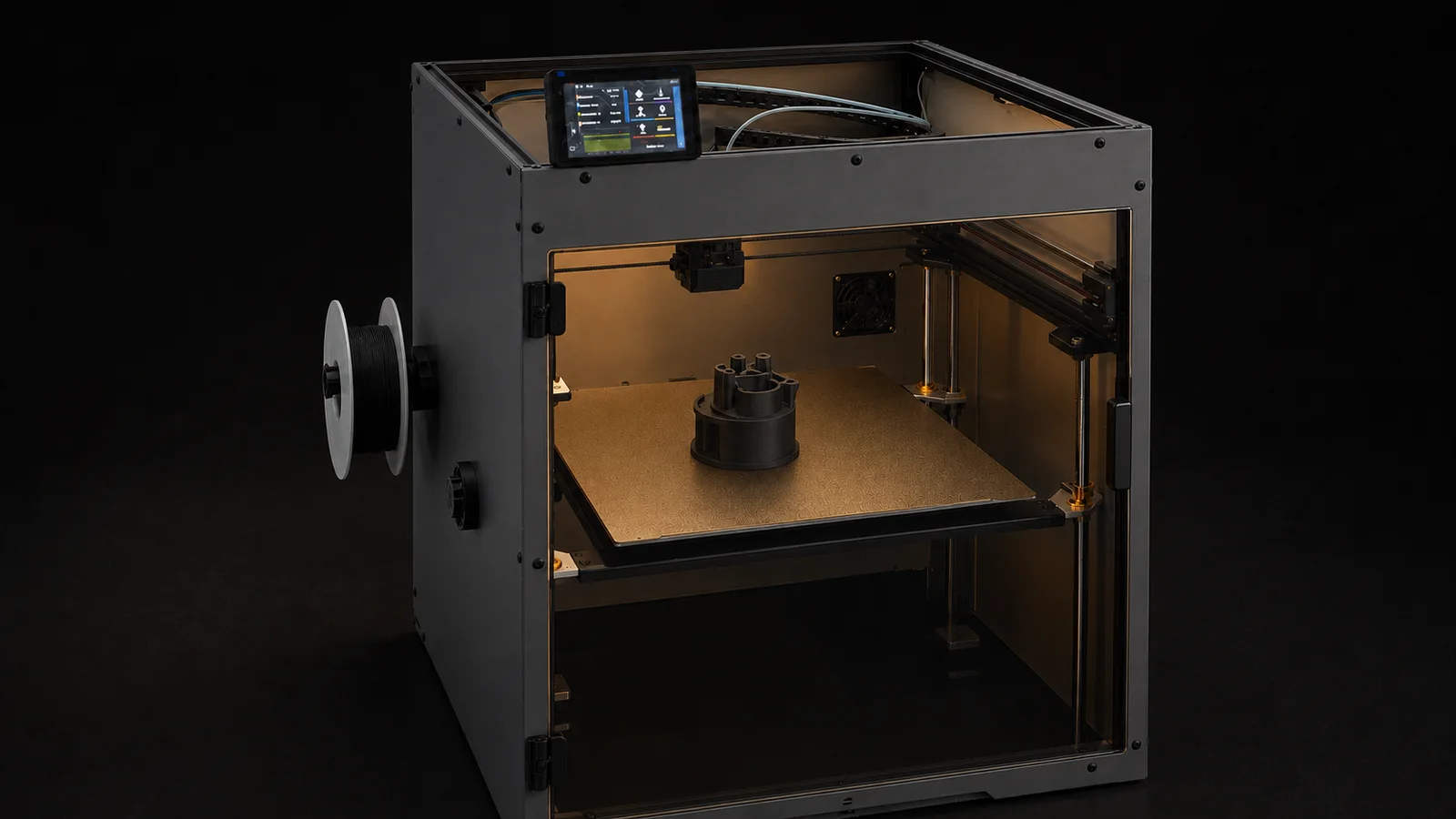

Enclosure
Fully enclosed chamber
A fully enclosed, actively managed chamber holds heat steady so high-temperature materials like ABS and ASA print without warping, cracking or delaminating — and keeps fumes and noise in.
Bed
125 °C heated bed
A high-temperature heated bed reaches 125 °C for rock-solid adhesion of warp-prone materials like ABS and ASA, on a spring-steel PEI flex plate that pops finished prints off with a single flex.
Calibration
Automatic bed leveling
Fully automatic bed leveling maps the surface and compensates before every print, so a perfect first layer isn't a ritual — it just happens. No paper, no knobs, no guesswork.
Technical specifications
Build & Motion
- Build volume
- 400 × 400 × 400 mm
- Kinematics
- CoreXY
- Max print speed
- 500 mm/s
- Max acceleration
- 11,000 mm/s²
- Motion tuning
- Input shaping + pressure advance (firmware-level)
Extrusion & Hotend
- Extruder
- Direct drive, BMG dual-drive with DXC low-friction coating
- Max hotend temperature
- 350 °C all-metal
- Filament diameter
- 1.75 mm
- Materials
- PLA, PLA+, PETG, ABS, ASA, HIPS, PC, TPU/TPE, Nylon (PA, PA12), CF/GF composites
Bed & Chamber
- Heatbed
- AC silicone, up to 125 °C, full-surface uniformity
- Build surface
- Spring-steel PEI flex plate
- Leveling
- Automatic 3-point Z with pre-print mesh compensation
- Enclosure
- Fully enclosed, active chamber fans with independent temperature management
Electronics & Firmware
- Firmware
- Klipper (3DISM's own fork) on Linux
- Controller
- 32-bit ARM processor
- Stepper drivers
- TMC2209 silent, StallGuard-enabled
- Power
- 110 / 220 V AC
Display & Connectivity
- Display
- Full-HD HDMI touchscreen
- Connectivity
- Wi-Fi
- Remote access
- 3DISM Remote — free lifetime cloud monitoring, browser-based, no VPN or port forwarding
Physical
- Shipping box
- 26 × 26 × 30 in (660 × 660 × 762 mm)
- Shipping weight
- ≈ 30 kg
In the box
- Assembled & calibrated machine
- Power cable & toolkit
- Sample filament
- Spare nozzle
- Quick-start guide + warranty card
Ready when you are.
Order the QALAM Pro 400 now on WhatsApp — or if you need a more compact machine, have a look at the QALAM Pro 300.
